INTRODUCTION
Following is a brief summary of the system used in compiling this Catalogue. It is to your advantage to
carefully study this summary.
1 General: This catalogue is divided into individual groups as indicated on the key page. The
thumb tabs on this page direct the user of the Catalogue to the index page for each particular
group. This Catalogue is also divided into four separate sections. Introductory pages, Indexes
to Units, Illustrations and Parts Lists and Numerical Index.
2 Indexes: There are three types of Indexes in the Catalogue:
(A) Group Index in the front of the Catalogue.
(8) Separate Group Indexes to Units.
(C) Numerical Index at the back of the Catalogue contain a listing of part numbers.
NOTE: It is important that you refer frequently to the Index to Units. Failure to do so will result in not
being able to locate the proper unit.
3 Illustrations: The “exploded views” of each unit show individual parts clearly and in their
proper relationship to each other. This method of illustrating makes it easy to locate parts,
whether they are ordered by description or by part number. Reference numbers only
areshown in each illustration. These numbers correspond to those in the reference column in
the list which follows each “exploded view”.
CAUTION: Reference numbers should not be used when ordering parts. ALWAYS use Case IH
part numbers or description when ordering.
4 Method of Listing: The Parts Catalogue is divided into groups or units. Parts are listed in
order by reference number of illustration, followed by a description based upon “noun first”
method in three languages. In the next column further information e.g. dimensions is given.
The extreme right columns give the quantity required per tractor model.
“x” In quantity column – order as required.
Throughout this Catalogue the terms “Right”, “Left”, “Front” and “Rear” are to be interpreted as seen
from the operators seat when facing forward.

Numeros de pieces: Lorsque les lettres – suffixes d’un numero de piece sont avancees,
la nouvelle piece remplacera I’ancienne sauf indication contraire. Lorsque Ie suffixe ‘R’ est
utilise, R2 remplacera R1 ,R12 remplacera R11, R21 remplacera R11 et R92 remplacera R91.
Numeros de Serie: Les discontinuites dans les numeros de serie sont figurees camme
suit:-
– Jusqu’ou numero de serie ( – 001 309)
– A partir du numeros de serie et la suite (001 310-)
6 Ensembles et accessoires: Partout ou ce la est Dossible. les Dieces constituantes
des ensembles ou des accessoires sont representees sur les eclates avec des parentheses
ou des fleches. Les pieces constituantes des ensembles ou des accessoires sont indiquees
par I’une des methodes suivantes:-
(A) Lorsque les ensembles ou les accessoires sont simple, l’enumeration est
entierement ouverte par la description.
(8) Lorsque les ensembles ou les accessoires comportent quatre pieces ou plus,
I’enumeration des pieces constituantes suit la description avec la mention:
Comprenant:
(C) Les ensembles ou les accessoires constitues de nombreuses pieces ont leur
numero mentionne au debut de la liste de l’unite, suivi de I’enumeration des pieces
constituantes .
Lorsque les differentes pieces d’un ensemble ne sont pas disponibles separement, elles sont
reperees en consequence.
7 Pieces d’attache ordinaires: Se presentent sous forme abregee et decalees par
rapport aux pieces principales avec lesquelles elles sont utilisees. Elles devront etre
commandees telles qu’elles sont enumerees etant donne qu’elles ne font pas partie des
pieces qu’elles assemblent. Les pieces d’attache identifiees par un numero de piece ont ete
concues pour en emploi determine. On ne devra pas les remplacer par des pieces d’attache
courantes.
ATTENTION: Les pieces d’assemblage specialement concues pour une application particuliere ne
devront jamais etre remplacees par des pieces courantes

TABLE OF CONTENT:

Case 921 B Wheel Loader Parts Catalogue Manual(8-9440)EN/SP/DE – PDF DOWNLOAD

8-9490……………………. 1
SECTION 1 – GENERAL…….. 4
SECTION 2 – ENGINE……… 36
SECTION 3 – FUEL……….. 50
SECTION 4 – ELECTRICAL….. 58
SECTION 5 – STEERING…….116
SECTION 6 – POWER TRAIN….140
SECTION 7 – BRAKES………210
SECTION 8 – HYDRAULIC……250
SECTION 9 – CHASSIS……..326
SECTION 10 – INDEX………422
8-9490R1…………………..450

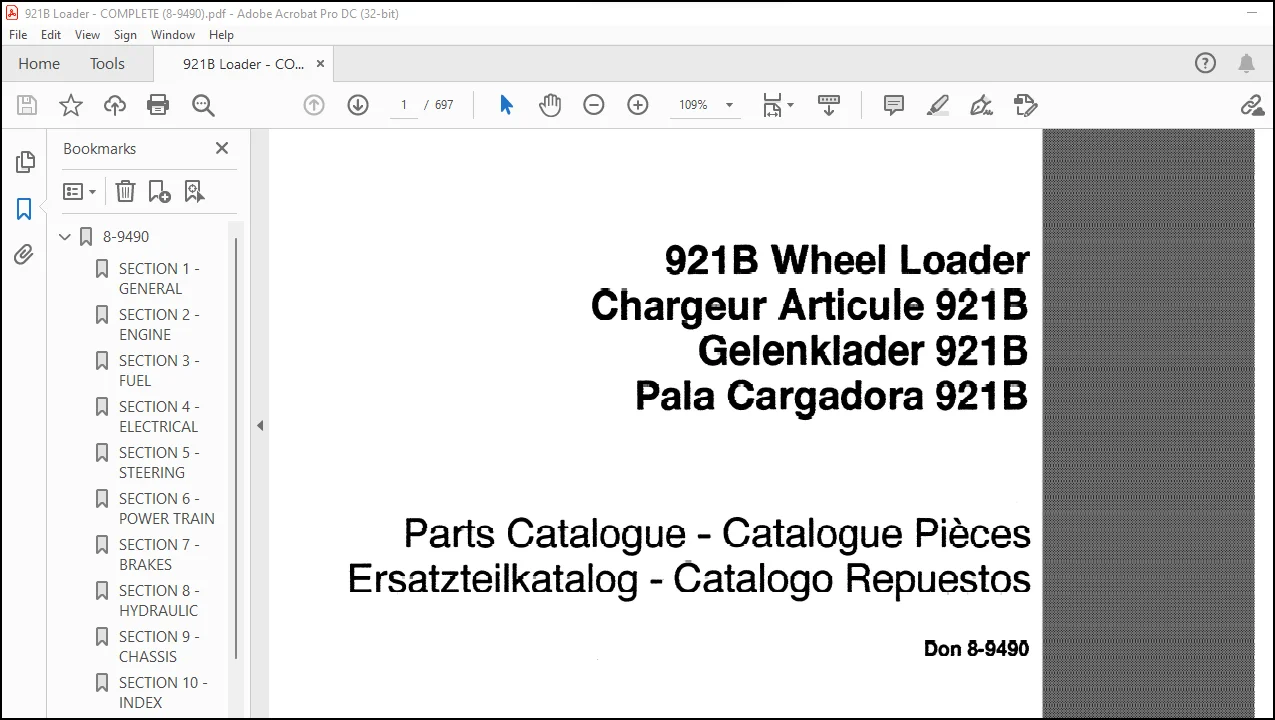

IMAGES PREVIEW OF THE MANUAL:
