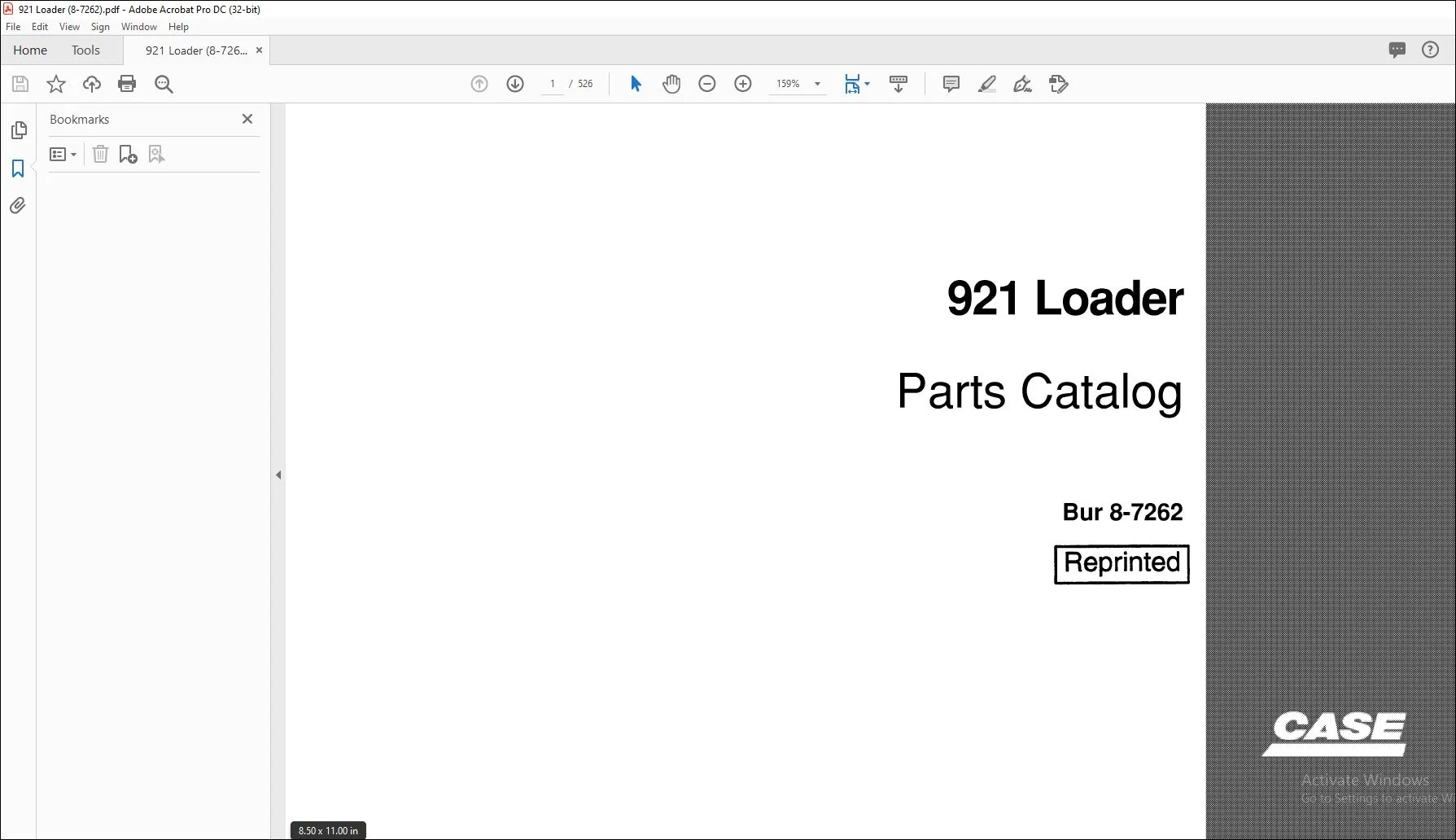

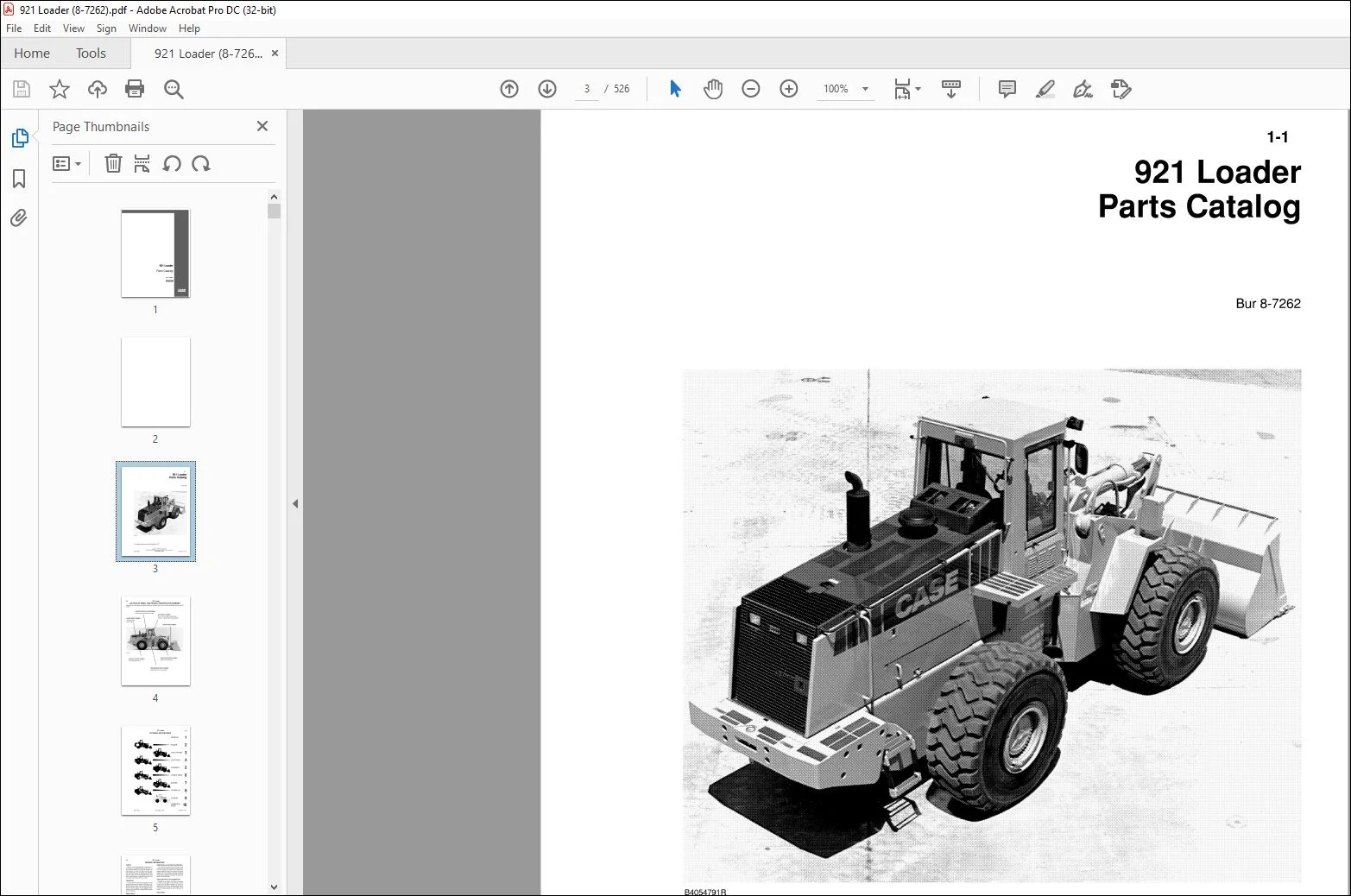

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Case 921 Loader Parts Catalog Manual 8-7262 – PDF DOWNLOAD
Indexes
Section 1 of this catalog contains a SN and PI N. location guide, alphabetical index, pictorial index of the sections included, and pictorial index(es) for quick location of hoses and tubes (and other system components in some catalogs) An alphabetical index also appears at the beginning of each section Section 10 is the Numerical Index which lists all part numbers in alpha/numeric order with their page location and reference number.
lllustration and Text

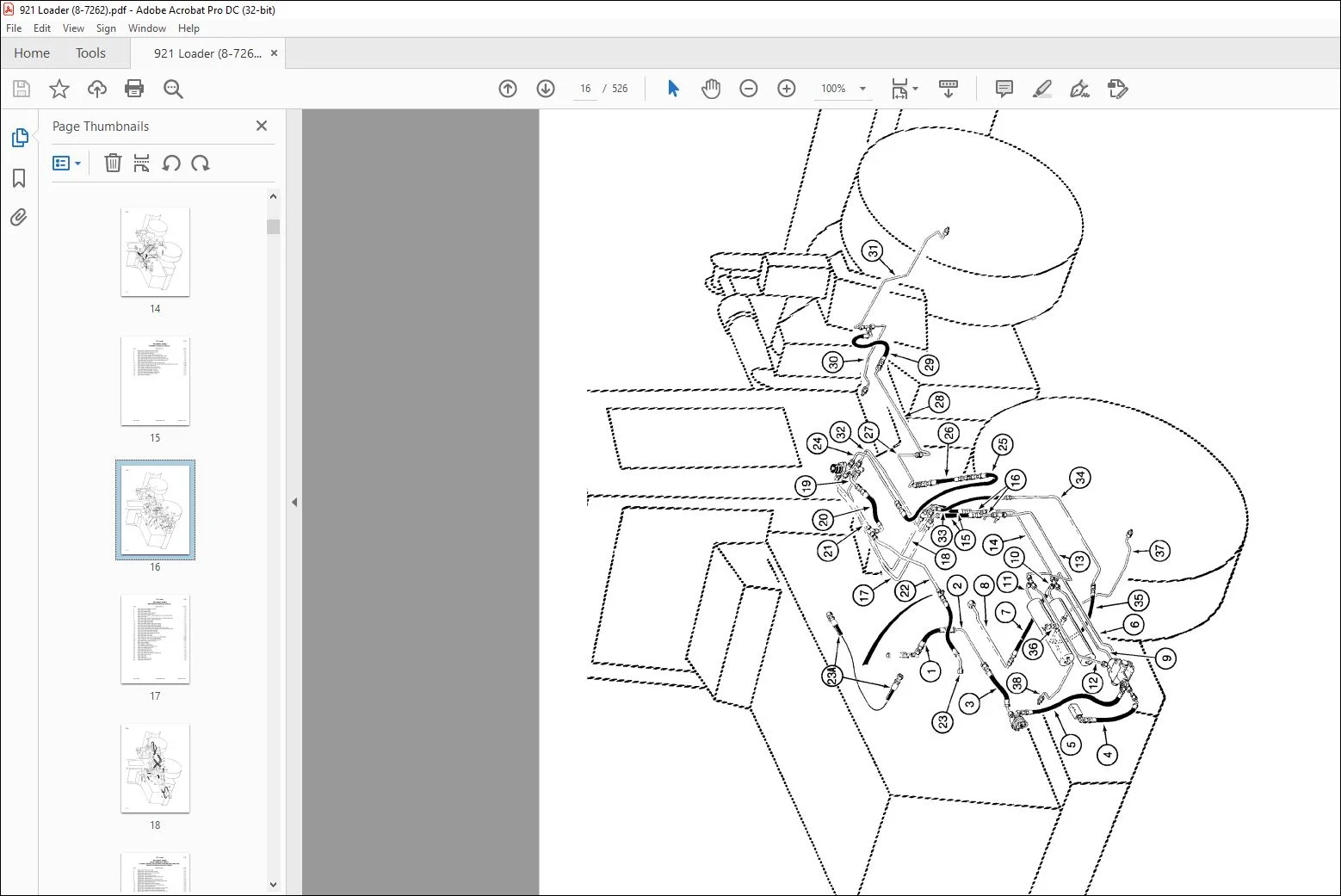

The arrangement of this parts catalog is for easy identification of parts Ali parts are illustrated in “exploded views” in proper relation to each other. Reference numbers used in the illustrations reter to those on the text pages. The text pages list reference number, part number, part description and the quantity required.
TABLE OF CONTENTS:
Case 921 Loader Parts Catalog Manual 8-7262 – PDF DOWNLOAD
GENERAL 1
ENGINE 2
FUEL SYSTEM 3
ELECTRICAL 4
TRACKS/ STEERING 5
POWER TRAIN 6
BRAKES 7
HYDRAULIC 8
CHASSIS 9
NUMERICAL INDEX 10
