Case 921B Wheel Loader Operators Manual 9-26564 – PDF DOWNLOAD

Description

Case 921B Wheel Loader Operators Manual 9-26564 – PDF DOWNLOAD

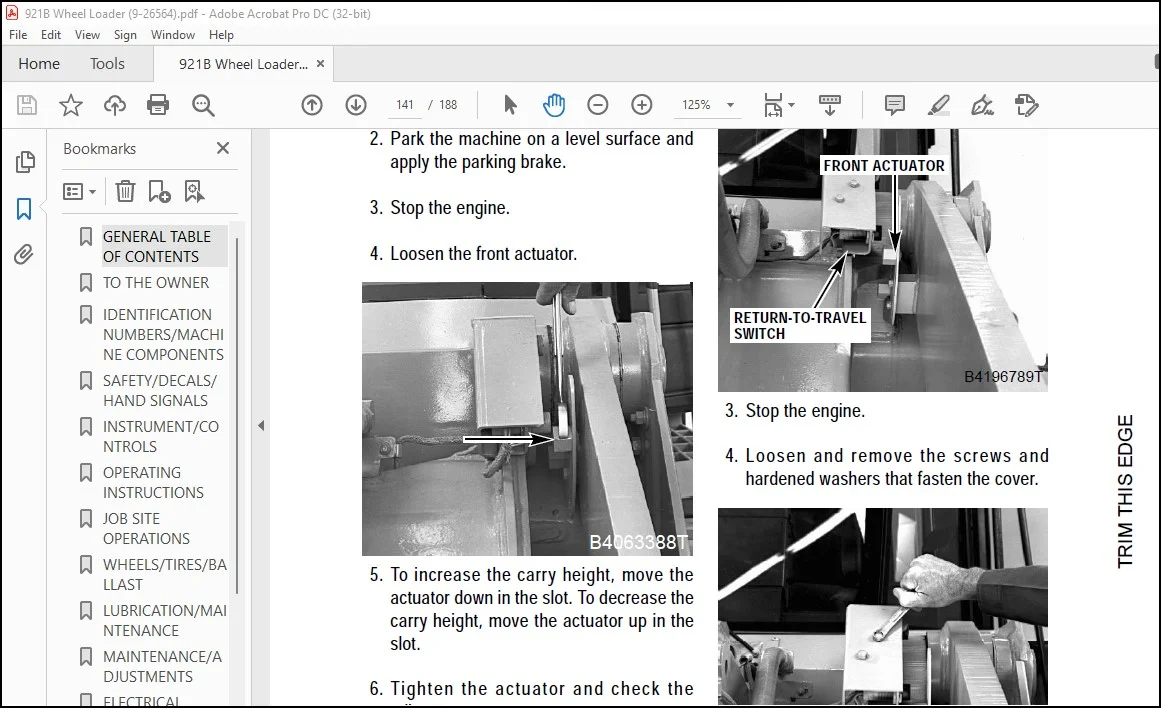

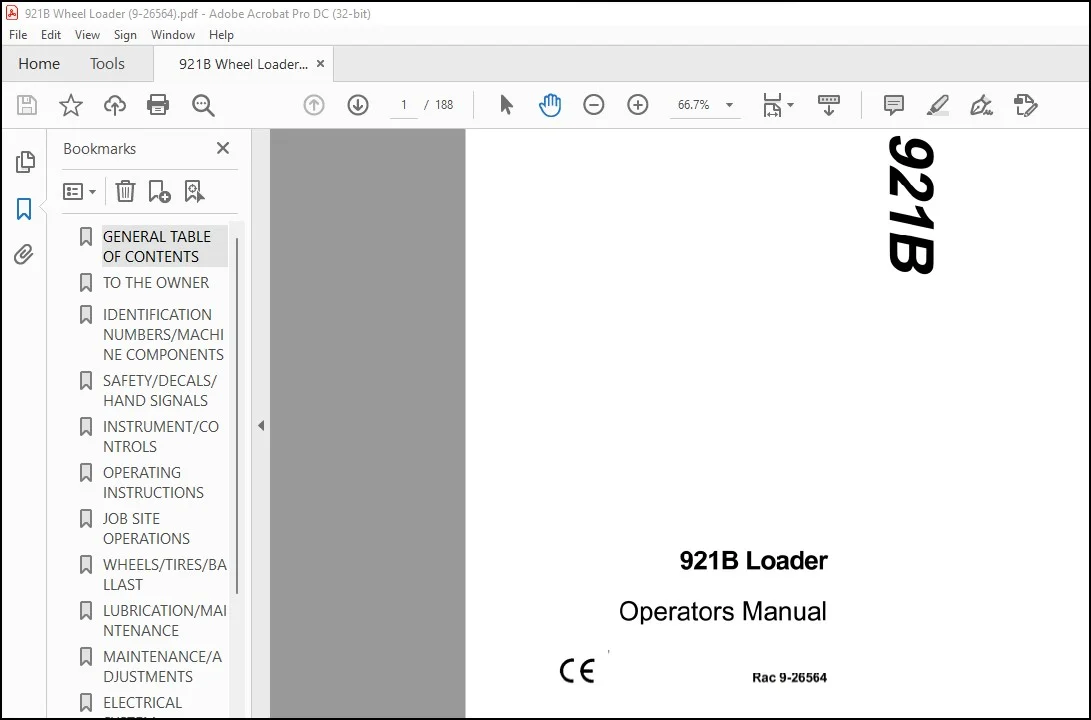

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Case 921B Wheel Loader Operators Manual 9-26564 – PDF DOWNLOAD

TO THE OWNER:

This manual contains important information about the safe operation, adjustment and maintenance of your Case Wheel Loader. Refer to the Detail Index at the end of this manual for locating specific items about your machine. This Wheel Loader conforms to current safety regulations.

• Use this manual as a guide. Your Wheel Loader will remain a reliable working tool as long it is kept in good working condition and serviced properly. DO NOT operate or permit anyone to operate or service this machine until you or the other persons have read and understand the safety, operation and maintenance instructions in this manual.
• Use only trained operators who have demonstrated the ability to operate and service this machine correctly and safely. This Wheel Loader, with standard equipment and attachments, is intended to be used for above ground level digging and general earthmoving purpose such as land leveling, truck loading and material rehandling.
• This machine is not intended to be used for towing other equipment, lifting other objects or transporting loads at high speed. DO NOT use this machine for any application or purpose other than those described in this manual. If this machine is to be used in an application that involves special attachments or equipment, such as forestry, etc., consult your authorized dealer or the Case Corporation.
• Consult your authorized dealer or the Case Corporation on changes, additions or modifications that can be required for this machine to comply with various country regulations and safety requirements. Unauthorized modifications will cause serious injury or death. Anyone making such unauthorized modifications is responsible for the consequences.
• This Operators Manual is to be stored in the manual compartment equipped on this machine. Make sure this manual is complete and in good condition. Contact your dealer to obtain additional manuals. Contact your dealer for any further information or assistance about your machine. Your dealer has Case Corporation approved service parts. Your dealer has technicians with special training that know the best methods of repair and maintenance for your Wheel Loader.

TABLE OF CONTENTS:

Case 921B Wheel Loader Operators Manual 9-26564 – PDF DOWNLOAD

TO THE OWNER 1
921B LOADER 1
AFTER DELIVERY CHECK 4
RIGHT, LEFT, FRONT AND REAR SIDES OF THE MACHINE 4
IDENTIFICATION NUMBERS/MACHINE COMPONENTS 5

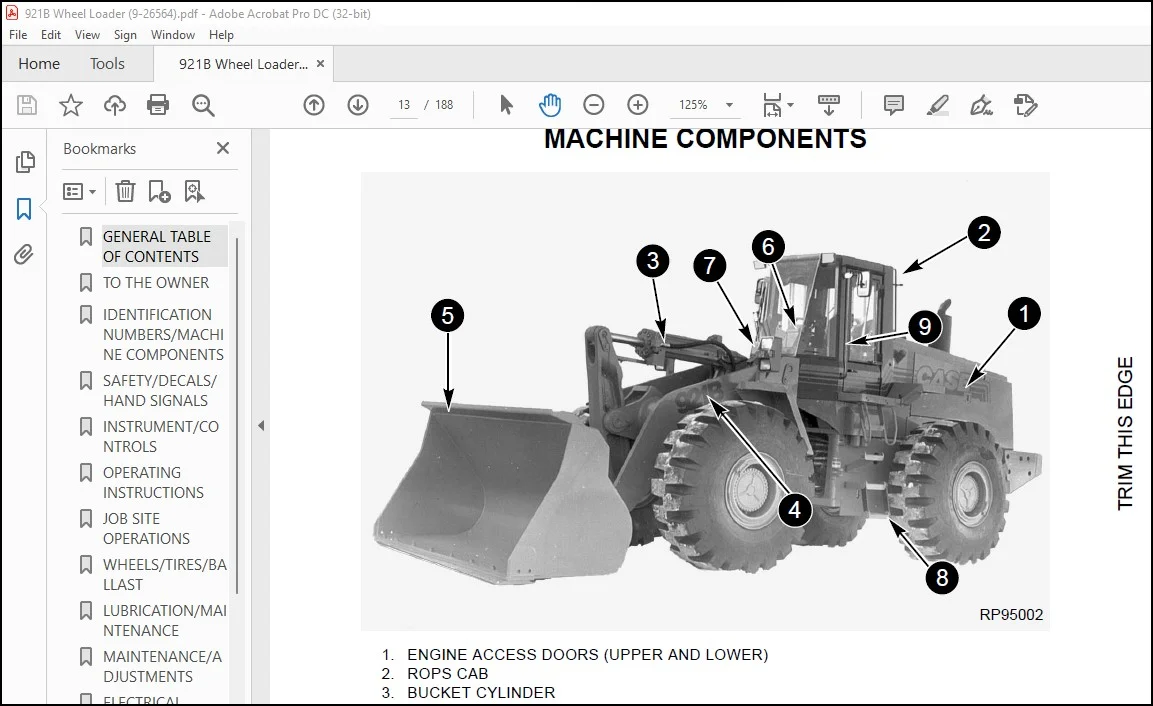

MACHINE COMPONENTS 7
SAFETY/DECALS/HAND SIGNALS 9
SAFETY RULES 9
BEFORE OPERATION 10
MACHINE OPERATION 11
PARKING THE MACHINE 11
MAINTENANCE 12
BURN PREVENTION 13
FIRE OR EXPLOSION PREVENTION 13
WHEELS AND TIRES SAFETY 14
SAFETY DECALS 15
HAND SIGNALS 20
HAZARDOUS CHEMICALS 22
UNIVERSAL DECALS 23
INSTRUMENT/CONTROLS 25
FRONT CONSOLE 25
KEY SWITCH 34
LOADER CONTROL PANEL 35
QUICK ATTACH COUPLER (IF EQUIPPED) 36
RIDE CONTROL 38
INSTRUMENT PANEL 39
OPERATORS SEAT 49
OPERATING INSTRUCTIONS 52
BEFORE STARTING THE ENGINE 52
RUN-IN PROCEDURE 52
SEAT BELT 53
STARTING THE ENGINE 54
STOPPING THE ENGINE AND PARKING THE MACHINE 56
MACHINE OPERATION 59
LOADER CONTROL LEVERS 61
LOADER FUNCTION SWITCHES 63
BUCKET LEVEL INDICATOR 65
AUXILIARY HYDRAULIC CONNECTION 66
QUICK ATTACH COUPLER (IF EQUIPPED) 67
II
TRIM THIS EDGE
TRIM THIS EDGE
LEFT PAGE Template Name: OM_1_col
Template Date: 1994_05_26
Alt= to hide template information
Alt+ to display template information
INTERMITTENT LIGHT 69
JOB SITE OPERATIONS 71
LOADER OPERATING TIPS 71
MACHINE HITCH INFORMATION 73
TRANSPORTING THE MACHINE 74
OPERATING IN COLD WEATHER 76
OPERATING IN HOT WEATHER 78
LIFTING THE MACHINE 79
WHEELS/TIRES/BALLAST 80
BALLAST 80
WHEELS AND TIRES 81
LUBRICATION/MAINTENANCE 85
GENERAL SAFETY BEFORE YOU SERVICE 85
PLASTIC AND RESIN PARTS 86
ENVIRONMENT 86
TRANSPORT/SERVICE LINK 86
ENGINE HOURMETER 87
ACCESS DOORS 91
SYSTEMGARD LUBRICATION ANALYSIS PROGRAM 92
GREASE FITTINGS – 50 HOURS 93
GREASE FITTINGS – 100 HOURS 94
GREASE FITTINGS – 100 HOURS 94
GREASE FITTINGS – 1000 HOURS 95
FLUID LEVELS 96
ENGINE LUBRICATION 98
AIR FILTER SYSTEM 102
ENGINE COOLING SYSTEM 106
DIESEL FUEL SYSTEM 109
HYDRAULIC SYSTEM 113
TRANSMISSION 121
AXLES 124
CAB AIR FILTER (IF EQUIPPED) 127
WINDSHIELD WASHER RESERVOIR (IF EQUIPPED) 129
MAINTENANCE/ADJUSTMENTS 130
CAB SERVICE 130
LOADER ADJUSTMENTS 133
ROLL-OVER PROTECTIVE STRUCTURE 143
TORQUE SPECIFICATIONS FOR SEAT
AND SEAT BELTS 145
FAN, BELT, ALTERNATOR BELT AND
AIR CONDITIONING COMPRESSOR BELT 146
LOADER CONTROL ACCUMULATOR 150
SERVICE ELECTRICAL CONNECTOR 150
III
TRIM THIS EDGE
TRIM THIS EDGE
RIGHT PAGE
Template Name: OM_1_col
Template Date: 1994_05_26
Alt= to hide template information
Alt+ to display template information
FIRE EXTINGUISHER MOUNTING 151
SECONDARY STEERING CHECK 152
ELECTRICAL SYSTEM 153
FUSES 155
REPLACEMENT BULBS 156
MACHINE STORAGE 157
SPECIFICATIONS 159
OPERATING DATA AND DIMENSIONS – 921B 159
OPERATING DATA AND DIMENSIONS – 921B XR 162
ENGINE DATA 165
TRAVEL SPEEDS (WITH 26 5 X 25 TIRES) 165
OPERATING WEIGHT ADJUSTMENTS 166
SPECIAL BOLT TORQUES 167
SPECIAL TOOL 168
NOISE LEVEL 168
VIBRATION LEVEL 168
AFTER DELIVERY CHECK 169
DETAIL INDEX 173

Contact us: [email protected]

https://vimeo.com/725664797

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer

S.V
