Case Crawler Dozer 1650K Service Manual

FILE DETAILS:

Case Crawler Dozer 1650K Service Manual

Size : 38.1 MB
Format : PDF
Language : English
Number of Pages : 319 pages
Brand: Case
Type of machine: Crawler Dozer
Type of document: Service Manual
Model: Case Crawler 350B
Part No: 6-46470R0

CASE CRAWLER DOZER 1650K SERVICE MANUAL 6-46470R0 – PDF DOWNLOAD:

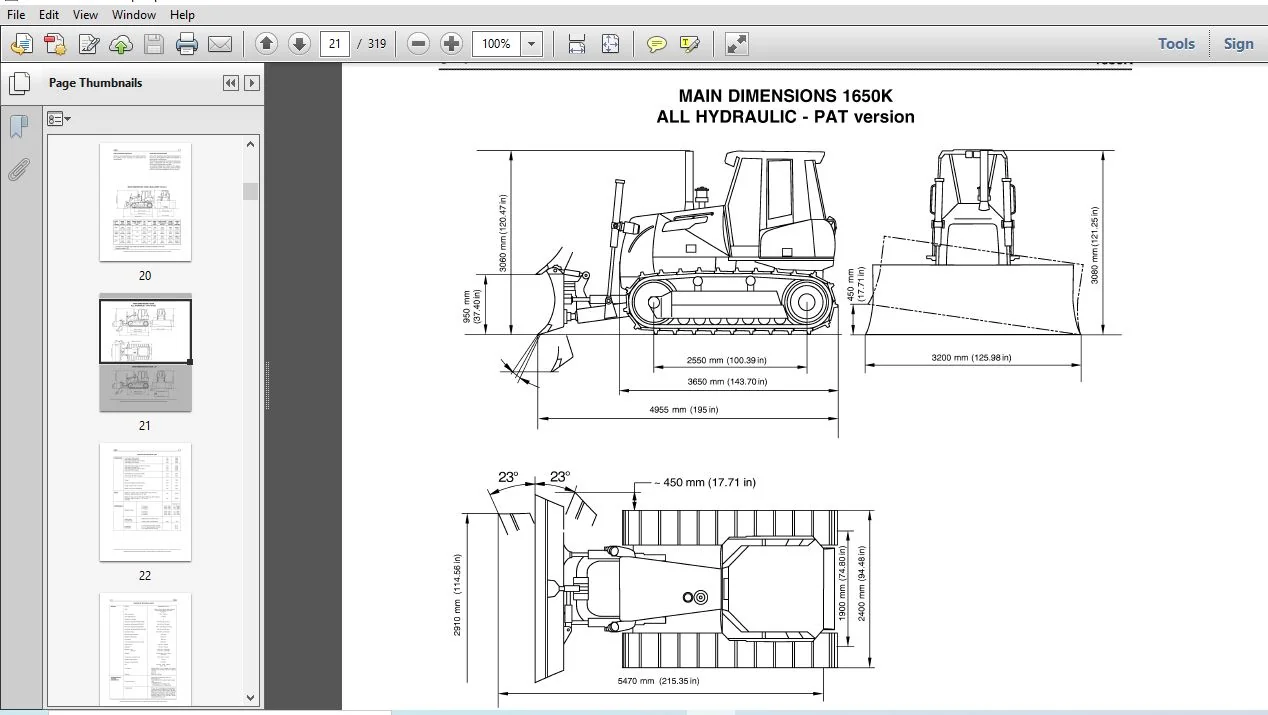

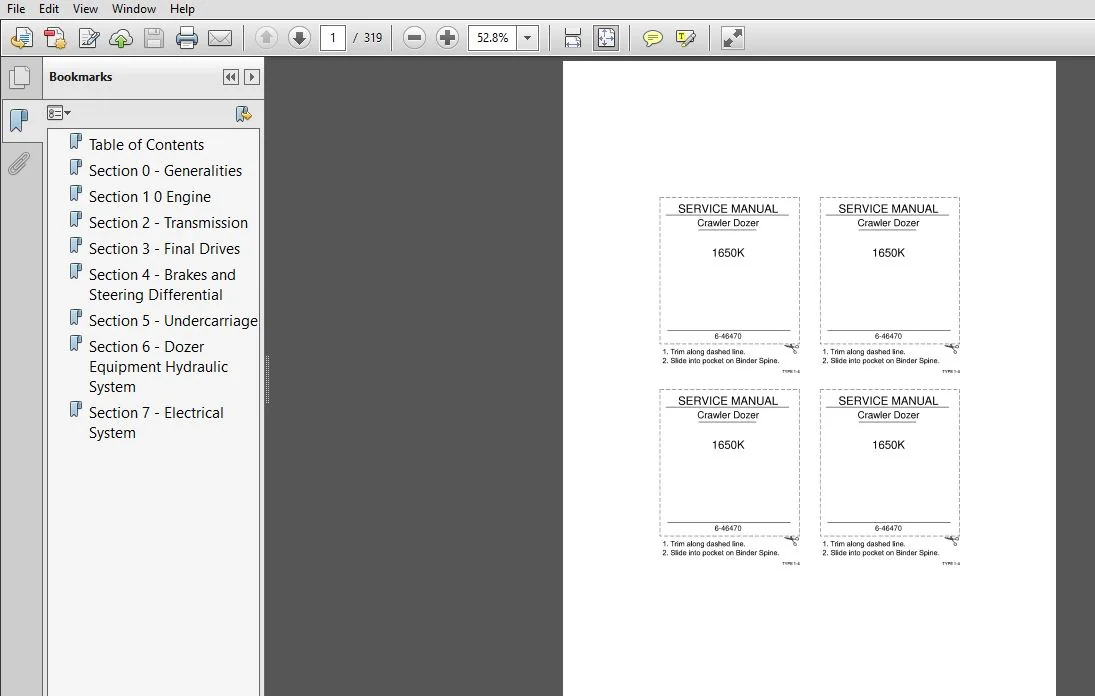

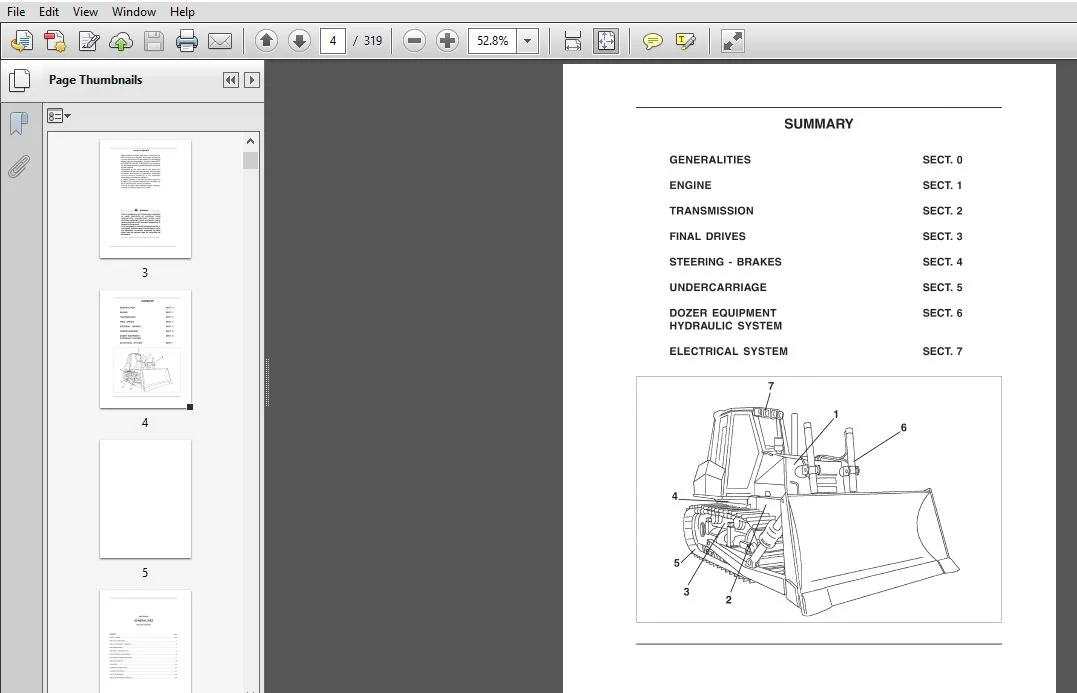

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Case Crawler Dozer 1650K Service Manual

SAFETY RULES :

Do not allow unauthorised personnel to operate service or maintain this machine. – Do not wear rings, wrist watches, jewellery. loose or hanging apparels. such as ties. tom clothing. scarves. unbuttoned or unzipped jackets that can catch on moving parts. Wear proper safety equipment as recommended ior the job. Examples: hard hat, heavy gloves, ear protection. safety glasses or goggles. reflector vests. respirator. Consult your employer for specilic safeiy equipment requirements.

• Keep operator’s compartment, stepping points, grab- rails and handles clear of foreign objects. oil. grease. mud or snow accumulation to minimise the danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.
•  Do not jump on or oil the machine. Keep two hands and one foot. or two feet and one hand in contact with step grab rails and handles at all times.
• Do not use conth or hoses as hand hoids when climbing on or oil machine. Hoses and controls are movable and do not provide a solid support. Also. controls may be inadvertently moved musing acciden- tal machine or equipment movement.
• Never attempt to operate the machine or its tools from any position other than seated in the operator‘s seat.
• Keep head. body, limbs. hands and feet inside opera- tor’s compartment at all times, to reduce exposure to hazards outside the operator’s compartment.
• Be carotul oi slippery conditions on stepping points, hand laiB. and on the ground. Wear safety boots or shoes that have a high slip resistant sole material. – Do not leave the machine until it is completely stopped. Check the seat solely belt at least twice a year. Il there are signs at wear or haying or other signs of weakness that could lead to failure, replace it.

STARTING :

• NEVER START NOR OPERATE AN UNSAFE MA- CHINE. Beioro operating a machine, always ensure that any unsafe condition has been satisfactorily remedied.
• Check brakes. steering and attachment controls before moving. Advise the proper maintenance authority of any malfunctioning part or system.
• Be sure all protective guards or panels are in place, and all safety devices provided are in place and in good operating conditions.
• Be sure exposed personnel in the area of operation are clear oi the machine before moving it or its attachments. WALK COMPLETELY AROUND the machine before mounting. Sound hom.
• Before starting machine, check. adjust and lock the operator’s seat for maximum comfort and control of the machine.
• Fasten your seat belt (when provided).
• Obey all flag signals and signs.
• Due to the presence on the machine of flammable fluids. never check or fill luel reservoirs or batteries near open flames. smoking materials or sparks.
• REMEMBER THAT STARTING FLUID IS FLAMMABLE. Follow strictly the recommendations printed on containers and In the Operation and Maintenance Manual. – DO NOT PUNCTURE OR BURN CONTAINERS.
• Containers must be stored in fresh, well ventilated places. out of reach of unauthorised persons. Follow strictly the Instructions provided by the Manufacturer.
• Never use these products nsar open flames, smoking materials or sparks.

TABLE OF CONTENTS:

Case Crawler Dozer 1650K Service Manual

Table of Contents
...............................  4
Section 0 - Generalities
........................  6
Section 1 0 Engine............................... 46
Section 2 - Transmission
........................ 58
Section 3 - Final Drives
........................126
Section 4 - Brakes and Steering Differential
....150
Section 5 - Undercarriage
.......................237
Section 6 - Dozer Equipment Hydraulic System
....269
Section 7 - Electrical System
...................296

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
