Case Crawler Dozer 750L & 850L Tier 3 Repair Manual 87728445NA – PDF DOWNLOAD

Description

Case Crawler Dozer 750L & 850L Tier 3 Repair Manual

FILE DETAILS:

Case Crawler Dozer 750L & 850L Tier 3 Repair Manual

Size : 68 MB
Format : PDF
Language : English
Number of Pages : 1516 pages
Brand: Case
Type of machine: Crawler Dozer
Type of document: Repair Manual
Model: Case Crawler 750L & 850L Tier 3
Part No: 87728445NA

DESCRIPTION:

Case Crawler Dozer 750L & 850L Tier 3 Repair Manual

BASIC INSTRUCTIONS:

• Technical Information This manual has been produced by a new technical information system. This new system is designed to deliver technical information electronically through CDROM and in paper manuals. A coding system called ICE has been developed to link the technical information to other Product Support functions e.g. Warranty. Technical information is written to support the maintenance and service of the functions or systems on a customers machine.
• When a customer has a concern on his machine it is usually because a function or system on his machine is not working at all, is not working efficiently, or is not responding correctly to his commands. When you refer to the technical information in this manual to resolve that customers concern, you will find all the information classified using the new ICE coding, according to the functions or systems on that machine. Once you have located the technical information for that function or system then you will find all the mechanical, electrical or hydraulic devices, components, assemblies and subassemblies for that function or system.
• You will also find all the types of information that have been written for that function or system, the technical data (specifications), the functional data (how it works), the diagnostic data (fault codes and troubleshooting) and the service data (remove, install adjust, etc.). By integrating this new ICE coding into technical information , you will be able to search and retrieve just the right piece of technical information you need to resolve that customers concern on his machine.
• This is made possible by attaching 3 categories to each piece of technical information during the authoring process. The first category is the Location, the second category is the Information Type and the third category is the Product: LOCATION is the component or function on the machine, that the piece of technical information is going to describe e.g. Fuel tank.  INFORMATION TYPE is the piece of technical information that has been written for a particular component or function on the machine e.g. Capacity would be a type of Technical Data that would describe the amount of fuel held by the Fuel tank.
• PRODUCT is the model that the piece of technical information is written for. Every piece of technical information will have those 3 categories attached to it. You will be able to use any combination of those categories to find the right piece of technical information you need to resolve that customers concern on his machine.

CASE CRAWLER DOZER 750L & 850L TIER 3 REPAIR MANUAL 87728445NA – PDF DOWNLOAD:

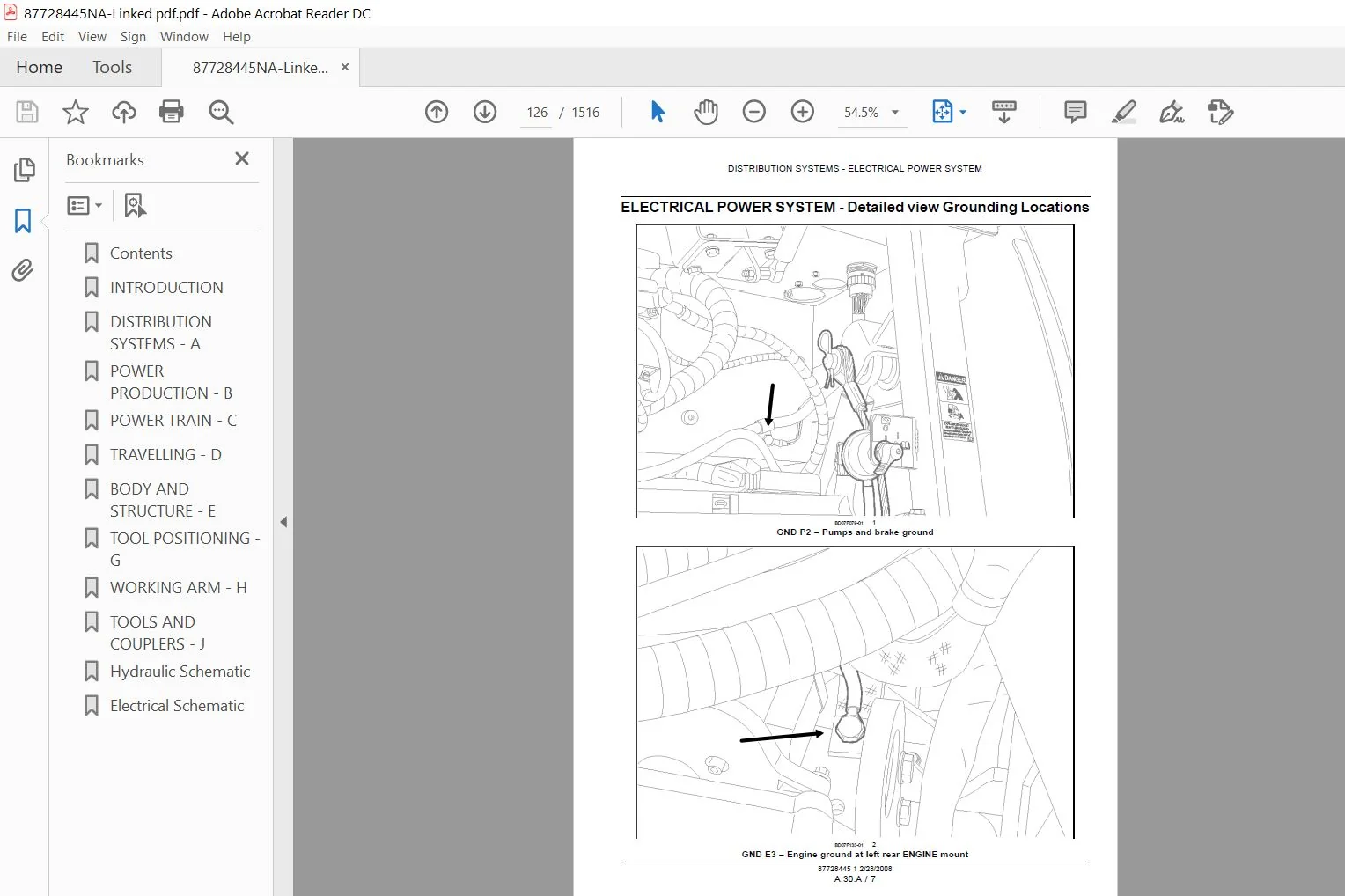

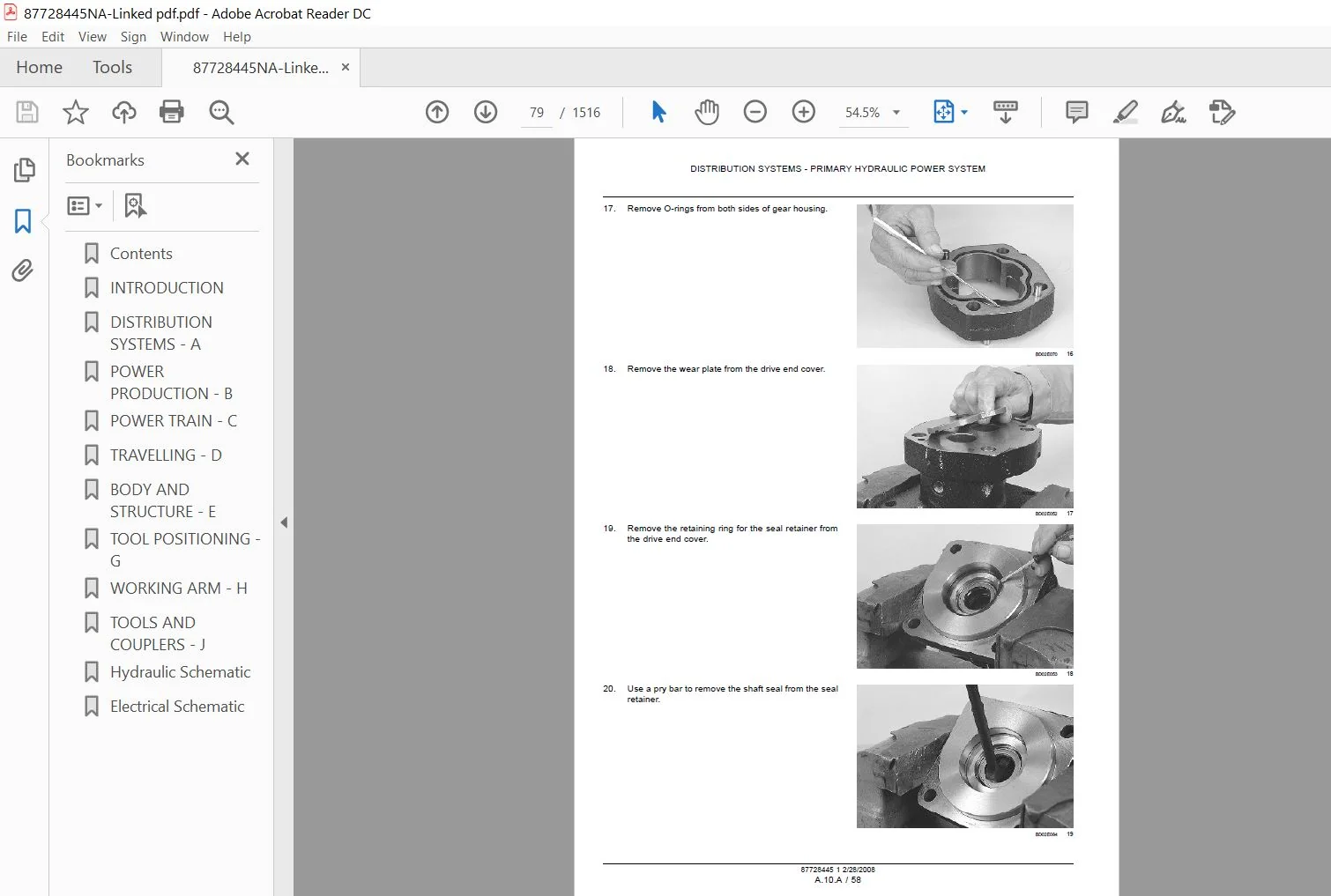

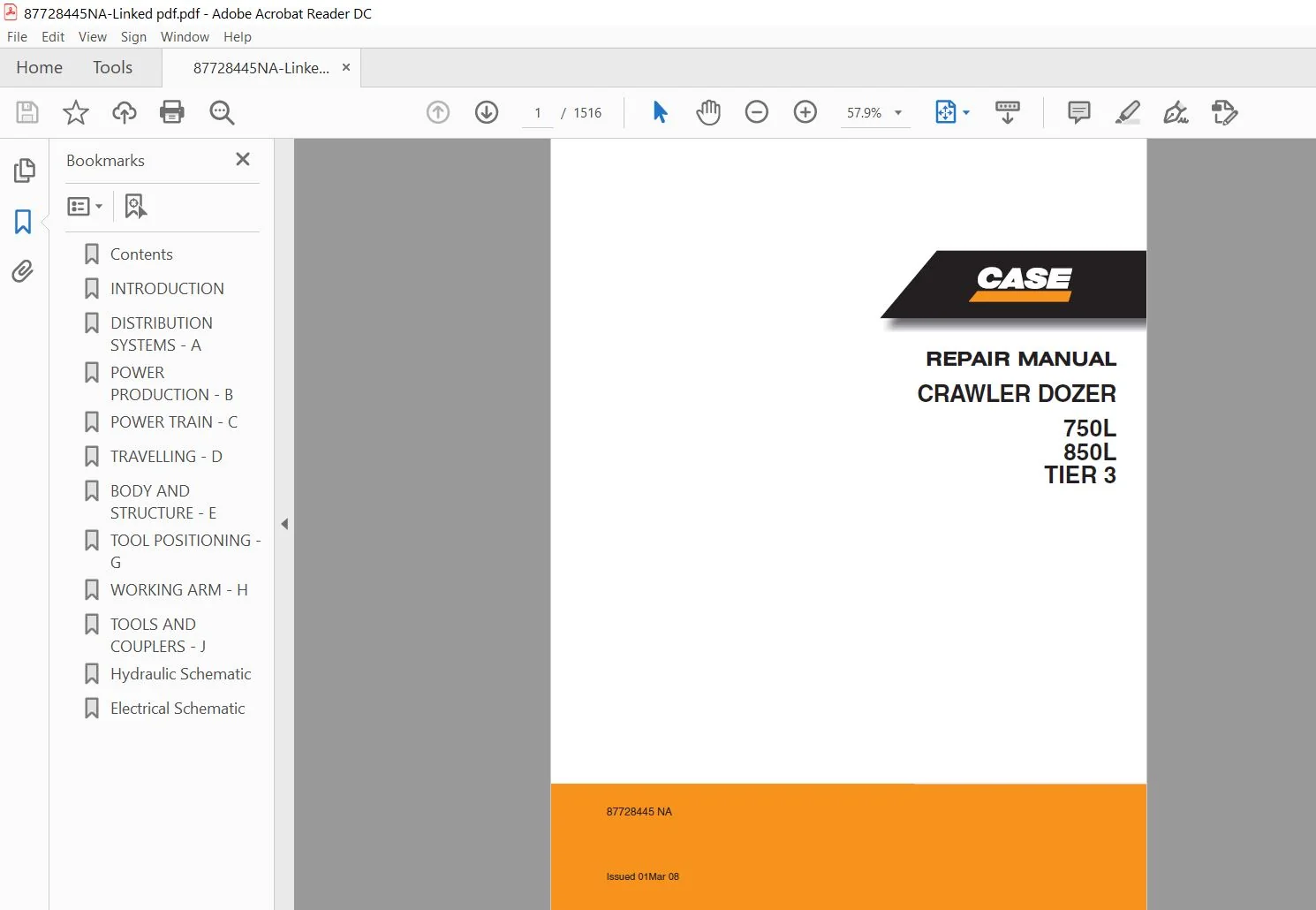

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Case Crawler Dozer 750L & 850L Tier 3 Repair Manual

INTRODUCTION
DISTRIBUTION SYSTEMS A
PRIMARY HYDRAULIC POWER SYSTEM A.10.A
SECONDARY HYDRAULIC POWER SYSTEM A.12.A
ELECTRICAL POWER SYSTEM A.30.A
LIGHTING SYSTEM A.40.A
FAULT CODES A.50.A
POWER PRODUCTION B
ENGINE B.10.A
FUEL AND INJECTION SYSTEM B.20.A
AIR INTAKE SYSTEM B.30.A
ENGINE COOLANT SYSTEM B.50.A
LUBRICATION SYSTEM B.60.A
STARTING SYSTEM B.80.A
POWER TRAIN C
POWER COUPLING Fixed coupling C.10.B
TRANSMISSION Hydrostatic C.20.F
TRAVELLING D
Final drive D.15.A
SERVICE BRAKE Hydraulic D.30.C
PARKING BRAKE Hydraulic D.32.C
WHEELS AND TRACKS Tracks D.50.B
BODY AND STRUCTURE E
USER CONTROLS AND SEAT E.32.A
USER CONTROLS AND SEAT Operator seat E.32.C
USER PLATFORM E.34.A
ENVIRONMENT CONTROL Heating system E.40.B
ENVIRONMENT CONTROL Airconditioning
system E.40.C
87728445 1 2/28/2008
ENVIRONMENT CONTROL Heating, ventilation and airconditioning
E.40.D
SAFETY SECURITY ACCESSORIES Safety E.50.B
TOOL POSITIONING G
LIFTING G.10.A
TILTING G.20.A
SWINGING G.40.A
WORKING ARM H
SINGLE ARM TOOL ATTACHMENT Lift H.50.B
TOOLS AND COUPLERS J
DIGGING Nonarticulated
digging tools J.20.B
LANDSCAPING Dozer blade J.40.F
87728445
