Case Crawler Excavator CX290 Service Manual

FILE DETAILS:

Case Crawler Excavator CX290 Service Manual

Size :85.2 MB
Format : PDF
Language : English
Brand: Case
Type of machine: Crawler Excavator
Type of document: Service Manual
Model: Case Crawler Excavator CX290

CASE CRAWLER EXCAVATOR CX290 SERVICE MANUAL 9-53581 – PDF DOWNLOAD:

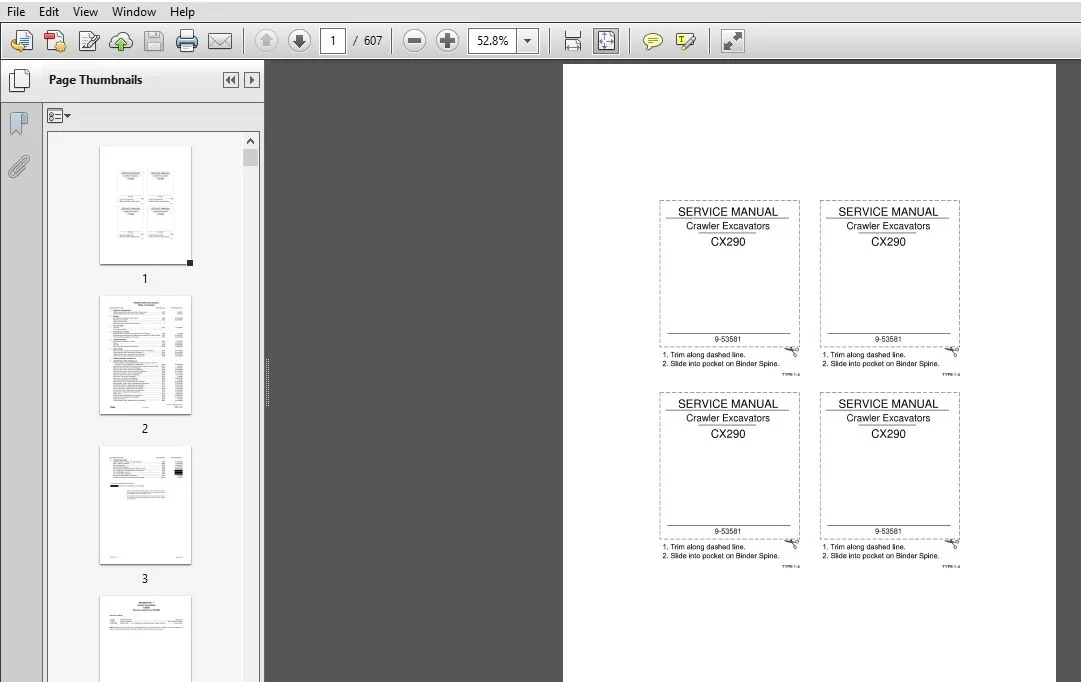

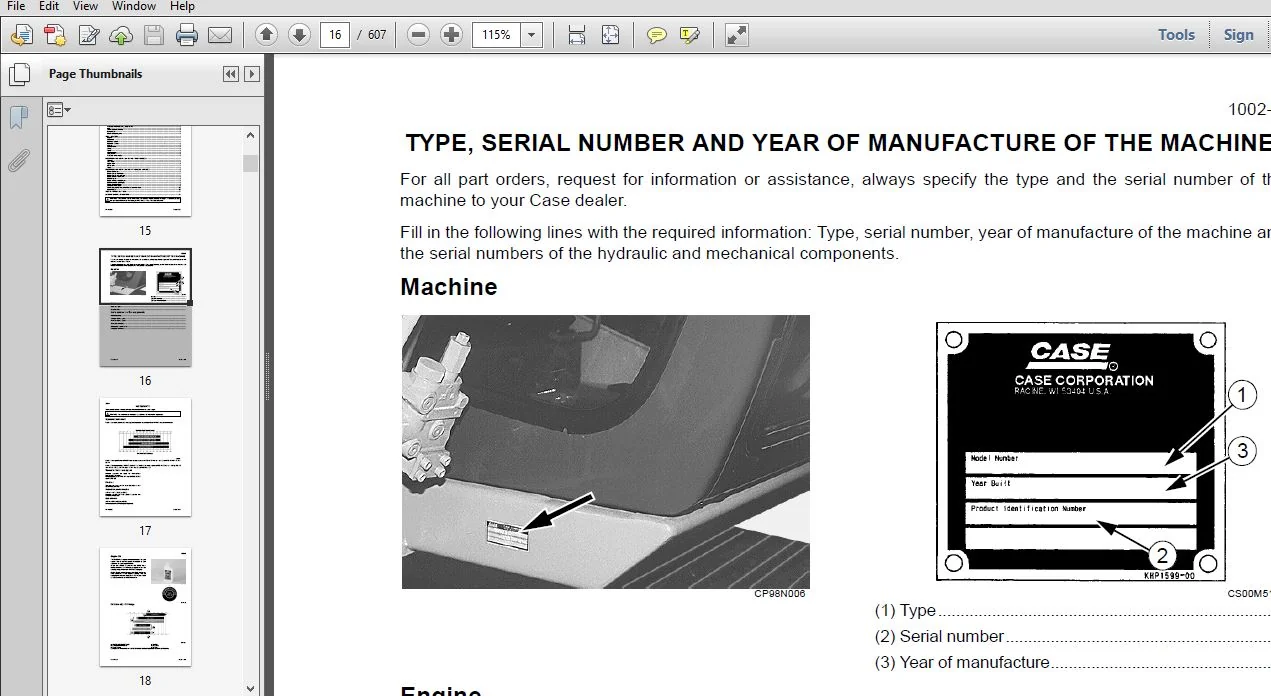

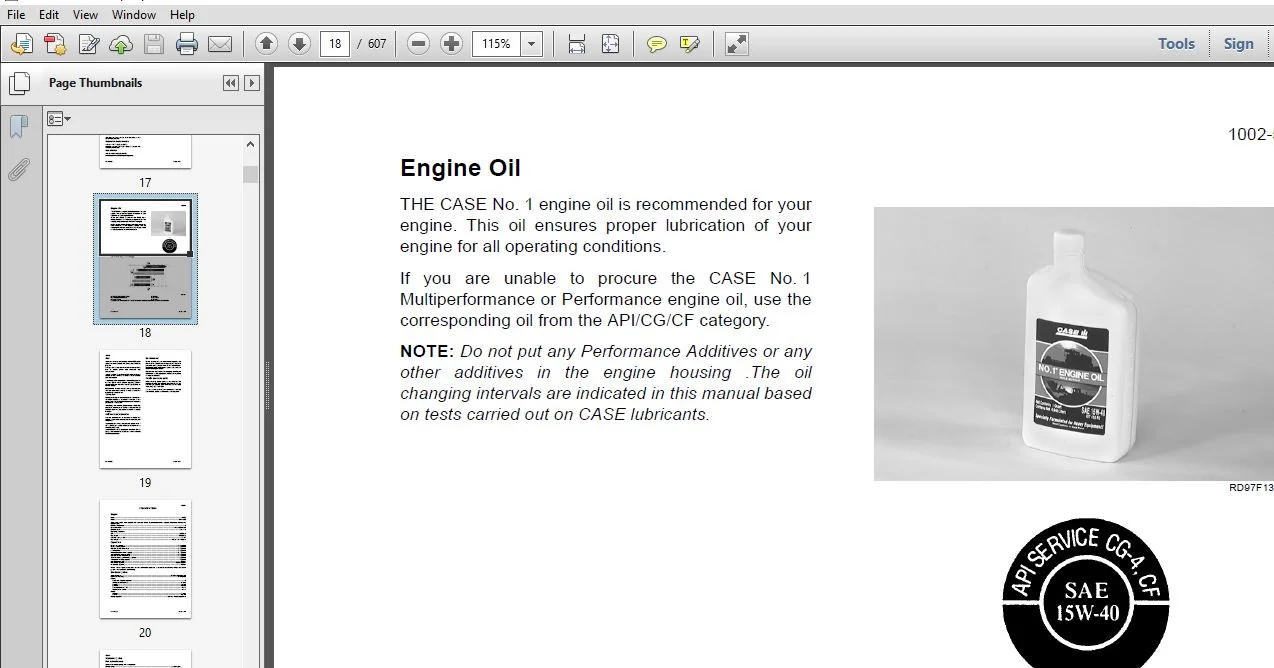

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Case Crawler Excavator CX290 Service Manual

GENERAL INFORMATION:

• Cleaning:Clean all metal parts except bearings. In a suitable cleaning solvent or by steam cleaning. Do not use caustic scda for steam cleaning. After cleaning, dry and put oil on all parts. Clean oil passages with compressed air. Clean bearings in a suitable cleaning solvent, try the bearings completely and put oil on the bearings.
• Inspection:Check all parts when the parts are disassembled. Replace all parts that have wear or damage. Small scoring or grooves can be removed with a hone or crocus cloth. Complete a visual inspection for indications of wear. pitting and the replacement of parts necessary to prevent early failures. Bearings Check bearings for easy action. If bearings have a loose fit or rough action replace the bearing. Wash bearings with a suitable cleaning solvent and permit to air dy. DO NOT DRY BEARINGS WITH COMPRESSED AIR.
• Needle Bearings:Before you press needle bearings in a bore always remove any metal protrusions in the bore or edge of the bore. Before you press bearings Into position put petroleum jelly on the inside and outside cfiameter of the bearings.
• Gears:Check all gears for wear and damage. Replace gears that have wear or damage.
• Oil Seals, O-rings and Gaskets:Always install new oil seals. O-rings and gaskets. Put petroleum jelly on seals and O-rings.
• Shafts:Check all shafts that have wear or damage. Check the bearing and oil seal surfaces of the shafts for damage.
• Service Parts:Always install genuine Case service parts. When ordering refer to the Parts Catalog torthe correct part number of the genuine Case replacement items. Failures due to the use of other than genuine Link- Belt replacement parts are not covered by warranty.
• Lubrication:Only use the oils and lubricants specified in the Operator’s or Service Manuals. Failures due to the use of non-specified oils and lubricants are not covered by warranty.

TABLE OF CONTENTS:

Case Crawler Excavator CX290 Service Manual

GENERAL INFORMATION
Safety general information and standard torque data
General specifications and Special torque settlng
ENGINE
Removal and installation of the engine
Radiator and cllcooier
Engine specifications
Disassembly and assembly of the engine
FUEL SYSTEM
Fuel tank
Fuel engine system
ELECTRICAL SYSTEM
Electrical system electrical and electronic troubleshooting
Inspection and maintenance of batteries and connecting a booster battery
Main and engine electronic control boxes
UNDERCARRIAGE
Removal and installation of tracks
Rollers
Sprocket
Idler wheel and tension shock absorber
DRIVE TRAIN
Drive motor and final drive transmission removal and installation
Swing reduction gear removal and installation
Swing reduction gear disassembly and assembly
Travel reduction gear assembly and disassembly
UNDERCARRIAGE HYDRAULICS
UPPERSTRUCTURE HYDRAULICS
Depressurising and decontaminating the hydraulic system use of the
vacuum pump and bleeding the components
Specifications troubleshooting checks and hydraulic pressure settings
Hydraulic reservoir removal and installation
Main and pilot pumps, removal and installation
Main hydraulic control valve, removal and installation
Attachment cylinders, removal and installation
Hydraulic swivel removal and installation
Pilot blocs, removal and installation
Swing motor removal and Installation
Free swing disassembly and assembly
Main hydraulic pump disassembly and assembly (UCHIDA)
Main hydraulic pump, disassembly and assembly (KAWASAKI)
Main hydraulic control valve, disassembly and assembly
Attachment cylinders, disassembly and assembly
Hand control levers disassembly and assembly
Foot control levers disassembly and assembly
Six-solenoid valves, disassembly and assembly
Caution valve disassembly and assembly
Anti-hose burst valve
Hydraulic swivel disassembly and assembly
Swing motor, disassembly and assembly
Hydraulic functlons
Travel hydraulic motor disassembly and assembly
UPPERSTRUCTURE
Upperstructure, turntable bearing and counterweight
Boom dipper and bucket
Seat and seat belt
Cab and cab equrpment
Air conditioner troubleshooting and system checks
Air conditioning unit disassembly and assembly
Air conditioning servicing
Air conditioning components
Attachment reinforcement procedures
Large format hydraulic and electrical schematics
