Description

Case Crawler Excavator CX290B Service Manual

FILE DETAILS:

Case Crawler Excavator CX290B Service Manual

Size : 50 MB
Format : PDF
Language : English
Brand: Case
Type of machine: Crawler Excavator
Type of document: Service Manual
Model: Case Crawler Excavator CX290B
Part No: 87637610NA

DESCRIPTION:

Case Crawler Excavator CX290B Service Manual

• Cleanning Clean all metal parts except bearings, in a suitable cleaning solvent or by steam cleaning. Do not use caustic soda for steam cleaning. After cleaning, dry and put oil on all parts. Clean oil passages with compressed air. Clean bearings in a suitable cleaning solvent, dry the bearings completely and put oil on the bearings.
• Inspection Check all parts when the parts are disassembled. Replace all parts that have wear or damage. Small scoring or grooves can be removed with a hone or crocus cloth. Complete a visual inspection for indications of wear, pitting and the replacement of parts necessary to prevent early failures.
• Bearings Check bearings for easy action. If bearings have a loose fit or rough action replace the bearing. Wash bearings with a suitable cleaning solvent and permit to air dry. DO NOT DRY BEARINGS WITH COMPRESSED AIR.
• Needle bearings Before you press needle bearings in a bore always remove any metal protrusions in the bore or edge of the bore. Before you press bearings into position put petroleum jelly on the inside and outside diameter of the bearings.
• Gears Check all gears for wear and damage. Replace gears that have wear or damage.
• Oil seals, O-rings and gaskets Always install new oil seals, O-rings and gaskets. Put petroleum jelly on seals and O-rings.
• Shafts Check all shafts that have wear or damage. Check the bearing and oil seal surfaces of the shafts for damage.
• Service parts Always install genuine Case service parts. When ordering refer to the Parts Catalog for the correct part number of the genuine Case replacement items. Failures due to the use of other than genuine Case replacement parts are not covered by warranty.
• Lubrication Only use the oils and lubricants specified in the Operator’s or Service Manuals. Failures due to the use of non-specified oils and lubricants are not covered by warranty.
• o prevent injury always follow the Warning, Caution and Danger notes in this section and throughout the manual. Put the warning tag shown below on the key for the keyswitch when servicing or repairing the machine. One warning tag is supplied with each machine. Additional tags Part Number 331-4614 are available from your service parts supplier
• One-touch idle control When auto idle is not set, regardless of lever operation, it is possible to move to auto idle or return from auto idle by pressing the knob switch (one-touch idle switch) on the right operation lever. The idling speed for one-touch idle control is 1000 min-1 on CX160B to CX240B and 900 min-1 on CX290B

CASE CRAWLER EXCAVATOR CX290B SERVICE MANUAL 87637610NA – PDF DOWNLOAD:

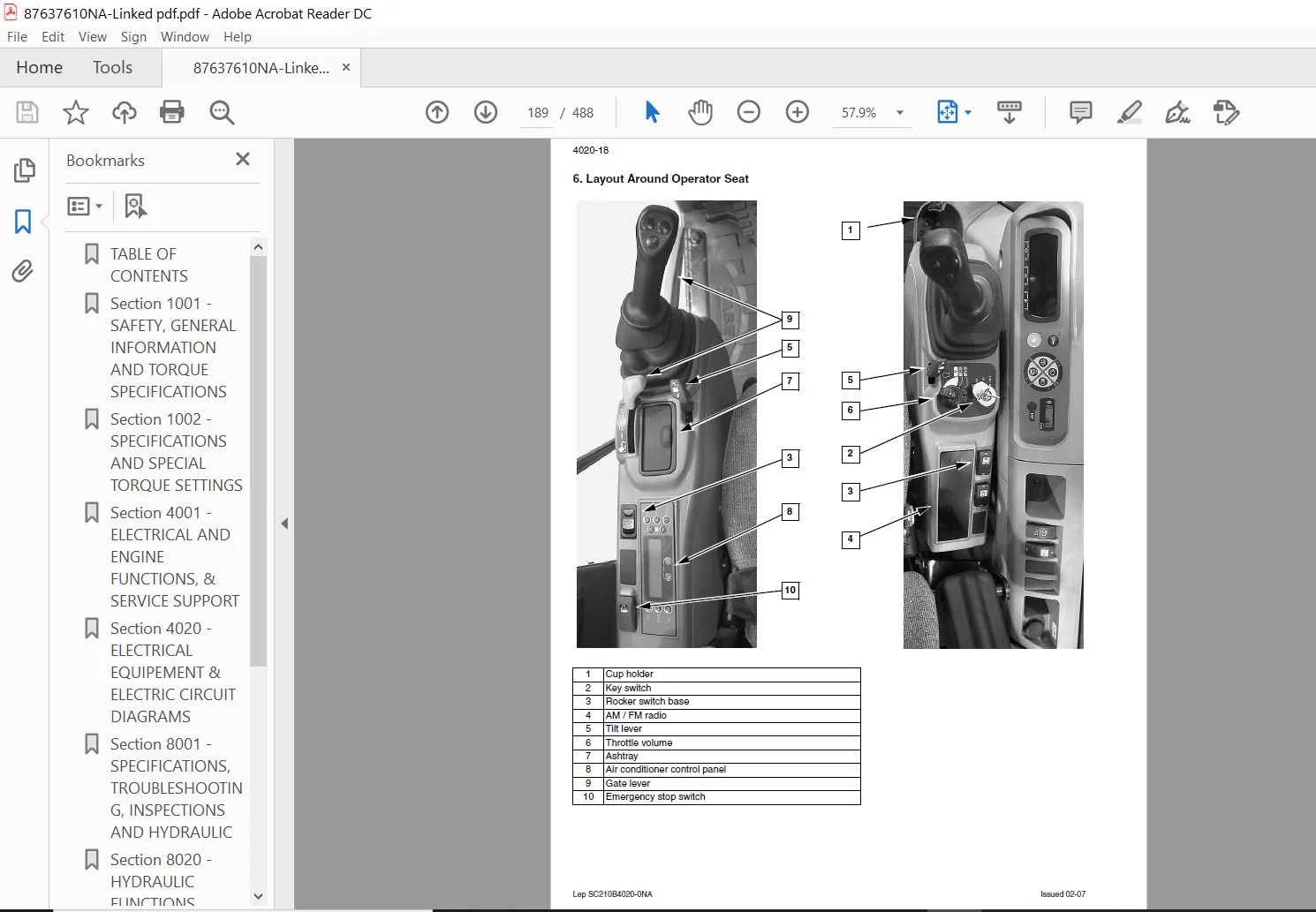

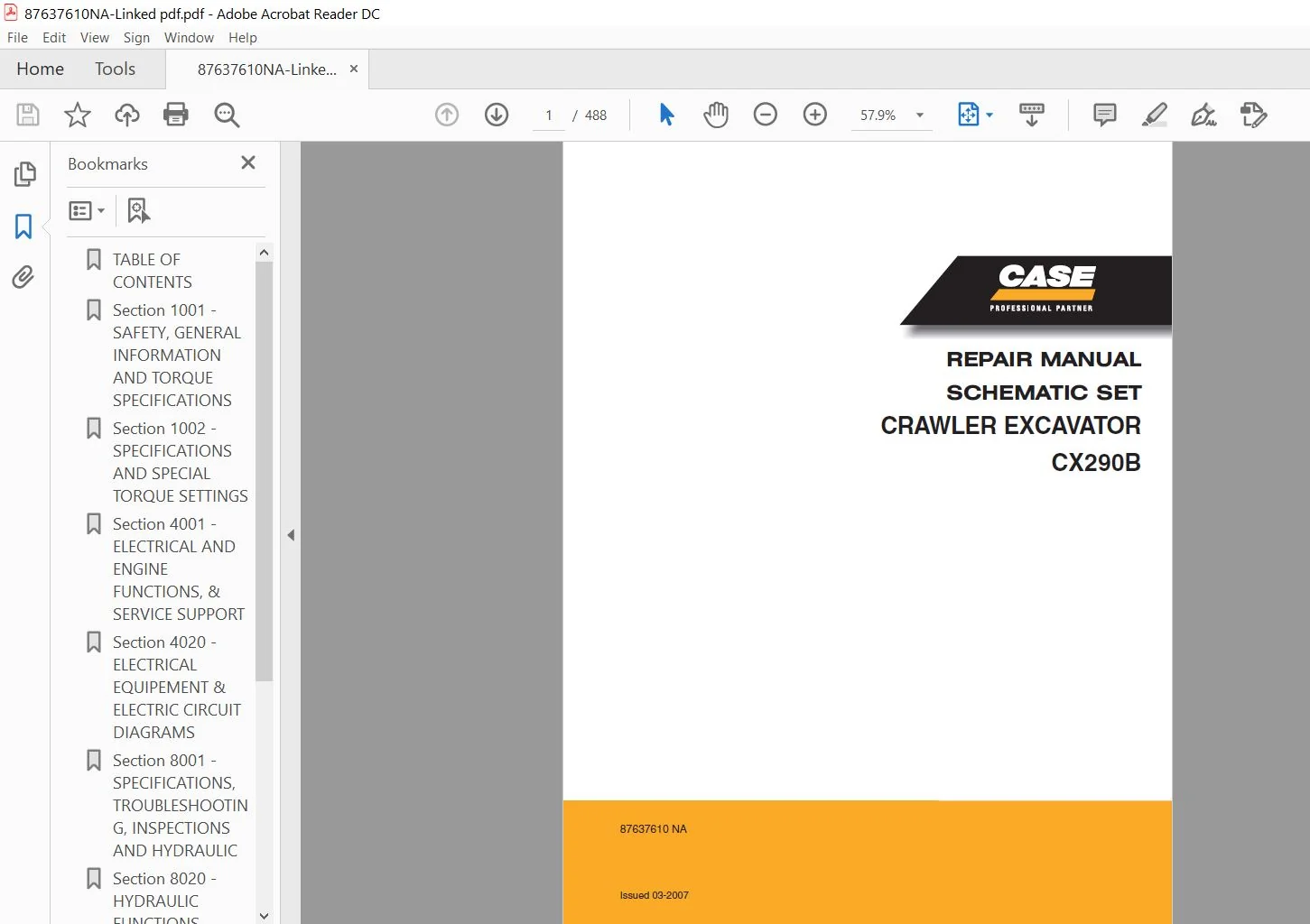

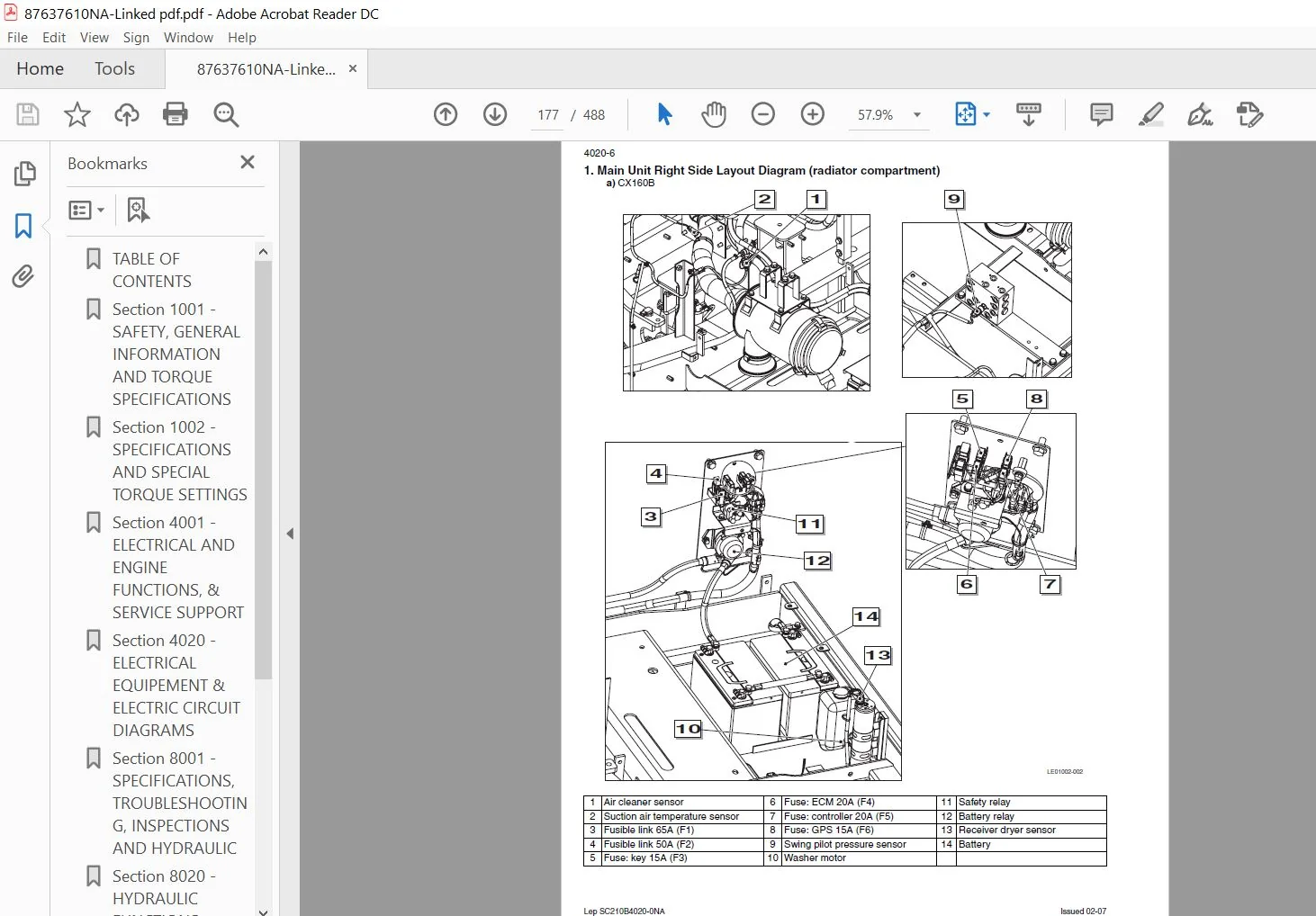

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Case Crawler Excavator CX290B Service Manual

Safety, General Information and Standard Torque Data 1001 7-27691NA
General Specifications and Special Torque Settings 1002 SC290B1002-0NA
Elecrical and Engine Functions & Service Support 4001 SC210B4001-1NA
Elecrical Equipment and Electrical Circuit Diagrams 4020 SC210B4020-0NA
Specifications, Troubleshooting, Checks and Hydraulic Pressure Settings 8001 SC290B8001-0NA
Hydraulic Functions 8020 SC290B8020-0NA
Hydraulic Component Functions 8030 SC290B8030-0NA
Air Conditioner Functions and Troubleshooting 9006 SC210B9006-0NA
Large Size Hydraulic Schematics Pocket 87601004A
Large Size Electrical Schematics Pocket
TYPE, SERIAL NUMBER
AND YEAR OF MANUFACTURE OF THE MACHINE 3
Machine 3
Engine 3
Serial numbers of the components 3
FLUIDS AND LUBRICANTS 4
Hydraulic fluid 4
Transmission component oil 4
Grease 4
Engine Oil 5
Fuel 6
Anti-freeze/Anti-corrosion 7
Environment 7
Plastic and resin parts 7
SPECIFICATIONS 8
Main data 8
Performance 8
Complete machine dimensions 8
Main body dimensions 8
Engine 9
Cooling system 9
Capacity of coolant and lubricants 9
Hydraulic oil filter 9
Fuel filter 9
Operating devices 10
Hydraulic system 11
Swing unit 13
Travel lower body 13
Work Unit 14
Digging force (ISO 6015) 14
COMPONENT WEIGHT 15
Major component weight 15
Other component weight 16
SPECIAL TORQUE SETTINGS 17
MACHINE OVERALL DIMENSIONS

PLEASE NOTE:

⦁ This is the SAME exact manual used by your dealers to fix your vehicle.
⦁ The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
⦁ Any queries / doubts regarding your purchase, please feel free to contact [email protected]
