Case Crawler Excavator CX290B Service Manual – PDF DOWNLOAD

Description

Case Crawler Excavator CX290B Service Manual

FILE DETAILS:

Case Crawler Excavator CX290B Service Manual

Size : 145 MB
Format : PDF
Language : English
Brand: Case
Type of machine: Crawler Excavator
Type of document: Service Manual
Model: Case Crawler Excavator CX290B
Part No: 87616577B

DESCRIPTION:

Case Crawler Excavator CX290B Service Manual

GENERAL INFORMATION:

• Cleanning Clean all metal parts except bearings, in a suitable cleaning solvent or by steam cleaning. Do not use caustic soda for steam cleaning. After cleaning, dry and put oil on all parts. Clean oil passages with compressed air. Clean bearings in a suitable cleaning solvent, dry the bearings completely and put oil on the bearings. Inspection Check all parts when the parts are disassembled. Replace all parts that have wear or damage.
• Small scoring or grooves can be removed with a hone or crocus cloth. Complete a visual inspection for indications of wear, pitting and the replacement of parts necessary to prevent early failures. Bearings Check bearings for easy action. If bearings have a loose fit or rough action replace the bearing. Wash bearings with a suitable cleaning solvent and permit to air dry. DO NOT DRY BEARINGS WITH COMPRESSED AIR. Needle bearings Before you press needle bearings in a bore always remove any metal protrusions in the bore or edge of the bore. Before you press bearings into position put petroleum jelly on the inside and outside diameter of the bearings.
• Gears Check all gears for wear and damage. Replace gears that have wear or damage. Oil seals, O-rings and gaskets Always install new oil seals, O-rings and gaskets. Put petroleum jelly on seals and O-rings. Shafts Check all shafts that have wear or damage. Check the bearing and oil seal surfaces of the shafts for damage.
• Service parts Always install genuine Case service parts. When ordering refer to the Parts Catalog for the correct part number of the genuine Case replacement items. Failures due to the use of other than genuine Case replacement parts are not covered by warranty. Lubrication Only use the oils and lubricants specified in the Operator’s or Service Manuals. Failures due to the use of non-specified oils and lubricants are not covered by warranty.
• Transmission component oil Extreme pressure oil used for enclosed transmission components. CASE/AKCELA: GEAR 135H EP (SAE 80W-90. API GL 5. MIL-L-2105 D. MS 1316. ZF TE-ML 05A) Grease CASE/AKCELA: MOLY GREASE 251H EP-M (251H EP-M. NLGI 2) “Extreme Pressure” multipurpose grease with lithium soap and molybdenum disulphide. CASE/AKCELA: MULTIPURPOSE GREASE 251H EP (251H EP. NLGI 2) “Extreme Pressure” multipurpose grease with lithium soap and calcium.
• CASE/AKCELA: PREMIUM GREASE EP2 (NLGI 2) “Extreme Pressure” multipurpose grease with lithium soap. Hydraulic breakers CASE/AKCELA: MULTIPURPOSE GREASE 251H EP (NLGI 2).

CASE CRAWLER EXCAVATOR CX290B SERVICE MANUAL – PDF DOWNLOAD:

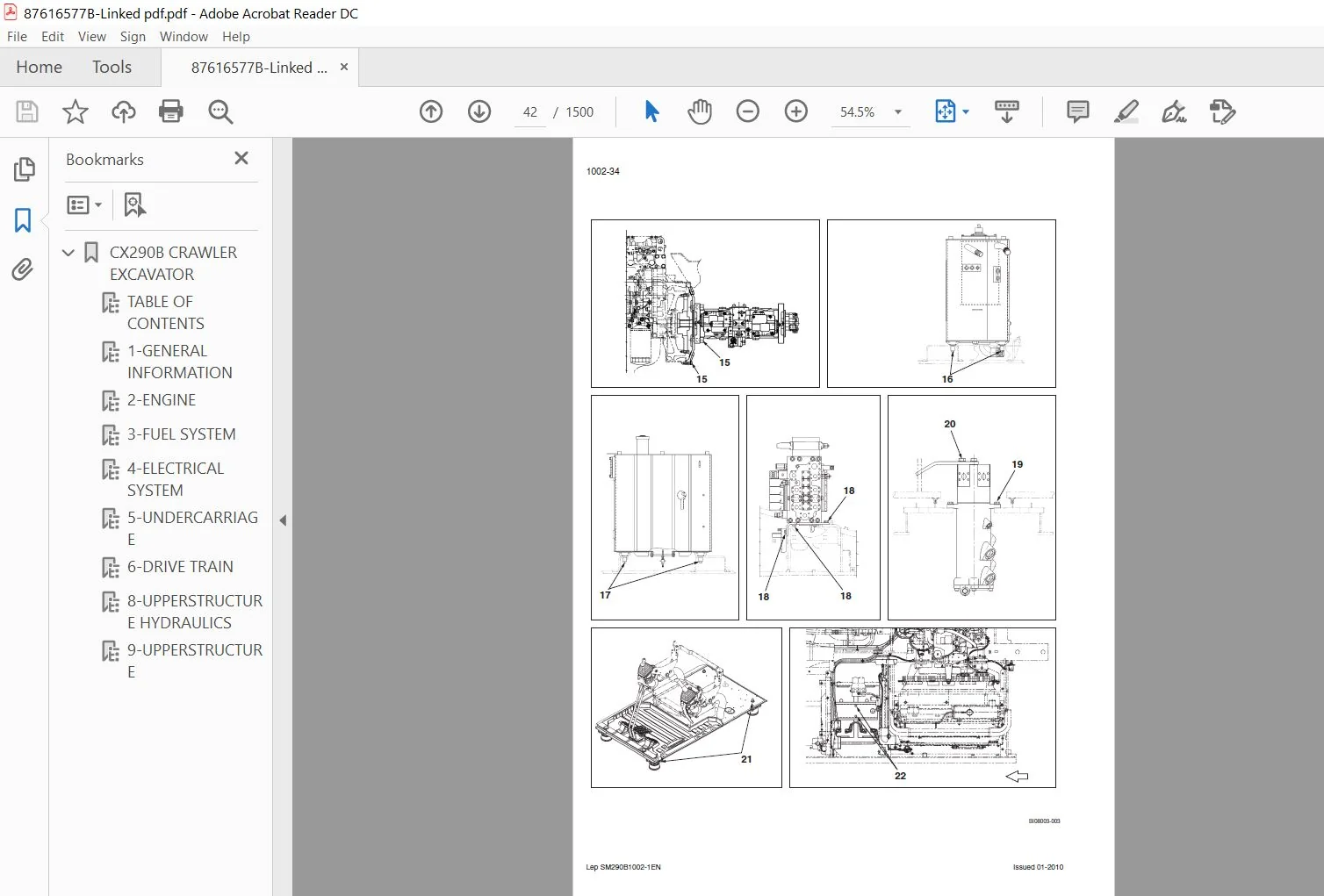

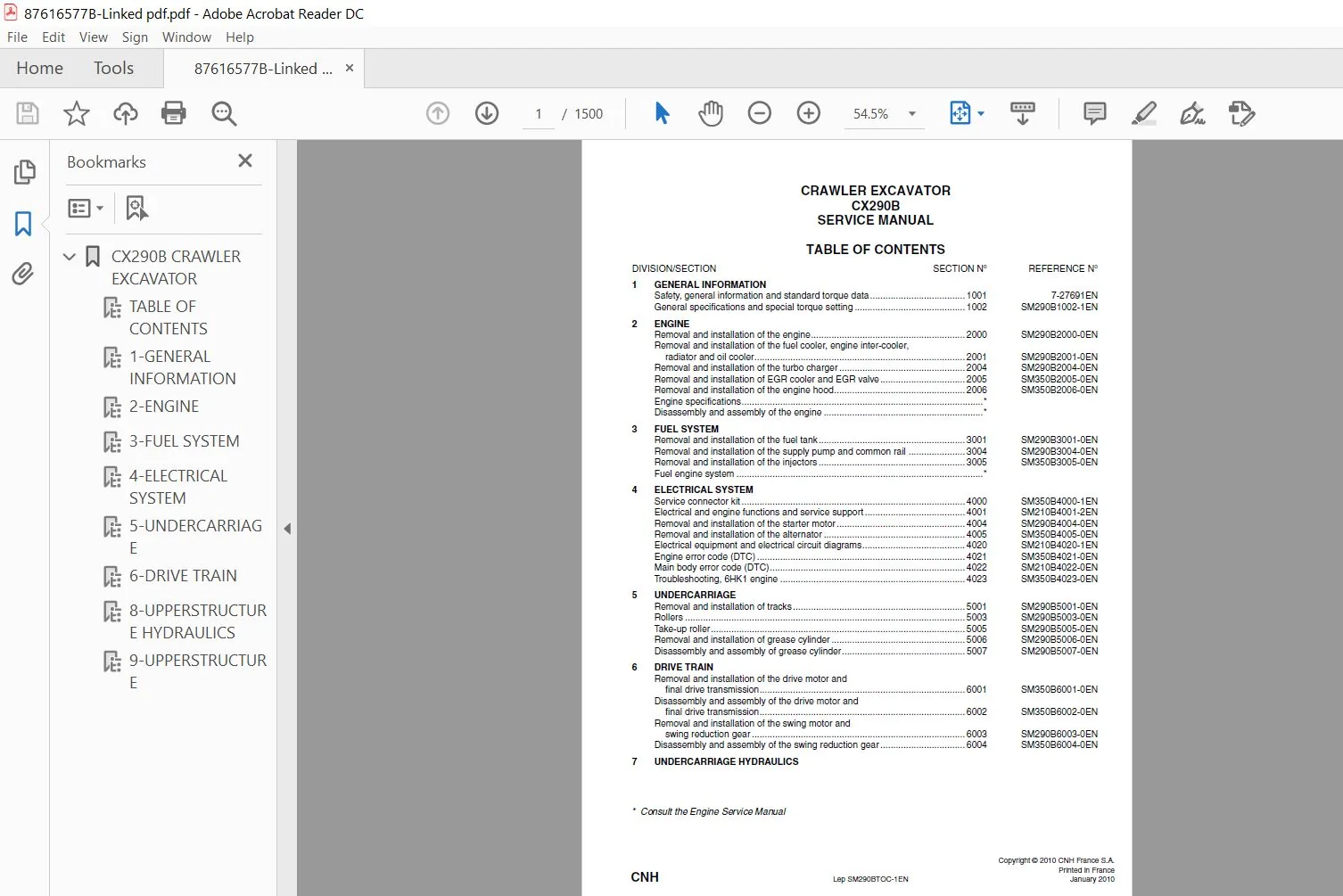

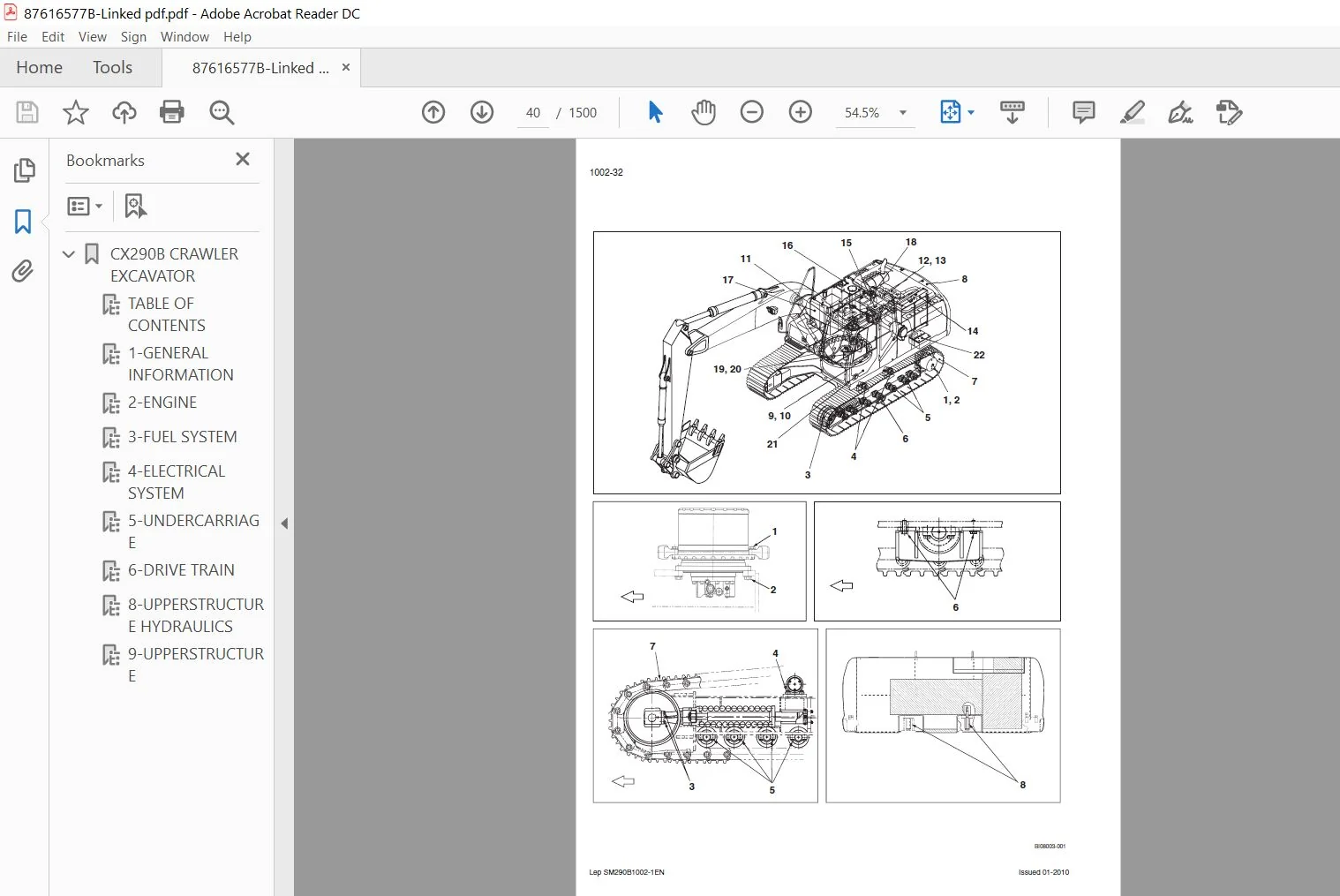

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Case Crawler Excavator CX290B Service Manual

GENERAL INFORMATION
Safety, general information and standard torque data 1001 7-27691EN
General specifications and special torque setting 1002 SM290B1002-1EN
2 ENGINE
Removal and installation of the engine 2000 SM290B2000-0EN
Removal and installation of the fuel cooler, engine inter-cooler,
radiator and oil cooler 2001 SM290B2001-0EN
Removal and installation of the turbo charger 2004 SM290B2004-0EN
Removal and installation of EGR cooler and EGR valve 2005 SM350B2005-0EN
Removal and installation of the engine hood 2006 SM350B2006-0EN
Engine specifications *
Disassembly and assembly of the engine *
3 FUEL SYSTEM
Removal and installation of the fuel tank 3001 SM290B3001-0EN
Removal and installation of the supply pump and common rail 3004 SM290B3004-0EN
Removal and installation of the injectors 3005 SM350B3005-0EN
Fuel engine system *
4 ELECTRICAL SYSTEM
Service connector kit 4000 SM350B4000-1EN
Electrical and engine functions and service support 4001 SM210B4001-2EN
Removal and installation of the starter motor 4004 SM290B4004-0EN
Removal and installation of the alternator 4005 SM350B4005-0EN
Electrical equipment and electrical circuit diagrams 4020 SM210B4020-1EN
Engine error code (DTC) 4021 SM350B4021-0EN
Main body error code (DTC) 4022 SM210B4022-0EN
Troubleshooting, 6HK1 engine 4023 SM350B4023-0EN
5 UNDERCARRIAGE
Removal and installation of tracks 5001 SM290B5001-0EN
Rollers 5003 SM290B5003-0EN
Take-up roller 5005 SM290B5005-0EN
Removal and installation of grease cylinder 5006 SM290B5006-0EN
Disassembly and assembly of grease cylinder 5007 SM290B5007-0EN
6 DRIVE TRAIN
Removal and installation of the drive motor and
final drive transmission 6001 SM350B6001-0EN
Disassembly and assembly of the drive motor and
final drive transmission 6002 SM350B6002-0EN
Removal and installation of the swing motor and
swing reduction gear 6003 SM290B6003-0EN
Disassembly and assembly of the swing reduction gear 6004 SM350B6004-0EN
7 UNDERCARRIAGE HYDRAULICS
* Consult the Engine Service Manual
Lep SM290BTOC-1EN Issued 01-2010
DIVISION/SECTION SECTION N° REFERENCE N°
8 UPPERSTRUCTURE HYDRAULICS
Specifications, troubleshooting, checks and
hydraulic pressure settings 8001 SC290B8001-0EN
Removal and installation of the hydraulic reservoir 8002 SM290B8002-0EN
Removal and installation of the main hydraulic pump 8003 SM350B8003-0EN
Removal and installation of the main hydraulic control valve 8004 SM290B8004-0EN
Removal and installation of the attachment cylinders 8005 SM350B8005-0EN
Removal and installation of the hydraulic swivel 8006 SM290B8006-0EN
Removal and installation of the pilot blocs 8007 SM290B8007-0EN
Disassembly and assembly of the main hydraulic pump 8010 SM290B8010-0EN
Disassembly and assembly of the main hydraulic control valve 8011 SM350B8011-0EN
Disassembly and assembly of the attachment cylinders 8012 SM130B8012-0EN
Disassembly and assembly of the hand control levers 8013 SM130B8013-0EN
Disassembly and assembly of the foot control levers 8014 SM160B8014-0EN
Disassembly and assembly of the cushion valve 8016 SM290B8016-0EN
Removal and installation of the safety valve 8017 SM350B8017-0EN
Disassembly and assembly of the hydraulic swivel 8018 SM290B8018-0EN
Disassembly and assembly of the swing motor 8019 SM290B8019-0EN
Hydraulic functions 8020 SC290B8020-0EN
Hydraulic component functions 8030 SC290B8030-0EN
9 UPPERSTRUCTURE
Removal and installation of the counterweight 9002 SM290B9002-0EN
Removal and installation of the boom, dipper and bucket 9003 SM350B9003-0EN
Removal and installation of the seat 9004 SM130B9004-0EN
Removal and installation of the cab and cab equipment 9005 SM130B9005-0EN
Air conditioner functions and troubleshooting 9006 SC210B9006-3EN
Air conditioning unit 9007 SM130B9007-0EN
Air conditioning components 9009 SM290B9009-0EN
Large size hydraulic schematics Pocket 87600999A
Large size electrical schematics Pocket

PLEASE NOTE:

⦁ This is the SAME MANUAL used by the dealerships to diagnose your vehicle
⦁ No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
⦁ Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
⦁ So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com
