Case Crawler Excavator CX470B Service Manual

FILE DETAILS:

Case Crawler Excavator CX470B Service Manual

Size : 78.4 MB
Format : PDF
Language : English
Brand: Case
Type of machine: Crawler Excavator
Type of document: Service Manual
Model: Case Crawler Exacvator CX470B
Part No:48004716

DESCRIPTION:

Case Crawler Excavator CX470B Service Manual

• Cleaning Clean all metal parts except bearings, in a suitable cleaning solvent or by steam cleaning. Do not use caustic soda for steam cleaning. After cleaning, dry and put oil on all parts. Clean oil passages with compressed air. Clean bearings in a suitable cleaning solvent, dry the bearings completely and put oil on the bearings. Inspection Check all parts when the parts are disassembled.
• Replace all parts that have wear or damage. Small scoring or grooves can be removed with a hone or crocus cloth. Complete a visual inspection for indications of wear, pitting and the replacement of parts necessary to prevent early failures. Bearings Check bearings for easy action. If bearings have a loose fit or rough action replace the bearing. Wash bearings with a suitable cleaning solvent and permit to air dry.
• DO NOT DRY BEARINGS WITH COMPRESSED AIR. Needle bearings Before you press needle bearings in a bore always remove any metal protrusions in the bore or edge of the bore. Before you press bearings into position put petroleum jelly on the inside and outside diameter of the bearings. Gears Check all gears for wear and damage. Replace gears that have wear or damage. Oil seals, O-rings and gasket Always install new oil seals, O-rings and gaskets. Put petroleum jelly on seals and O-rings. Shafts Check all shafts that have wear or damage. Check the bearing and oil seal surfaces of the shafts for damage.
• Service parts Always install genuine Case service parts. When ordering refer to the Parts Catalog for the correct par t number of the genuine Case replacement items. Failures due to the use of other than genuine Case replacement parts are not covered by warranty. Lubrication Only use the oils and lubricants specified in the Operator’s or Service Manuals. Failures due to the use of non-specified oils and lubricants are not covered by warranty.
• Long storage can lead to the accumulation of impurities and condensation in the fuel. Engine trouble can often be traced to the presence of water in the fuel. The storage tank must be placed outside and the temperature of the fuel should be kept as low as possible. Drain off water and impurities regularly. Anti-freeze/Anti-corrosion Use anti-freeze in all seasons to protect the cooling system from corrosion and all risk of freezing.
• CASE/AKCELA: PREMIUM ANTI-FREEZE (MS 1710) For areas where the temperature goes down to -38°C (-36.4°F), mix 50/50 with water. IMPORTANT : Do not mix products of a different origin or brand. The same product must be used when topping up the system. Environment Before carrying out any maintenance operation on this machine and before disposing of used fluids or lubricants, always think of the environment.
• Never throw oil or fluid on the ground and never place it in leaking receptacles. Contact your local ecological recycling centre or your CASE Dealer to obtain information on the correct method of disposing of these lubricants. Plastic and resin parts When cleaning plastic parts, the console, the instrument panel, the indicators etc… avoid using petrol, kerosene, paint solvents etc… Use only water, soap and a soft cloth. The use of petrol, kerosene, paint solvents etc… causes discoloration, cracks or deformation of these parts.

CASE CRAWLER EXCAVATOR CX470B SERVICE MANUAL – PDF DOWNLOAD:

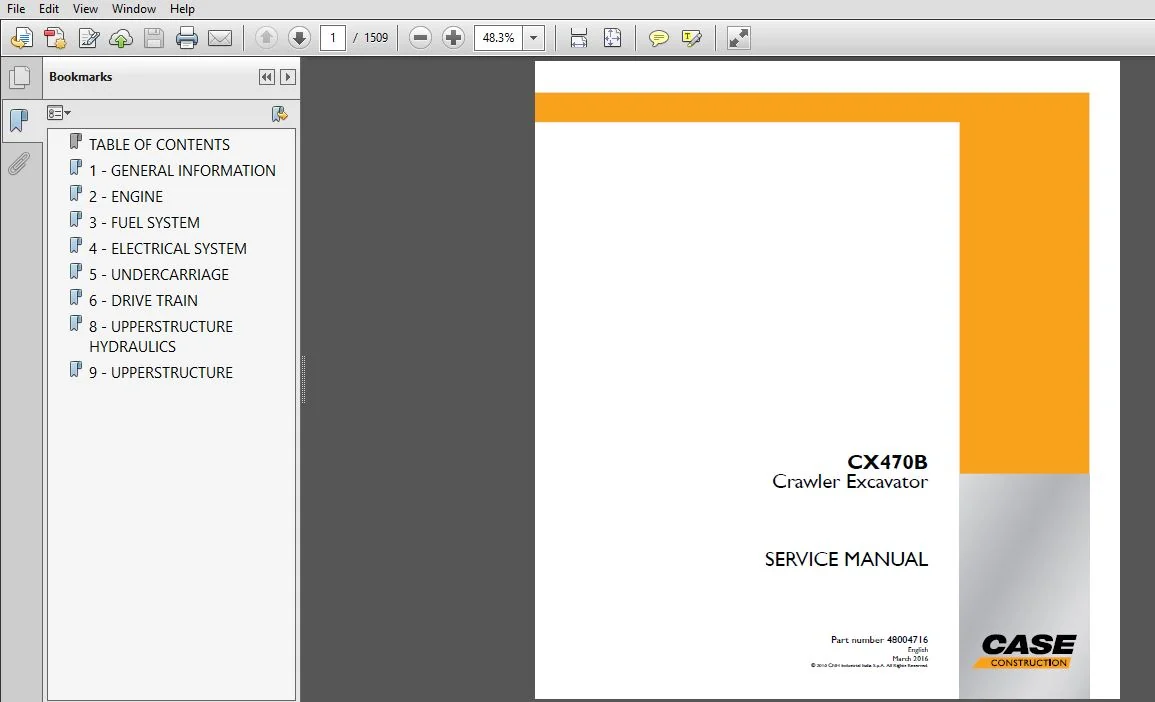

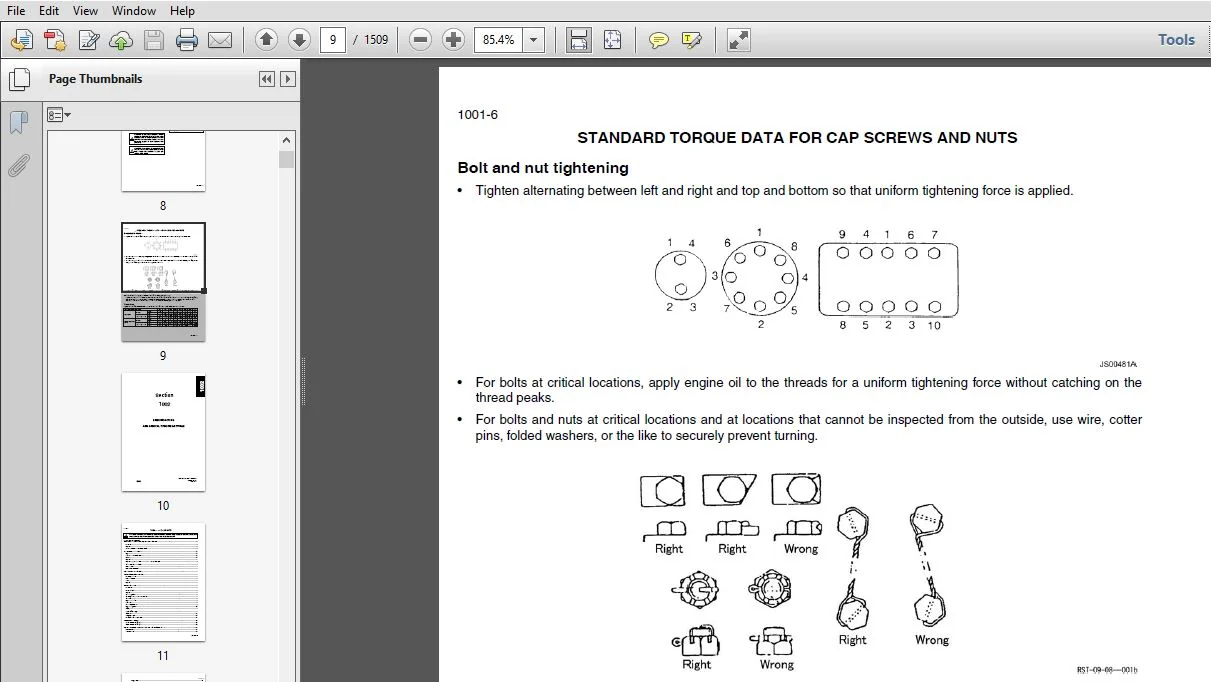

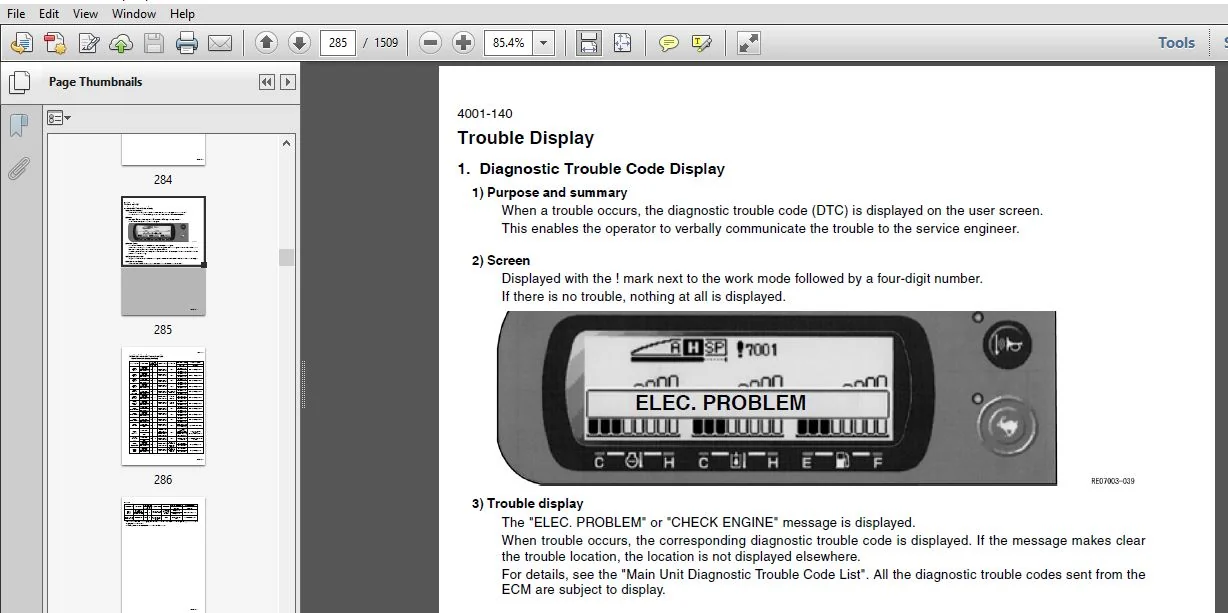

IMAGES PREVIEW OF THE MANUAL:
