Case Crawler Excavator CX800 Tier 3 Schematic Set 87539044NA – PDF DOWNLOAD

Description

Case Crawler Excavator CX800 Tier 3 Schematic Set

FILE DETAILS:

Case Crawler Excavator CX800 Tier 3 Schematic Set

Size : 22.2 MB
Format : PDF
Language : English
Brand: Case
Type of machine: Crawler Excavator
Type of document: Schematic Set
Model: Case Crawler Excavator CX800 Tier 3
Number of Pages: 307 Pages
Part Number: 87539044NA

DESCRIPTION:

Case Crawler Excavator CX800 Tier 3 Schematic Set

GENERAL INFORMATION:

• Cleanning Clean all metal parts except bearings, in a suitable cleaning solvent or by steam cleaning. Do not use caustic soda for steam cleaning. After cleaning, dry and put oil on all parts. Clean oil passages with compressed air. Clean bearings in a suitable cleaning solvent, dry the bearings completely and put oil on the bearings. Inspection Check all parts when the parts are disassembled.
• Replace all parts that have wear or damage. Small scoring or grooves can be removed with a hone or crocus cloth. Complete a visual inspection for indications of wear, pitting and the replacement of parts necessary to prevent early failures. Bearings Check bearings for easy action. If bearings have a loose fit or rough action replace the bearing. Wash bearings with a suitable cleaning solvent and permit to air dry.
• DO NOT DRY BEARINGS WITH COMPRESSED AIR. Needle bearings Before you press needle bearings in a bore always remove any metal protrusions in the bore or edge of the bore. Before you press bearings into position put petroleum jelly on the inside and outside diameter of the bearings. Gears Check all gears for wear and damage. Replace gears that have wear or damage. Oil seals, O-rings and gaskets Always install new oil seals,
• O-rings and gaskets. Put petroleum jelly on seals and O-rings. Shafts Check all shafts that have wear or damage. Check the bearing and oil seal surfaces of the shafts for damage. Service parts Always install genuine Case service parts. When ordering refer to the Parts Catalog for the correct part number of the genuine Case replacement items. Failures due to the use of other than genuine Case replacement parts are not covered by warranty. Lubrication Only use the oils and lubricants specified in the Operator’s or Service Manuals. Failures due to the use of non-specified oils and lubricants are not covered by warranty.
• Use fuel which is to ASTM (American Society for Testing and Materials) D975 standard. Use grade No. 2-D fuel. The use of other types of fuel can result in a loss of power of the engine and may cause high fuel consumption. In cold weather (below -7°C (19.4°F)), it is provisionally approved to use a mixture of fuels No. 1-D and No. 2-D. If the temperature falls below the fuel cloud point (point at which wax begins to form)
• The wax crystals will cause power loss or will prevent the engine from starting. Required conditions for diesel fuel The following specific conditions are required for diesel fuel: – Must be free from minute dust particles. – Must have adequate viscosity. – Must have high cetane value. – Must have high fluidity at low temperature. – Must have low sulphur content. – Must have little residual carbon. Diesel fuel recommendation – JIS (Japanese Industrial Standard) : No. 2 – DIN (Deutsche Industrie Normen) : DIN 51601 – SAE (Society of Automotive Engineers) Based on SAE-J-313C: No. 2-D – BS (British Standard) Based on BS/2869-1970: Class A-1

CASE CRAWLER EXCAVATOR CX800 TIER 3 SCHEMATIC SET 87539044NA – PDF DOWNLOAD:

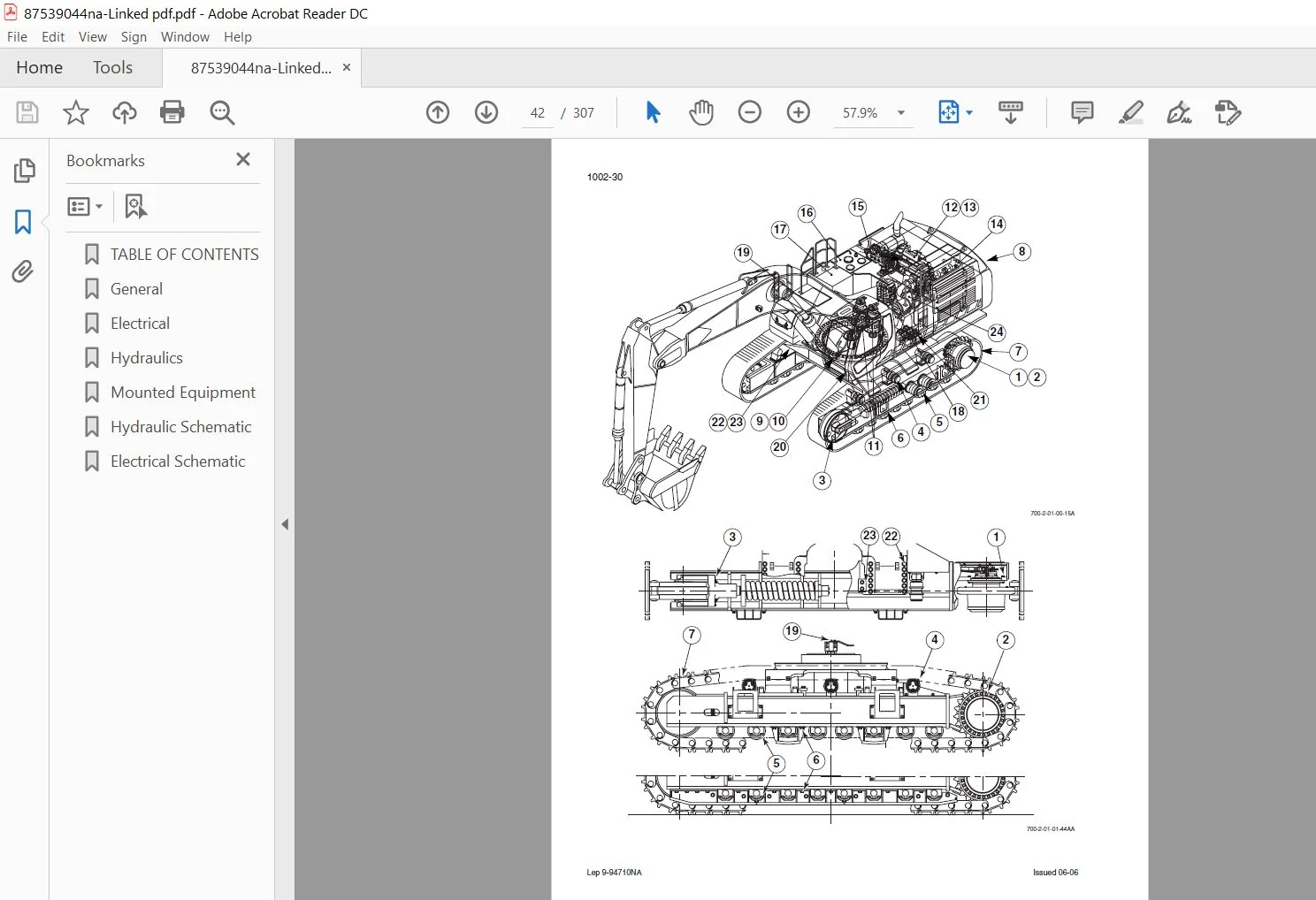

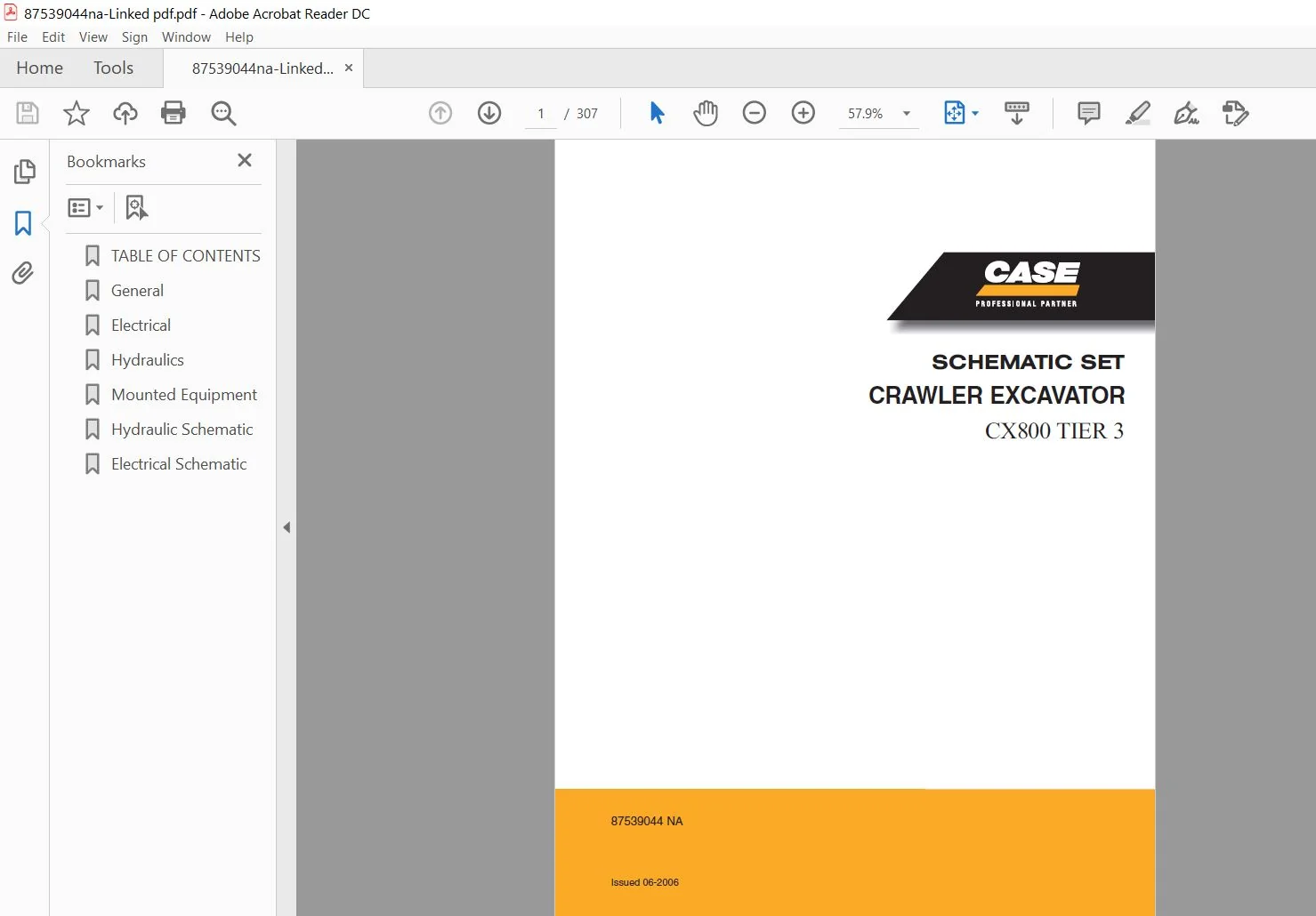

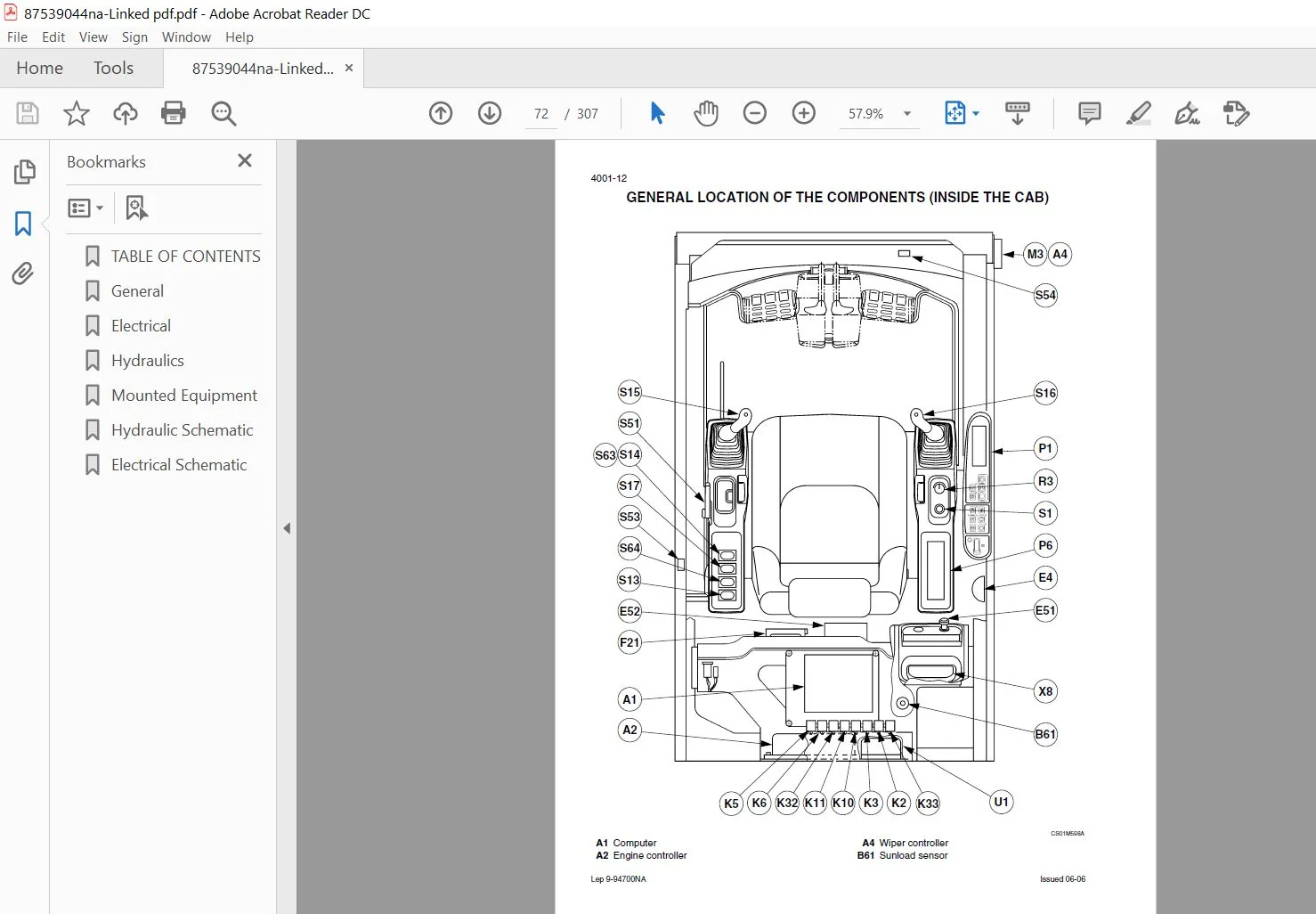

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Case Crawler Excavator CX800 Tier 3 Schematic Set

Safety, General Information and Standard Torque Data 1001 7-27691NA
General Specifications and Special Torque Settings 1002 9-94710NA
Numerical value conversion table 1003 9-35540
Elecrical System, Electrical and Electronic Troubleshooting 4001 9-94700NA
Specifications, Troubleshooting, Checks and Hydraulic Pressure Settings 8001 9-94740NA
Hydraulic Functions 8020 9-94720NA
Hydraulic Component Functions 8030 9-94130NA
Removal and Installation 9010 9-94730NA
Large Size Hydraulic Schematics Pocket 87528728
Large Size Electrical Schematics

PLEASE NOTE:

⦁ This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
⦁ You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
⦁ Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
