CASE CX130C Tier 4 Crawler Excavator Service manual 84592789 – PDF DOWNLOAD

Description

CASE CX130C Tier 4 Crawler Excavator

FILE DETAILS:

CASE CX130C Tier 4 Crawler Excavator

Size : 160 MB
Format : PDF
Language : English
Number of Pages : 1956 pages
Brand: Case
Type of machine: Crawler Excavator
Type of document: Service Manual
Model: CX130C Tier 4 Crawler Excavator
Part No:84592789

DESCRIPTION:

CASE CX130C Tier 4 Crawler Excavator

SAMPLE PAGE FROM THE MANUAL:

• CLEANING Clean all metal parts except bearings, in a suitable cleaning solvent or by steam cleaning. Do not use caustic soda for steam cleaning. After cleaning, dry and put oil on all parts. Clean oil passages with compressed air. Clean bearings in a suitable cleaning solvent, dry the bearings completely and put oil on the bearings. INSPECTION Check all parts when the parts are disassembled. Replace all parts that have wear or damage.
• Small scoring or grooves can be removed with a hone or crocus cloth. Complete a visual inspection for indications of wear, pitting and the replacement of parts necessary to prevent early failures. BEARINGS Check bearings for easy action. If bearings have a loose fit or rough action replace the bearing. Wash bearings with a suitable cleaning solvent and permit to air dry. DO NOT DRY BEARINGS WITH COMPRESSED AIR. NEEDLE BEARINGS Before you press needle bearings in a bore always remove any metal protrusions in the bore or edge of the bore.
• Before you press bearings into position put petroleum jelly on the inside and outside diameter of the bearings. GEARS Check all gears for wear and damage. Replace gears that have wear or damage. Oil seals, O-rings and gaskets. Always install new oil seals, O-rings and gaskets. Put petroleum jelly on seals and O-rings. SHAFTS Check all shafts that have wear or damage. Check the bearing and oil seal surfaces of the shafts for damage. SERVICE PARTS Always install genuine Case service parts. When ordering refer to the Parts Catalogue for the correct part number of the genuine Case replacement items.
• Failures due to the use of other than genuine Case replacement parts are not covered by warranty. LUBRICATION Only use the oils and lubricants specified in the Operator’s or Service Manuals. Failures due to the use of non-specified oils and lubricants are not covered by warranty.

CASE CX130C TIER 4 CRAWLER EXCAVATOR SERVICE MANUAL 84592789 – PDF DOWNLOAD:

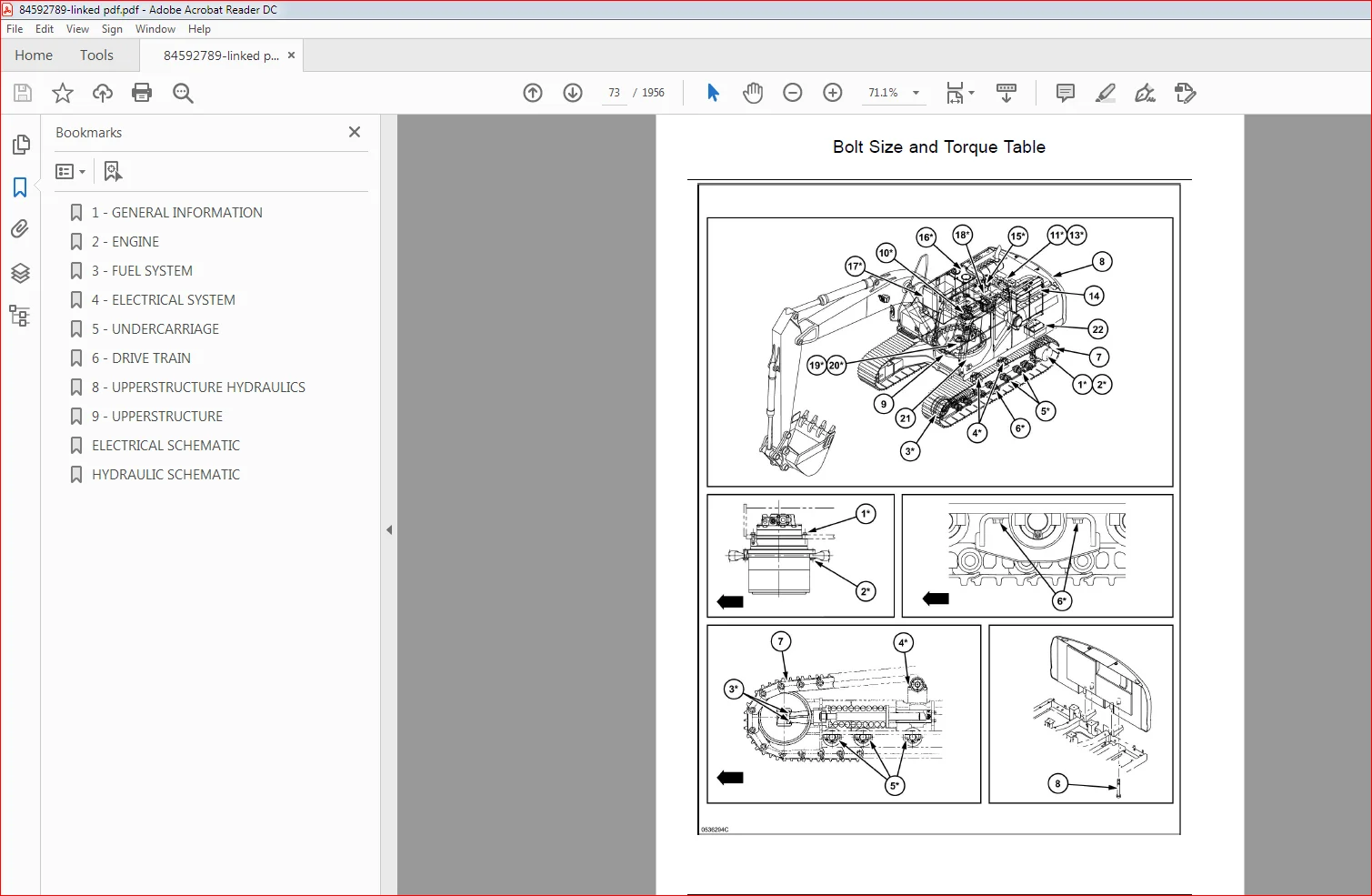

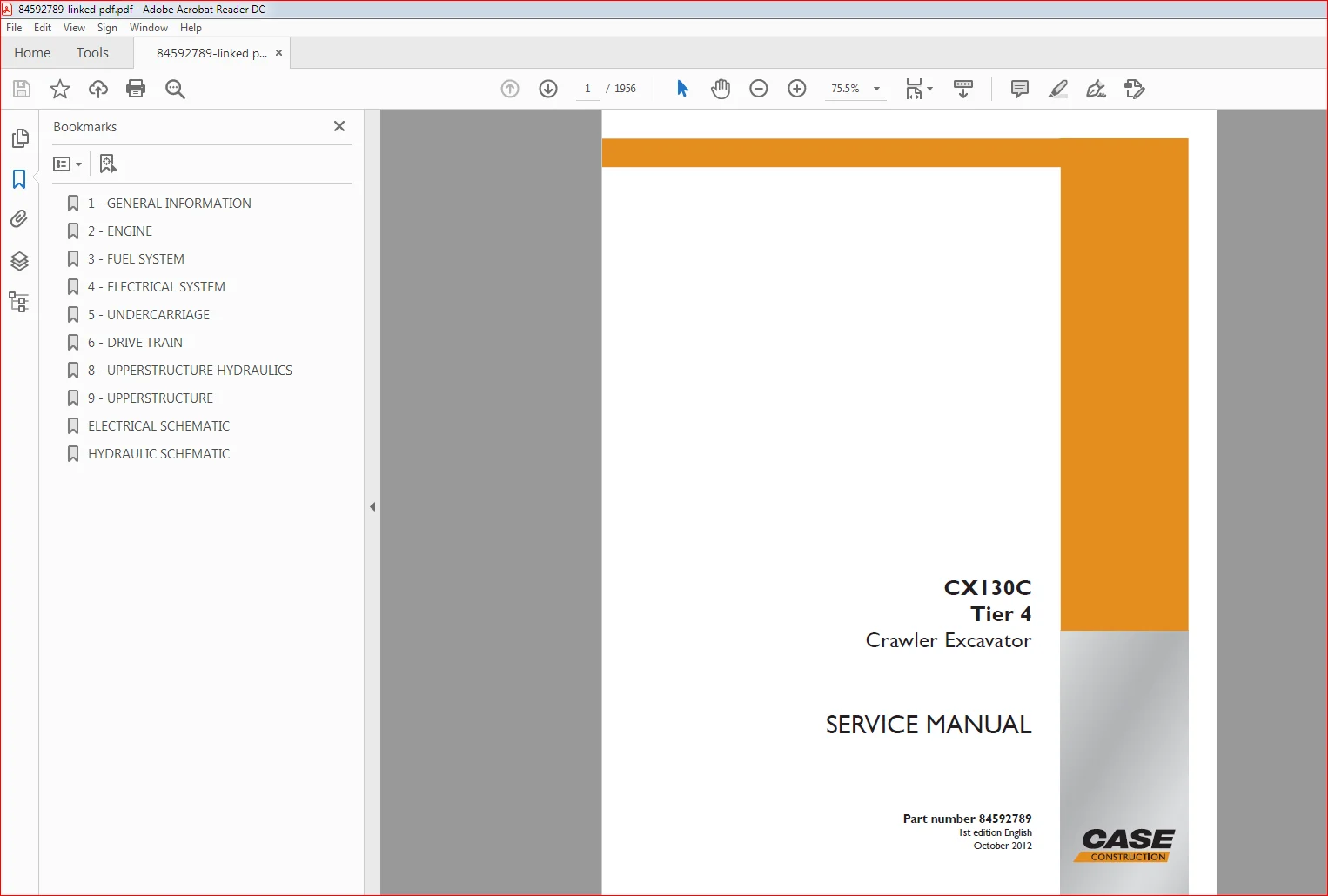

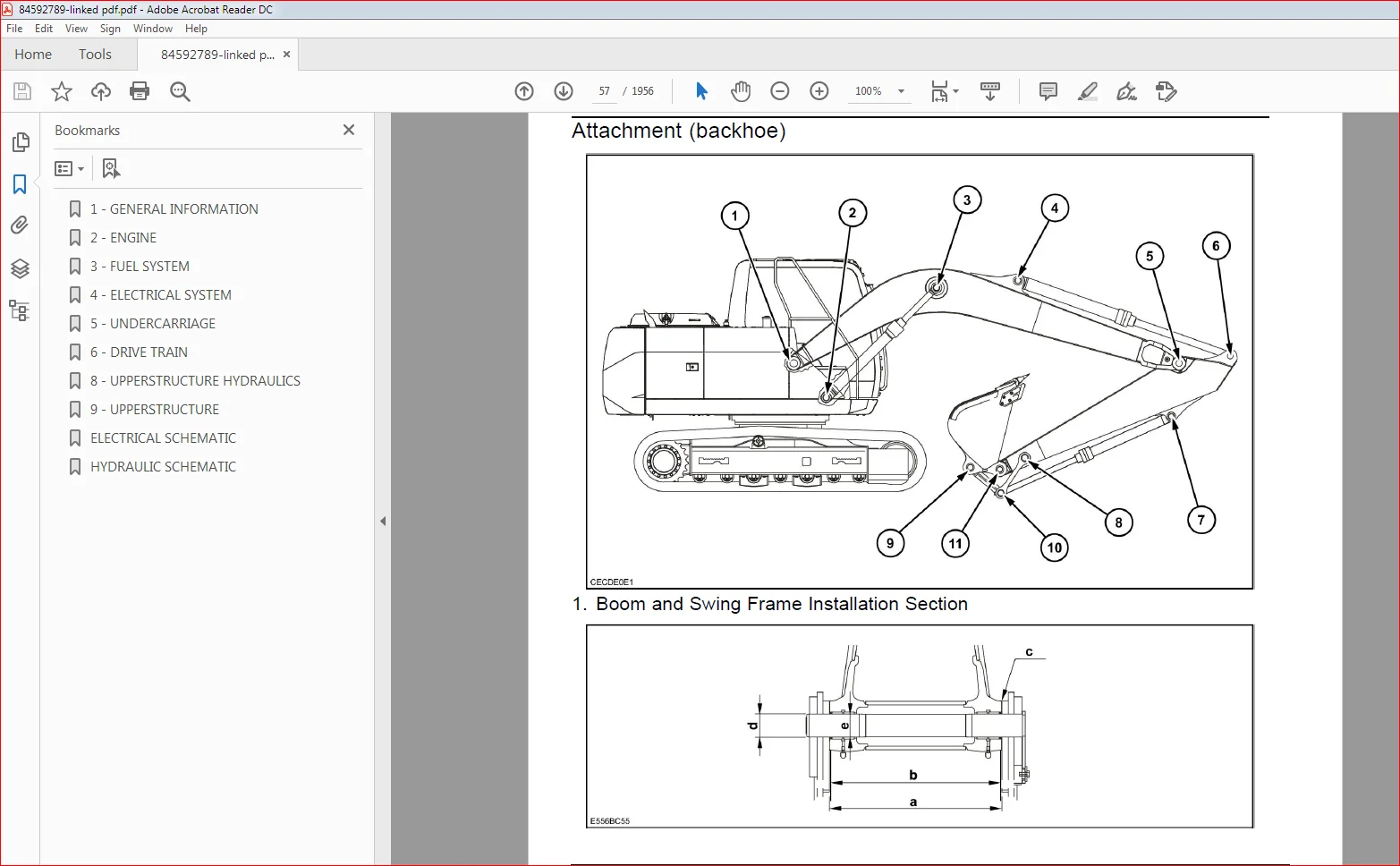

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

CASE CX130C Tier 4 Crawler Excavator

GENERAL INFORMATION 3
Safety 4
ROPS Judgment Method 6
Bolt and Nut Tightening
Main Equipment Table 3
Lower Component 3
Travel Unit 3
Take-up Roller 3
Upper Roller 3
Lower Roller 3
Recoil Spring 3
Shoe 3
Upper Component 4
Swing Unit 4
Engine-related 4
Engine 4
DPD 5
Air Cleaner (double element) 5
Radiator 5
Hydraulic Device 5
Hydraulic Pump 5
Control-related 6
Control Valve 6
Solenoid Valve (4 stack) 6
Valve for Left/Right Operations 6
Valve for Travel Operation 6
Remote Control Valve Characteristic Diagram 7
Operation Remote Control Valve Control Diagram 7
Travel Remote Control Valve Control Diagram 8
Cushion Valve (heat circuit, with shuttle valve) 8
Selector Valve (option) 8
Center Joint 8
Backhoe Attachment 9
Cylinder

PLEASE NOTE:

⦁ This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
⦁ You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
⦁ Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
