CASE CX160B CRAWLER EXCAVATOR SCHEMATIC SET Issued 03 2007 – PDF DOWNLOAD

Description

CASE CX160B CRAWLER EXCAVATOR SCHEMATIC SET Issued 03 2007

File Details:

CASE CX160B CRAWLER EXCAVATOR SCHEMATIC SET Issued 03 2007

Language : English
Pages : 535
Size : 69.2 MB
Downloadable : Yes
Format : PDF
Part No : 87637607NA

CASE CX160B CRAWLER EXCAVATOR SCHEMATIC SET ISSUED 03 2007 – PDF DOWNLOAD:

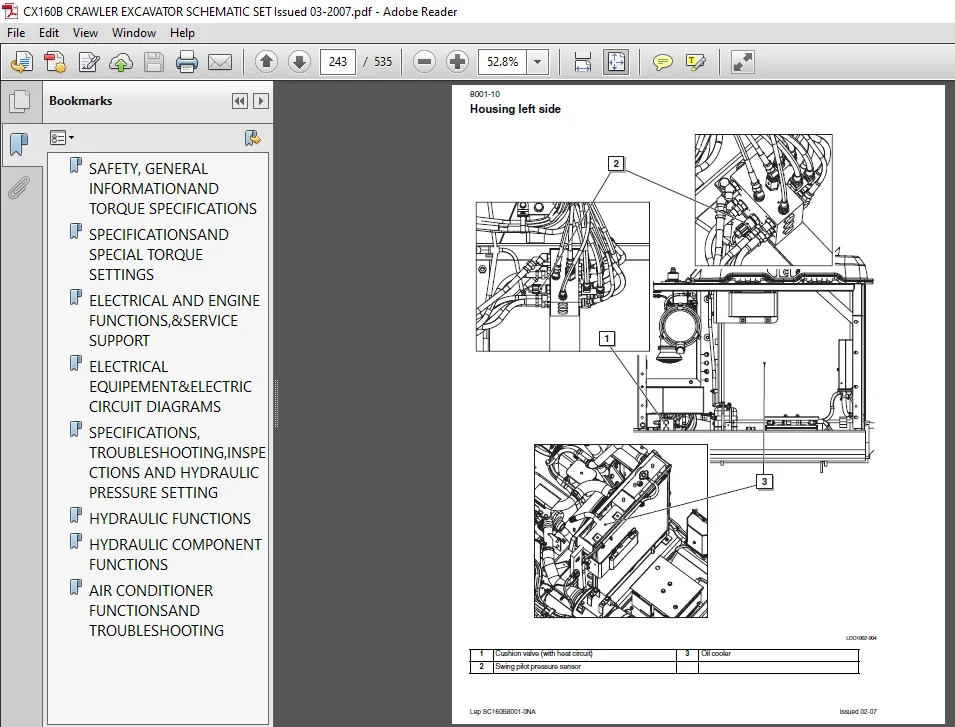

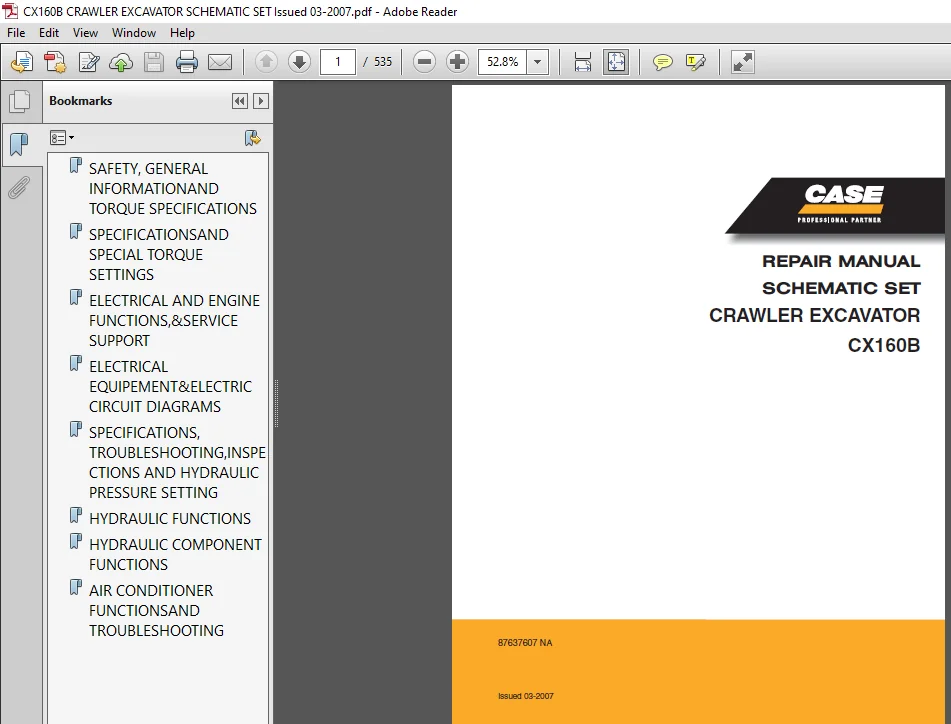

Image Preview:

Description:

CASE CX160B CRAWLER EXCAVATOR SCHEMATIC SET Issued 03 2007

Hydraulic fluid
CASE/AKCELA hydraulic fluid is specially designed for high pressure applications and for the CASE hydraulic system.
The type of fluid to be used depends on the ambient temperature.
Temperate climates: -20°C to +40°C (-4° to 104° F)
CASE/AKCELA: HYDRAULIC EXCAVATOR FLUID (MS 1230. ISO VG 46. DIN 51524 PART 2 HV)
Hot climates: 0°C to +50°C (32° to 122° F)
CASE/AKCELA: AW HYDRAULIC FLUID 68 HV (MS 1216. ISO VG 68. DIN 51524 PART 3 CATEGORY HVLP)
Cold climates: -25°C to +20°C (-13° to 68° F)
CASE/AKCELA: AW HYDRAULIC FLUID 32 (MS 1216. ISO VG 32. DIN 51524 PART 2)
Biodegradable fluid: -30°C to +40°C (-22° to 104° F)
This yellow-colored fluid is miscible with standard fluid. If used to change standard fluid, it is advised to drain the circuit
completely before refilling with this fluid.
CASE/AKCELA: HYDRAULIC EXCAVATOR FLUID BIO (MS 1230. ISO VG 46. DIN 51524 PART 2 HV)
Transmission component oil
Extreme pressure oil used for enclosed transmission components.
CASE/AKCELA: GEAR 135H EP (SAE 80W-90. API GL 5. MIL-L-2105 D. MS 1316. ZF TE-ML 05A)
Grease
CASE/AKCELA: MOLY GREASE 251H EP-M (251H EP-M. NLGI 2)
“Extreme Pressure” multipurpose grease with lithium soap and molybdenum disulphide.
CASE/AKCELA: MULTIPURPOSE GREASE 251H EP (251H EP. NLGI 2)
“Extreme Pressure” multipurpose grease with lithium soap and calcium.
CASE/AKCELA: PREMIUM GREASE EP2 (NLGI 2)
“Extreme Pressure” multipurpose grease with lithium soap.
Hydraulic breakers
CASE/AKCELA: MULTIPURPOSE GREASE 251H EP (NLGI 2).

Table of Contents:

CASE CX160B CRAWLER EXCAVATOR SCHEMATIC SET Issued 03 2007

SECTION SECTION No. REFERENCE No.
Safety, General Information and Standard Torque Data ………………………………………. 1001 7-27691NA
General Specifications and Special Torque Settings …………………………………………… 1002 SC160B1002-0NA
Elecrical and Engine Functions & Service Support …………………………………………….. 4001 SC210B4001-1NA
Elecrical Equipment and Electrical Circuit Diagrams …………………………………………… 4020 SC210B4020-0NA
Specifications, Troubleshooting, Checks and Hydraulic Pressure Settings …………….. 8001 SC160B8001-0NA
Hydraulic Functions………………………………………………………………………………………… 8020 SC160B8020-0NA
Hydraulic Component Functions ………………………………………………………………………. 8030 SC160B8030-0NA
Air Conditioner Functions and Troubleshooting ………………………………………………….. 9006 SC210B9006-0NA
Large Size Hydraulic Schematics ………………………………………………………………… Pocket 87593999A
Large Size Electrical Schematics…………………………………………………………………… Pocket 87594014A
