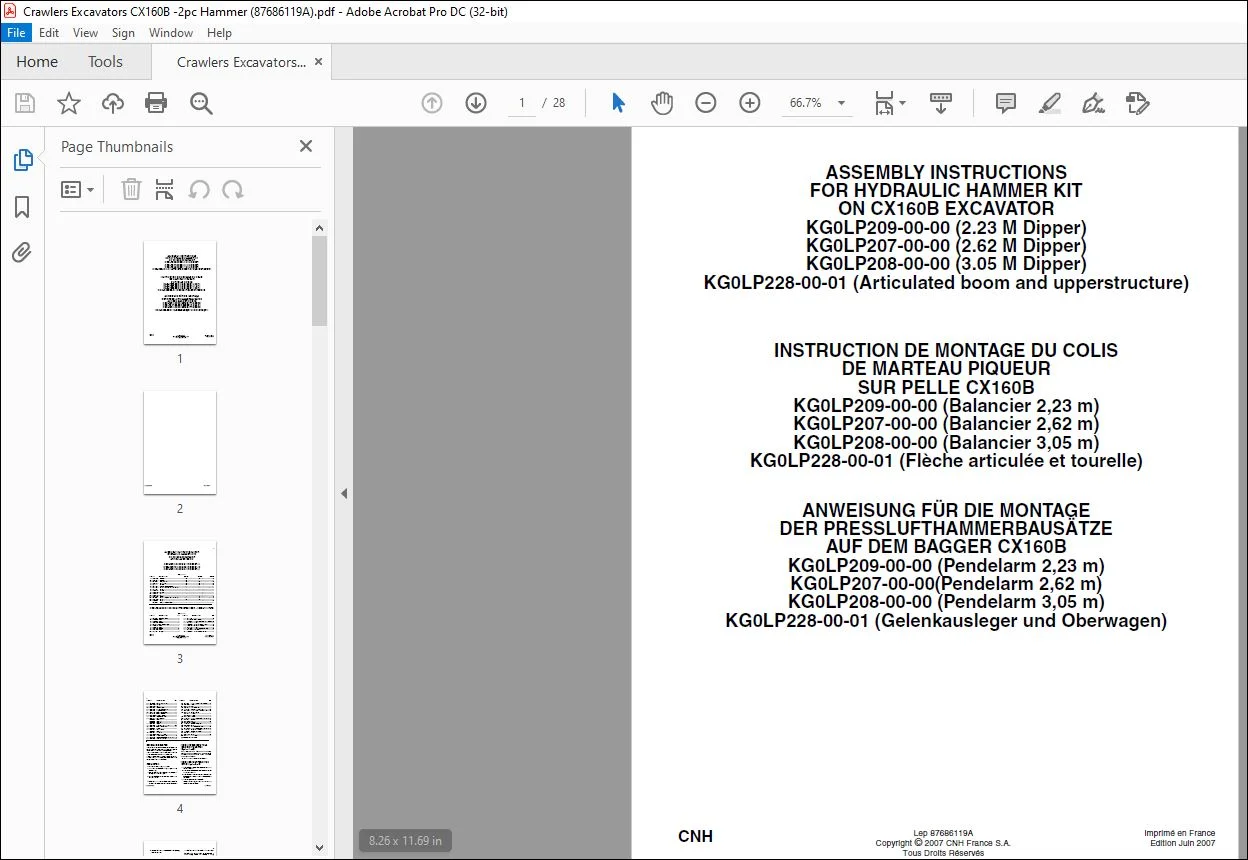

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Case CX160B EXCAVATOR HYDRAULIC HAMMER KIT ASSEMBLY INSTRUCTIONS MANUAL 87686119A – PDF DOWNLOAD

GENERAL INFORMATION
The illustrations for these assembly instructions will be
found in the last pages. Separate the last pages to
consult the illustrations while reading the text.
The reference numbers and letters in these instructions
are the same as those used in the illustrations.
Special torque settings are shown in these instructions.
If a torque setting is not shown, use the standard torque
setting shown in the Service Manual.
PREPARATION
1. Park the machine on flat, hard ground.
2. Turn the upperstructure at right angles to the
undercarriage.
3. Extend the attachment to the maximum and lower it
to the ground. Stop the engine.
4. Release pressure in the hydraulic system (see
Service Manual).

TABLE OF CONTENTS:

Case CX160B EXCAVATOR HYDRAULIC HAMMER KIT ASSEMBLY INSTRUCTIONS MANUAL 87686119A – PDF DOWNLOAD

ASSEMBLY INSTRUCTIONS FOR
HYDRAULIC HAMMER KITS
ON CX160B EXCAVATOR
ARTICULATED BOOM
KG0LP209-00-00 (2.23 m dipper); a
KG0LP207-00-00 (2.62 m dipper); b
KG0LP208-00-00 (3.05 m dipper); c
PARTS LIST
ITEMP/N DESCRIPTION Qty (a) Qty (b) Qty (c)
1. KHV10930 Bracket……………………………………………………….2.. …………………………….2 ………………………………. 2
2. KHV10540 Bracket……………………………………………………….2 …………………………….4 …………………………….. 4
3. 152924A1 Plug (BRJ1286) …………………………………………..2.. …………………………….2 ………………………………. 2
4. KHV10710 Shut-off valve………………………………………………2.. …………………………….2 ………………………………. 2
5. KHJ1348 Adaptor ………………………………………………………2.. …………………………….2 ………………………………. 2
6. 150811A1 Washer W12 (KHN0296) ………………………………4.. …………………………….4 ………………………………. 4
7. 827-12075 Screw M12x75 (102R012Y075R) …………………..4.. …………………………….4 ………………………………. 4
8. KHJ1360 O-ring…………………………………………………………4.. …………………………….4 ………………………………. 4
9. KLV12730 RH pipe………………………………………………………1.. ……………………………. – ……………………………….. –
9. KLV12410Y2 RH pipe……………………………………………………….- …………………………….1 ………………………………. 1
10. KLV12720 LH pipe ………………………………………………………1.. ……………………………. – ……………………………….. –
10. KLV12400Y2 LH pipe ……………………………………………………….- …………………………….1 …………………………….. 1
11. KHV10460 Clamp ………………………………………………………..4.. …………………………….8 ………………………………. 8
12. 166352A1 Screw M12x30 (105R012Y030R) …………………..4.. …………………………….8 ………………………………. 8
13. KNV13720 Hose ………………………………………………………….2.. …………………………….2 ……………………………….. –
13. KLV12920 Hose …………………………………………………………..- ……………………………. – ………………………………. 2
153591A1 Loctite 262 (KRC5007) …………………………………1 …………………………….1 ………………………………. 1
KG0LP228-00-01 (CX160B articulated boom – upperstructure)
PARTS LIST
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
1. 152924A1 Plug (BRJ1286) ………………………… 2
2. KLV13270 Pipe…………………………………………. 1
3. KLV13260 Pipe…………………………………………. 1
4. KHV10990 Clamp ……………………………………… 6
5. 105R012Y030R Screw M12x30 ……………………. 8
6. KLV13130 Pipe…………………………………………. 1
7. KLV13120 Pipe…………………………………………. 1
8. KHV10460 Clamp ……………………………………… 4
9. KNV13720 Hose ……………………………………….. 2
10. KHJ1360 O-ring…………………………………….. 11
11. KHJ1898 Plug ………………………………………….2
12. KHJ10450 Control pedal ……………………………..1
13. 166052A1 Screw M10x25 (105R010Y025R)….2
14. KHJ10711 Bracket ……………………………………..1
15. 150604A1 Washer W10 (KHJ0183)………………6
16. 108R010Y016R Screw M10x16 ……………………..2
17. KHJ10691 Bracket ……………………………………..1
18. 165404A1 Screw M10x20 (KHJ1104) …………..2
19. KHJ10701 Pedal stop………………………………….1
20. 159500A1 Washer W8 (KHN0420)……………….1
2
Lep 87686119A Issued 06-07
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
21. 157740A1 Nut M8 (KHJ0091) …………………….. 1
22. KHJ10721 Spring ……………………………………… 1
23. KHJ13850 Pedal ……………………………………….. 1
24. KHJ1820 Screw M10x25 ………………………….. 2
25. 163782A1 Protection (KHP0912) ………………… 1
26. 159002A1 Plug (KHJ0363)…………………………. 2
27. 152127A1 Adaptor (KNJ0758) ……………………. 4
28. 161841A1 Adaptor (CNA0584) …………………… 1
29. KHR10820 Pressure sensor………………………… 1
30. 150913A1 Elbow (KHJ0341) ………………………. 3
31. KNJ12910 Set of 3 hoses
KHJ2198 Hose Y1 …………………………………… 1
KHJ2050 Hose P5 …………………………………… 1
KHJ2050 Hose T5 …………………………………… 1
32. KHJ1178 Elbow ………………………………………. 1
33. 150496A1 Plastic clip (KHH0142) ……………….xx
34. 162554A1 Adaptor (KHJ0626) ……………………. 1
35. KHJ2773 T-piece …………………………………….. 2
36. KLJ11380 Set of 1 hose
KHJ2195 Hose Y2 …………………………………… 1
37. KHJ14640 Protection…………………………………. 1
38. KHR15830 Electrical harness ……………………… 1
39. 158962A1 Bracket (KHR1317) ……………………. 3
40. 166345A1 Screw M8x16 (105R008Y016R) ….. 3
41. 150860A1 Base (KHR0319)……………………….. 7
42. 840-168 Screw M6x8 (145T006S008R) ……..7
43. KHR14060 Switch……………………………………….1
44. KHJ11730 Manifold …………………………………….1
45. KHR14470 Pressure sensor …………………………1
46. 153081A1 Washer M8 (KAJ1500) ………………..2
47. 827-8055 Screw M8x55 (102R008Y055R)……2
48. KNJ14030 Set of 2 hoses
KHJ2292 Hose F1 …………………………………….1
KHJ16270 Hose F2 …………………………………….1
49. KRJ11470 Bracket………………………………………1
50. 166352A1 Screw M12x30 (105R012Y030R)..12
51. KHJ1941 Adaptor ……………………………………..3
52. KRJ12170 Manifold …………………………………….2
53. KRJ16050 Bracket………………………………………1
54. 169040A1 Adaptor (KAJ2434) ……………………..1
55. KLJ10980 Hose …………………………………………1
56. 153458A1 Half-clamp (KRJ2681) …………………2
57. 862-10030 Screw M10x30 (108R010Y030R)….4
58. 155210A1 O-ring (LBQ6214) ……………………….1
59. 151654A1 Adaptor (KNJ0605)……………………..1
60. KBJ1683 Hose …………………………………………1
61. KLJ11690 Hose …………………………………………2
62. KNJ2732 Safety valves ……………………………..1
xx According to requirement
