Case CX210-CX230-CX240 Crawler Excavators Service Manual (9-93611) – PDF Download

Description

Case CX210-CX230-CX240 Crawler Excavators Service Manual (9-93611)

CASE CX210-CX230-CX240 CRAWLER EXCAVATORS SERVICE MANUAL (9-93611) – PDF DOWNLOAD:

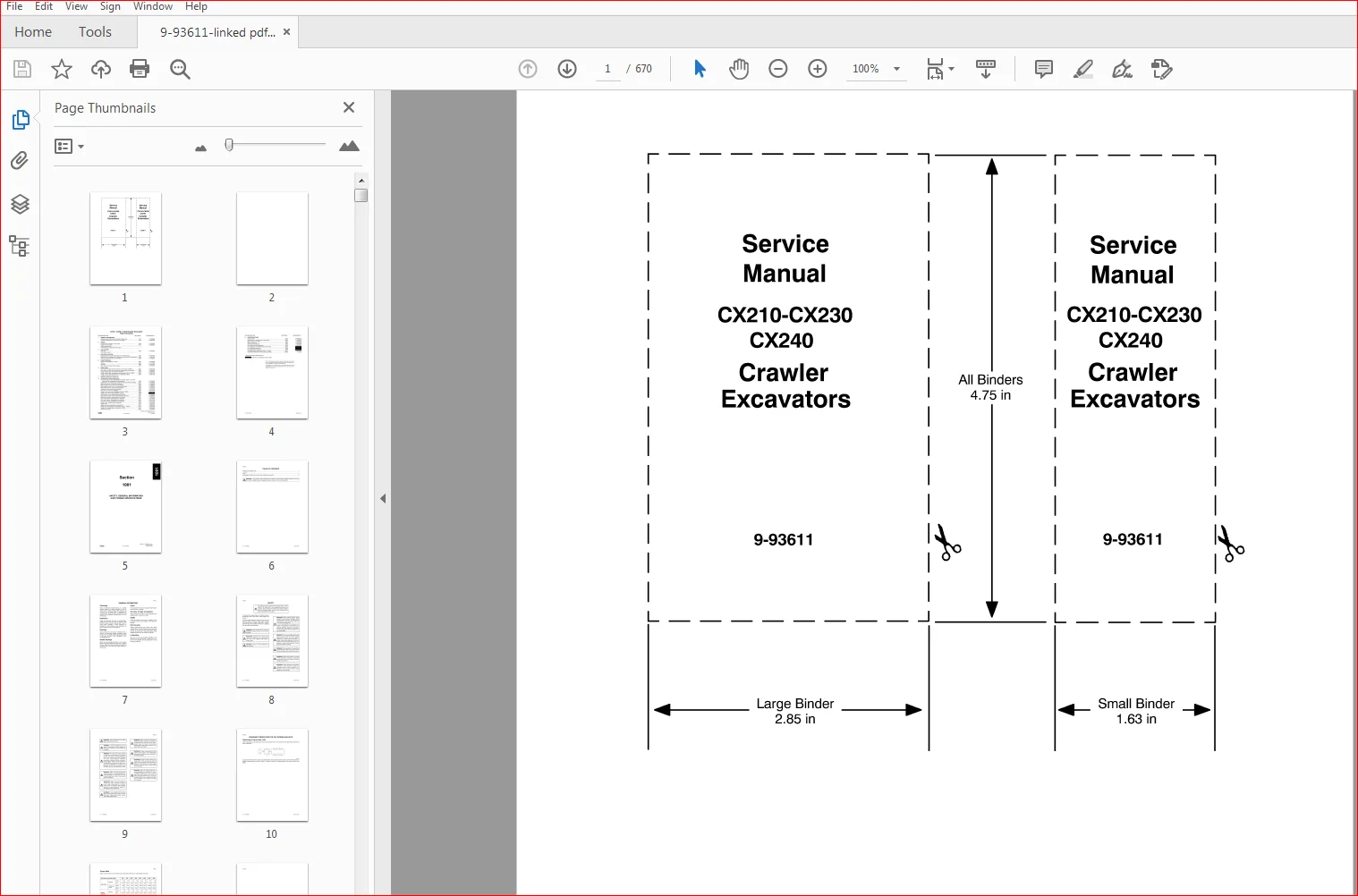

SCREENSHOOTS OF THE MANUAL:

DESCRIPTION:

Case CX210-CX230-CX240 Crawler Excavators Service Manual (9-93611)

• Cleanning
• Clean all metal parts except bearings, in a suitable cleaning solvent or by steam cleaning. Do not use caustic soda for steam cleaning. After cleaning, dry and put oil on all parts. Clean oii passages with compressed air. Clean bearings in a suitable cleaning solvent, dry the bearings completely and put oil on the bearings.
• Inspection
• Check all parts when the parts are disassembled. Replace all parts that have wear or damage. Small scoring or grooves can be removed with a hone or crocus cloth. Complete a visual inspection for indications of wear, pitting and the replacement of parts necessary to prevent early failures.
• Bearings
• Check bearings for easy action. If bearings have a loose fit or rough action replace the bearing. Wash bearings with a suitable cleaning solvent and permit to air dry. DO NOT DRY BEARINGS WITH COMPRESSED AIR.
• Gears
• Check all gears for wear and damage. Replace gears that have wear or damage.
• Oil seals, O-rings and gaskets
• Always install new oil seals, O-rings and gaskets. Put petroleum jelly on seals and O-rings.
• Shafts
• Check all shafts that have wear or damage. Check the bearing and oil seal surfaces of the shafts for damage.

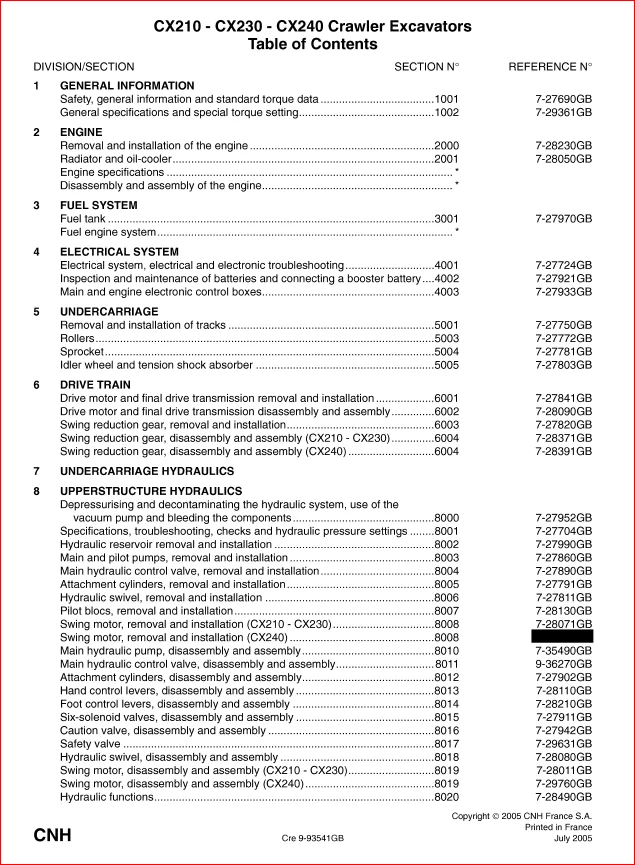

TABLE OF CONTENTS:

Case CX210-CX230-CX240 Crawler Excavators Service Manual (9-93611)

1 GENERAL INFORMATION
Salety, general lnlormatlon and standard torque data 1001
General specifications and special torque setting 1002
2 ENGINE
Removal and installation of the engine 2000
Radiator and ori-cooler 2001
Engine specifications
Disassembly and assembly at the engine
3 FUEL SYSTEM
Fuel tank 3001
Fuel engine system
4 ELECTRICAL SYSTEM
Electrical system, electrical and electronic troubleshooting t 4001
Inspection and maintenance of batteries and connecting a booster battery 4002
Main and engine electronic control boxes 4003
5 UNDERCARRIAGE
Removal and Installation of tracks 5001
Rollers 5003
Sprocket 5004
Idler wheel and tension shock absorber 5005
6 DRIVE TRAIN
Drive motor and Iinal drive transmission removal and installation 6001
Drive motor and line] drive transmission disassembiy and assembly 6002
Swing reduction gear removal and installation , 6003
Swing reduction gear disassembly and assembly (0x210 – CX230) 6004
Swing reduction gear disassembly and assembly (CX240) 60004
7 UNDERCARRIAGE HYDRAULICS
8 UPPERSTRUCTURE HYDRAULICS
Depressurising and decontaminating the hydraulic system, use of the vacuum pump and bleeding the components 8000
Specifications, troubleshooting checks and hydraulic pressure settings – 8001
Hydraulic reservoir removal and installation 8002
Main and pilot pumps, removal and installation 8003
Main hydraulic control valve removal and installation , 8004
Attachment cyfinders removal and installation 8005
Hydraulic swivel removal and installation 8006
Pilot blocs removal and Installation , 8007
firing motor removal and Installation [CX210 – CXZ230] 8008
firing motor, removal and installation [CX2401] 8009
Main hydraulic pump, disassembly and assembly 8O10
Main hydraulic control valve, disassembly and assembly 8011
Attachment cylinders, disassembiy and assembly 8012
Hand control levers, disassembly and assembly 8013
Foot control levels cisassembiy and assembly 8014
Six-solenoid valves disassembly and assembly 8015
Caution valve disassembly and assembly 8016
Satety valve 8017
Hydraulic swivel disassembly and assembly 8018
firing motor, disassembly and assembly (CX210 – CX230) 8019
Swing motor disassembly and assembly (OX240) 8019
Hydraulic functions 8020
9 UPPERSTRUCTURE
Quick coupler 9000
Upperstructure, turntable and counter weight 9002
Boom, dipper and bucket9003
Seat and seat beit 9004
Cab and cab equrpment 9005
Air conditioning troubleshooting 9006
Air conditioning unit disassembly and assembly 9007
Air conditioning servicing 9008
Air conditioning components 9009
Articulated boom supplement (CX21O – CX230) 9010
Large format hydraulic and electrical schematics Pocket

PLEASE NOTE:

⦁ This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
⦁ This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
⦁ Require some other service manual or have any queries: please WRITE to us at [email protected]
