Download Case CX210 Excavator Parts Catalogue Manual 7-7530 PDF

Description

Case CX210 Excavator Parts Catalogue Manual 7-7530 – PDF DOWNLOAD

DESCRIPTION:

Case CX210 Excavator Parts Catalogue Manual 7-7530 – PDF DOWNLOAD

HOW TO USE YOUR PARTS CATALOG:
1 Model(s)
2 Page number
Gives section number and page number within section
3 lllustration description and page title
4 Model and Serial Number or Product ldentification Number (P I N )
May be found in title and pari number information lines
-CGG012300 AII machines up to and including indicated number
CGG012301-CGG012345 AII machines between, and including, indicated numbers
CGG012346- Machine number indicated and after
5 Reference number
Reflects reference number on illustration page
6 Part number
REF The pari designated is identified on another page
NSS The pari is not sold separately; order the assembly or
subassembly
7 Description
Nouns in various languages
8 Dimension
lndicates size of pari or other qualifying information
9 Quantity
lndicates number of paris per individual pari, assembly, or subassembly
NOTE : “X” in quantity column indicates “use as required”
1-3
“#” in quantity column indicates a variation in quantity between models See information line below
pari row The models affected will be shown with the quantity in parenthesis directly afterwards,
e g “#7210(1 ), 7220(2)”
1 O CARES code (Optional)
CARES code corresponding to the pari reference number
11 Additional information
See page 7-3 The pari illustrated is identified on another page
Replaces 123456A 1 The pari number was previously 123456A 1
(Use up any stock you have)
Order 123456A1 lndicates the replacement pari number you should order
Order 22, 25, 26 The pari has been replaced by more than one item
Cut from 3 x 1974883CX Actual pari length shown in size column but sold in multiples
of a specific length e g cut from 3 x 1974883CX (3 x 1 foot
length)
Cut from 234567A1 This is the bulk stock number from which the required length
should be cut
Left, Right, Front, and Rear As seen by the operator when positioned at the machine
controls
Consists of 1-5, 9, 13 The assembly or package consists of paris reference numbers
1 through 5, 9 and 13
Consists of 2-3, 2-7 – 2-11 The assembly consists of paris on pages 2-3 and 2-7 through
2-11
lncludes 3 The pari includes reference number 3
12 Catalog reference number
13 Date of issue
14 lllustration reference
15 Arrow
The arrow indicates replacement parl{s) An arrow may also be used to specify pari location

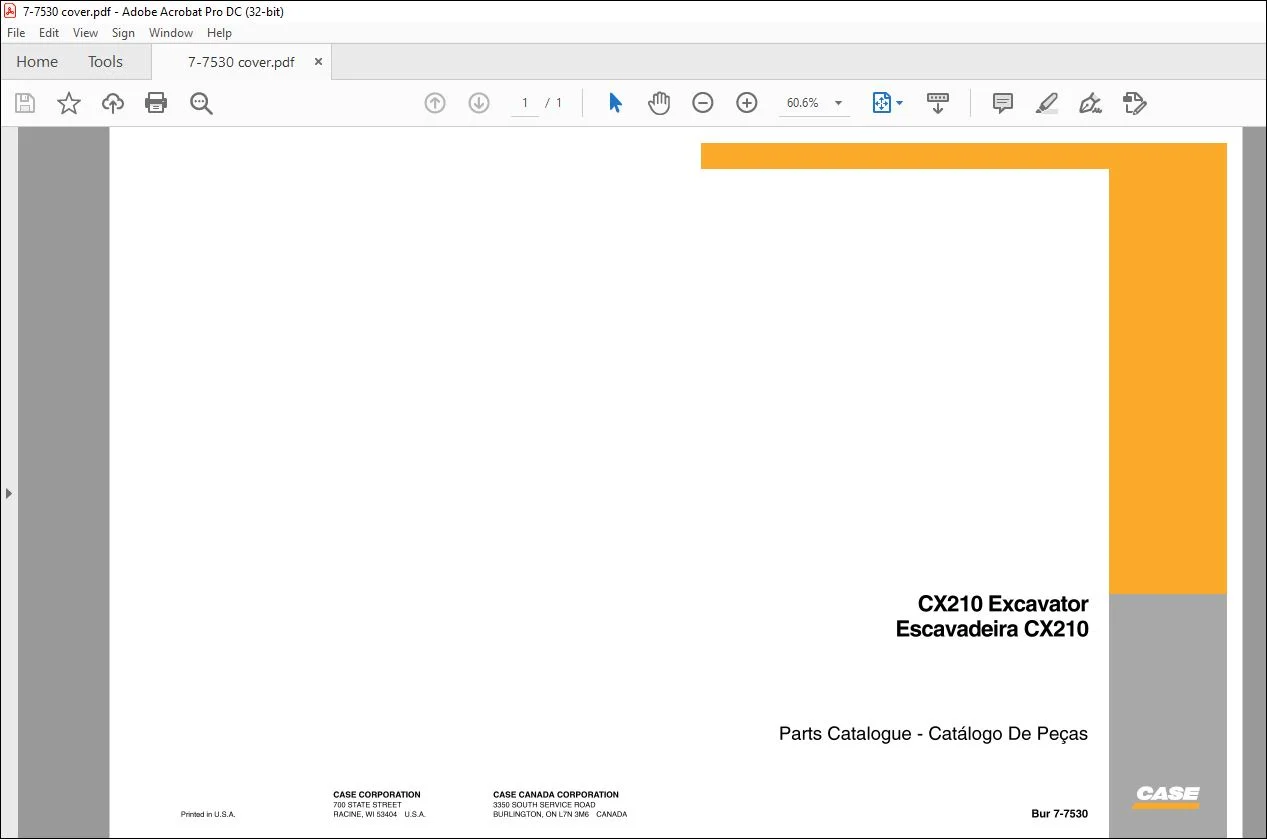

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Case CX210 Excavator Parts Catalogue Manual 7-7530 – PDF DOWNLOAD

GENERAL
GERAL
ENGINE
MOTOR
FUEL SYSTEM
SISTEMA DE COMBUSTÍVEL
ELECTRICAL SYSTEM
SISTEMA ELÉTRICO
STEERING
DIREÇÃO
POWERTRAIN
TREM DE POTÊNCIA
HYDRAULIC SYSTEM
SISTEMA HIDRÁULICO
CHASSIS / ATTACHMENTS
CHASSI / ACESSÓRIOS
NUMERICAL INDEX
ÍNDICE NUMÉRICO
