Case CX210C Crawler Excavator Service Repair Manual (47780398) Case CX210C – PDF Download

Description

Case CX210C Crawler Excavator Service Repair Manual (47780398) Case CX210C

CASE CX210C CRAWLER EXCAVATOR SERVICE REPAIR MANUAL (47780398) CASE CX210C – PDF DOWNLOAD:

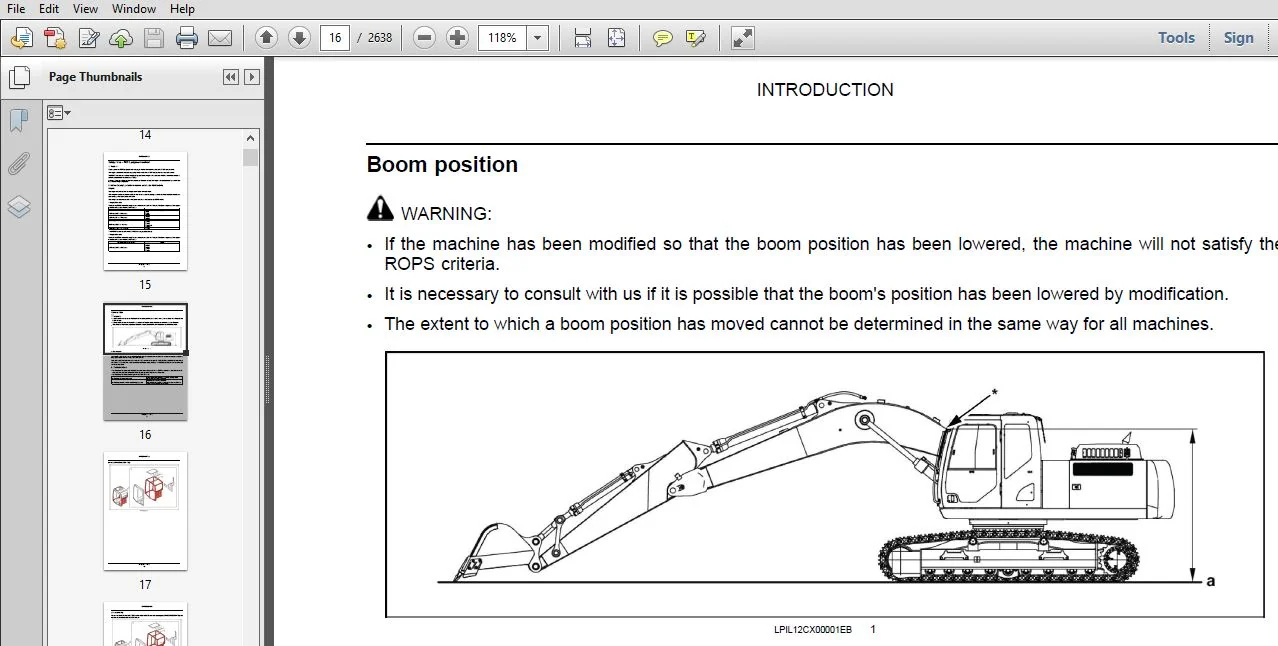

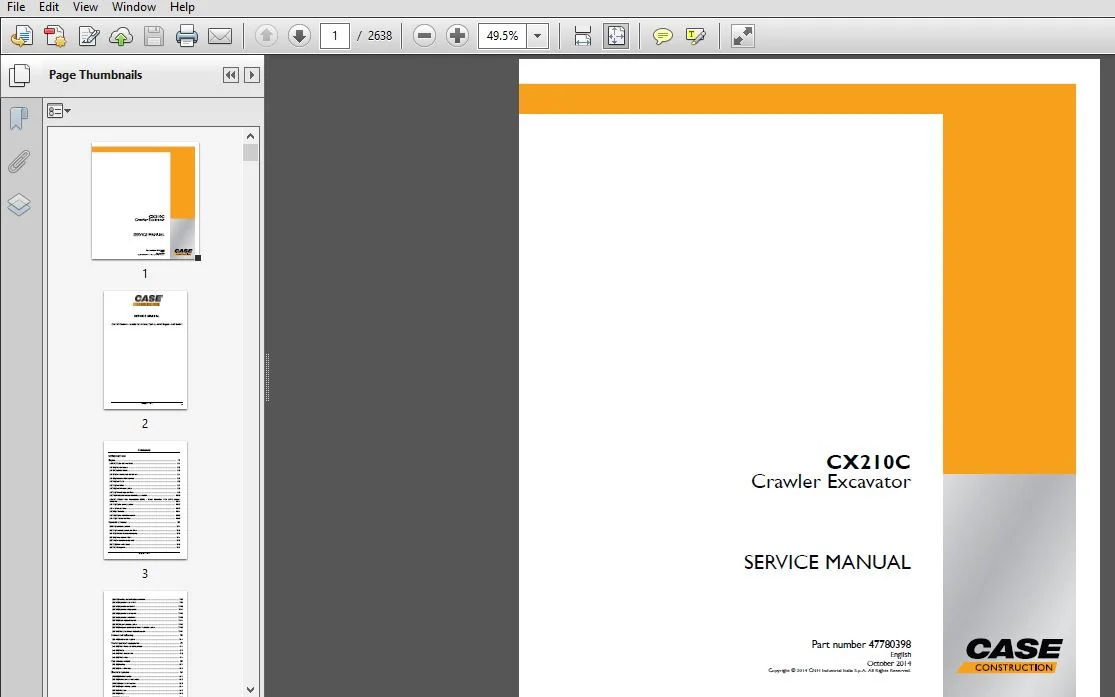

IMAGE PREVIEW:

DESCRIPTION:

Case CX210C Crawler Excavator Service Repair Manual (47780398) Case CX210C

• All repair and maintenance work listed in this manual must be carried out only by qualified dealership personnel, strictly complying with the instructions given, and using, whenever possible, the special tools.
• Anyone who performs repair and maintenance operations without complying with the procedures provided herein shall be responsible for any subsequent damages.
• The manufacturer and all the organizations of its distribution chain, including – without limitation – national, regional, or local dealers, reject any responsibility for damages caused by parts and/or components not approved by the manufacturer, including those used for the servicing or repair of the product manufactured or marketed by the manufacturer.
• In any case, no warranty is given or attributed on the product manufactured or marketed by the manufacturer in case of damages caused by parts and/or components not approved by the manufacturer.
• The manufacturer reserves the right to make improvements in design and changes in specifications at any time without notice and without incurring any obligation to install them on units previously sold. Specifications, descriptions, and illustrative material herein are as accurate as known at time of publication but are subject to change without notice.
• In case of questions, refer to your CASE CONSTRUCTION Sales and Service Networks

TABLE OF CONTENTS:

Case CX210C Crawler Excavator Service Repair Manual (47780398) Case CX210C

INTRODUCTION
Engine 10
[10 001] Engine and crankcase 10 1
[10 102] Pan and covers 10 2
[10 101] Cylinder heads 10 3
[10 105] Connecting rods and pistons 10 4
[10 103] Crankshaft and flywheel 10 5
[10 216] Fuel tanks 10 6
[10 206] Fuel filters 10 7
[10 218] Fuel injection system 10 8
[10 250] Turbocharger and lines 10 9
[10 254] Intake and exhaust manifolds and muffler 10 10
[10 501] Exhaust Gas Recirculation (EGR) – Diesel Particulate Filter (DPF) exhaust
treatment 10 11
[10 400] Engine cooling system 10 12
[10 414] Fan and drive 10 13
[10 310] Aftercooler 10 14
[10 304] Engine lubrication system 10 15
[10 408] Oil cooler and lines 10 16
Hydraulic systems 35
[35 000] Hydraulic systems 35 1
[35 300] Reservoir, cooler, and filters 35 2
[35 106] Variable displacement pump 35 3
[35 102] Pump control valves 35 4
[35 304] Combination pump units 35 5
[35 359] Main control valve 35 6
[35 357] Pilot system 35 7
[35 525] Auxiliary hydraulic valves and lines 35 8
[35 355] Hydraulic hand control 35 9
[35 356] Hydraulic foot control 35 10
[35 352] Hydraulic swing system 35 11
[35 353] Hydraulic travel system 35 12
[35 354] Hydraulic central joint 35 13
[35 736] Boom hydraulic system 35 14
[35 737] Dipper hydraulic system 35 15
[35 738] Excavator and backhoe bucket hydraulic system 35 16
[35 734] Tool quick coupler hydraulic system 35 17
Frames and ballasting 39
[39 140] Ballasts and supports 39 1
Tracks and track suspension 48
[48 130] Track frame and driving wheels 48 1
[48 100] Tracks 48 2
[48 134] Track tension units 48 3
[48 138] Track rollers 48 4
Cab climate control 50
[50 100] Heating 50 1
[50 200] Air conditioning 50 2
Electrical systems 55
[55 000] Electrical system 55 1
[55 100] Harnesses and connectors 55 2
[55 015] Engine control system 55 3
[55 201] Engine starting system 55 4
[55 301] Alternator 55 5
[55 302] Battery 55 6
[55 202] Cold start aid 55 7
[55 010] Fuel injection system 55 8
[55 014] Engine intake and exhaust system 55 9
[55 989] Exhaust Gas Recirculation (EGR) electrical system 55 10
[55 012] Engine cooling system 55 11
[55 013] Engine oil system 55 12
[55 640] Electronic modules 55 13
[55 512] Cab controls 55 14
[55 036] Hydraulic system control 55 15
[55 051] Cab Heating, Ventilation, and Air-Conditioning (HVAC) controls 55 16
[55 050] Heating, Ventilation, and Air-Conditioning (HVAC) control system 55 17
[55 524] Cab controls (Lift arm, Boom, Dipper, Bucket) 55 18
[55 416] Swing control system 55 19
[55 417] Travel control system 55 20
[55 950] Hammer electric system 55 21
[55 530] Camera 55 22
[55 518] Wiper and washer system 55 23
[55 404] External lighting 55 24
[55 514] Cab lighting 55 25
[55 408] Warning indicators, alarms, and instruments 55 26
[55 992] Anti-theft system 55 27
[55 DTC] FAULT CODES 55 28
Booms, dippers, and buckets 84
[84 910] Boom 84 1
[84 912] Dipper arm 84 2
[84 100] Bucket 84 3
Platform, cab, bodywork, and decals 90
[90 150] Cab 90 1
[90 156] Cab glazing 90 2
[90 120] Mechanically-adjusted operator seat 90 3
[90 100] Engine hood and panels 90 4

PLEASE NOTE:

⦁ This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
⦁ This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
⦁ Require some other service manual or have any queries: please WRITE to us at [email protected]
