Case CX27B Compact Hydraulic Excavator Service Manual S5PV0022E02 - PDF DOWNLOAD

Case CX27B Compact Hydraulic Excavator Service Manual S5PV0022E02 – PDF DOWNLOAD

Name: Case CX27B Compact Hydraulic Excavator Service Manual S5PV0022E02 - PDF DOWNLOAD
SKU: 287602
Availability: InStock

Original price was: $86.95.Current price is: $28.95.

Case CX27B Compact Hydraulic Excavator Service Manual S5PV0022E02 – PDF DOWNLOAD

PIN number PV13 – and higher

Category: CASE Tags: Case CX27B Compact Hydraulic Excavator Service, Case CX27B Compact Hydraulic Excavator Service Manual S5PV0022E02, Case CX27B Compact Hydraulic Excavator Service Manual S5PV0022E02 - PDF DOWNLOAD Vendor: Telematics Manuals

⚡

Instant PDF Download

Available immediately

💾

Save to Your Device

Download & keep forever

🛡️

Antivirus Scanned

100% virus-free

🌍

Trusted Worldwide

175,000+ customers

Description

Description

Case CX27B Compact Hydraulic Excavator Service Manual S5PV0022E02 – PDF DOWNLOAD

DESCRIPTION:

Case CX27B Compact Hydraulic Excavator Service Manual S5PV0022E02 – PDF DOWNLOAD

PIN number PV13 – and higher

SAFETY PRECAUTIONS :

Use caution when performing service work. A knowledge of the system and or components is important before the removal or disassembly of any component. Because of the size of some of the machine components, check the weights noted in this manual. Use proper lifting procedures when removing any components. Weight of components table is shown in the Specification section.

(1) Read and understand all Warning plates and decal on the machine before Operating, Maintaining or
Repairing this machine.
(2) Always wear protective glasses and protective shoes when performing maintenance or service. Wear protective glasses when using hammers, punches or drifts on any part of the machine or attachments. Use welders gloves, hood/goggles, apron and the protective clothing if welding is necessary. Do not wear loose fitting or torn clothing. Remove all rings from fingers, loose jewelry, confine long hair and loose clothing before working on this machinery.

(3) Disconnect the battery and hang a “Do Not Operate” tag in the Operator’s Compartment. Remove the ignition keys.

(4) If possible, make all repairs with the machine parked on a firm level surface. Block the machine to prevent unexpected movement.

(5) Do not work on any machine that is supported only by lift, jacks or a hoist. Always use blocks or jack stands, capable of supporting the machine, before performing any disassembly.

(6) Relieve all pressure in air, oil or water systems before any lines, fittings or related items are disconnected or removed. Always make sure all raised components are blocked correctly and be alert for possible pressure when disconnecting any device from a system that utilizes pressure.

(7) Lower the bucket, dozer, or other attachments to the ground before performing any work on the machine. If this cannot be done, make sure the bucket, dozer, ripper or other attachment is blocked correctly to prevent it from dropping unexpectedly.

(8) Use steps and grab handles when mounting or dismounting a machine. Clean any mud or debris from steps, walkways or work platforms before using. Always face to the machine when using steps, ladders and walkways. When it is not possible to use the designed access system, provide ladders, scaffolds, or work platforms to perform safe repair operations.

(9) To avoid back injury, use a hoist when lifting components which weigh 20 kg (45 lbs) or more. Make sure all chains, hooks, slings, etc., are in good condition and are the correct capacity. Be sure hooks are positioned correctly. Lifting eyes are not to be side loaded during a lifting operation.

(10)To avoid burns, be alert for hot parts on machines which have just been stopped and hot fluids in lines, tubes and compartments.

TABLE OF CONTENTS:

Case CX27B Compact Hydraulic Excavator Service Manual S5PV0022E02 – PDF DOWNLOAD

GENERAL SAFETY INFORMATION………………… 3
1. OUTLINE………………………………. 8
2. SPECIFICATIONS………………………… 18
3. ATTACHMENT DIMENSIONS………………….. 34
11. TOOLS……………………………….. 58
12. STANDARD MAINTENANCE TIME TABLE………… 74
13. MAINTENANCE STANDARD AND TEST PROCEDURE…. 86
22. HYDRAULIC SYSTEM………………………108
23. ELECTRICAL SYSTEM……………………..136
24. COMPONENTS SYSTEM……………………..168
31. GENERAL DISASSEMBLY AND ASSEMBLY………..268
32. ATTACHMENTS…………………………..272
33. UPPER SLEWING STRUCTURE………………..304
34. TRAVEL SYSTEM…………………………438
42. TROUBLESHOOTING (HYDRAULIC SYSTEM)………508
43. TROUBLESHOOTING (ELECTRICAL SYSTEM)……..520
44. TROUBLESHOOTING (ENGINE)……………….532
51. ENGINE……………………………….544

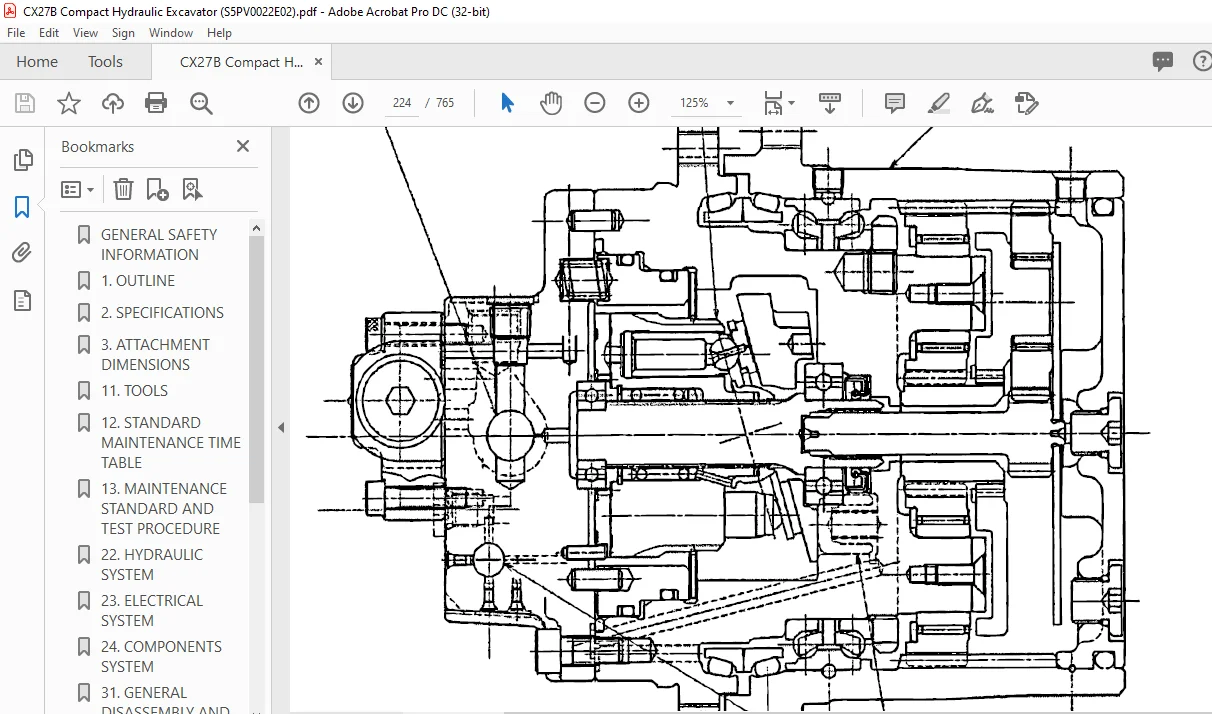

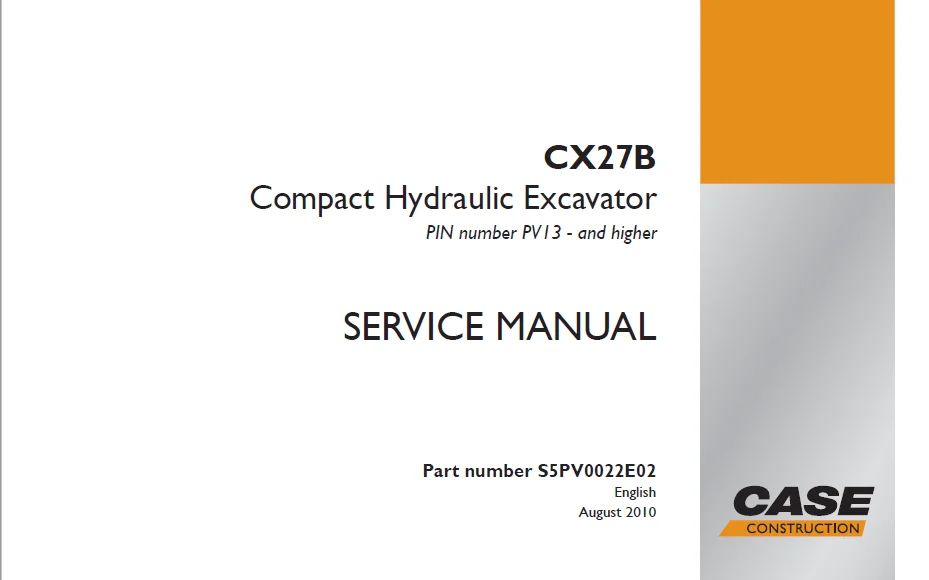

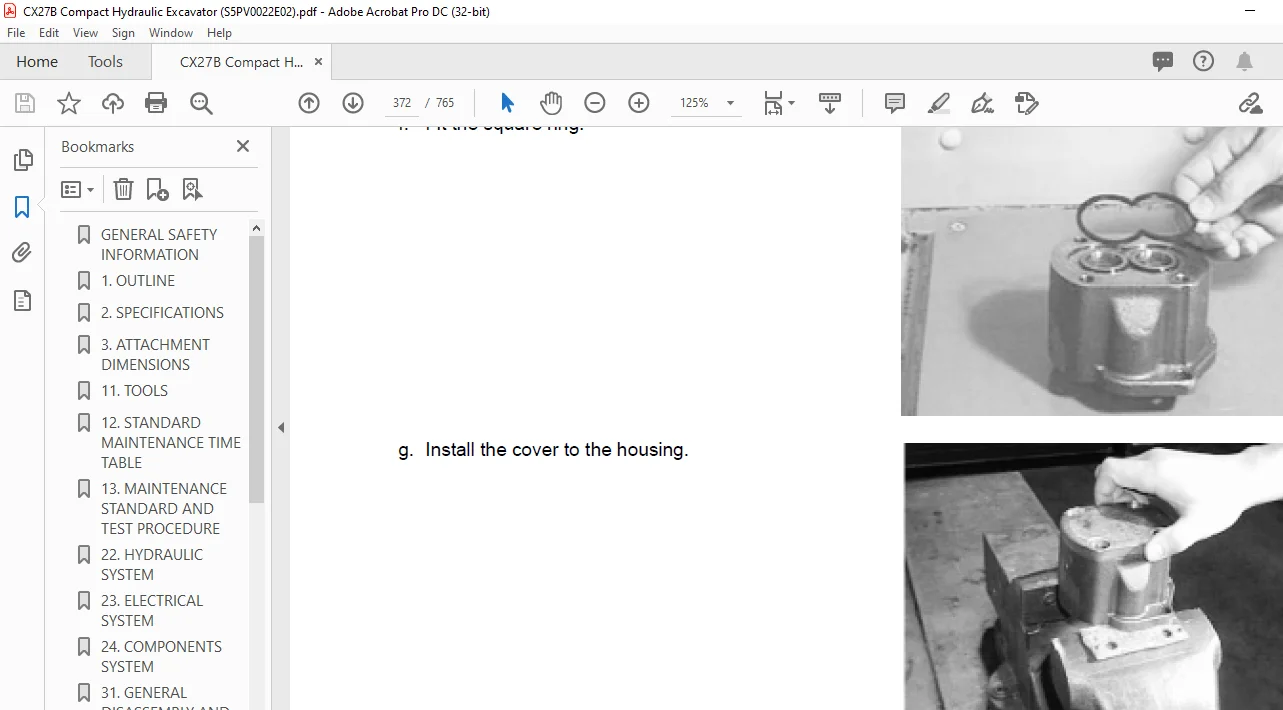

IMAGES PREVIEW OF THE MANUAL:

CASE CX27B COMPACT HYDRAULIC EXCAVATOR SERVICE MANUAL S5PV0022E02 – PDF DOWNLOAD:

PLEASE NOTE:

This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
