Case CX290 Crawler Excavator Service Manual – PDF DOWNLOAD
Original price was: $89.95.$29.95Current price is: $29.95.
Case CX290 Crawler Excavator Service Manual – PDF DOWNLOAD
Description
Case CX290 Crawler Excavator Service Manual – PDF DOWNLOAD
DESCRIPTION:
Case CX290 Crawler Excavator Service Manual – PDF DOWNLOAD
Cleaning : Clean all metal parts except bearings, in a suitable cleaning solvent or by steam cleaning. Do not use caustic soda for steam cleaning. After cleaning, dry and put oil on all parts. Clean oil passages with compressed air. Clean bearings in a suitable cleaning solvent, dry the bearings completely and put oil on the bearings. Inspection: Check all parts when the parts are disassembled. Replace all parts that have wear or damage. Small scoring or grooves can be removed with a hone or crocus cloth. Complete a visual inspection for indications of wear, pitting and the replacement of parts necessary to prevent early failures. Bearings : Check bearings for easy action. If bearings have a loose fit or rough action replace the bearing. Wash bearings with a suitable cleaning solvent and permit to air dry. DO NOT DRY BEARINGS WITH COMPRESSED AIR. Needle : Bearings Before you press needle bearings in a bore always remove any metal protrusions in the bore or edge of the bore. Before you press bearings into position put petroleum jelly on the inside and outside diameter of the bearings. Gears : Check all gears for wear and damage. Replace gears that have wear or damage. Oil Seals, O-Rings and Gaskets : Always install new oil seals, O-rings and gaskets. Put petroleum jelly on seals and O-rings. Shafts : Check all shafts that have wear or damage. Check the bearing and oil seal surfaces of the shafts for damage. Service Parts : Always install genuine Case service parts. When ordering refer to the Parts Catalog for the correct part number of the genuine Case replacement items. Failures due to the use of other than genuine Case replacement parts are not covered by warranty. Lubrication: Only use the oils and lubricants specified in the Operator’s or Service Manuals. Failures due to the use of non-specified oils and lubricants are not covered by warranty.TABLE OF CONTENTS:
Case CX290 Crawler Excavator Service Manual – PDF DOWNLOAD
1 GENERAL INFORMATION
Safety, general information and standard torque data ……………………………….1001 7-27690GB
General specifications and special torque setting……………………………………..1002 9-36330GB
2 ENGINE
Removal and installation of the engine ……………………………………………………2000 9-43820GB
Radiator and oil-cooler………………………………………………………………………….2001 9-44490GB
Engine specifications ………………………………………………………………………………… *
Disassembly and assembly of the engine…………………………………………………….. *
3 FUEL SYSTEM
Fuel tank …………………………………………………………………………………………….3001 7-27970GB
Fuel engine system…………………………………………………………………………………… *
4 ELECTRICAL SYSTEM
Electrical system, electrical and electronic troubleshooting………………………..4001 9-40330GB
Inspection and maintenance of batteries and connecting a booster battery….4002 9-43460GB
Main and engine electronic control boxes………………………………………………..4003 9-43450GB
5 UNDERCARRIAGE
Removal and installation of tracks ………………………………………………………….5001 7-27750GB
Rollers………………………………………………………………………………………………..5003 9-42920GB
Sprocket……………………………………………………………………………………………..5004 9-36890GB
Idler wheel and tension shock absorber ………………………………………………….5005 9-43000GB
6 DRIVE TRAIN
Drive motor and final drive transmission removal and installation ……………….6001 9-43140GB
Swing reduction gear, removal and installation…………………………………………6003 9-44010GB
Swing reduction gear, disassembly and assembly ……………………………………6004 9-43220GB
Travel reduction gear assembly and disassembly …………………………………….6005 9-43150GB
7 UNDERCARRIAGE HYDRAULICS
8 UPPERSTRUCTURE HYDRAULICS
Depressurising and decontaminating the hydraulic system, use of the
vacuum pump and bleeding the components ……………………………………….8000 9-44030GB
Specifications, troubleshooting, checks and hydraulic pressure settings ……..8001 9-36870GB
Hydraulic reservoir removal and installation …………………………………………….8002 7-27990GB
Main and pilot pumps, removal and installation ………………………………………..8003 9-44050GB
Main hydraulic control valve, removal and installation……………………………….8004 9-44410GB
Attachment cylinders, removal and installation…………………………………………8005 7-27791GB
Hydraulic swivel, removal and installation ……………………………………………….8006 7-27811GB
Pilot blocs, removal and installation………………………………………………………..8007 7-28130GB
Swing motor, removal and installation …………………………………………………….8008 9-44020GB
Main hydraulic pump, disassembly and assembly…………………………………….8010 9-35491GB
Main hydraulic control valve, disassembly and assembly…………………………..8011 9-43550GB
Attachment cylinders, disassembly and assembly…………………………………….8012 9-44420GB
Hand control levers, disassembly and assembly ………………………………………8013 7-28110GB
Foot control levers, disassembly and assembly ……………………………………….8014 7-28210GB
Six-solenoid valves, disassembly and assembly ………………………………………8015 9-43360GB
Caution valve, disassembly and assembly ………………………………………………8016 7-27942GB
Safety valve ………………………………………………………………………………………..8017 7-29631GB
Hydraulic swivel, disassembly and assembly …………………………………………..8018 7-28080GB
Swing motor, disassembly and assembly ………………………………………………..8019 9-43440GB
Hydraulic functions……………………………………………………………………………….8020 9-43030GB
Travel hydraulic motor, disassembly and assembly…………………………………..8021 9-43160GB
Cre 9-44510GB Issued 04-02
DIVISION/SECTION SECTION No. REFERENCE No.
9 UPPERSTRUCTURE
Upperstructure, turntable and counterweight……………………………………………9002 9-43760GB
Boom, dipper and bucket ………………………………………………………………………9003 9-27961GB
Seat and seat belt ………………………………………………………………………………..9004 9-40960GB
Cab and cab equipment………………………………………………………………………..9005 9-43750GB
Air conditioning troubleshooting……………………………………………………………..9006 7-xxxxxFR
Air conditioning unit disassembly and assembly……………………………………….9007 7-29910GB
Air conditioning servicing ………………………………………………………………………9008 7-xxxxxFR
Air conditioning components………………………………………………………………….9009 7-xxxxxFR
Large format hydraulic and electrical schematics …………………………………..Pocket

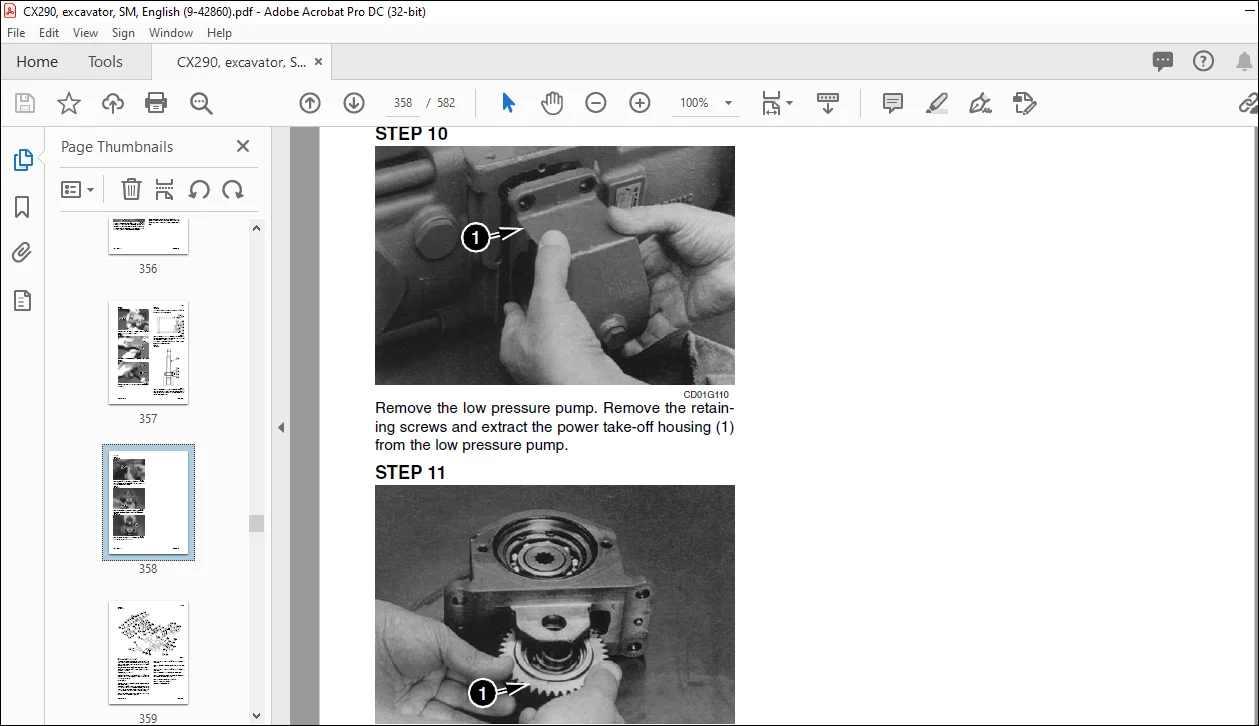

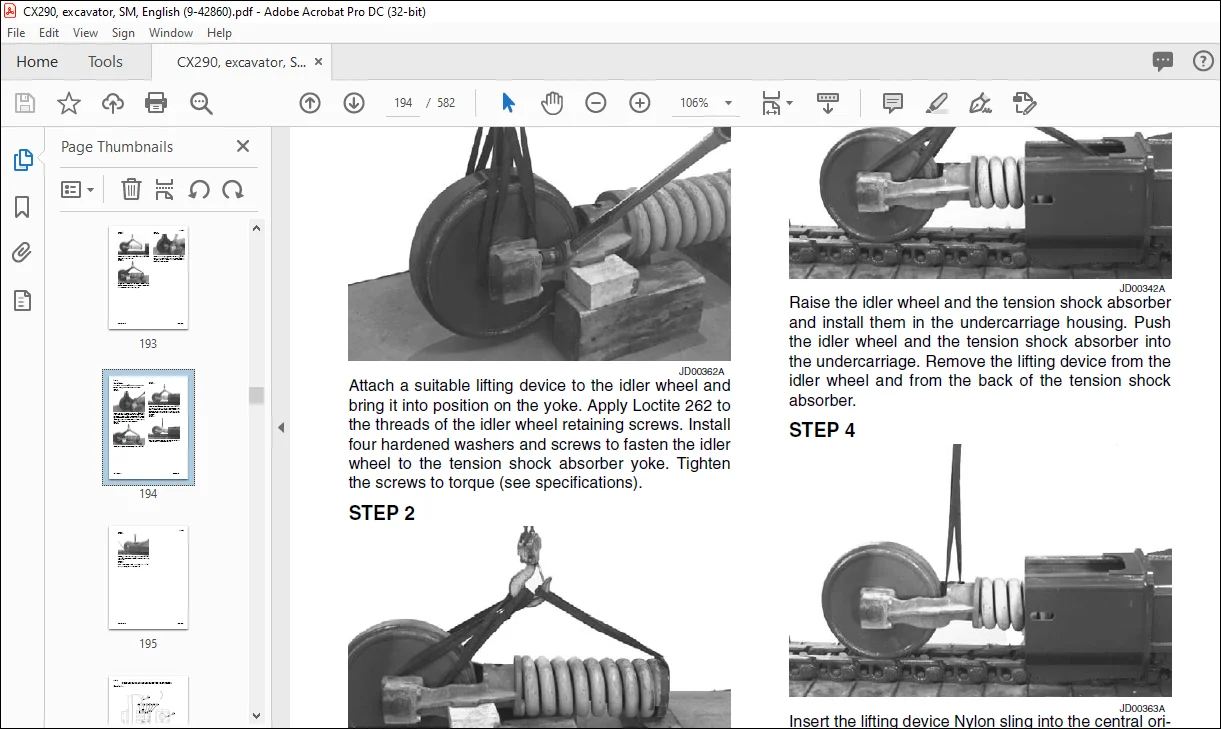

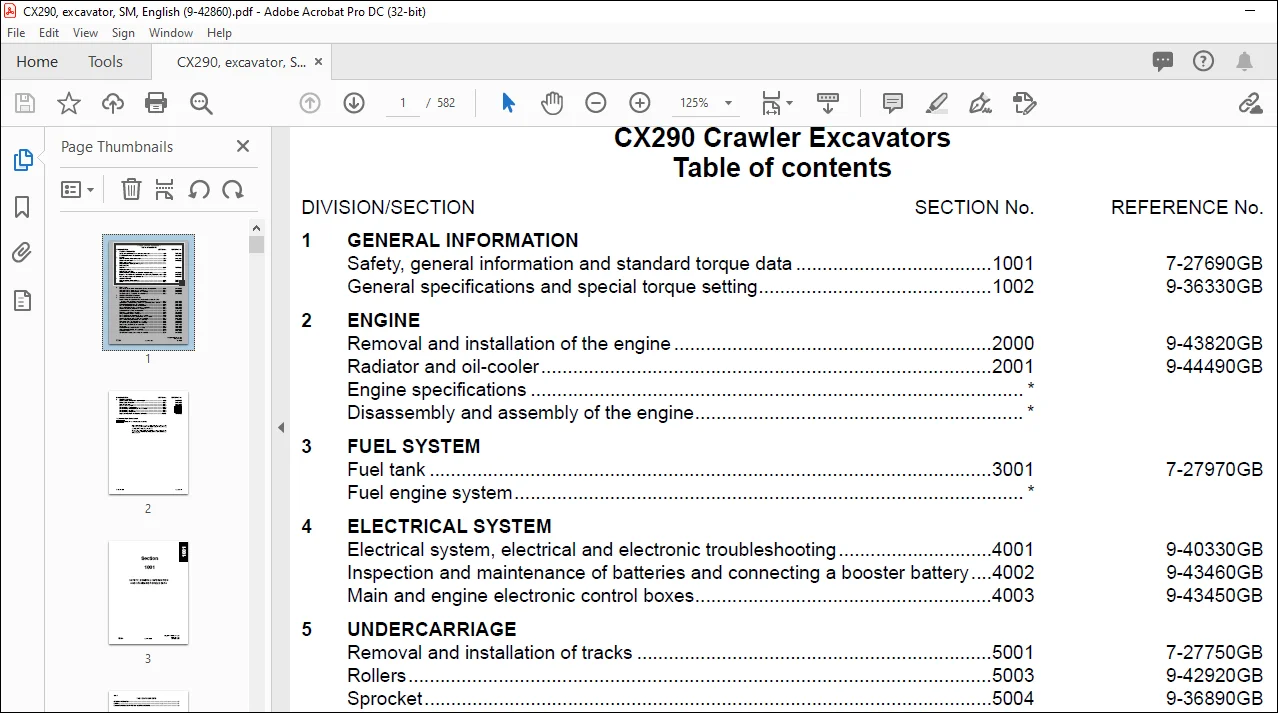

IMAGES PREVIEW OF THE MANUAL:
Need help? Contact: [email protected]
PLEASE NOTE:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contact [email protected]
S.V
