Case CX290 Excavator Parts Catalogue Manual 7-7920 – PDF DOWNLOAD

Description

Case CX290 Excavator Parts Catalogue Manual 7-7920 – PDF DOWNLOAD

DESCRIPTION:

Case CX290 Excavator Parts Catalogue Manual 7-7920 – PDF DOWNLOAD

1 Model(s)
2 Page number
Gives section number and page number within section
3 Illustration description and page title
4 Model and Serial Number or Product Identification Number (P I N )
May be found in title and part number information lines
-CGG012300 All machines up to and including indicated number
CGG012301-CGG012345 All machines between, and including, indicated numbers
CGG012346- Machine number indicated and after
5 Reference number
Reflects reference number on illustration page
6 Part number
REF The part designated is identified on another page
NSS The part is not sold separately; order the assembly or
subassembly
7 Description
Nouns in various languages
8 Dimension
Indicates size of part or other qualifying information
9 Quantity
Indicates number of parts per individual part, assembly, or subassembly
NOTE : “X” in quantity column indicates “use as required”
“#” in quantity column indicates a variation in quantity between models See information line below
part row The models affected will be shown with the quantity in parenthesis directly afterwards,
e g “#7210(1), 7220(2)”
10 CARES code (Optional)
CARES code corresponding to the part reference number
11 Additional information
See page 7-3 The part illustrated is identified on another page
Replaces 123456A1 The part number was previously 123456A1
(Use up any stock you have)
Order 123456A1 Indicates the replacement part number you should order
Order 22, 25, 26 The part has been replaced by more than one item
Cut from 3 x 1974883CX Actual part length shown in size column but sold in multiples
of a specific length e g cut from 3 x 1974883CX (3 x 1 foot
length)
Cut from 234567A1 This is the bulk stock number from which the required length
should be cut
Left, Right, Front, and Rear As seen by the operator when positioned at the machine
controls
Consists of 1-5, 9, 13 The assembly or package consists of parts reference
numbers 1 through 5, 9 and 13
Consists of 2-3, 2-7 – 2-11 The assembly consists of parts on pages 2-3 and 2-7 through
2-11
Includes 3 The part includes reference number 3
12 Catalog reference number
13 Date of issue
14 Illustration reference
15 Arrow
The arrow indicates replacement part(s) An arrow may also be used to specify part location

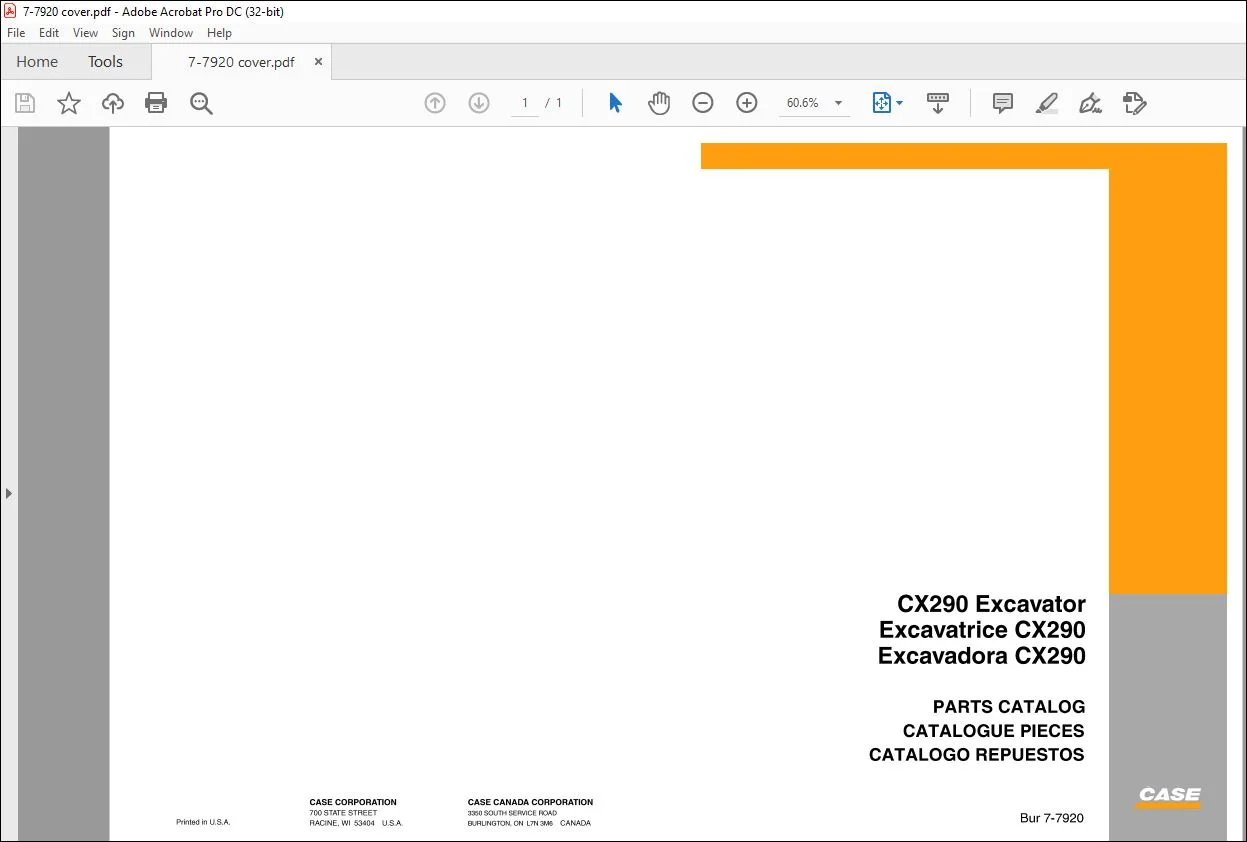

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Case CX290 Excavator Parts Catalogue Manual 7-7920 – PDF DOWNLOAD

GENERAL
GENERALITES
GENERALIDADES 1
B9411014
ENGINE
MOTEUR THERMIQUE
MOTOR TÉRMICO 2
B9411015
FUEL SYSTEM
SYSTEME CARBURANT
SISTEMA DE COMBUSTIBLE 3
B9411016
ELECTRICAL SYSTEM
SYSTEME ELECTRIQUE
SISTEMA ELÉCTRICO 4
B9411017
STEERING
DIRECTION
DIRECCIÓN 5
B9411018
POWER TRAIN
TRANSMISSION
TRANSMISION 6
B9411019
HYDRAULIC SYSTEM
SYSTEME HYDRAULIQUE
SYSTEMA HIDRÁULICO 8
B9411020
CHASSIS / ATTACHMENTS
CHASSIS / EQUIPEMENTS
CHASIS / EQUIPOS 9
NUMERICAL INDEX
INDEX NUMERIQUE
INDICE NUMÉRICO

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.

S.V
