Case CX50 Mini-Excavator Parts Catalog Manual(7-7741) – PDF DOWNLOAD

Description

Case CX50 Mini-Excavator Parts Catalog Manual(7-7741) – PDF DOWNLOAD

FILE DETAILS:

Case CX50 Mini-Excavator Parts Catalog Manual(7-7741) – PDF DOWNLOAD

Language : English/Spanish/German/French/Italian
Pages : 468
Downloadable : YES
Format : PDF
Size : 4.44 MB

TABLE OF CONTENTS:

Case CX50 Mini-Excavator Parts Catalog Manual(7-7741) – PDF DOWNLOAD

02.003.00 01 ENGINE MOUNTING
02.005.00 01 ENGINE
02.007.00 01 AIR FILTRATION
02.009.00 01 EXHAUST
02.011.00 01 WATER CIRCUIT
02.013.00 01 RADIATOR AND OIL COOLER
02.015.00 01 CYLINDER BLOCK
02.017.00 01 PISTONS AND CRANKSHAFT FLYWHEEL
02.019.00 01 FRONT TIMING GEAR COVER OIL PAN
02.021.00 01 CYLINDER HEAD CYLINDER HEAD COVER
02.023.00 01 CAMSHAFT VALVES AND VALVE MECHANISM
02.025.00 01 SPEED GOVERNOR ENGINE
02.027.00 01 ENGINE OIL PUMP ENGINE
02.029.00 01 WATER PUMP
02.031.00 01 INTAKE AND EXHAUST PIPES
02.033.00 01 ELECTRICAL ACCESSORIES ENGINE
02.035.00 01 PACKAGE, SEALS ENGINE
03.003.00 01 FUEL TANK
03.005.00 01 FUEL SYSTEM
03.007.00 01 FUEL SYSTEM
03.009.00 01 FUEL SYSTEM
03.011.00 01 FUEL FILTER
03.013.00 01 FUEL INJECTION PUMP
03.017.00 01 INJECTOR
04.003.00 01 ELECTRICAL ACCESSORIES ENGINE
04.005.00 01 STARTER
04.007.00 01 ALTERNATOR
04.009.00 01 ELECTRICAL CIRCUIT ENGINE
04.011.00 01 ELECTRICAL CIRCUIT OPERATORS COMPARTMENT
04.013.00 01 BATTERIES
04.015.00 01 INSTRUMENT PANEL
04.019.00 01 ELECTRICAL CIRCUIT INSTRUMENT PANEL
04.021.00 01 ROTATING BEACON
04.023.00 01 LAMP, WORK
04.025.00 01 LAMP, WORK
04.027.00 01 HEATING CIRCUIT
04.029.00 01 ELECTRICAL COMPONENTS
04.031.00 01 ELECTRICAL CIRCUIT CAB
05.003.00 01 UNDERCARRIAGE
05.005.00 01 GUIDE PULLEY
05.007.00 01 TENSION DAMPER
05.009.00 01 TRACK ROLLER BOTTOM
05.011.00 01 TRACK ROLLER UPPER
05.013.00 01 TRACK
05.015.00 01 TRACK
05.017.00 01 DOZER BLADE
06.003.00 01 SWING REDUCTION GEAR
07.003.00 01 HYDRAULIC CIRCUIT UNDERCARRIAGE
07.005.00 01 SWING JOINT
07.007.00 01 TRAVEL MOTOR AND REDUCTION GEAR
07.013.00 01 DOZER BLADE CYLINDER
08.003.00 01 HYDRAULIC RESERVOIR
08.005.00 01 PUMP COUPLING
08.007.00 01 HYDRAULIC CIRCUIT UPPERSTRUCTURE CHASSIS
08.009.00 01 SUCTION HYDRAULIC CIRCUIT
08.013.00 01 HYDRAULIC CIRCUIT UPPERSTRUCTURE CHASSIS
08.017.00 01 HYDRAULIC CIRCUIT UPPERSTRUCTURE CHASSIS
08.021.00 01 HYDRAULIC CIRCUIT UPPERSTRUCTURE CHASSIS
08.023.00 01 HYDRAULIC CIRCUIT COOLER
08.025.00 01 HYDRAULIC CIRCUIT OPERATORS COMPARTMENT
08.029.00 01 HYDRAULIC CIRCUIT OPERATORS COMPARTMENT
08.031.00 01 HYDRAULIC CIRCUIT OPERATORS COMPARTMENT
08.035.00 01 HYDRAULIC CIRCUIT MONOBLOCK BOOM 2.86 M – 112-5/8 IN
08.037.00 01 HYDRAULIC CIRCUIT DIPPER 1.45 M – 57-1/8 IN
08.039.00 01 HYDRAULIC CIRCUIT DIPPER 1.75 M – 69 IN
08.041.00 01 AUXILIARY HYDRAULIC CIRCUIT MONOBLOCK BOOM 2.86 M – 112-5/8 IN
08.043.00 01 AUXILIARY HYDRAULIC CIRCUIT DIPPER 1.45 M – 57-1/8 IN
08.045.00 01 HYDRAULIC CIRCUIT HYDRAULIC ROCKBREAKER CB 370
08.047.00 01 HYDRAULIC PUMP
08.051.00 01 HYDRAULIC PUMP SWING AND DOZER BLADE
08.053.00 01 HYDRAULIC PUMP PILOT CONTROL
08.055.00 01 SWING HYDRAULIC MOTOR
08.057.00 01 RELIEF VALVE
08.059.00 01 BRAKE RELEASE SELECTOR
08.061.00 01 BY-PASS VALVE
08.063.00 01 CONTROL VALVE
08.067.00 01 CONTROL VALVE
08.069.00 01 RELIEF VALVE
08.071.00 01 VALVE, SECONDARY RELIEF
08.073.00 01 VALVE, SECONDARY RELIEF
08.075.00 01 VALVE, FORCE-FEED
08.077.00 01 CONTROL VALVE
08.079.00 01 CONTROL VALVE
08.081.00 01 RELIEF VALVE
08.083.00 01 ANTI-EXCESS VALVE
08.085.00 01 SELECTOR BLOCK
08.087.00 01 RELIEF VALVE
08.089.00 01 HAND CONTROL VALVE
08.091.00 01 ATTACHMENT SWING CYLINDER
08.095.00 01 BOOM CYLINDER
08.097.00 01 DIPPER CYLINDER
08.101.00 01 BUCKET CYLINDER
09.003.00 01 SLEWING RING GEAR
09.005.00 01 UPPERSTRUCTURE CHASSIS
09.007.00 01 COWLING
09.009.00 01 COWLING
09.013.00 01 COUNTERWEIGHT
09.015.00 01 VALVE BANK PARTITION
09.017.00 01 OPERATORS COMPARTMENT FLOOR, CAB
09.019.00 01 CAB
09.021.00 01 CAB
09.023.00 01 CAB GLASS
09.025.00 01 CAB CAB DOOR
09.027.00 01 CAB WINDSHIELD, UPPER
09.029.00 01 CAB WINDSHIELD, LOWER
09.029.01 01 CAB MIRROR, REAR VIEW
09.031.00 01 SEAT SEAT MOUNTING
09.033.00 01 SEAT
09.035.00 01 SAFETY BELT
09.037.00 01 OPERATORS COMPARTMENT
09.039.00 01 OPERATORS COMPARTMENT LEVER, TRAVEL CONTROL
09.041.00 01 OPERATORS COMPARTMENT LEVER, TRAVEL CONTROL
09.043.00 01 OPERATORS COMPARTMENT SEAT SUPPORT
09.047.00 01 OPERATORS COMPARTMENT CONTROL SUPPORT, ATTACHMENT
09.051.00 01 ENGINE ACCELERATION
09.053.00 01 BOOM OFFSET
09.055.00 01 MONOBLOCK BOOM 2.86 M – 112-5/8 IN
09.059.00 01 DIPPER 1.45 M – 57-1/8 IN
09.063.00 01 DIPPER 1.75 M – 69 IN
09.067.00 01 GENERAL PURPOSE BUCKET
09.071.00 01 DITCHCLEANING BUCKET
09.073.00 01 HYDRAULIC ROCKBREAKER CB 370
09.075.00 01 MECHANISM HYDRAULIC ROCKBREAKER CB 370
09.079.00 01 BITS HYDRAULIC ROCKBREAKER CB 370
09.081.00 01 DECALS
09.083.00 01 DECALS
09.085.00 01 DECALS ENGLISH
09.087.00 01 DECALS FRENCH
09.089.00 01 DECALS GERMAN
09.091.00 01 DECALS ITALIAN
09.093.00 01 DECALS SPANISH AND PORTUGUESE
09.095.00 01 DECALS DUTCH
09.097.00 01 DECALS DANISH
09.099.00 01 DECALS FINNISH
09.101.00 01 TOOLS

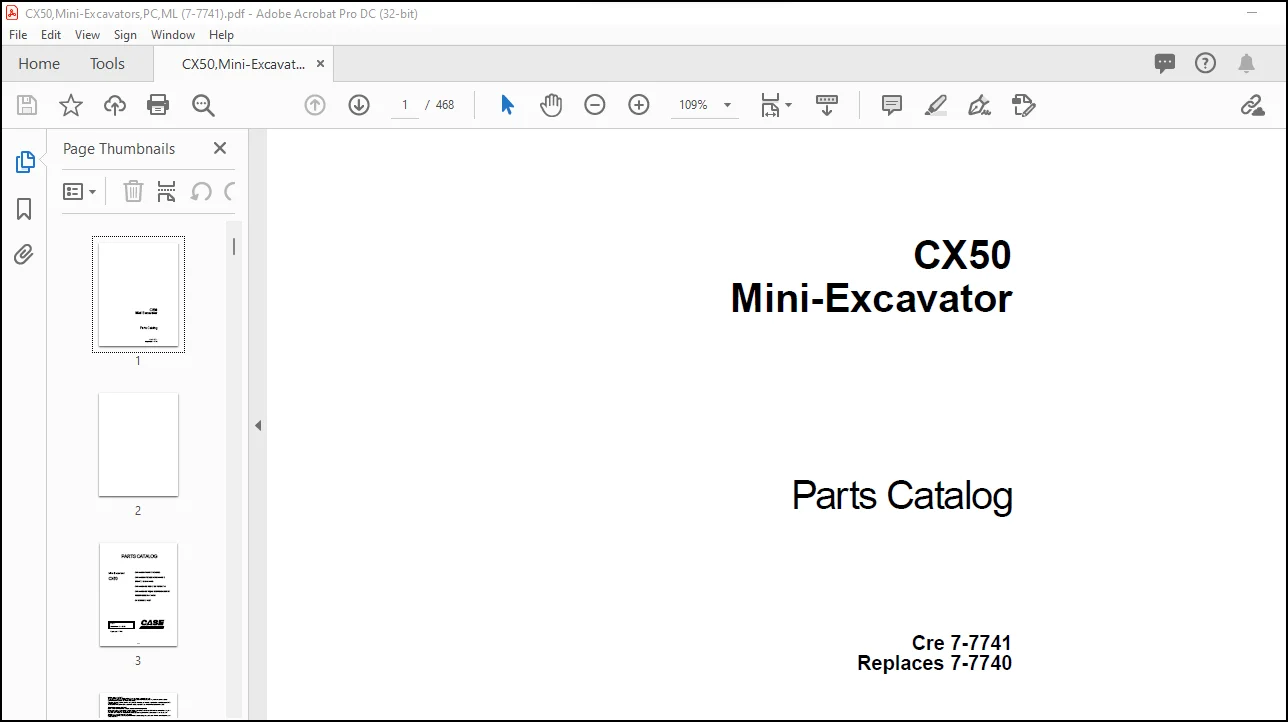

IMAGES PREVIEW OF THE MANUAL:
