Case CX700 Tier III Crawler Excavator Service Manual 87364111 – PDF DOWNLOAD

Description

Case CX700 Tier III Crawler Excavator Service Manual 87364111 – PDF DOWNLOAD

DESCRIPTION:

Case CX700 Tier III Crawler Excavator Service Manual 87364111 – PDF DOWNLOAD

GENERAL INFORMATION
Note to the Owner

Improper operation of this machine can cause injury or death. Before using this machine, make certain that every
operator:

• Is instructed in safe and proper use of the machine.
  • Reads and understands the Manual(s) pertaining to the machine.
  • Reads and understands ALL Safety Decals on the machine.
  • Clears the area of other persons.
  • Learns and practices safe use of machine controls in a safe, clear area before operating this machine on a job site.

• It is your responsibility to observe pertinent laws and regulations and follow CASE CONSTRUCTION instructions on
  machine operation and maintenance.
• Your machine has been designed and built to the highest standards of quality. It conforms to all current safety regulations.
  However, the risk of accidents can never be completely excluded. That is why it is essential to observe
  elementary safety rules and precautions.
• Read this manual carefully, paying particular attention to the instructions concerning safety, operation and maintenance
  so as to avoid the risk of injury while operating or servicing the machine.
• The standard attachments and tools of this machine are designed to carry out earthmoving and rehandling operations.
• If you want to use this machine to handle a load (pipes, culverts, formwork, etc.), make sure that it is designed to
  carry out this kind of work. For this type of application, the machine must be equipped with safety valves, an overload
  indicator, a load handling chart corresponding to the type of machine and its attachment, and a load fixing point. All
  legal requirements must also be strictly observed.

Do not use this machine for any application or purpose other than those described in this manual. If the machine is
to be used for work involving the use of special attachments, accessories, or equipment, consult your CASE CONSTRUCTION Dealer in order to make sure that any adaptations or modifications made are in keeping with the machine’s
technical specifications and with prevailing safety requirements.

TABLE OF CONTENTS:

Case CX700 Tier III Crawler Excavator Service Manual 87364111 – PDF DOWNLOAD

1 GENERAL INFORMATION
CX700 Crawler Excavator
Safety, general information and standard torque data ………………………………. 1001
General specifications and special torque setting …………………………………….. 1002
Numerical value conversion table ………………………………………………………….. 1003
2 ENGINE
Radiator and engine removal and installation ………………………………………….. 2001
Engine specifications ………………………………………………………………………………… *
Disassembly and assembly of the engine …………………………………………………….. *
3 FUEL SYSTEM
Fuel tank, removal and installation …………………………………………………………. 3001
Fuel engine system …………………………………………………………………………………… *
4 ELECTRICAL SYSTEM
Electrical system, electrical and electronic troubleshooting ………………………. .4001
Inspection and maintenance of batteries and connecting a booster battery … .4002
Computer and engine controller, removal and installation ………………………… .4003
5 UNDERCARRIAGE
Removal and installation of tracks …………………………………………………………. 5001
Rollers ……………………………………………………………………………………………….. 5003
Sprocket …………………………………………………………………………………………….. 5004
Idler wheel and tension shock absorber …………………………………………………. 5005
6 DRIVE TRAIN
Travel-motor reduction gear assembly, removal and installation …………………. 6001
Travel hydraulic motor, disassembly and assembly …………………………………… 6002
Swing reduction gear, removal and installation ………………………………………… 6003
Swing reduction gear, disassembly and assembly ……………………………………. 6004
Travel reduction gear, disassembly and assembly ……………………………………. 6005
7 UNDERCARRIAGE HYDRAULICS
8 UPPERSTRUCTURE HYDRAULICS
Depressurising and decontaminating the hydraulic system, use of the
vacuum pump and bleeding the components ………………………………………. 8000
Specifications, troubleshooting, checks and hydraulic pressure settings ……… 8001
Hydraulic reservoir removal and installation ……………………………………………. 8002
Main hydraulic pump and pilot pumps, removal and installation …………………. 8003
Main hydraulic control valve, removal and installation ………………………………. 8004
Attachment cylinders, removal and installation ………………………………………… 8005
Hydraulic swivel, removal and installation ……………………………………………….. 8006
Pilot blocs, removal and installation ……………………………………………………….. 8007
Swing motor, removal and installation …………………………………………………….. 8008
Main hydraulic pump, disassembly and assembly ……………………………………. 8010
Main hydraulic control valve, disassembly and assembly ………………………….. 8011
Attachment cylinders, disassembly and assembly ……………………………………. 8012
Hand control levers, disassembly and assembly ……………………………………… 8013
Foot control levers, disassembly and assembly ……………………………………….. 8014
Eight-solenoid valves, disassembly and assembly …………………………………… 8015
Caution valve, disassembly and assembly ………………………………………………. 8016
Safety valve ………………………………………………………………………………………… 8017
Hydraulic swivel, disassembly and assembly …………………………………………… 8018
Swing motor, disassembly and assembly ……………………………………………….. 8019
DIVISION/SECTION SECTION N° REFERENCE N°
Hydraulic functions ………………………………………………………………………………. 8020
Fan motor, removal and installation ……………………………………………………….. 8022
Fan motor, disassembly and assembly …………………………………………………… 8023
Fan pump, removal, disassembly, assembly and installation ……………………… 8024
Hydraulic component functions ……………………………………………………………… 8030
9 UPPERSTRUCTURE
Upperstructure, turntable and counterweight …………………………………………… 9002
Boom, dipper and bucket ……………………………………………………………………… 9003
Seat and seat belt ……………………………………………………………………………….. 9004
Cab and cab equipment ……………………………………………………………………….. 9005
Air conditioning troubleshooting …………………………………………………………….. 9006
Air conditioning unit disassembly and assembly ………………………………………. 9007
Air conditioning servicing ……………………………………………………………………… 9008
Air conditioning components …………………………………………………………………. 9009
Removal and installation attachment, counterweight and side frame ………….. 9010
Large size hydraulic schematic …………………………………………………………… Pocket
Large size electrical schematic …………………………………………………………… Pocket

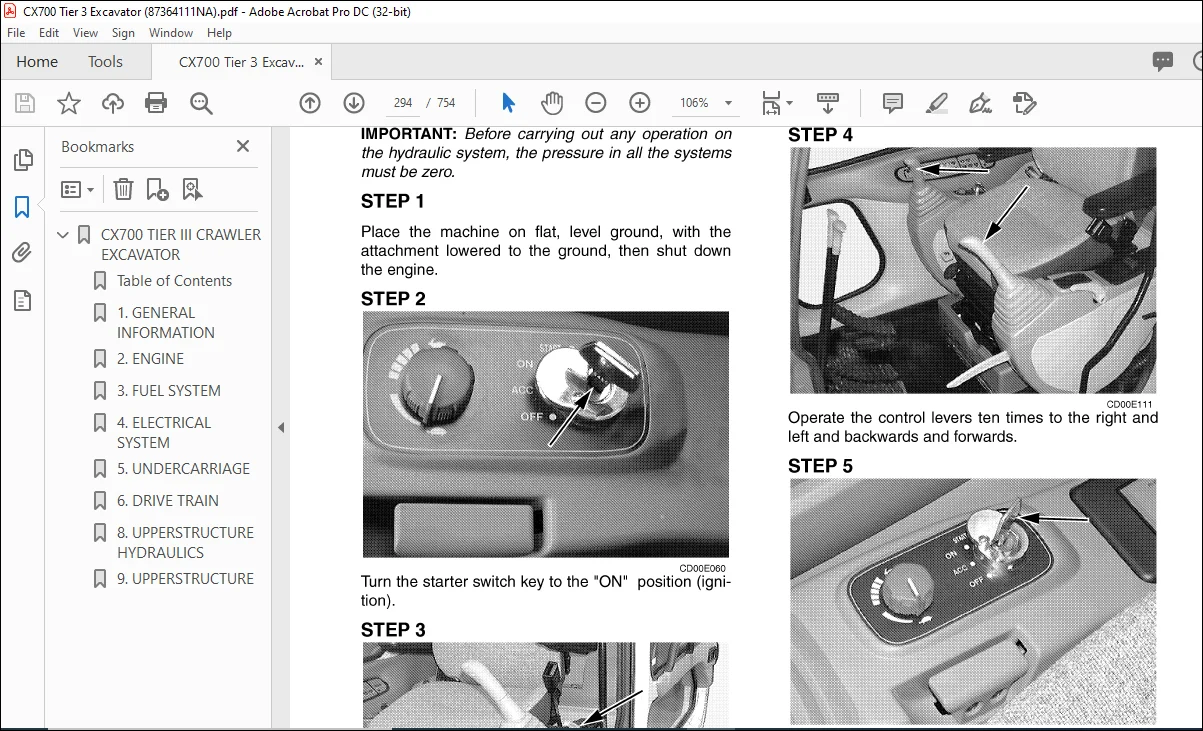

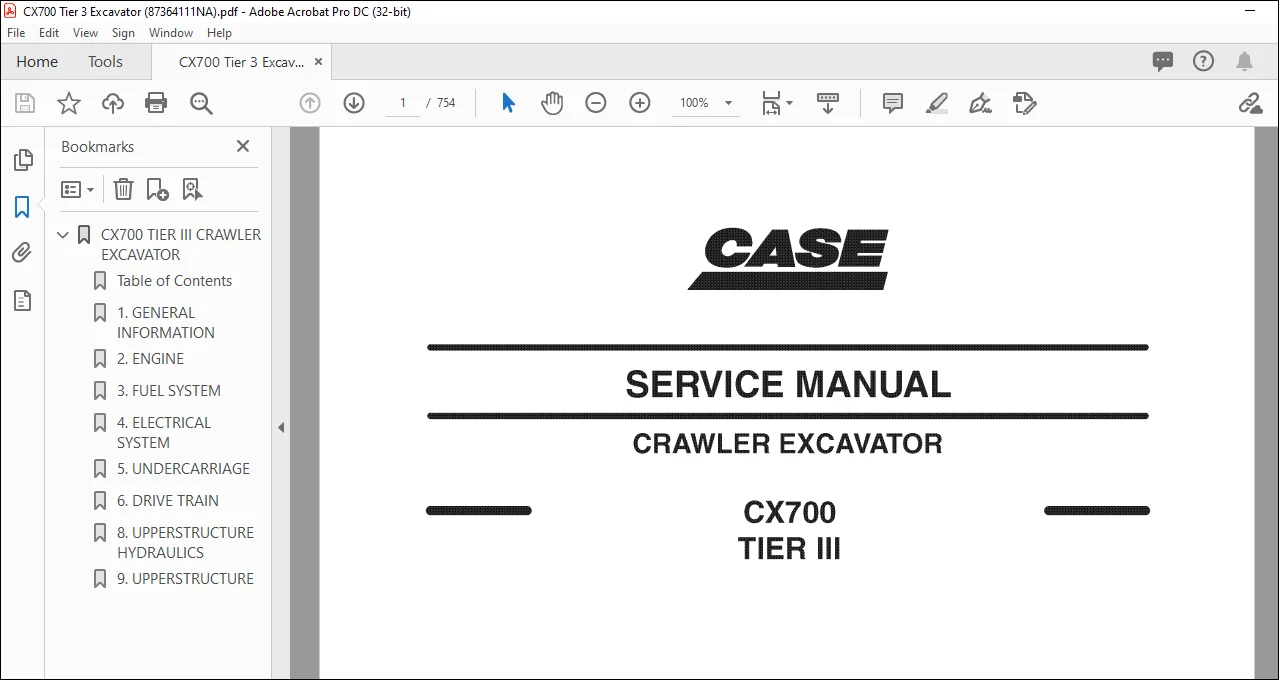

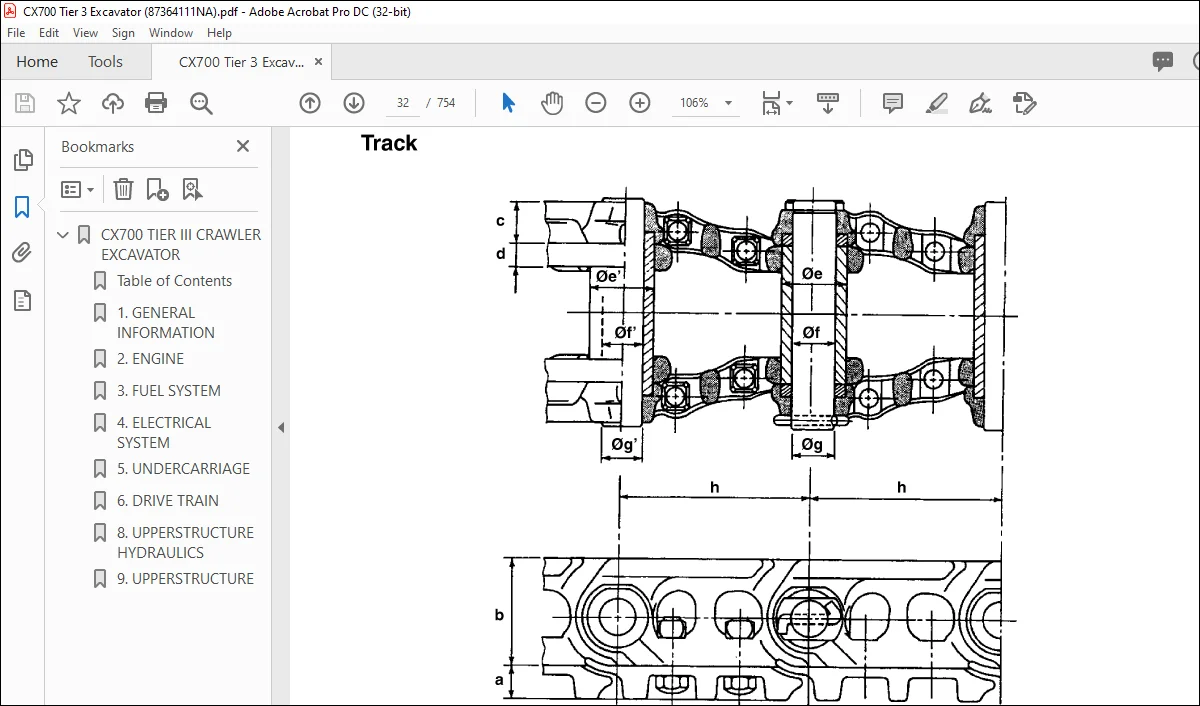

IMAGES PREVIEW OF THE MANUAL:
