CASE CX800 TIER 3 CRAWLER EXCAVATOR OPERATOR’S MANUAL – PDF DOWNLOAD

Description

CASE CX800 TIER 3 CRAWLER EXCAVATOR OPERATOR’S MANUAL

CASE CX800 TIER 3 CRAWLER EXCAVATOR OPERATOR’S MANUAL – PDF DOWNLOAD:

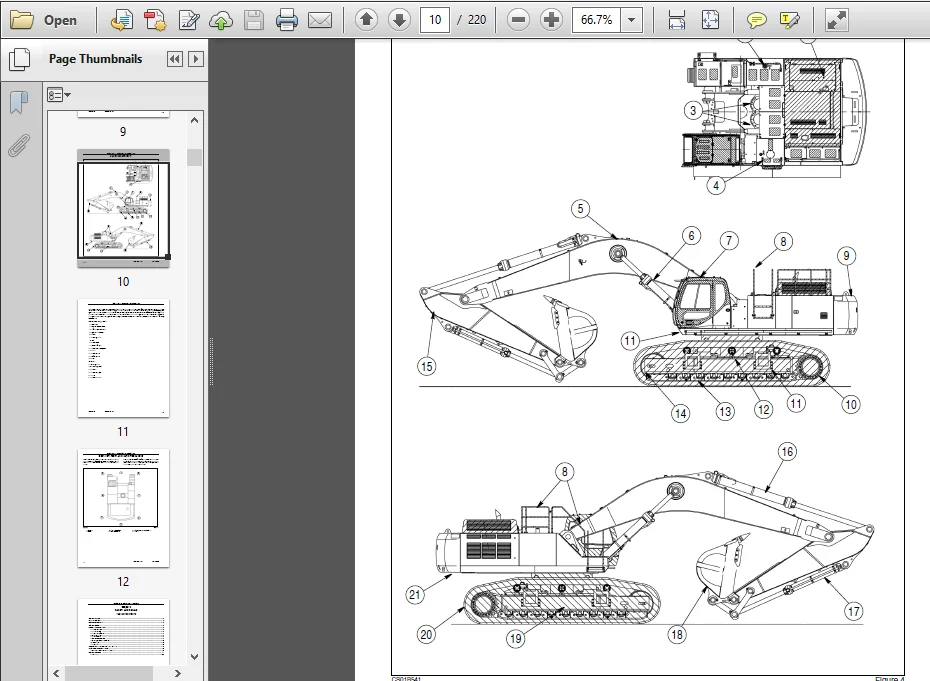

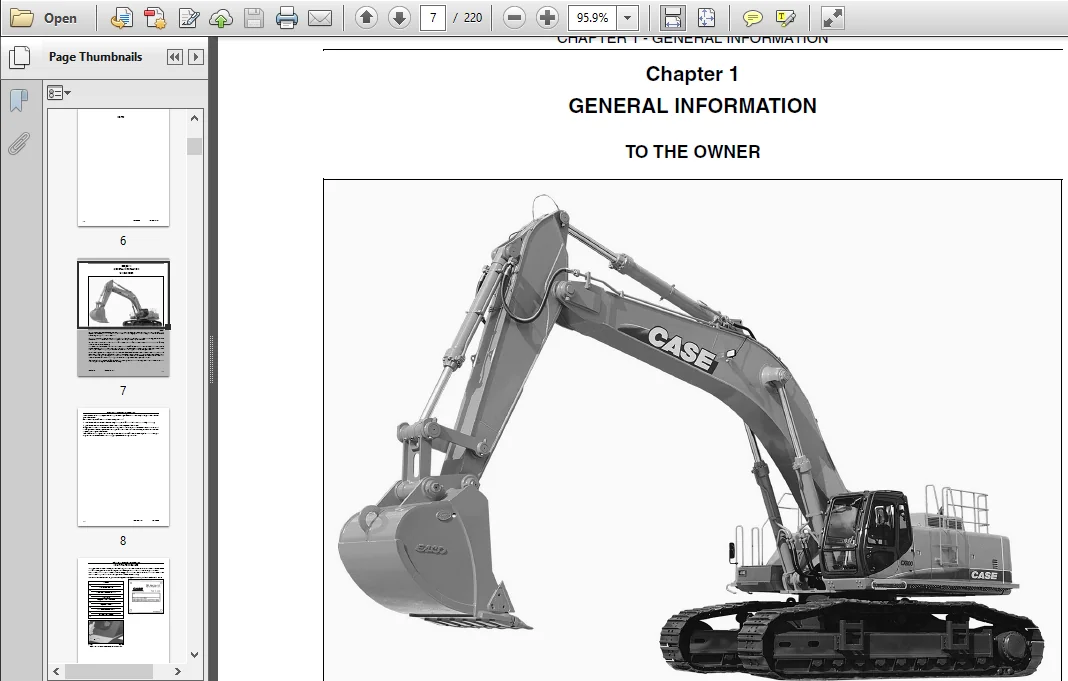

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

BD06E025 Figure 1 Your machine has been designed and built to the highest standards of quality. It conforms to all current safety regulations. However, the risk of accidents can never be completely excluded. That is why it is essential to observe elementary safety rules and precautions. Read this manual carefully, paying particular attention to the instructions concerning safety, operation and maintenance so as to avoid the risk of injury while operating or servicing the machine.

• Use this manual as a guide. Your machine will remain a reliable working tool provided it is kept in good working condition and serviced properly. The standard attachments and equipment available for use with this machine are intended for general earth moving purposes, material handling, etc.
• If the machine is to be used for handling loads, (tubing, concrete pipe sections, shoring material, etc.), make sure the machine is suitably equipped for this type of work.
• Do not use this machine for any application or purpose other than those described in this manual. If the machine is to be used for work involving the use of special attachments, accessories or equipment, consult your CASE Dealer in order to make sure that any adaptations or modifications made are in keeping with the machine’s technical specifications and with prevailing safety requirements.
• Strictly adhere to all legal requirements. Any modification or adaptation which is not approved by the manufacturer may invalidate the machine’s initial conformity with safety requirements and warranty.

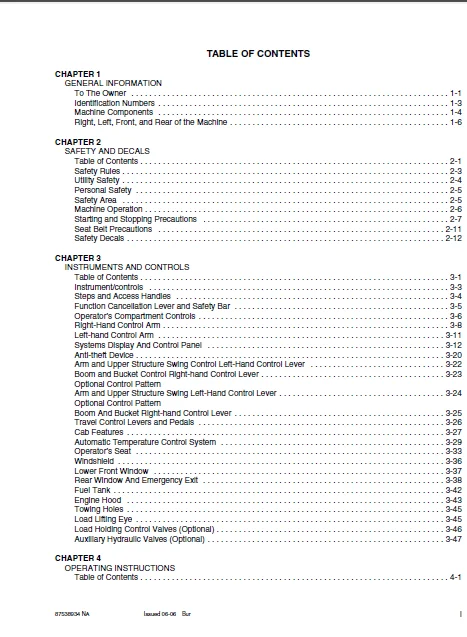

TABLE OF CONTENTS:

CASE CX800 TIER 3 CRAWLER EXCAVATOR OPERATOR’S MANUAL

CHAPTER 1
GENERAL INFORMATION
To The Owner 1-1
Identification Numbers 1-3
Machine Components 1-4
Right, Left, Front, and Rear of the Machine 1-6
CHAPTER 2
SAFETY AND DECALS
Table of Contents 2-1
Safety Rules 2-3
Utility Safety 2-4
Personal Safety 2-5
Safety Area 2-5
Machine Operation 2-6
Starting and Stopping Precautions 2-7
Seat Belt Precautions 2-11
Safety Decals 2-12
CHAPTER 3
INSTRUMENTS AND CONTROLS
Table of Contents 3-1
Instrument/controls 3-3
Steps and Access Handles 3-4
Function Cancellation Lever and Safety Bar 3-5
Operator’s Compartment Controls 3-6
Right-Hand Control Arm 3-8
Left-hand Control Arm 3-11
Systems Display And Control Panel 3-12
Anti-theft Device 3-20
Arm and Upper Structure Swing Control Left-Hand Control Lever 3-22
Boom and Bucket Control Right-hand Control Lever 3-23
Optional Control Pattern
Arm and Upper Structure Swing Left-Hand Control Lever 3-24
Optional Control Pattern
Boom And Bucket Right-hand Control Lever 3-25
Travel Control Levers and Pedals 3-26
Cab Features 3-27
Automatic Temperature Control System 3-29
Operator’s Seat 3-33
Windshield 3-36
Lower Front Window 3-37
Rear Window And Emergency Exit 3-38
Fuel Tank 3-42
Engine Hood 3-43
Towing Holes 3-45
Load Lifting Eye 3-45
Load Holding Control Valves (Optional) 3-46
Auxiliary Hydraulic Valves (Optional)3-47
CHAPTER 4
OPERATING INSTRUCTIONS
Table of Contents 4-1
II 87538934 NA Issued 06-06 Bur
Run-in Period Of A New Machine 4-3
Before Operating The Machine 4-3
Engine Operation 4-5
Basic Operation 4-6
Engine Operation 4-10
Machine Operation 4-13
Machine Travel 4-14
Lifting Loads With The Machine 4-17
Operating The Machine In Water 4-18
Operating The Machine On Sloping Ground 4-18
Operating The Bucket 4-19
Parking The Machine 4-20
Towing The Machine 4-21
Counterweight Removal Device (Optional) 4-24
Auxiliary Hydraulics (Optional) 4-26
Transporting The Machine 4-30
CHAPTER 5
LUBRICATION, FILTERS, AND FLUIDS
Table of Contents 5-1
General Safety Before You Service 5-3
Fluids And Lubricants 5-7
Lubrication/filters/fluids 5-8
Engine Lubrication 5-9
Lubrication And Maintenance Quick Reference Chart 5-11
CHAPTER 6
MAINTENANCE AND ADJUSTMENTS
Table of Contents 6-1
Tracks 6-3
Hardware Torque Inspection 6-7
Torque Charts 6-8
Replacing A Bucket 6-13
Cab Service 6-16
Storage 6-18
CHAPTER 7
ELECTRICAL
Table of Contents 7-1
Electrical System 7-3
Fuses And Relays 7-6
CHAPTER 8
SPECIFICATIONS
Table of Contents 8-1
Engine Specifications 8-3
Hydraulic System 8-4
Control Valve 8-4
Swing 8-4
Travel 8-5
Machine Weights 8-5
Safety Devices 8-5
Operator’s compartment 8-6
Cab 8-6
87538934 NA Issued 06-06 Bur III
Boom/Arms 8-7
Undercarriage 8-7
Upper Structure 8-7
Electrical 8-7
Buckets 8-7
General Dimensions 8-8
Performance Specifications 8-9
General Dimensions 8-10
Performance Specifications 8-12
Overall Dimensions and Weight of Main Machine Components 8-14
CHAPTER 9
INDEX

FILE FORMAT:

LANGUAGE:ENGLISH
PAGES:220
DOWNLOADABLE:YES
FILE TYPE:PDF

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
