DESCRIPTION:

Case DROTT 80 Cruz-Air Series B Parts Catalog Manual S406213M1 – PDF DOWNLOAD

SN 45883 & After

INTRODUCTION :

• This catalog contains complete parts information for DROTT 80 CRUZ-Al R.
  All parts are identified with an item number in the illustration corresponding with a like
  number in the parts list. Standard hardware items are listed under the attaching part. Please
  read carefully the part number, quantity and description, to insure correct parts ordering.
• Illustrations and/or parts listing may be shown with notes or designations which refer to
  specified models, or units with specified serial numbers. Where an illustration and/or parts
  listing is shown without notes or designations, this indicates the parts listed cover all serial
  numbered units and all model units.

“Right” and “Left” as referred to in the parts section, are as viewed from the operator’s
seat, with the unit in forward driving position.
* – An asterisk in front of the item number indicates an added listing.
* – An asterisk in front of part number, quantity, or description, indicates a change in
listing.

• Always furnish model and serial number when ordering parts, except on stock orders. This
  enables our order department to accurately and speedily fill your order. Order parts by
  description as well as part number.
• Part numbers and price lists subject to change without notice.
• All parts orders regardless of status such as warranty, shipped short, etc., must be
  accompanied by a purchase order.
• Give specific shipping instructions. We want your order to reach you quickly and as
  economically as possibie. Orders will not be shipped air freight or air express unless you
  specifically request this service.

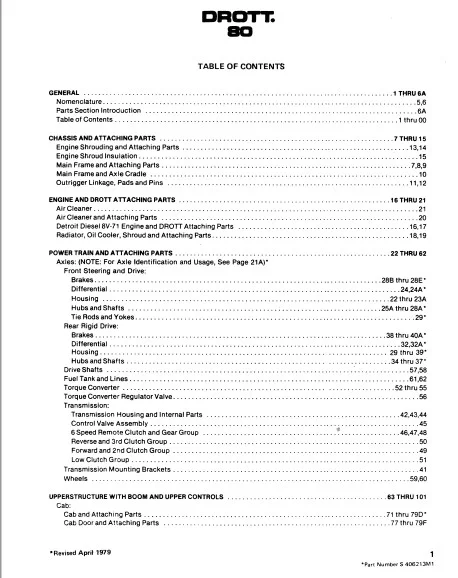

TABLE OF CONTENTS:

Case DROTT 80 Cruz-Air Series B Parts Catalog Manual S406213M1 – PDF DOWNLOAD

GENERAL 1 TttRU &A
Nomenclature 5,6
Parts Section Introduction 6A
Table of Contents 1 thru 00
CHASSIS AND ATTACHING PARTS 7 THRU 15
Engine Shrouding and Attaching Parts 13, 14
Engine Shroud Insulation 15
Main Frame and Attaching Parts 7,8,9
Main Frame and Axle Cradle 10
Outrigger linkage, Pads and Pins 11, 12
ENGINE AND DROTT A TT ACHING PARTS 16 THRU 21
Air Cleaner 21
Air Cleaner and Attaching Parts 20
Detroit Diesel 8V-71 Engine and DROTT Attaching Parts 16, 17
Radiator, Oil Cooler, Shroud and Attaching Parts 18,19
POWER TRAIN AND A TT ACHING PARTS 22 THRU 62
Axles: (NOTE: For Axle Identification and Usage, See Page 21A)*
Front Steering and Drive:
Brakes 28B thru 28E *
Differential 24,24A *
Housing 22 thru 23A
Hubs and Shafts : 25A thru 28A
Tie Rods and Yokes 29 *
Rear Rigid Drive:
Brakes 38 thru 40A *
Differential 32,32A *
Housing 29 thru 39*
Hubs and Shafts 34 thru 3r·
Drive Shafts · 57,58
Fuel Tank and Lines 61,62
Torque Converter 52 thru 55
Torque Converter Regulator Valve 56
Transmission:
Transmission Housing and Internal Parts 42,43,44
Control Valve Assembly 45
¾Ii 6 Speed Remote Clutch and Gear Group 46,47,48
Reverse and 3rd Clutch Group 50
Forward and 2nd Clutch Group 49
Low Clutch Group 51
Transmission Mounting Brackets 41
Wheels 59,60
UPPERSTRUCTURE WITH BOOM AND UPPER CONTROLS 63 THRU 101
Cab:
Cab and Attaching Parts 71 thru 790*
Cab Door and Attaching Parts 77 thru 79F
*Revised April 1979 1
Part Number S 406213M1

Dl=IO I I
TABLE OF CONTENTS (CON’T)
UPPER STRUCTURE WITH BOOM AND UPPER CONTROLS (COl\l’T)
Cab Insulation 74,79K,79L *
Windshield Wiper Motor, Arm and Blade 79
Upper and Lower Windshield and Attachng Parts 75 thru 79H *
Dipperstick and Pins 80
Main Boom and Pins 81,82
Functional Controls for:
Auxiliary 91,92
Crowd 83,84
Fast Hoist – (Control by Air – See Pages 137 and 138)
Fast Tool – (Control by Air – See Pages 137 and 138)
Hoist 85,86
Swing · 93,94
Tool 87,88
Utility 89,90
Mirrors – (See Items 41 and 42 on Page 73)
Swing Brake 99thru 100B*
Swing Brake Control 95,96
Swing Brake Cylinder 101
Swing Brake Hydraulics – (See Page 198A)
Swing Reducer and Brake Housing 97 thru 98B *
Turntable Bearing Lubrication Line 66
Turntable, Counterweight, Bearing and Attaching Parts 63,64,65
Turntable Shrouding and Attaching Parts 67 thru 70
Turntable Swing Lock – (See Items 25 and 26 on Page 63)
CONTROLS (UPPER AND LOWER) WITH HYDRAULICS · 102 THRU 158
Accelerator:
Hydraulics 105,106
Linkage and Attaching Parts in Cab 103, 104
Linkage and Attaching Parts on Engine 107,108
MasterCylinderinCab 109,110
Slave Cylinder on Engine · 111
Service Swivel 112
Air Brake Lines and Components:
Air Chambers – (Front Axle – See Item 25 on Page 29)
Air Chambers-(Rear Axle) 151,152
Air Compressor to Air Dryer to Reservoir 139,140
Air Compressor to Relay Valves to Swivel and Swing to Foot Brake Valve 141, 142,143
Air Dryer 155 thru 157B*
Air Solenoid Valve 158
Air Swivel 153
Air Swivel to Hand Brake Valve and Return 147,148
Foot Air Brake Pedal Valve 149,150
Park and Emergency Air Brake Control Valve 154
Relay Valves to Left and Right Front Air Chambers 144
Relay Valves to Left and Right Rear Air Chambers 145,146
Axle Lockout Linkage -(Front Axle) 102
Center Swivel Group and Attaching Parts 125,126
FastTool Control and Air Lines 137,138
*Revised April 1979 2

DRDIT
SD
TABLE OF CONTENTS (CON’T)
CONTROLS (UPPER AND LOWER) WITH HYDRAULICS (CON’T)
Hi and Low Range:
Air Control Valve 117
Air Cylinder · 114
Air Lines From Air Control Valve to Air Cylinder on Transmission 115,116
Selector Linkage at Transmission 113
Hoist Control:
Air Solenoid Valve 155
Fast Hoist Control and Air Lines 137,138
Hoist Control and Linkage – (See Pages 85 and 86)
Hoist Locking Cylinder and Attaching Parts 118
Hoist Locking Cylinder Control and Linkage 119,120
Hoist Locking Cylinder Hydraulics 121,122
Outrigger Control:
Air Solenoid Valve 155
Lower Air Solenoid Valve Air Lines 133 thru 136
Main Outrigger Valves and Air Solenoid Valves Control Linkage 131,132
Upper Air Solenoid Valves Air Lines 137,138
Remote Shifter Control and Attaching Parts -(1st, 2nd, 3rd, Forward and Reverse) 127 thru 130
Shut-Off Control for Engine – (Furnish with Engine – For Wiring, See Item 23 on Page 248)
Steering Reversing Valve Control Linkage 123,124
TOOL ATTACHMENTS FOR UNITS WITH MAIN BOOM 159 THAU 162 and 283 THRU 304
Buckets:
Backhoe 159,160
Ditch 161,162
Clams,Hydraulics and Components:
Clams:
1 ¼ Cord x 8′ Wood Pulpwood 286,287,288
Tree Length 283,284,285
Components:
Clam Arm Cylinder , · 297,298
Clam Orbitrol Motor 295,296
Hydraulic Line Swivels 299
Hydraulic Swivel 293,294
Hydraulics:
Hydraulic Lines From Boom to Clam 289,290
Hydraulic Lines From Orbitrol Motors to Clam Arm Cylinders 291 thru 292c·
Wrist-O-Twist:
Wrist-O-Twist and Attaching Parts 300
Wrist-0-Twist Cylinder 303,304
Wrist-O-Twist Hydraulics 301,302
HYDRAULIC CIRCUITS, FITTINGS AND HARDWARE 163 THRU 203
Lower Hydraulics:
swivel to Rear Filter to Reservoir 168
swivel to Cooler to Front Filters to Reservoir 165, 166,167
Outriggers:
Swivel to Valves and Return 171,172
*Revised April 1979 3

DROIT
B0
TABLE OF CONTENTS (CON’T)
HYDRAULIC CIRCUITS, FITTINGS AND HARDWARE (CON’T)
Valve to Front Outrigger Cylinders and Return 173,174
Valve to Rear Outrigger Cylinders and Return 175, 176
Left Hand Pump to Relief Valve to Swivel 169,170
Right Hand Pump to Relief Valve to Swivel 170A, 1708, 170C
Reservoir to Pumps 163,164
Steering – (Flow Divider Valve to Swivel to Cylinders and Return) 177,178,
Transmission and Torque Converter Cooling Lines 180
Transmission and Torque Converter Hydraulics 181, 182;183
Transmission Valve Plate to Remove Shifter Valve 184,185,186
Upper Hydraulics:
Auxiliary 200A,200B
Crowd 193,194
Fast Hoist 202
Fast Tool 202
Hoist 201
Steering (Swivel to Reversing Valve to Actuator and Return) 191,192
Swing Brake 198A thru 198D*
Swing Motor 197,198
Swivel to Front 4-Spool Valve and Return 187,188
Swivel to Rear 4-Spool Valve and Return 189,190
Tool 195,196
Utility 199,200
Upper Hydraulic Clamps and Brackets 203
HYDRAULIC COMPONENTS AND MOUNTING HARDWARE 204 THRU 241
Cylinders:
Crowd 207,208
Hoist 204
Hoist Locking 212
Outrigger , 205,206
Steering 209,210
Tool 211
Hydraulic Oil Cooler – (See Item 8 on Page 18)
Hydraulic Oil Filter 213,214
Hydraulic Oil Reservoir 215
Hydraulic Oil Reservoir Air Filter 216
Main Hydraulic Pump 217 thru 2188
Swivel – (8-Port Hydraulic) 219,220
Swing Motor · 221,222
Steering Actuator Column 225
Steering Actuator Orbitrol : 223,224
Torque Converter Oil Filter 241A
Valves:
Crossover Relief -(Used in Swing Circuit) 238
Flow Divider (Used in Steering ~nd High Pressure From Pump to Swivel Circuits) 239
lnline Relief (Used in High Pressure From Pump to Swivel Circuit) 240
Main Control:
2-Spool – (Used With Outrigger Circuits) 226,227
4-Spool – (Front Valve – Used With Utility, Outrigger, Hoist and Tool Circuits) 228 thru 2298*
4-Spool – (Rear Valve – Used ‘:Vitti Auxiliary, Fast Hoist, Crowd and Swing Circuits) 230 thru 233*
*Revised April 1979 4

DROTT
SD
TABLE OF CONTENTS (CON’T)
HYDRAULIC COMPONENTS AND MOUNTING HARDWARE ICON’T)
Port Relief Cartridge 234
Steering Reversing 235
Swing Brake 241
4-Way Manual – (Used in Hoist Locking Circuit) · 236,237
ELECTRICAL 242 THRU 258
Collector Ring 252,253
Collector Ring Wiring Diagram 254
Console Control Panel and Electrical Gauges in Cab 255
Console Control Panel and Electrical Gauges on Engine Hood 247
Harnesses, Components and Mounting Parts:
Engine Wiring 248,249
Fast Hoist 251
Instrument Panel Wiring in Cab 242,243
Instrument Panel Wiring on Engine Hood 246,247
Lower Main 244,245
Outrigger Air Solenoids and Relays 250
Turntable – (Horn Cab and Turntable Lights, Turn Signal Switch etc) 242,243
Instrument Panel and Attaching Parts in Cab 256,257
Instrument Panel and Attaching Parts on Engine Hood (See Items 7 thru 11 on Page 13)
Mounting Brackets and Hardware 258
MISCELLANEOUS 259 THRU 282
Air Horn and Attaching Parts 268
Alcohol Evaporator Kit 272A,272B
Back-Up Alarm 273,274
30″ Cab Riser:
Cab Riser and Attaching Parts 276
Controls:
Accelerator Control 280
Air Line, Electrical and Steering Controls 281,282
Auxiliary, Crowd, Swing and Tool Controls 277,278
Hoist and Utility Controls 279
Cold Weather Starting Kit 271,272
Graphic Products 259 thru 260C
Heater (Used on units with serial number 458453 thru 6299273)* 263 thru 267
*Heater – (Used on units with G299274 and After) 267A thru 2671
Heater and Attaching Parts 261,262,262A
High Torque Clam Rotating Group (See Items 19 thiu 28 on page 292)
Mirrors (See Items 41 and 42 on page 73)
Operators Access Group 269,270
Spark Arrestor and Attaching Parts: 275
Work Lights and Guards With Electrical for Boom and Cab for:
Units with Main Boom 282A,282B
Units with Tree Length Boom 282C,282D
TREE LENGTH BOOM, ATTACHMENTS, HYDRAULICS AND COMPONENTS 305 THRU 328
Boom and Attaching Parts 305306307
Cab and Attaching Parts 308 thru 31 lA
Tree; Length Clam 312313
TREE LENGTH BOOM, ATTACHMENTS, HYDRAULICS AND COMPONENTS {CON’T)
Components:
Clam Actuator 223,224
Crowd Cylinder 321
Heel Cylinder 321
Hoist Cylinder 322
Line Swivel 299*
Relief Valve , 323B
Valves:
4-Spool Main Control -(Used on Clam, Heel, Hoist and Outrigger Circuits) 325 thru 3268
4-Spool Main Control -Crowd, Fast Hoist, Outrigger, Swing and Wrist-O-Twist Circuits 327 thru 328B*
Hydraulics:
Clam Hydraulics 318,319
Crowd Hydraulics 320
Heel Hydraulics · 316,317
Tree Length Boom Hydraulics 314,315
NUMERICAL INDEX 329 THAU 351

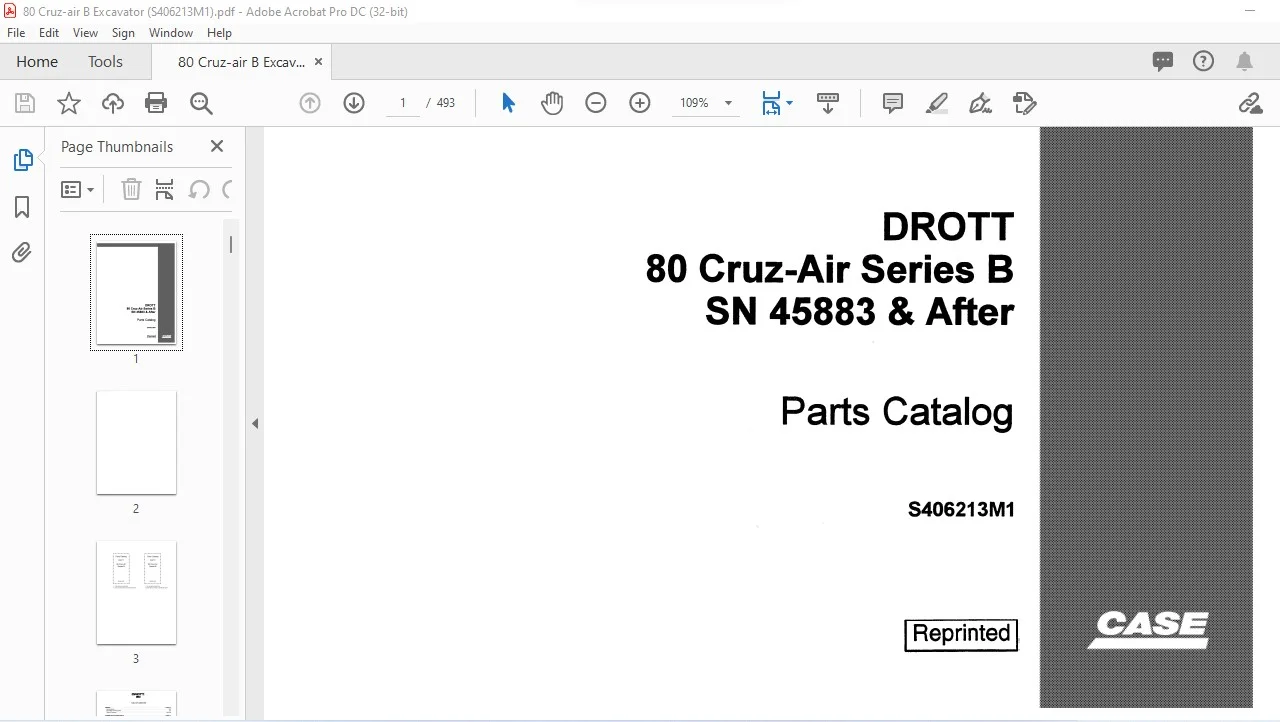

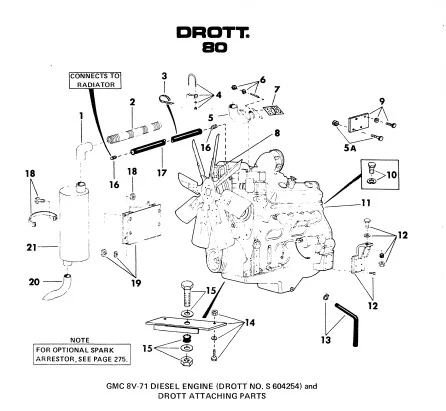

IMAGES PREVIEW OF THE MANUAL:

CASE DROTT 80 CRUZ-AIR SERIES B PARTS CATALOG MANUAL S406213M1 – PDF DOWNLOAD:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.V
