Case Engine CNH 4-390, 4T390, 4TA-390 Service Manual 7-91612R0 – PDF DOWNLOAD

Description

Case Engine CNH 4-390, 4T390, 4TA-390 Service Manual

FILE DETAILS:

Case Engine CNH 4-390, 4T390, 4TA-390 Service Manual

Size : 133 MB
Format : PDF
Language : English
Number of Pages : 342 pages
Brand: Case
Type of machine: Engine
Type of document: Service Manual
Model: Case Engine CNH 4-390 4T390 4TA-390
Part No: 7-91612R0

CASE ENGINE CNH 4-390, 4T390, 4TA-390 SERVICE MANUAL 7-91612R0 – PDF DOWNLOAD:

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

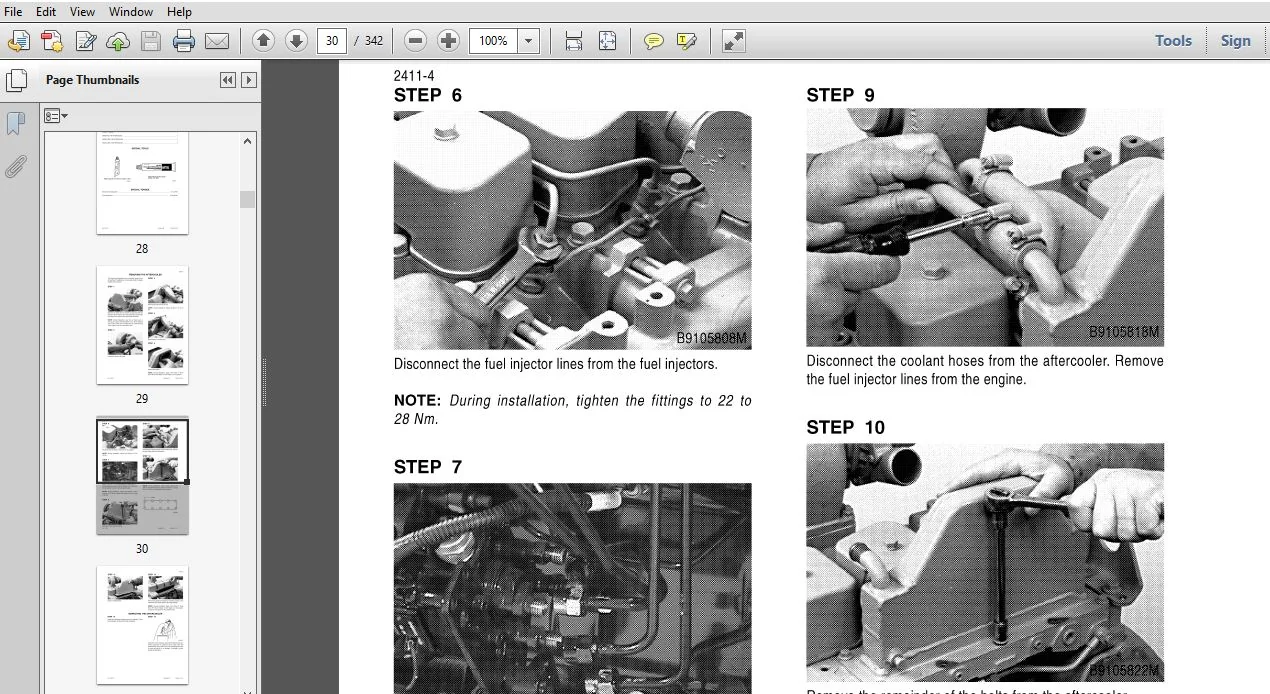

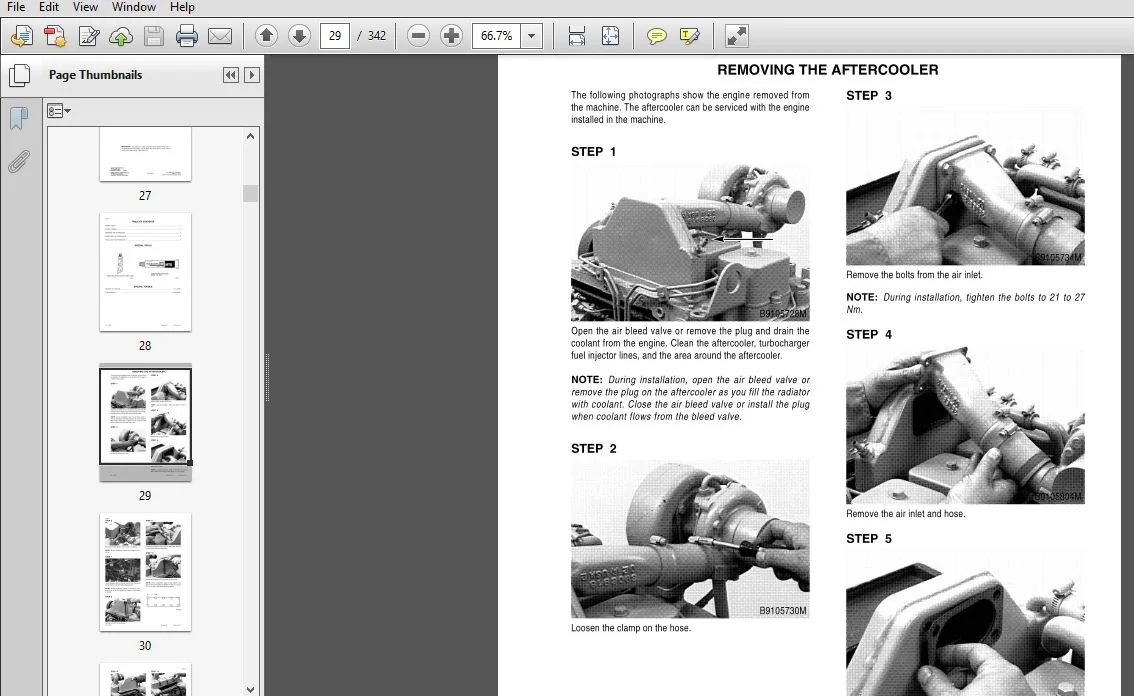

SAMPLE PAGES:

Case Engine CNH 4-390, 4T390, 4TA-390 Service Manual

The following procedure must be followed when using a PTO dynamemeter to Run-in the engine. The dynamometer will control the engine load at each speed and will remove stress on new pans during Run-in. During the Run-In. continue to check the oil pressure, coolant level and coolant temperature.

• Step 1 Disconnect the wire to the electric shut-oft on the injection pump so that the engine will not start. Crank the engine for 30
  seconds until there is oil pressure. then reconnect the wire.
• Step 2 Remove the air from the cooling system at the temperature sending unit or attercooier. it equipped.
• Step 3 Run the engine at 000 RPM for 3 to 5 minutes. The oil pressure should be a minimum of 1009 kPa. Check for leaks.
• Step 4 Increase the engine speed to 1200 RPM and increase the test lead to 25% of the rated lead. The coolant temperature should
  be a minimum of 70=C. Run the engine for 5 minutes.
• Step 5 Check the biowby. If the reading is steady, increase the engine speed to peak torque speed and increase the load to 50% of
  the peak torque load. Run the engine for 5 minutes.
• Step 6 Check the biowby. ii the reading is steady. increase the engine speed to full throttle and increase the load until the RPM fails
  to rated torque speed. Run the engine for 5 minutes.
• Step 7 Check the gauges. lithe readings are within limits. increase the load until the engine speed decreases to the peak torque
  RPM. Run the engine for 5 minutes.
• Step 8 Completely remove the load and reduce the engine speed to 1000 RPM. Run the engine for 3 to 5 minutes.
• Step 9 Shut oil the engine.

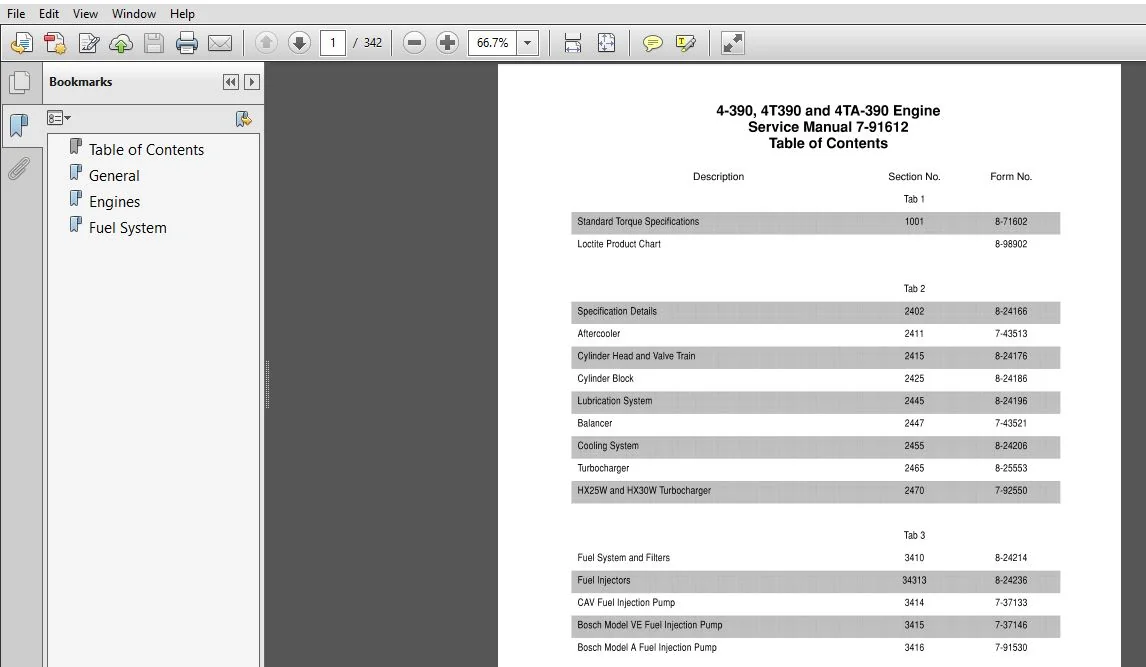

TABLE OF CONTENTS:

Case Engine CNH 4-390, 4T390, 4TA-390 Service Manual

• Standard Torque Specifications
• Loctite Product Chart
• Specification Details
• Cylinder Head and Valve Train
• Cylinder Block
• Lubrication System
• Balance
• Cooling System
• Turbocharger
• HX25W and HX30W Turbocharger
• Fuel System and Filters
• Fuel Injectors
• CAV Fuel injection Pump
• Bosch Model VE Fuel Injection Pump
• Bosch Model A Fuel Injection Pump
