Case Engine CNH 6T-830, 6TA-830 Service Manual 7-65441R0 – PDF DOWNLOAD

Description

Case Engine CNH 6T-830, 6TA-830 Service Manual

FILE DETAILS:

Case Engine CNH 6T-830, 6TA-830 Service Manual

Size : 126 MB
Format : PDF
Language : English
Number of Pages : 298 pages
Brand: Case
Type of machine: Engine
Type of document: Service Manual
Model: Case Engine CNH 6T-830, 6TA-830
Part No: 7-65441R0

CASE ENGINE CNH 6T-830, 6TA-830 SERVICE MANUAL 7-65441R0 – PDF DOWNLOAD:

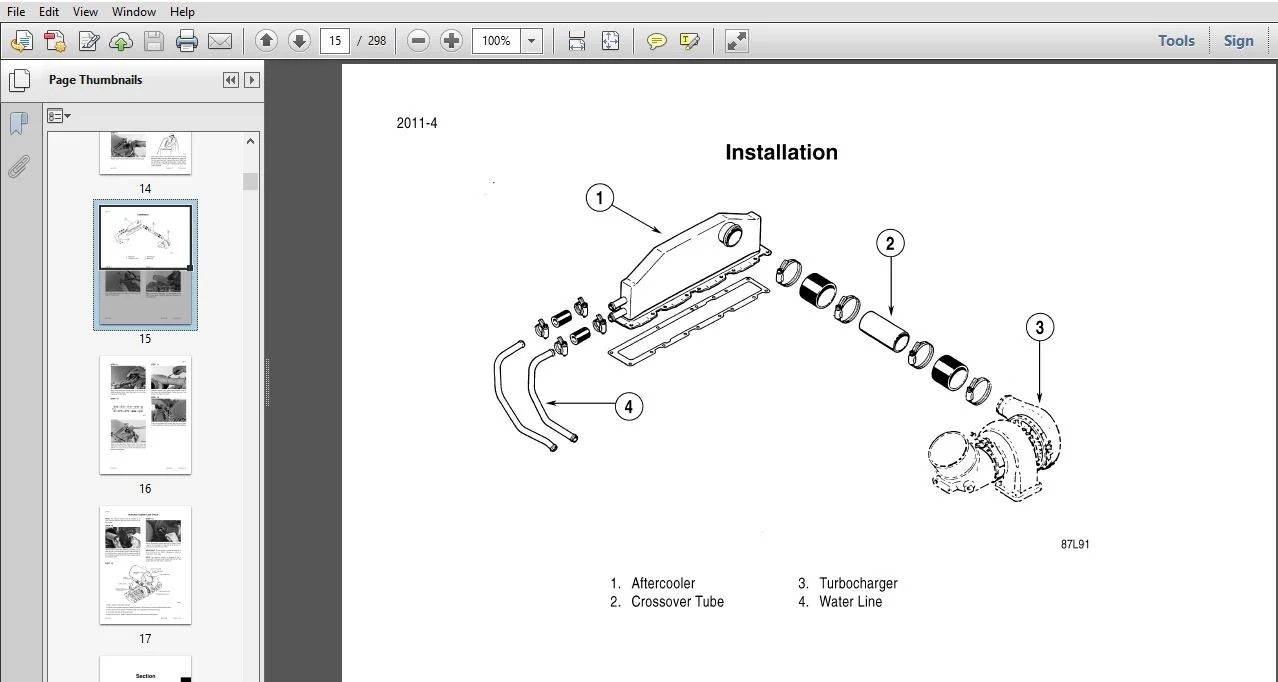

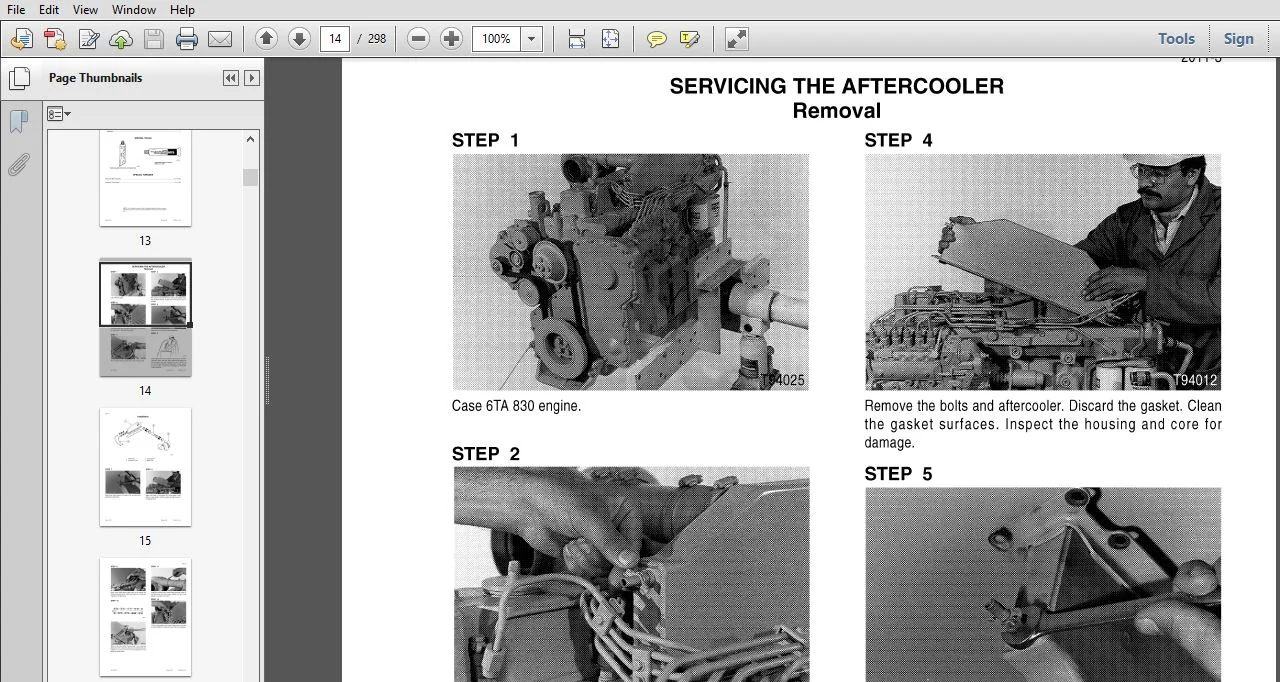

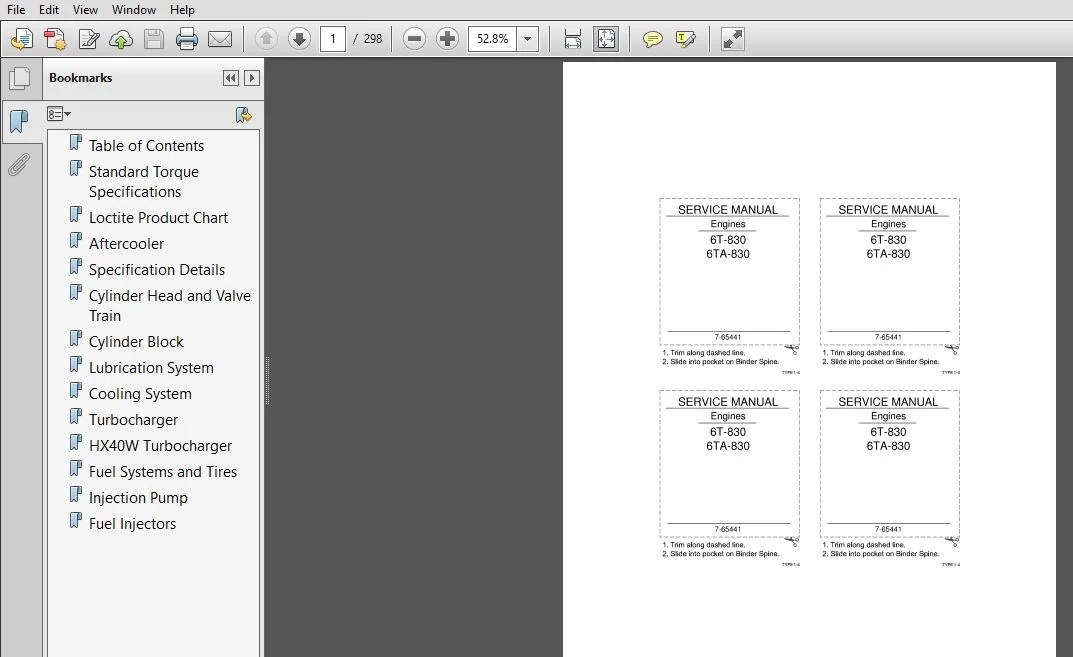

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Case Engine CNH 6T-830, 6TA-830 Service Manual

Engine Lubrication:

• Fill the 6830 engine crankcase with CCISF, CDlSF. CEISF or CF-4 service classification oil. Use the correct viscosity rating lor the ambient air temperature. Install new oil tillers alter the engine is rebuIIL
• Fill the GT 830 and me STA 830 engine crankcase with CEISF or CH service classification oil. Use the correct viscosity rating for the ambient air temperature. Install new oil filters after the engine is rebuilt.

Run-In Procedure for Rebuilt Engine:

• Step 1 Disconnect the wire to the electric shut-otf on the injection pump so that the engine will not start. Crank the engine for 30
  seconds until there is oil pressure, then reconnect the wire.
• Step 2 Make sure the coolant level is correct
• Step 3 Run the engine at 1000 RPM minimum load for 5 minutes and check for oil leaks.
• Step 4 Continue to check the oil pressure. coolant level and coolant temperature durinc nrn.in.

TABLE OF CONTENTS:

Case Engine CNH 6T-830, 6TA-830 Service Manual

Table of Contents
...................  2
Standard Torque Specifications
  ....  4
Loctite Product Chart
............... 10
Aftercooler
  ....................... 12
Specification Details
 .............. 18
Cylinder Head and Valve Train
 ...... 28
Cylinder Block
 ..................... 70
Lubrication System
 .................159
Cooling System
 .....................175
Turbocharger
 .......................189
HX40W Turbocharger
   ...............215
Fuel Systems and Tires
 .............241
Injection Pump ......................245
Fuel Injectors
......................277

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
