Case Engine Isuzu 4LE2 Tier 3 Repair Manual 87495896 – PDF DOWNLOAD

Description

Case Engine Isuzu 4LE2 Tier 3 Repair Manual

FILE DETAILS:

Case Engine Isuzu 4LE2 Tier 3 Repair Manual

Size : 4.65 MB
Format : PDF
Language : English
Number of Pages : 226 pages
Brand: Case
Type of machine: Engine
Type of document: Repair Manual
Model: Case Isuzu 4LE2 T3
Part No: 87495896

DESCRIPTION:

Case Engine Isuzu 4LE2 Tier 3 Repair Manual

GENERAL INFORMATION:

• Terminology, description of abbreviations Terminology definitions Maintenance standard The generic name for reference values required for maintenance, such as nominal dimension, assembly specification, and limit. Nominal dimension Shows the standard value at the point of manufacture that does not include the common difference. Assembly specification Shows the standard value after assembling, repairing, or adjusting.
• Service limit When this value (dimensions) is reached, it shows that the part has reached its full limit and must be replaced or repaired. Wear Shows the difference between the dimension of nonworn part (nominal dimension unless there is such part) and that of the most worn part (the dimension of worn part).
• Uneven wear Shows the difference between the maximum and the minimum wear amount. Front/Rear, Right/Left, Top/Bottom These show each orientations of parts installed to the vehicle when looking from the vehicle’s forward direction.
• Unit Units written to SI conventions (mainly torque, pressure, force) [Example] Length: mm, Torque: N?m {kgf?m} Warning Items that carry the warning mark pose a danger to life or threat of serious injury if not strictly observed.
• Caution Items that carry the caution mark may cause injury or lead to accidents if not strictly observed. Important Items that carry the important mark may cause the vehicle to break down, or may prevent the guaranteed normal operation of the system or related parts if not strictly observed. Note Items that should receive special mention within a work procedure.
• Service precautions about maintenance To prevent damage to the engine and ensure reliability of its performance, pay attention to the following in maintaining the engine: • When taking down the engine on the ground, do not make the bearing surface of the oil pan touch directly the ground.
• Use a wood frame, for example, to support the engine with the engine foot and the flywheel housing. Because there is only a small clearance between the oil pan and the oil pump strainer, it can damage the oil pan and the oil strainer.
• When the air duct or air cleaner is removed, cover the air intake port to prevent foreign matter from getting into the cylinder. If foreign matter gets in, it can considerably damage the cylinder and others while the engine is operating.

CASE ENGINE ISUZU 4LE2 TIER 3 REPAIR MANUAL 87495896 – PDF DOWNLOAD:

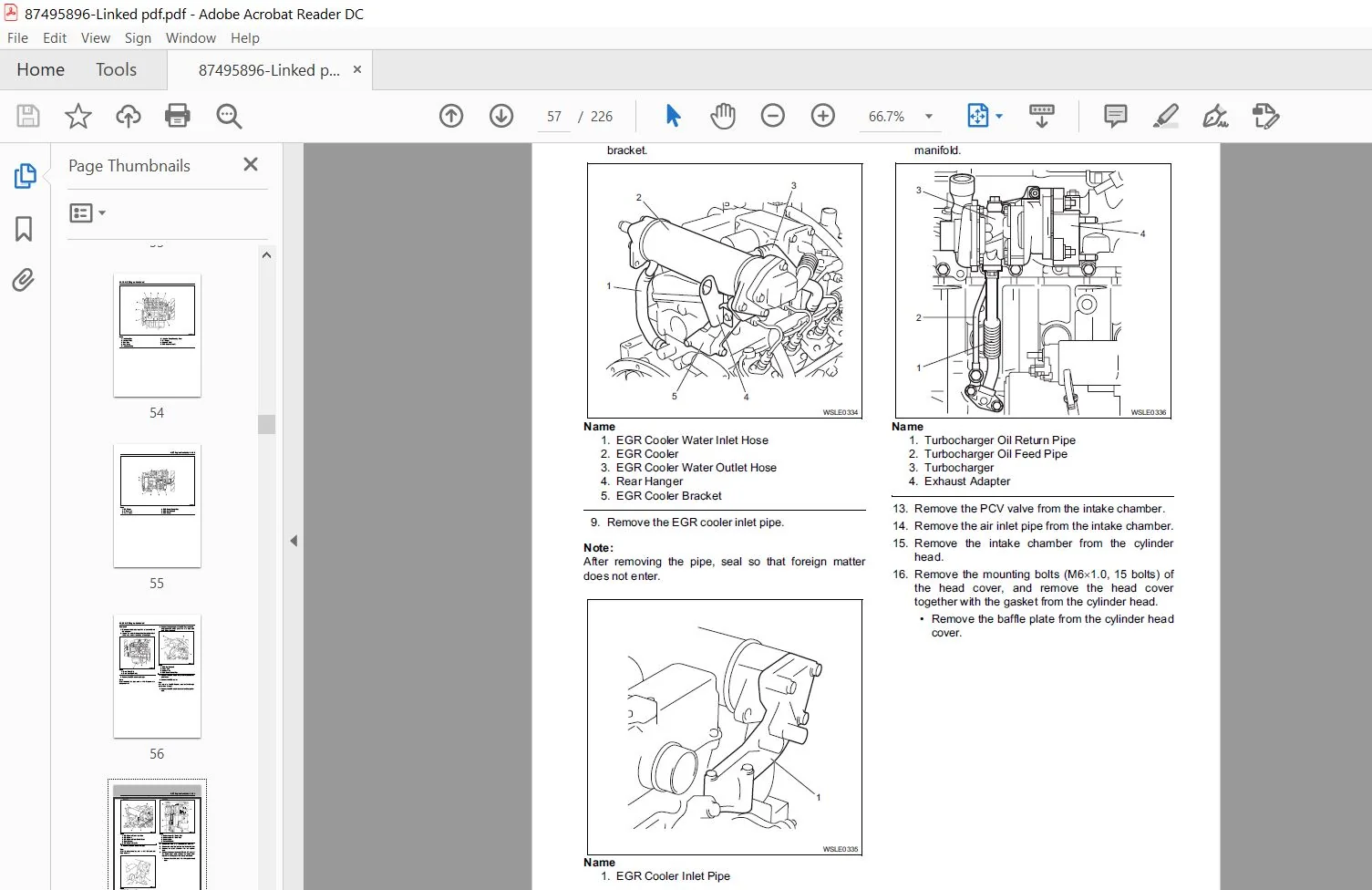

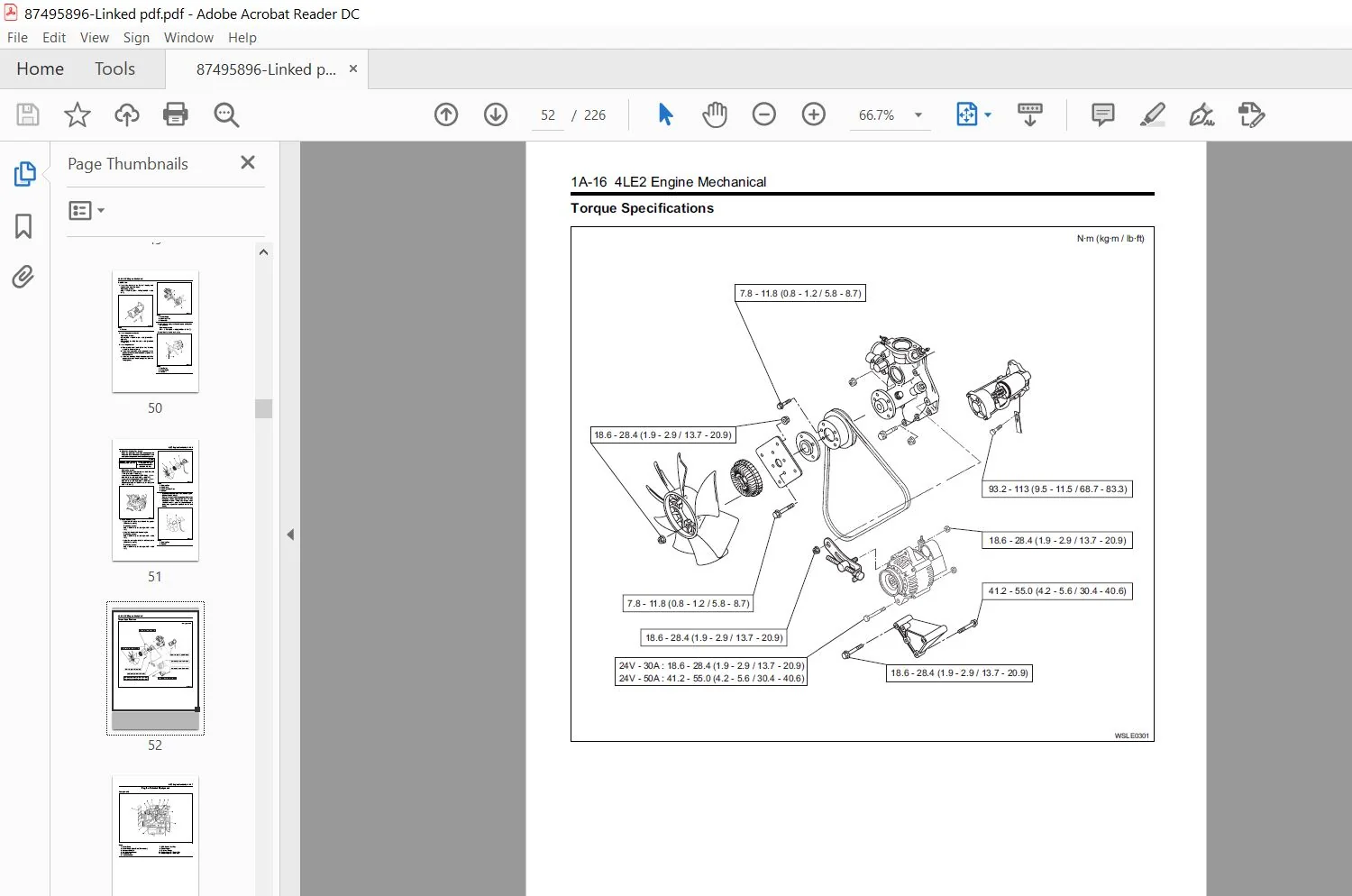

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Case Engine Isuzu 4LE2 Tier 3 Repair Manual

General Information 0A-2
Service Precautions 0A-2
Reading the Model 0A-7
General Information 0A-8
Recommended Lubricant 0A-14
List of Trouble Symptom 0A-15
Repair Standard

PLEASE NOTE:

⦁ This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
⦁ You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
⦁ Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
