Case Engine Isuzu 6WG1T Service Manual 9-54850NA – PDF DOWNLOAD

Description

Case Engine Isuzu 6WG1T Service Manual

FILE DETAILS:

Case Engine Isuzu 6WG1T Service Manual

Size : 15.6 MB
Format : PDF
Language : English
Number of Pages : 251 pages
Brand: Case
Type of machine: Engine
Type of document: Service Manual
Model: Case Isuzu 6WG1T
Part No: 9-54850NA

CASE ENGINE ISUZU 6WG1T SERVICE MANUAL 9-54850NA – PDF DOWNLOAD:

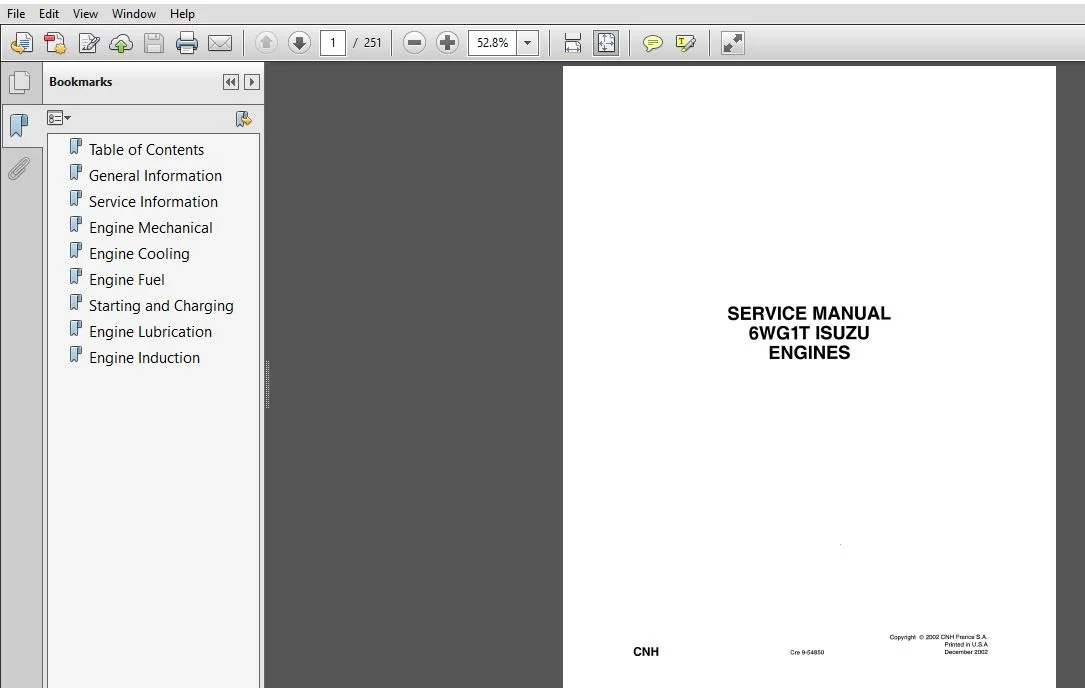

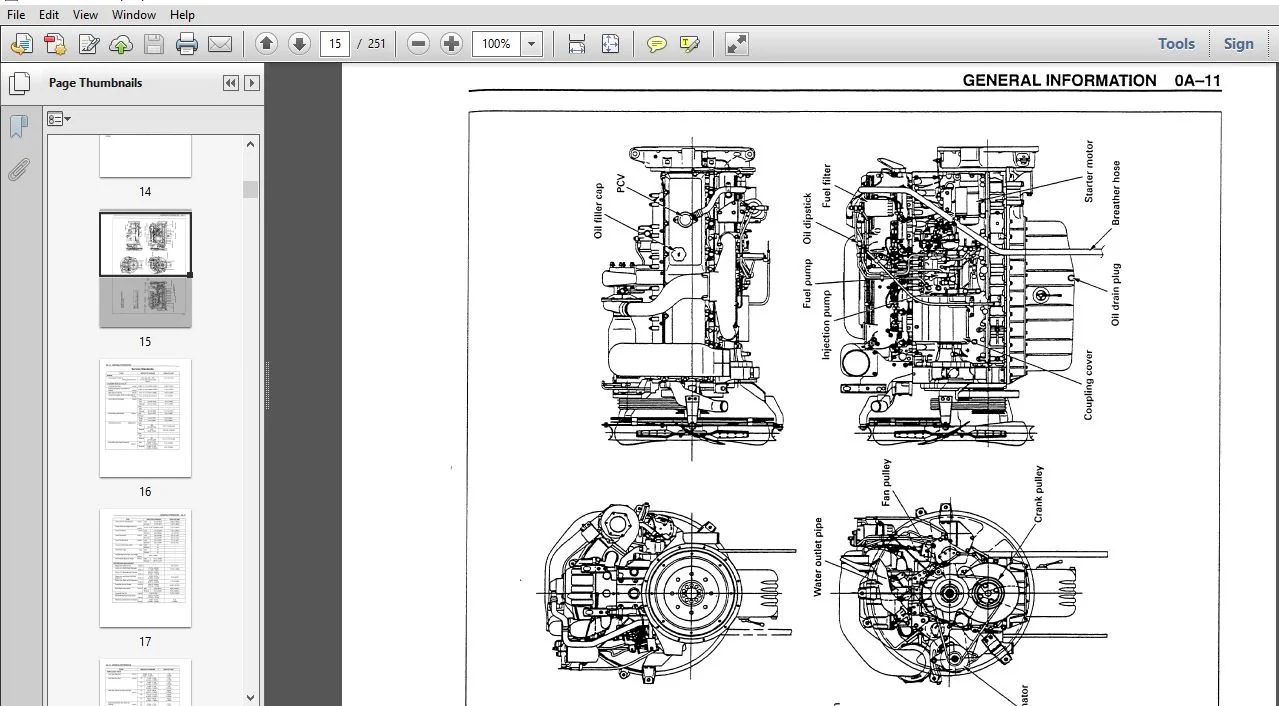

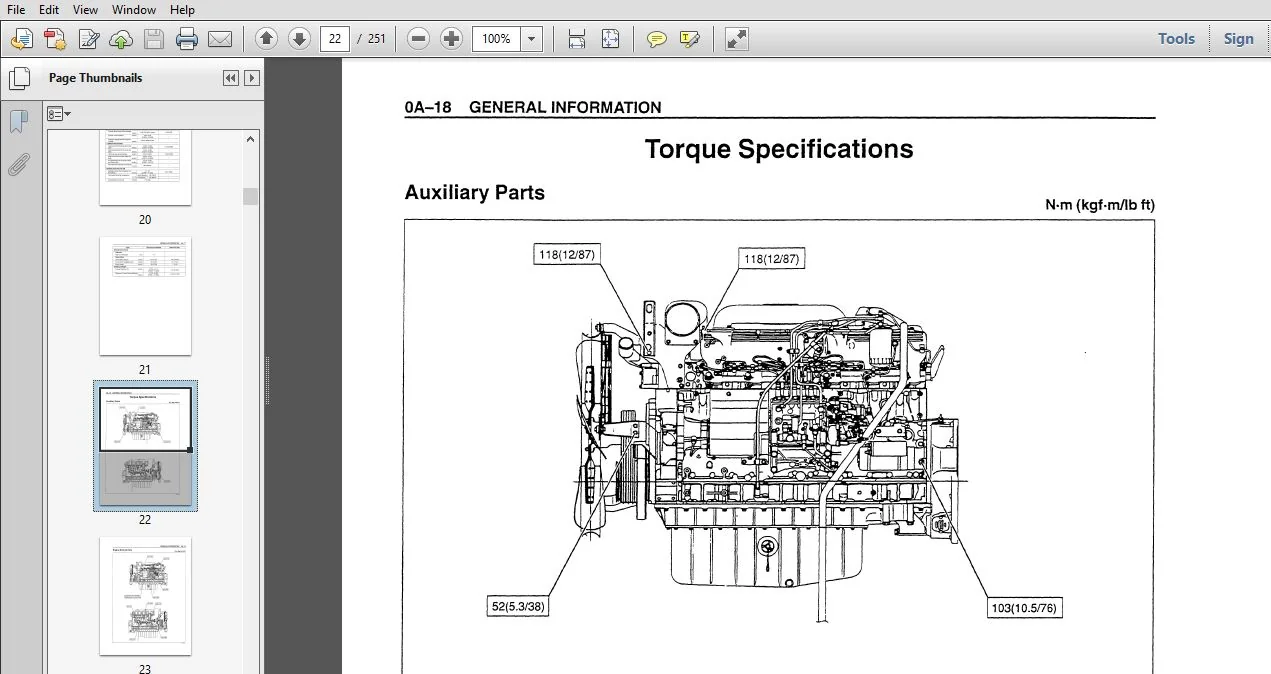

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Case Engine Isuzu 6WG1T Service Manual

General Repair instruction:

1. Before performing service operations, disconnect the ground cable from the battery to reduce the chance of cable damage and burning due to short circuiting.
2. Use a cover on body. seats and floor to protect them against damage and contamination.
3. Brake fluid and anti-freeze solution must be handled with we because they can cause paint damage.
4. The use of proper tools and special tools. where specified. is important for efficient and reliable performance of service repairs.
5. Use genuine ” parts.
6. Used cotter pins. plastic clips, gaskets, O-rlngs oil seals. lock washers, and sell-locking nuts should be discarded and new ones should be installed. Normal function of the parts cannot be maintained if these parts are reused.
7. To facilitate proper and smooth reassembly operation. keep disassembled parts neatly in groups. Keeping lixing nuts and bolts separate is very important. as they vary in hardness and design
depending on position of installation. .
8. Clean the parts before inspection or reassembly. Also clean oil ports. etc. using compressed air, and make certain they are free from restrictions.
9. Lubricate rotating and sliding faces of the parts with oil or grease before installation.
10. When necessary. use a sealer on gaskets to prevent leakage.
11. Carefully observe all specifications for nuts and bolts torques.
12.When a service operation is completed, make a final check to be sure the service has been done properly and the problem has been corrected.
13. Allow the engine to cool before beginning any service procedure. This will eliminate the danger of fire and possible injury.
14. Hot steam under pressure may escape from the radiator if the coolant is drained while the engine is hot. This can result in serious burns. Allow the engine to cool before draining the coolant.
15. Hot engine oil can cause severe skin burns. Allow the engine to cool before drairing the engine oil.
16. While working around a running engine. avoid contact with moving parts and hot surfaces to prevent injury.
17. Wear safety glasses when using compressed air. Flying dirt particles may cause eye injury.
18. Always wear safety goggles when working with fuel to protect the eyes from fuel splash.
19. Testfluid from the injection nozzle testerwiil spray out of the injection nozzle under great pressure.

• It can easily puncture a person’s skin.
• Keep your hands away from the injection nozzle at all times.

20. Do not use your fingers to feel for fuel leaks atfittings. Fuel pressure is high enough to penetrate the skin.

TABLE OF CONTENTS:

Case Engine Isuzu 6WG1T Service Manual

Table of Contents
 .......  4
General Information
......  5
Service Information
...... 43
Engine Mechanical
 ....... 53
Engine Cooling
...........163
Engine Fuel
..............173
Starting and Charging
....201
Engine Lubrication
.......223
Engine Induction
.........243

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
