Case Engine Perkins 700 Series Service Manual (9-54880) – PDF DOWNLOAD

Description

Case Engine Perkins 700 Series Service Manual (9-54880)

CASE ENGINE PERKINS 700 SERIES SERVICE MANUAL (9-54880) – PDF DOWNLOAD:

Case Engine Perkins 700 Series Service Manual (9-54880)

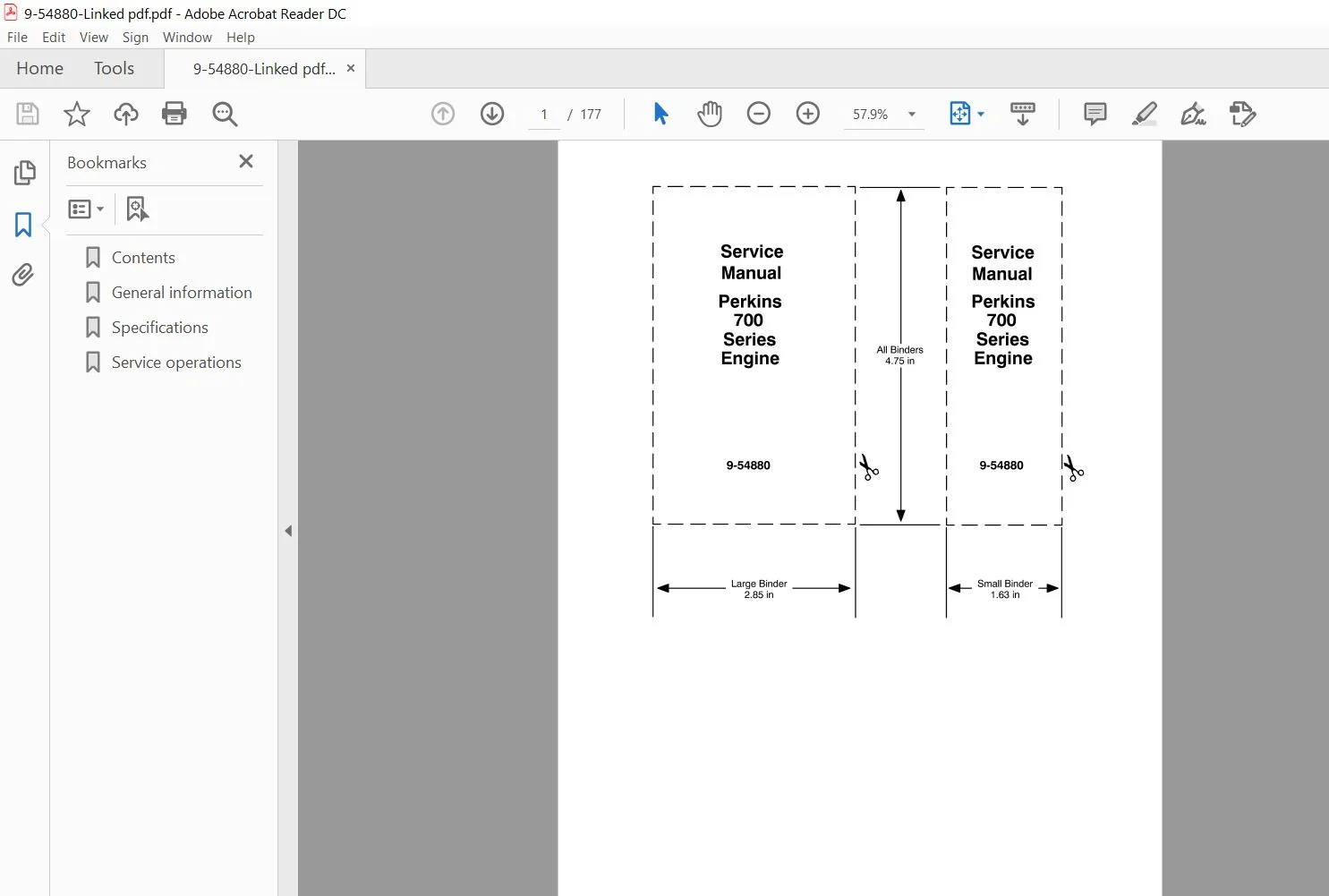

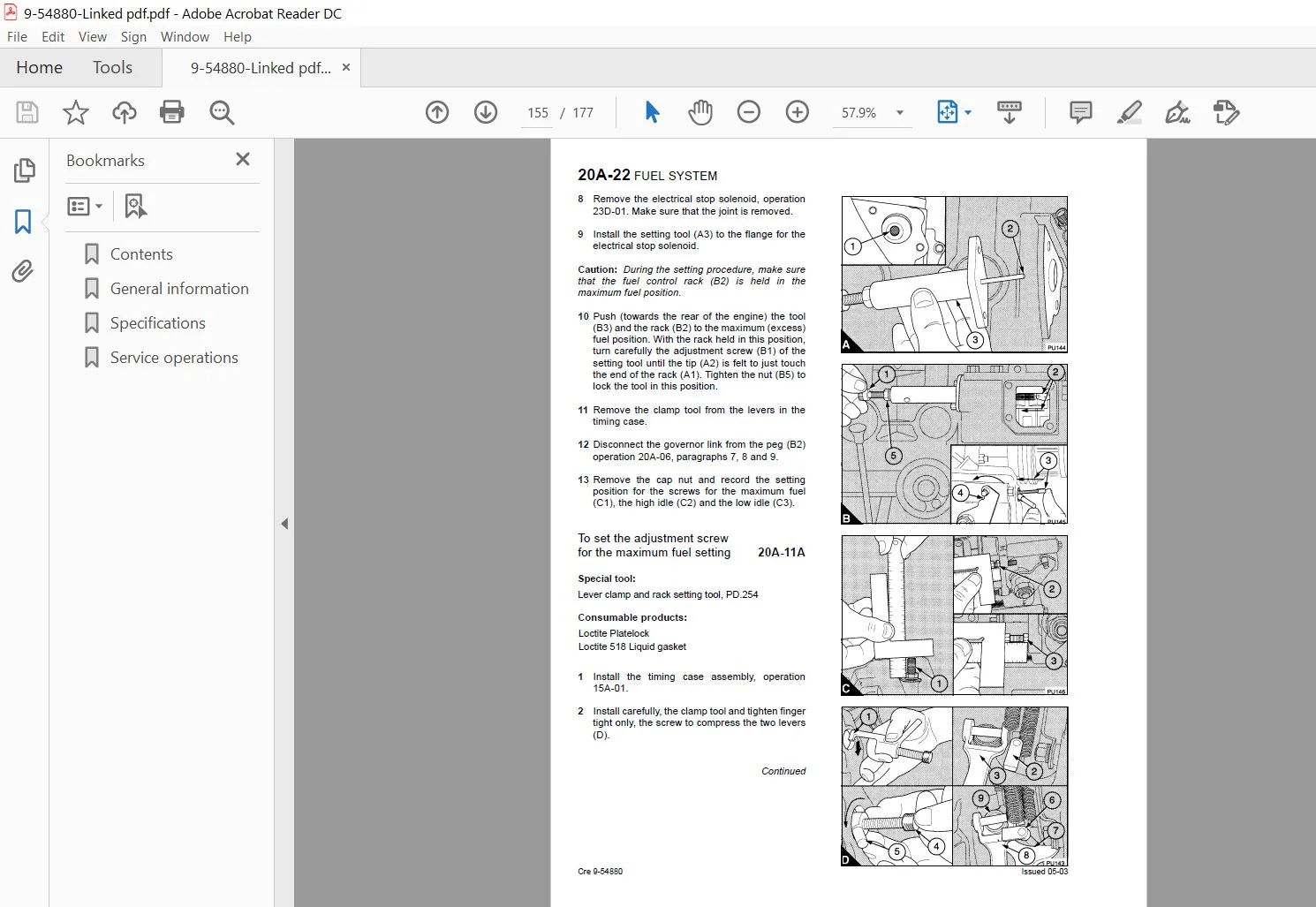

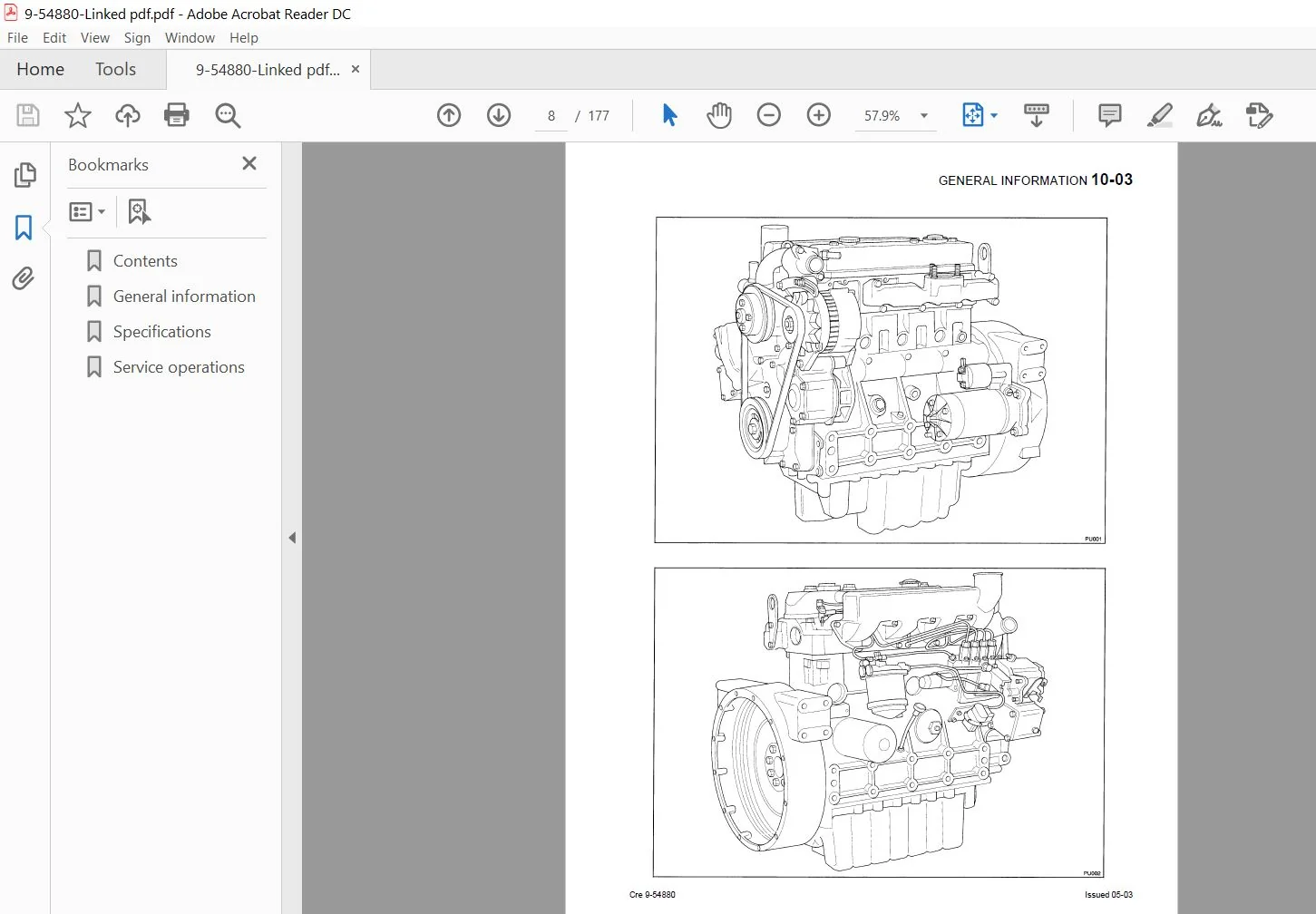

SCREENSHOOTS OF THE MANUAL:

DESCRIPTION:

Case Engine Perkins 700 Series Service Manual (9-54880)

• This workshop manual has been designed to provide assistance in the service and overhaul of Perkins 700 Series engines.
• Warning! Read and remember the “Safety precautions”. They are given for your protection and must be used at all times.
• The engines that are referred to in this manual are the UA (3,0 litre – direct injection), and the UB (2,6 litre – indirect injection).
• Both engines conform to Stage 1 off-highway emissions to Cl -8 mode cycle ref. ISO 8178 part. 4.
• Where the information applies only to one engine type, this will be indicated in the text. When reference is made to the “left” or “right” side of the engine, this is as seen from the flywheel end of the engine.
• Special tools have been made available and a list of these tools is given in section 25.
• Reference to the relevant special tools is also made at the beginning of each operation.
• Loctite recommended consumable products are listed in section 10. Reference to the relevant consumable products is made at the beginning of operation. Data and dimensions are included at the end of each section.

TABLE OF CONTENTS:

Case Engine Perkins 700 Series Service Manual (9-54880)

General information …………………………………………………………………………. 10
Specifications …………………………………………………………………………………. 11
Service operations
Cylinder head assembly …………………………………………………………………… 12
Piston and connecting rod assembly…………………………………………………… 13
Crankshaft assembly ……………………………………………………………………….. 14
Timing case and drive assembly ………………………………………………………… 15
Cylinder block assembly …………………………………………………………………… 16
Engine timing………………………………………………………………………………….. 17
Aspiration system ……………………………………………………………………………. 18
Lubrication system…………………………………………………………………………… 19
Fuel system ……………………………………………………………………………………. 20
Cooling system ……………………………………………………………………………….. 21
Flywheel and flywheel housing ………………………………………………………….. 22
List of special tools ………………………………………………………………………….. 25

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
