Case Excavator 9010 Service Manual 7-44660 – PDF DOWNLOAD

Description

Case Excavator 9010 Service Manual

FILE DETAILS:

Case Excavator 9010 Service Manual

Size : 88.4 MB
Format : PDF
Language : English
Number of Pages : 534 pages
Brand: Case
Type of machine: Excavator
Type of document: Service Manual
Model: Case Excavator 9010
Part No: 7-44660

CASE EXCAVATOR 9010 SERVICE MANUAL 7-44660 – PDF DOWNLOAD:

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Case Excavator 9010 Service Manual

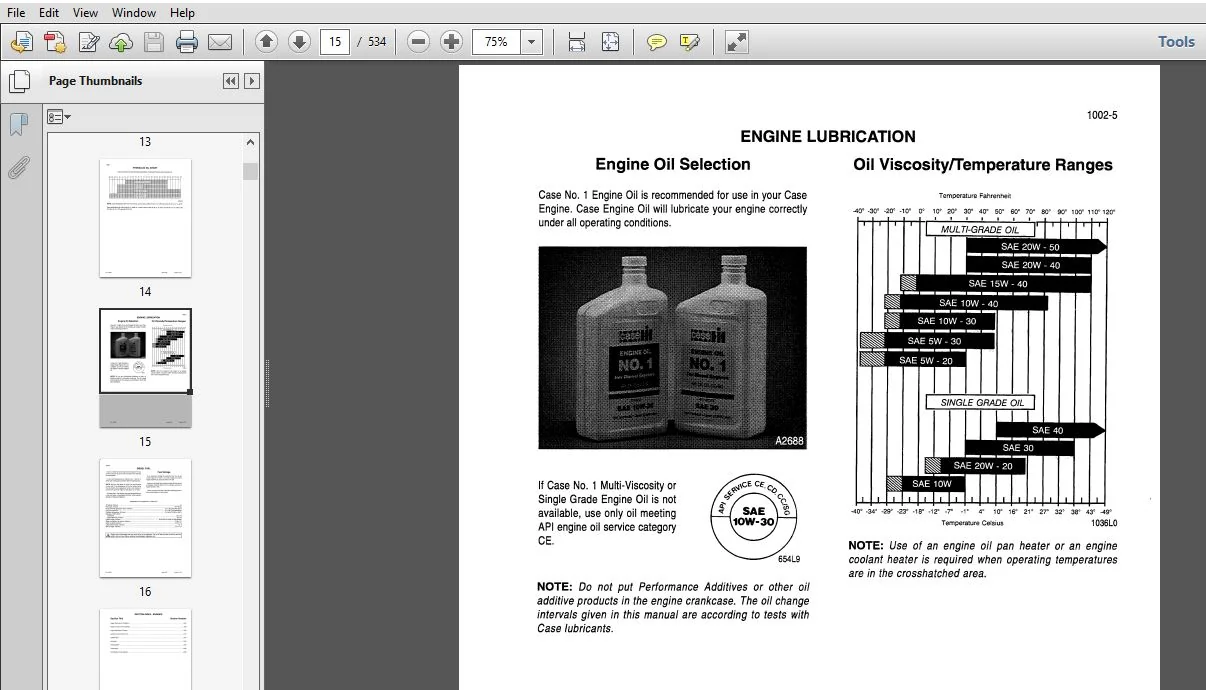

SAMPLE PAGES FROM THE MANUAL:

If you keep fuel in storage for a period of time. you can get foreign material or water in the fuel storage tank. Many engine problems are caused by water in the fuel, Keep the fuel storage tank outside and keep the fuel as cool as possible. Remove water from the storage container at regular periods of time. Fill the fuel tank at the end of the daily operating period to prevent condensation in the fuel tank.

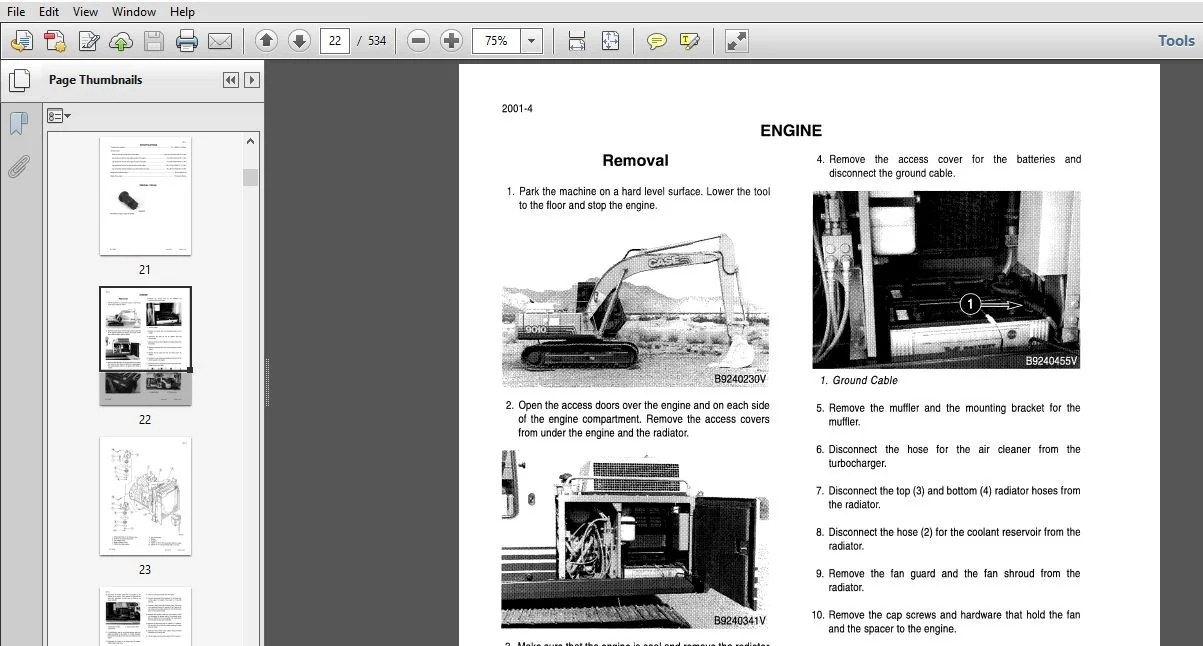

Installation is the reverse sequence of removal:

1. Check the condition of the insulators for the engine mounts. If the insulators are damaged, install new insulators.
   2. Align the holes in the drive plate and coupling with the holes in the flywheel. Install the socket head screws that hold the coupling and drive plate to the flywheel. Tighten the socket head screws to the torque specifications.
   3. Tighten the bolts that hold the engine mounting brackets to the frame to the torque specifications.
   4. Tighten the cap screws that hold the hydraulic pump to the flywheel housing to the torque specifications.
   5. Tighten the cap screws that hold the fan and the spacer to the engine to the torque specifications.
   6. Do the following procedure to bleed the air from the cooling system.

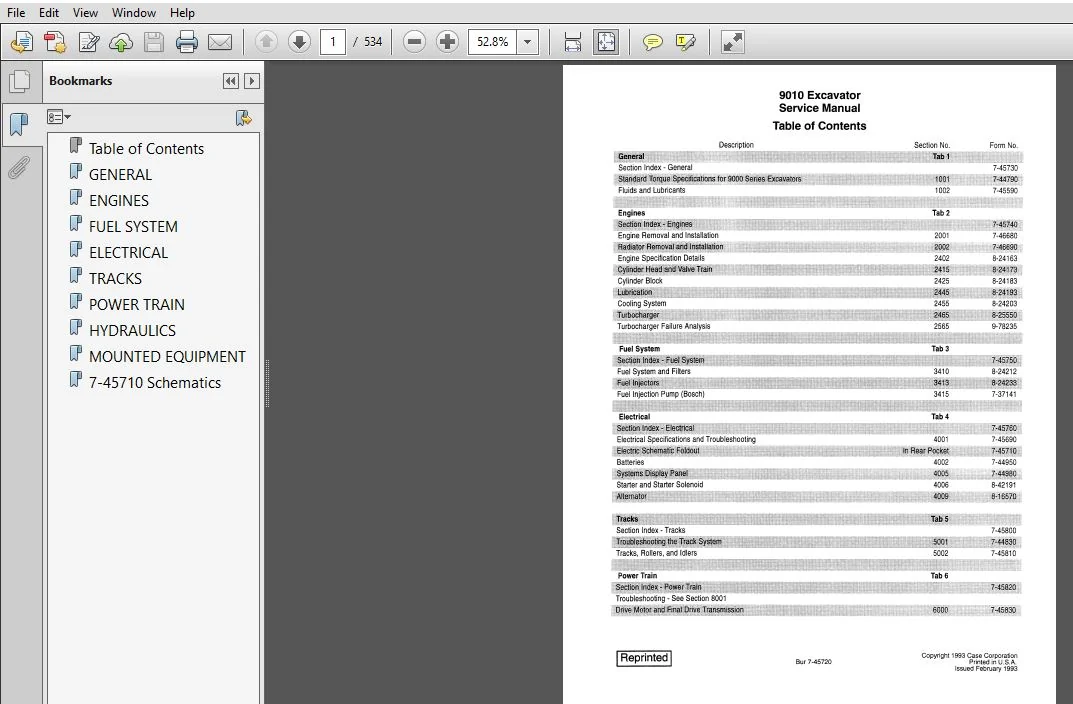

TABLE OF CONTENTS:

Case Excavator 9010 Service Manual

Table of Contents.....  1
GENERAL...............  3
ENGINES............... 17
FUEL SYSTEM...........223
ELECTRICAL............267
TRACKS................353
POWER TRAIN...........383
HYDRAULICS............391
MOUNTED EQUIPMENT.....507
7-45710 Schematics....534

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
