Case Excavator 9060 Service Manual 7-44710R0 – PDF DOWNLOAD

Description

Case Excavator 9060 Service Manual

FILE DETAILS:

Case Excavator 9060 Service Manual

Size : 74 MB
Format : PDF
Language : English
Number of Pages : 653 pages
Brand: Case
Type of machine: Excavator
Type of document: Service Manual
Model: Case Excavator 9060
Part No: 7-44710R0

CASE EXCAVATOR 9060 SERVICE MANUAL 7-44710R0 – PDF DOWNLOAD:

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Case Excavator 9060 Service Manual

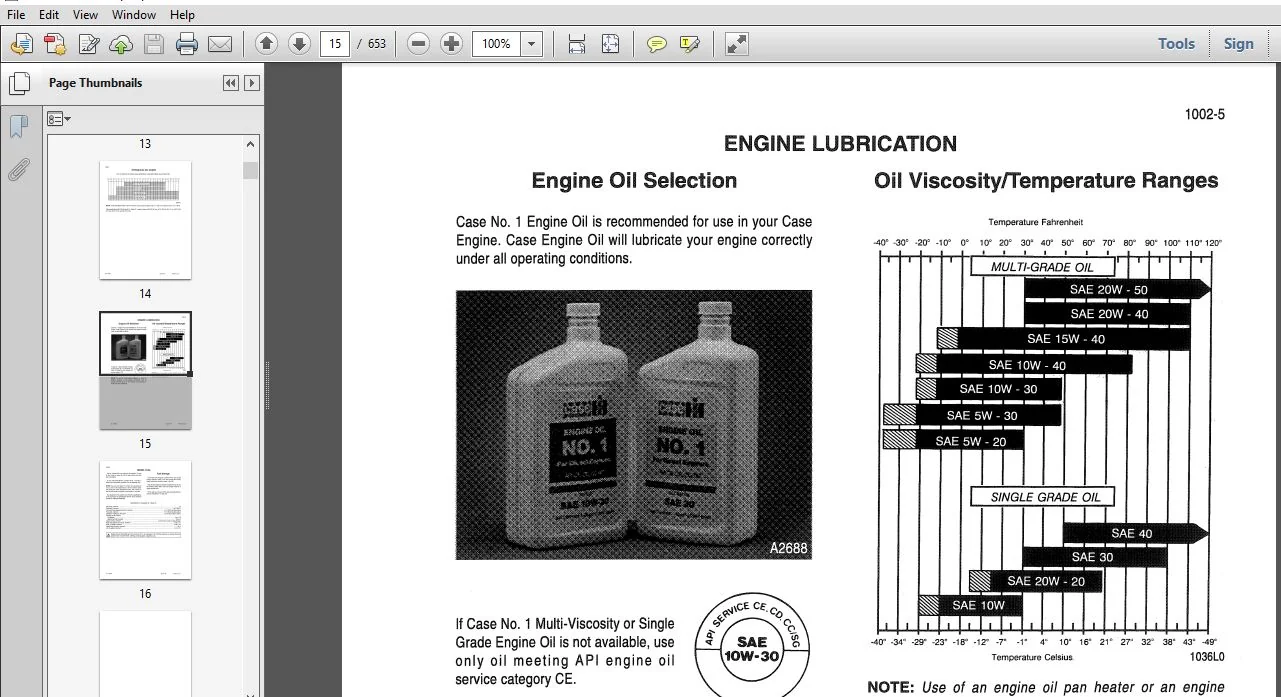

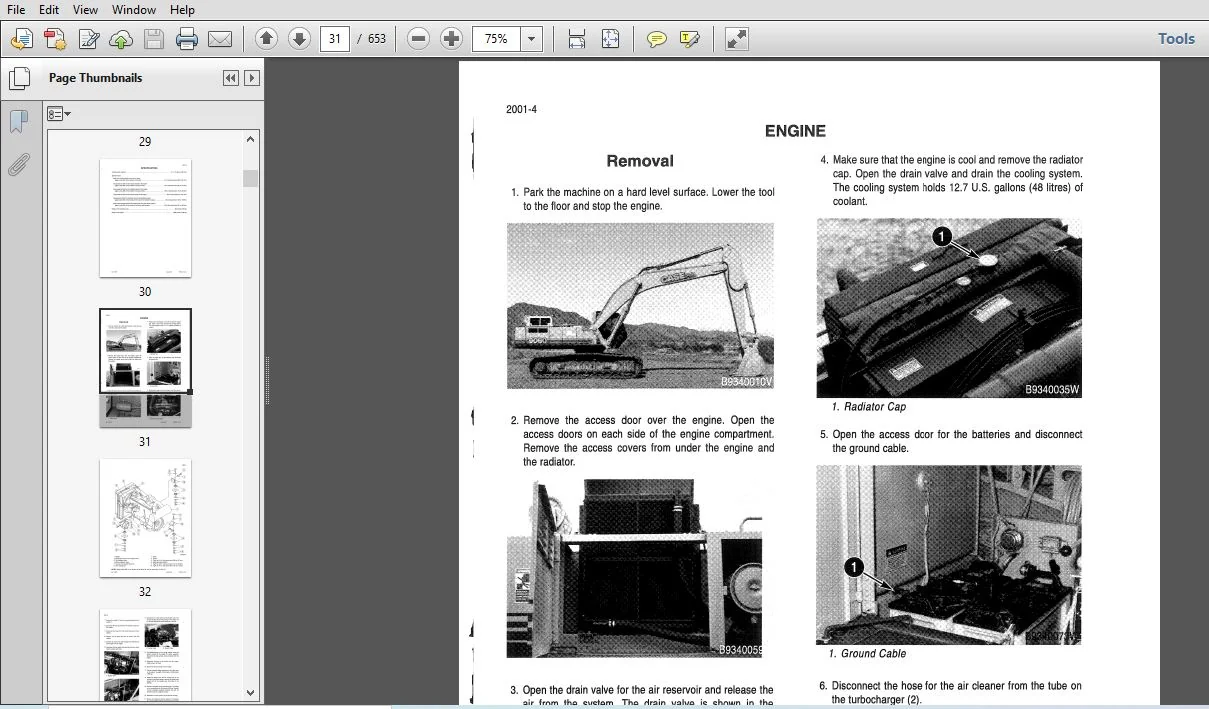

SAMPLE PAGES FROM THE MANUAL:

If you keep fuel in storage for a period of time. you can get foreign material or water in the fuel storage tank. Many engine problems are caused by water in the fuel, Keep the fuel storage tank outside and keep the fuel as cool as possible. Remove water from the storage container at regular periods of time. Fill the fuel tank at the end of the daily operating period to prevent condensation in the fuel tank.

Installation is the reverse sequence of removal:

1. Check the condition of the insulators for the engine mounts. If the insulators are damaged, install new insulators.
2. Align the holes in the drive plate and coupling with the holes in the flywheel. Install the socket head screws that hold the coupling and drive plate to the flywheel. Tighten the socket head screws to the torque specifications.
3. Tighten the bolts that hold the engine mounting brackets to the frame to the torque specifications.
4. Tighten the cap screws that hold the hydraulic pump to the flywheel housing to the torque specifications.
5. Tighten the cap screws that hold the fan and the spacer to the engine to the torque specifications.
6. Do the following procedure to bleed the air from the cooling system.

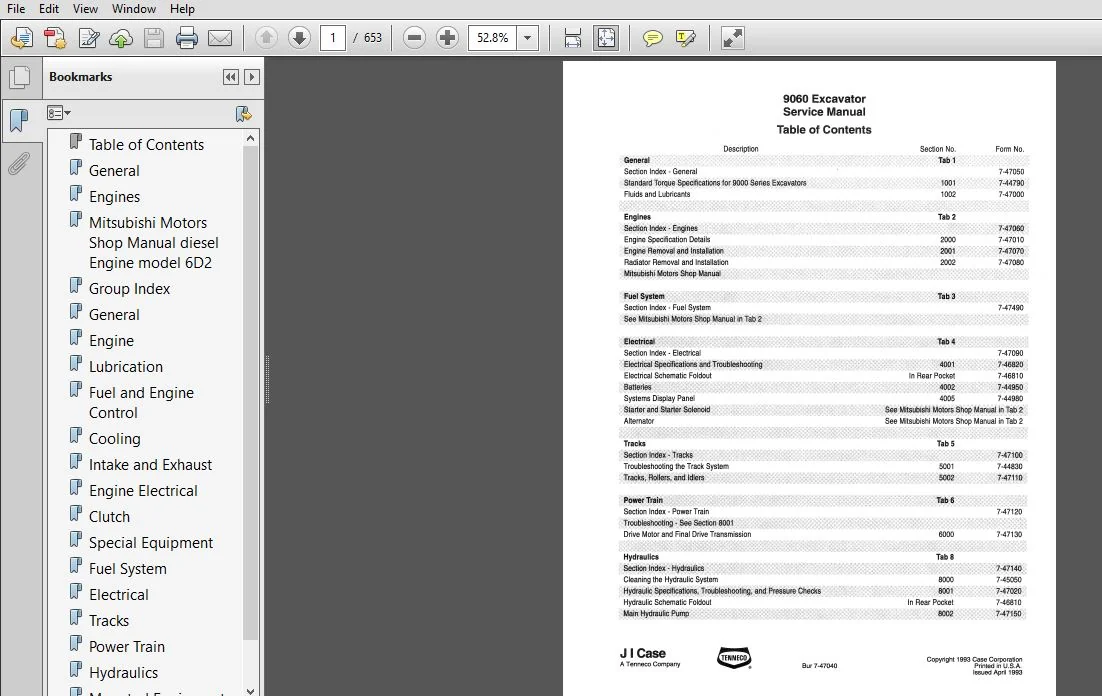

TABLE OF CONTENTS:

Case Excavator 9060 Service Manual

Table of Contents
........................................  1
General
..................................................  3
Engines
.................................................. 18
Mitsubishi Motors Shop Manual diesel Engine model 6D2
.... 44
Group Index
.............................................. 46
General
.................................................. 52
Engine
................................................... 58
Lubrication
..............................................124
Fuel and Engine Control
..................................144
Cooling
..................................................252
Intake and Exhaust
.......................................268
Engine Electrical
........................................304
Clutch
...................................................368
Special Equipment
........................................384
Fuel System
..............................................412
Electrical
...............................................414
Tracks
...................................................472
Power Train
..............................................502
Hydraulics
...............................................510
Mounted Equipment
........................................626
Schematic
................................................651

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
