HOW TO USE YOUR PARTS CATALOGUE
1- Machine type
2- Page number
Gives section number and page number within section.
3- Illustration description
4- Machine type and serial number
-CGG012300 …………………………………………: All machines up to and including indicated number.
CGG012301-CGG012345 ……………………….: All machines between and including indicated numbers.
CGG012346- …………………………………………: Machine number indicated and after.
5- Reference number
Hydraulic connections and plugs are sold equipped with gaskets. The gasket part number, with no reference number,
follows the connection or plug part number.
6- Part number
REF ……………………………………………………..: The part designated is identified on another page.
NSS ……………………………………………………..: The part is not sold separately, order the assembly or sub-assembly.
7- Description
Nouns in various languages.
8- Dimension
Indicates size of part or other qualifying information. See page entitled “Explanation of Dimension Abbreviations”.
9- Quantity
Indicates number of parts per individual part, assembly, or sub-assembly.
NOTE : “X” in quantity column indicates “use as required”.
10- CARES code
CARES code corresponding to the part reference number.
***** ………………………………………………………: Use the CARES code for the function concerned.
11- Assembly or sub-assembly
Shown with brackets or a dotted box.
Within brackets ………………………………………: The sign ò indicates from reference number 2 up to reference
number 9.
12- Dot
Part not serviced separately.
13- Additional information
See page 7-3 …………………………………………: The part illustrated is identified on another page.
See N.I.T. 3066 ………………………………………: Consult Technical Information Note number 3066.
Replaces K2242371 ………………………………: The part number was previously K2242371.
Order K2242371 ……………………………………: The part number has been replaced. Order K2242371.
Order length 1250 mm …………………………..: Part sold by the metre, order quantity 1.25.
Left, Right, Front and Rear ……………………: “Right”, everything to the right of the operator when the seat is in
backhoe attachment or loader attachment position.
Kit containing X ……………………………………: Kit containing X identical parts.
Version XXXXX………………………………………: Special version or specific supplier.
Consists of ref. numbers 1-5, 9, 13 ………..: The assembly consists of parts reference numbers 1 to 5, 9 and 13.
Consists of pages 2-3, 2-7 – 2-11 ……………: The assembly consists of parts pages 2-3 and 2-7 to 2-11.
14- Catalogue reference number
15- Date of issue
16- Illustration reference
17- Replaced by
The arrow indicates the new part(s).
The new part(s) is (are) fully interchangeable with the old part(s).
18- Interchangeable
The parts or parts assemblies are fully interchangeable.

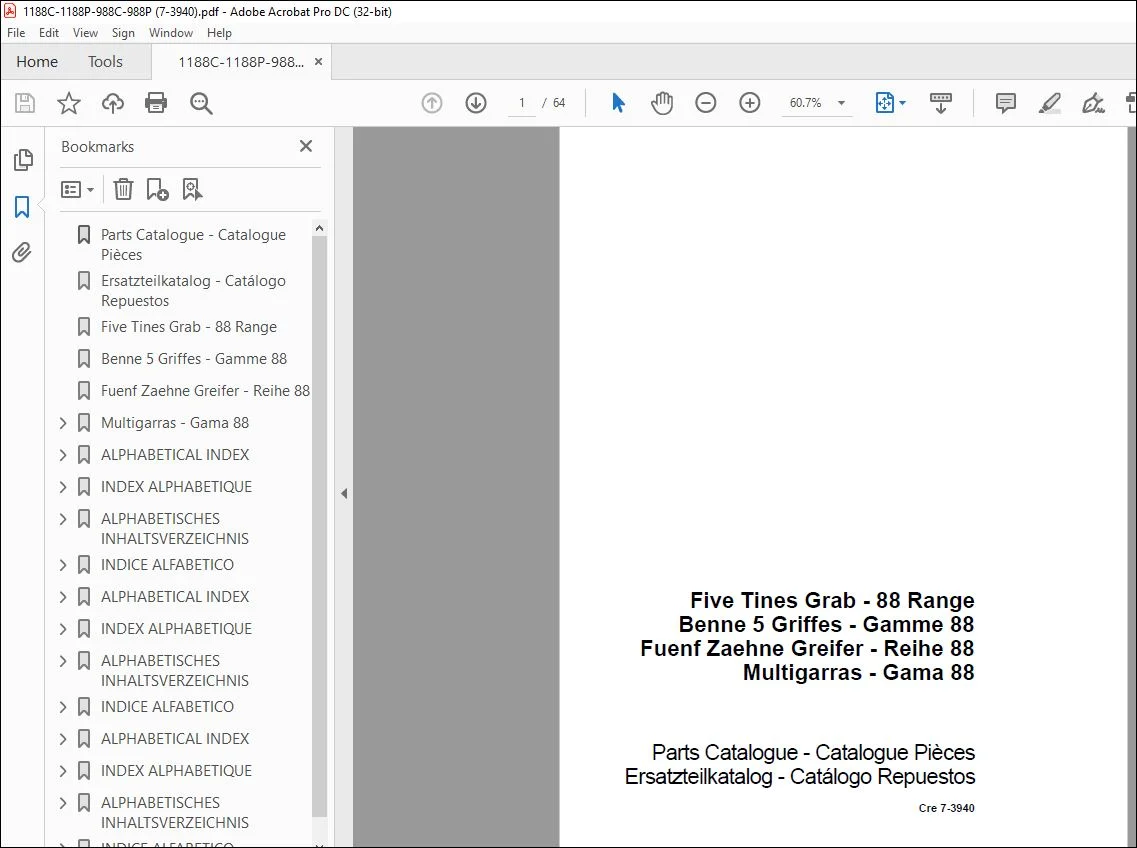

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Case Five Tines Grab 88 Range Parts Catalogue Manual 7-3940 EN_FR_DE_ES – PDF DOWNLOAD

Parts Catalogue – Catalogue Pièces……………………………………………………………….. 1
Ersatzteilkatalog – Catálogo Repuestos……………………………………………………………. 1
Five Tines Grab – 88 Range………………………………………………………………………. 1
Benne 5 Griffes – Gamme 88………………………………………………………………………. 1
Fuenf Zaehne Greifer – Reihe 88………………………………………………………………….. 1
Multigarras – Gama 88…………………………………………………………………………… 1
Multigarras – Gama 88……………………………………………………………………….. 3
instructions for ordering…………………………………………………………………….24
instructions pour les commandes……………………………………………………………….24
anweisungen für die bestellung………………………………………………………………..24
instrucciones para los pedidos………………………………………………………………..24
ABREVIATIONS UTILISEES DANS LA COLONNE DIMENSIONS……………………………………………….14
EXPLANATION OF DIMENSION ABBREVIATIONS…………………………………………………………10
ERLÄUTERUNG DER BEI ABMESSUNGEN VERWENDETEN ABKÜRZUNGEN………………………………………….18
EXPLICACION DE LAS ABREVIATURAS DE DIMENSIONES………………………………………………….22
ALPHABETICAL INDEX………………………………………………………………………………25
C………………………………………………………………………………………….25
F………………………………………………………………………………………….25
H………………………………………………………………………………………….25
T………………………………………………………………………………………….25
INDEX ALPHABETIQUE………………………………………………………………………………26
A………………………………………………………………………………………….26
B………………………………………………………………………………………….26
C………………………………………………………………………………………….26
G………………………………………………………………………………………….26
P………………………………………………………………………………………….26
V………………………………………………………………………………………….26
ALPHABETISCHES INHALTSVERZEICHNIS…………………………………………………………………27
D………………………………………………………………………………………….27
F………………………………………………………………………………………….27
G………………………………………………………………………………………….27
H………………………………………………………………………………………….27
K………………………………………………………………………………………….27
S………………………………………………………………………………………….27
Z………………………………………………………………………………………….27
INDICE ALFABETICO……………………………………………………………………………….28
A………………………………………………………………………………………….28
C………………………………………………………………………………………….28
G………………………………………………………………………………………….28
M………………………………………………………………………………………….28
P………………………………………………………………………………………….28
ALPHABETICAL INDEX………………………………………………………………………………29
Supplement………………………………………………………………………………….29
DESCRIPTION…………………………………………………………………………………29
PAGE……………………………………………………………………………………….29
INDEX ALPHABETIQUE………………………………………………………………………………30
Supplement………………………………………………………………………………….30
DESIGNATION…………………………………………………………………………………30
PAGE……………………………………………………………………………………….30
ALPHABETISCHES INHALTSVERZEICHNIS…………………………………………………………………31
Zusatz……………………………………………………………………………………..31
BEZEICHNUNG…………………………………………………………………………………31
SEITE………………………………………………………………………………………31
INDICE ALFABETICO……………………………………………………………………………….32
Suplemento………………………………………………………………………………….32
DESIGNACION…………………………………………………………………………………32
PAGINA……………………………………………………………………………………..32
FIVE TINE GRAB – HALF HEART-SHAPPED TINES BENNE 5 GRIFFES – GRIFFES TYPE DEMI-COEUR FÜNF ZÄHNE GR…….35
QTY…………………………………………………………………………………….35
TURNING JOINT PIVOT JOINT TOURNANT DREHGELENK PIVOTE JUNTA GIRATORIA………………………………37
QTY…………………………………………………………………………………….37
HYDRAULIC CIRCUIT – FIVE TINES GRAB CIRCUIT HYDRAULIQUE – BENNE 5 GRIFFES HYDRAULIKKREISLAUF – FÜ…….39
QTY…………………………………………………………………………………….39
FIVE TINE GRAB CYLINDER – SCRAP VERIN DE BENNE 5 GRIFFES – FER ZYLINDER FÜR 5 ZÄHNEGREIFER – SCHR…….41
QTY…………………………………………………………………………………….41
FAST COUPLER – CLAMSHELL FEED COUPLEUR RAPIDE – ALIMENTATION BENNE SCHNELLKUPPLER – GREIFER-VERSO…….43
QTY…………………………………………………………………………………….43
ALPHABETICAL INDEX………………………………………………………………………………45
NO SECTION NAME……………………………………………………………………………..45
DESCRIPTION…………………………………………………………………………………45
PAGE……………………………………………………………………………………….45
INDEX ALPHABETIQUE………………………………………………………………………………46
french-NO SECTION NAME……………………………………………………………………….46
DESIGNATION…………………………………………………………………………………46
PAGE……………………………………………………………………………………….46
ALPHABETISCHES INHALTSVERZEICHNIS…………………………………………………………………47
KAPITEL OHNE BEZEICHNUNG……………………………………………………………………..47
BEZEICHNUNG…………………………………………………………………………………47
SEITE………………………………………………………………………………………47
INDICE ALFABETICO……………………………………………………………………………….48
spanish-NO SECTION NAME………………………………………………………………………48
DESIGNACION…………………………………………………………………………………48
PAGINA……………………………………………………………………………………..48
FIVE TINE GRAB – HEART-SHAPED TINES BENNE 5 GRIFFES – GRIFFES TYPE COEUR FÜNF ZÄHNE GREIFER – HER…….51
QTY…………………………………………………………………………………….51
FIVE TINE GRAB – HALT HEART-SHAPED TINES BENNE 5 GRIFFES – GRIFFES TYPE DEMI COEUR FÜNF ZÄHNE GRE…….53
QTY…………………………………………………………………………………….53
FIVE TINE GRAB BENNE 5 GRIFFES FÜNF ZÄHNE GREIFER MULTIGARRAS…………………………………….55
QTY…………………………………………………………………………………….55
TURNING JOINT PIVOT JOINT TOURNANT DREHGELENK PIVOTE JUNTA GIRATORIA………………………………57
QTY…………………………………………………………………………………….57
CIRCUIT – FIVE TINES GRAB CIRCUIT – BENNE 5 GRIFFES KREIS – FÜNF ZÄHNE GREIFER CIRCUITO – MULTIGA…….59
QTY…………………………………………………………………………………….59
FIVE TINE GRAB CYLINDER VERIN DE BENNE 5 GRIFFES ZYLINDER FÜR 5 ZÄHNEGREIFER GATO DE MULTIGARRA………61
QTY…………………………………………………………………………………….61
