Case Hydraulic Low Flow Circuit Kit for CX470B Excavator Manual 84197168 – PDF DOWNLOAD (EN-IT-ES-DE-FR)

Description

Case Hydraulic Low Flow Circuit Kit for CX470B Excavator Manual 84197168 – PDF DOWNLOAD (EN-IT-ES-DE-FR)

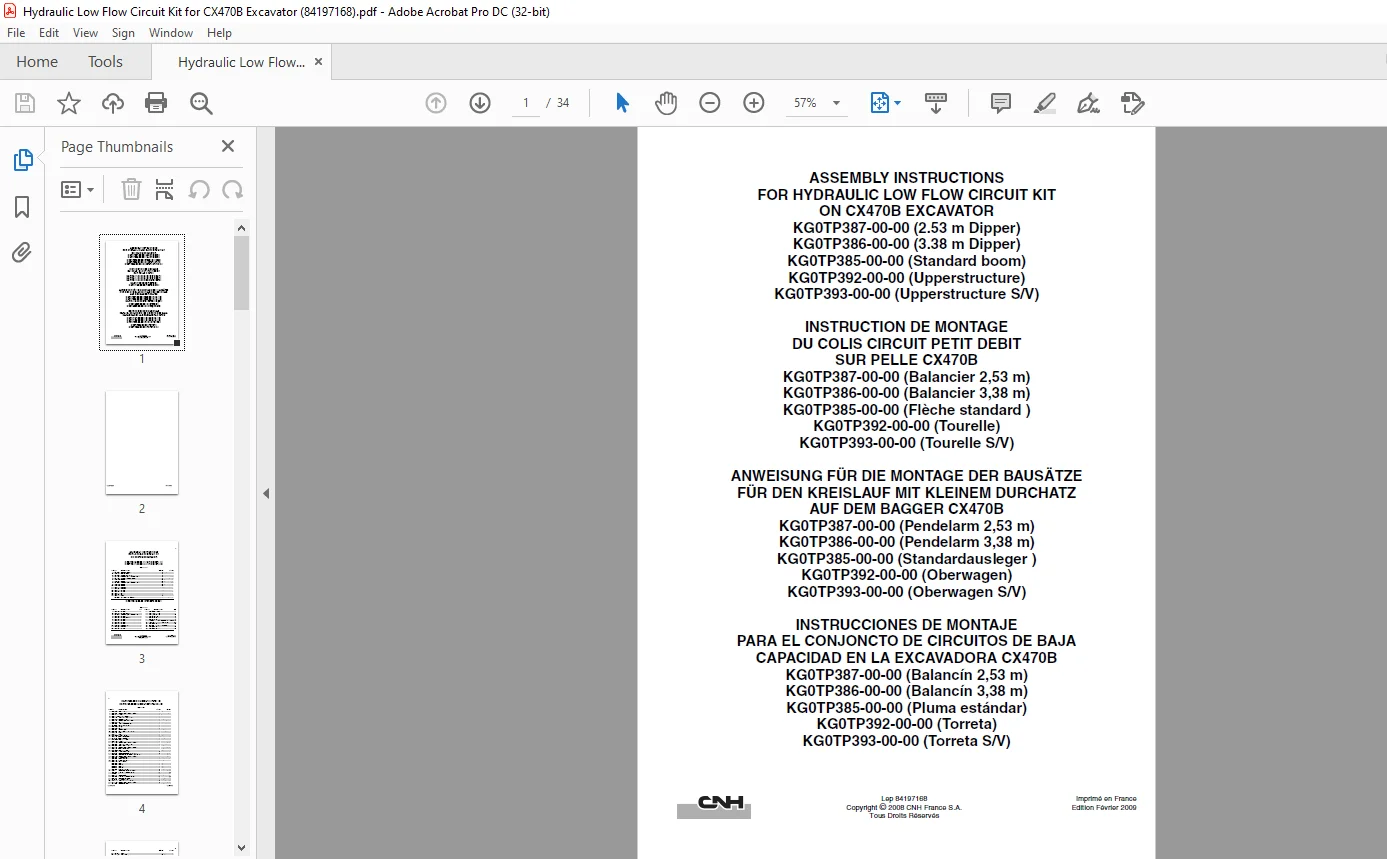

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Case Hydraulic Low Flow Circuit Kit for CX470B Excavator Manual 84197168 – PDF DOWNLOAD (EN-IT-ES-DE-FR)

GENERAL INFORMATION
The illustrations for these assembly instructions will be
found in the last pages. Separate the last pages to consult
the illustrations while reading the text.
The reference numbers and letters in these instructions
are the same as those used in the illustrations.
Special torque settings are shown in these instructions.
If a torque setting is not shown, use the standard torque
setting shown in the Service Manual.

TABLE OF CONTENTS:

Case Hydraulic Low Flow Circuit Kit for CX470B Excavator Manual 84197168 – PDF DOWNLOAD (EN-IT-ES-DE-FR)

PARTS LIST
ITEMP/N DESCRIPTION Qty (a) Qty (b)
1. KHJ10450 Control pedal………………………………………………………………………………………1 ……………………..-
2. 166052A1 Screw M10x25 (105R010Y025R) ………………………………………………………….2 ……………………..-
3. KHJ10711 Bracket ………………………………………………………………………………………………1 ……………………..-
4. 108R010Y016RScrew M10x16 ……………………………………………………………………………….2 ……………………..-
5. 150604A1 Washer W10 (KHJ0183) ………………………………………………………………………6 ……………………..-
6. KHJ10681 LH pedal bracket …………………………………………………………………………………1 ……………………..-
7. 165404A1 Screw M10x20 (KHJ1104) ……………………………………………………………………2 ……………………..-
8. KHJ10701 Pedal stop ………………………………………………………………………………………….1 ……………………..-
9. 159500A1 Washer W8 (KHN0420) ……………………………………………………………………….1 ……………………..-
10. 157740A1 Nut M8 (KHJ0091) ………………………………………………………………………………1 ……………………..-
11. KHJ10721 Spring ……………………………………………………………………………………………….1 ……………………..-
12. KHJ13850 Pedal …………………………………………………………………………………………………1 ……………………..-
13. KHJ1820 Screw M10x25 ……………………………………………………………………………………2 ……………………..-
14. 163782A1 Pedal protection (KHP0912) …………………………………………………………………1 ……………………..-
15. KHP1510 Decal…………………………………………………………………………………………………1 ……………………..-
16. KHP1511 Decal…………………………………………………………………………………………………1 ……………………..-
17. KHR10820 Pressure switch…………………………………………………………………………………..1 ……………………..-
18. 152127A1 Adaptor (KNJ0758) ……………………………………………………………………………..5 …………………….4
19. 161841A1 Adaptor (CNA0584) …………………………………………………………………………….1 …………………….1
20. KHR15960 Electrical harness ……………………………………………………………………………….1 ……………………..-
21. KHJ15190 Bracket ……………………………………………………………………………………………….- …………………….1
22. 627-10035 Screw M10x35 (102R010Y035R) …………………………………………………………..- …………………….2
23. 150409A1 Washer W10 (KEH0114) ……………………………………………………………………..1 …………………….3
24. KHJ14000 Solenoid valve block …………………………………………………………………………….- …………………….1
25. 166351A1 Screw M10x20 (105R010Y020R) …………………………………………………………..- …………………….2
26. 162554A1 Adaptor (KHJ0626) ………………………………………………………………………………- …………………….1
27. KHR15060 Electrical harness ………………………………………………………………………………..- …………………….1
28. 158962A1 Bracket (KHR1317) ……………………………………………………………………………..4 …………………….2
29. 166345A1 Screw M8x16 (105R008Y016R) ……………………………………………………………4 …………………….2
30. 168709A1 Second option control valve (KRJ5560)………………………………………………….1 …………………….1
31. 862-10035 Screw M10x35 (108R010Y035R) ………………………………………………………….3 …………………….3
32. 159002A1 Plug (KHJ0363)…………………………………………………………………………………..1 …………………….1
33. 150913A1 Elbows (KHJ0341) ………………………………………………………………………………2 …………………….2
34. 159497A1 T-piece (KHJ0869) ………………………………………………………………………………2 ……………………..-
35. KTJ12130 Set of 4 hoses
KHJ11480 Hose Y6 …………………………………………………………………………………………….1 ……………………. 1
KHJ12230 Hose Y7 …………………………………………………………………………………………….1 ……………………. 1
KHJ2088 Hose P5 …………………………………………………………………………………………….1 ……………………. 1
KHJ2088 Hose T5 …………………………………………………………………………………………….1 ……………………. 1
36. 150860A1 Base (KHR0319)…………………………………………………………………………………7 …………………….7
37. 840-168 Screw M6x8 (145N006S008R) ……………………………………………………………..7 …………………….7
38. 150496A1 Plastic clip L=250 (KHH0142)…………………………………………………………….. xx ………………….. xx
39. KHR2581 Tie …………………………………………………………………………………………………….2 …………………….2
40. KHJ1215 Screw M8x25 ……………………………………………………………………………………..2 …………………….2
41. 150498A1 Plastic clip L=300 (KHH0143)…………………………………………………………….. xx ………………….. xx
42. KTJ2333 Second option pump……………………………………………………………………………1 …………………….1
43. 154777A1 O-ring (LBQ1303) ……………………………………………………………………………….1 …………………….1
44. 896-11012 Washer W12 (182-012SR)……………………………………………………………………4 …………………….4
45. 627-12035 Screw M12x35 (102R012Y035R) ………………………………………………………….4 …………………….4
46. 157588A1 Elbow (KHJ0353) ………………………………………………………………………………..1 …………………….1
3
Lep 84197168 Issued 02-09
ITEMP/N DESCRIPTION Qty (a) Qty (b)
47. KTJ2373 Hose …………………………………………………………………………………………………1 ……………………. 1
48. KHJ2621 Half-clamp………………………………………………………………………………………….2 ……………………. 2
49. 164450A1 O-ring (LBQ 5222) ………………………………………………………………………………1 ……………………. 1
50. 862-12030 Screw M12x30 (108R012Y030R) ………………………………………………………….4 ……………………. 4
51. KTJ2337 Manifold …………………………………………………………………………………………….1 ……………………. 1
52. 154548A1 O-ring (LBQ 0352) ………………………………………………………………………………1 ……………………. 1
53. 862-10065 Screw M10x65 (108R010Y065R) ………………………………………………………….4 ……………………. 4
54. 152924A1 Plug (BRJ1286) ………………………………………………………………………………….1 ……………………. 1
55. 152012A1 Adaptor (KNJ0700) ……………………………………………………………………………..1 ……………………. 1
56. 157580A1 Elbow (KHJ0344) ………………………………………………………………………………..4 ……………………. 4
57. KTJ12890 Pipe…………………………………………………………………………………………………..1 ……………………. 1
58. 151486A1 Clamp (KRV0548)……………………………………………………………………………….2 ……………………. 2
59. 167183A1 Screw M12x60 (105R012Y060R) ………………………………………………………….2 ……………………. 2
60. KTJ2374 Hose …………………………………………………………………………………………………1 ……………………. 1
61. 161102A1 Adaptor (KMJ0836)……………………………………………………………………………..2 ……………………. 2
62. 158759A1 Adaptor (KAA0709)……………………………………………………………………………..2 ……………………. 2
63. KHJ1070 Adaptor ……………………………………………………………………………………………..1 ……………………. 1
64. KTJ12900 Hose …………………………………………………………………………………………………1 ……………………. 1
65. KTJ2341 Hose …………………………………………………………………………………………………1 ……………………. 1
66. 166124A1 Protective sleeve 25×1000 (KBR0654) …………………………………………………..1 ……………………. 1
67. KTJ12850 Bracket………………………………………………………………………………………………1 ……………………. 1
68. 166352A1 Screw M12x30 (105R012Y030R) ………………………………………………………….6 ……………………. 6
69. KTJ12840 Manifold …………………………………………………………………………………………….1 ……………………. 1
70. 151654A1 Adaptor (KNJ0605) ……………………………………………………………………………..2 ……………………. 2
71. KTJ12040 Hose …………………………………………………………………………………………………1 ……………………. 1
72. KTJ12050 Hose …………………………………………………………………………………………………1 ……………………. 1
73. KHJ2023 Rubber ring ………………………………………………………………………………………..5 ……………………. 5
74. KTJ12000 Bracket………………………………………………………………………………………………1 ……………………. 1
75. 827-10065 Screw M10x65 (102R010Y065R) ………………………………………………………….1 ……………………. 1
76. KTJ12010 Spacer ………………………………………………………………………………………………1 ……………………. 1
77. 166052A1 Screw M10x25 (105R010Y025R) ………………………………………………………….3 ……………………. 3
78. 157586A1 Elbow (KHJ0351) ………………………………………………………………………………..1 ……………………. 1
79. KTJ12820 Hose …………………………………………………………………………………………………1 ……………………. 1
80. KTJ12830 Hose …………………………………………………………………………………………………2 ……………………. 2
81. KHJ2025 Clamp ……………………………………………………………………………………………….1 ……………………. 1
82. KSJ2989 Bracket………………………………………………………………………………………………1 ……………………. 1
83. KHJ2451 Clamp ……………………………………………………………………………………………….1 ……………………. 1
84. 159602A1 Screw M6x16 (KHR1253) …………………………………………………………………….1 ……………………. 1

FILE DETAILS:

Language : ENLISH-FRENCH-SPANISH-ITALIAN-GERMAN
Pages : 34
Downloadable : Yes
File Type : PDF
