Case IH MAXXUM 110 120 130 115 125 140 Multicontroller Tractors Operators Manual – PDF DOWNLOAD

Description

Case IH MAXXUM 110 120 130 115 125 140 Multicontroller Tractors Operators Manual

DESCRIPTION:

• These operating instructions have been produced to provide you with instructions for correctly running in, driving and operating as well as for maintaining your new tractor. Please therefore read through these operating instructions carefully. The tractor is intended for all standard agricultural work. Do not hesitate to contact your authorised dealer if you ever have any questions relating to your tractor.
• The dealer has trained specialist staff, genuine spare parts and the technical equipment required to satisfy all your servicing requirements.
• In terms of concept and design, this tractor has been designed for maximum performance, economic viability and user-friendliness in a wide range of applications.
• It has been carefully inspected in the factory and by your authorised dealer before being delivered to ensure that the machine is in optimum technical condition. To make sure it stays in this condition and always operates in a faultfree manner, it is important that you carry out the maintenance work described in Section 4 of this operating manual at the specified intervals.

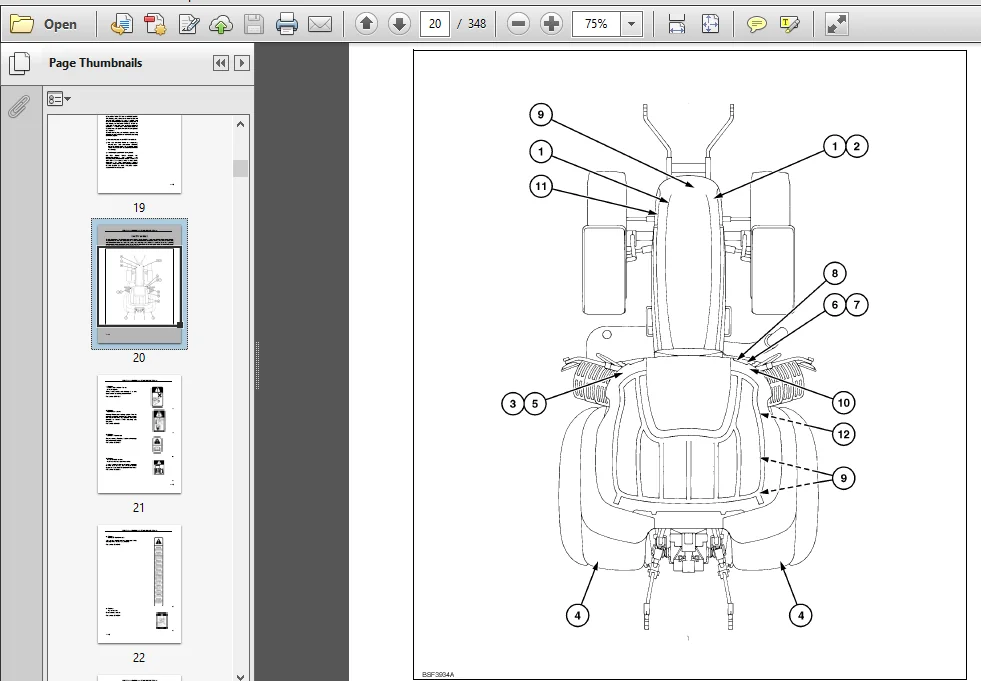

IMAGES:

CASE IH MAXXUM 110 120 130 115 125 140 MULTICONTROLLER TRACTORS OPERATORS MANUAL – PDF DOWNLOAD:

TABLE OF CONTENTS:

SECTION 1
GENERAL INFORMATION AND SAFETY
END USER LICENCE AGREEMENT TERMS 1-2
ECOLOGY AND THE ENVIRONMENT 1-6
SAFETY PRECAUTIONS 1-7
ROLL OVER PROTECTIVE STRUCTURE 1-13
SAFETY LABELS 1-14
INTERNATIONAL SYMBOLS 1-19
AIRBORNE NOISE EMISSION 1-20
SECTION 2
CONTROLS, INSTRUMENTS AND OPERATION
BEFORE STARTING UP 2-1
CAB CONTROLS 2-2
PROGRAMMING THE DISPLAYS 2-52
GEARBOX OPERATION 2-58
SECTION 3
FIELD OPERATION
BEFORE STARTING UP 3-1
TOWING THE TRACTOR 3-3
TRANSPORTING THE TRACTOR 3-4
STARTING THE ENGINE 3-7
STOPPING THE ENGINE 3-10
CONSTANT ENGINE SPEED CONTROL 3-13
HEADLAND MANAGEMENT CONTROL (HMC) 3-15
TURN ASSIST STEERING ASSISTANCE (if fitted) 3-25
REAR PTO 3-27
FRONT PTO AND HYDRAULIC FRONT POWER LIFT
(where fitted) 3-42
ELECTRONIC FRONT POWER LIFT CONTROL EFH (where fitted) 3-47
ELECTRONIC POWER LIFT CONTROL (EDC) 3-52
ELECTRO-HYDRAULIC REMOTE CONTROL VALVES 3-66
3-POINT POWER LIFT LINKAGE 3-81
LIFT RODS, LOWER AND TOP LINKS 3-83
DRAWBARS AND TOWING ATTACHMENTS 3-91
REAR TOW HITCH 3-96
HYDRAULIC TRAILER BRAKES 3-110
PNEUMATIC TRAILER BRAKES 3-112
FRONT WHEEL TRACK SETTING 3-118
REAR WHEEL TRACK SETTING 3-123
TRACTOR WEIGHT 3-130
TYRE AIR PRESSURE LEVELS AND PERMISSIBLE LOAD BEARING CAPACITIES 3-137
TABLE OF CONTENTS
SECTION 4
LUBRICATION AND MAINTENANCE
GENERAL NOTES 4-1
LUBRICANTS AND COOLANTS 4-8
LUBRICATION AND MAINTENANCE TABLE 4-10
WHEN WARNING LIGHTS ARE ILLUMINATED 4-12
EVERY 10 OPERATING HOURS OR DAILY 4-16
EVERY 50 OPERATING HOURS 4-19
EVERY 100 OPERATING HOURS 4-26
EVERY 300 OPERATING HOURS 4-27
EVERY 600 OPERATING HOURS 4-31
EVERY 1200 OPERATING HOURS OR 12 MONTHS 4-38
EVERY 1200 OPERATING HOURS OR 2 YEARS 4-43
EVERY 3 YEARS 4-50
GENERAL MAINTENANCE 4-51
FUSES AND RELAYS 4-59
PROTECTION FOR ELECTRONIC AND ELECTRICAL SYSTEMS WHEN CHARGING
THE BATTERY OR DURING WELDING WORK 4-64
SECTION 5
TROUBLESHOOTING
ENGINE 5-2
GEARBOX 5-5
HYDRAULICS 5-6
3-POINT POWER LIFT LINKAGE 5-7
BRAKES 5-8
CAB 5-9
ELECTRICAL SYSTEM 5-10
SECTION 6
VEHICLE STORAGE
TRACTOR STORAGE 6-1
SECTION 7
ADDITIONAL EQUIPMENT
SECTION 8
TRACTOR SPECIFICATION
VEHICLE WEIGHTS 8-6
ENGINE 8-7
FUEL SYSTEM 8-7
COOLING SYSTEM 8-7
GEARBOX 8-8
BRAKES 8-8
REAR PTO 8-8
FRONT PTO 8-9
STEERING 8-9
MAXIMUM OPERATING ANGLE 8-9
HYDRAULICS SYSTEM 8-9
3-POINT POWER LIFT 8-9
REMOTE CONTROL VALVES 8-11
HYDRAULIC FRONT POWER LIFT (HPL) 8-11
ELECTRICAL EQUIPMENT 8-12
MINIMUM TIGHTENING TORQUE OF SCREW CONNECTIONS 8-13
MINIMUM TIGHTENING TORQUES OF SCREW CONNECTIONS 8-14
SECTION 9
CHECKLIST FOR 50-HOUR INITIAL INSPECTION
SECTION 10
INDEX

FILE DETAILS:

Case IH Tractor MAXXUM 110,120,130,115,125,140 Multi-Controller Operator’s Manual_82999328
Size : 8.27 MB
Format : PDF
Language : English
Number of Pages : 348 pages
Brand: Case IH
Type of machine: Tractor
Type of document: Operator’s Manual
Model: MAXXUM 110,120,130,115,125,140
Part No: 82999328

PLEASE NOTE:

⦁ This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
⦁ Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
