Case IH Tractor 2400 Series Corn Head Service Manual – PDF Download

Description

Case IH Tractor 2400 Series Corn Head Service Manual

DESCRIPTION:

This service manual provides the technical information needed to properly service and maintain the Model 2400 corn head. Use this manual in conjunction with the operator’s manual suppliedwith the corn head. On Case IH equipment, left and right are determined by standing behind the unit, looking in the direction of travel. This manual details the service procedures found to be the easiest and least time-consuming. Modifying these procedures is not recommended. Each section of this manual is divided into these subsections: Removal, Disassembly, Inspection, Assembly, Installation, and Labor Guide.

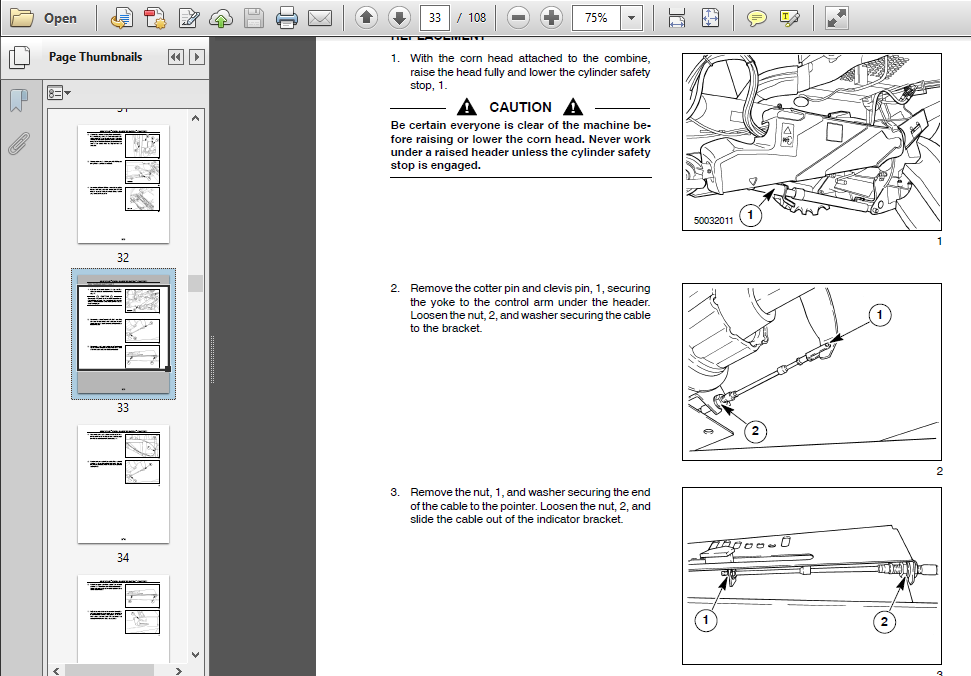

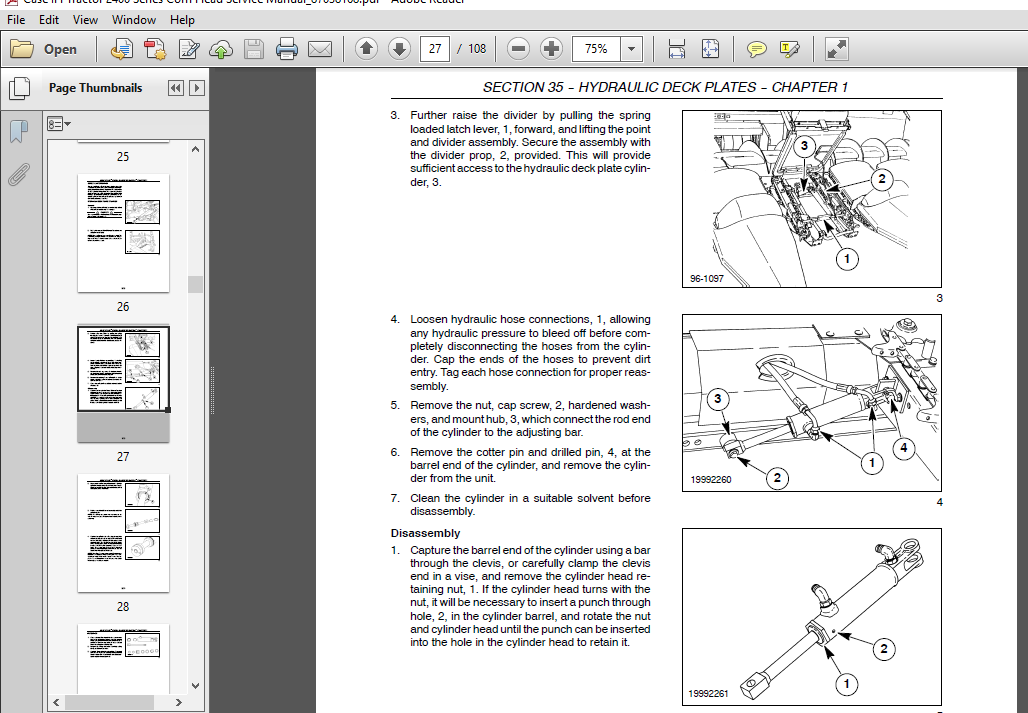

SCREENSHOT OF THE MANUAL:

TABLE OF CONTENTS:

General Information
Introduction
Corn Head Drive — Power Flow
Safety Precautions
General Information
Improvements
Lubrication
Lubricants and Coolants
Minimum Hardware Tightening Torques
Hydraulic Deck Plates
General Information
Hydraulic Deck Plate Cylinder
Deck Plate Indicator Cable Replacement
Electrical
Electrical System
Troubleshooting
Chapter 1 – PTO Driveshaft
PTO Driveshaft
Driveshaft Removal
Slide Lock Disassembly
Slide Lock Assembly
U-joint Disassembly
U-joint Assembly
Driveshaft Installation

CASE IH TRACTOR 2400 SERIES CORN HEAD SERVICE MANUAL – PDF DOWNLOAD:

FILE DETAILS:

Case IH Tractor 2400 Series Corn Head Service Manual_87038168
Size : 2.68 MB
Format : PDF
Language : English
Number of Pages : 108 pages
Brand: Case IH
Type of machine: Tractor
Type of document: Service Manual
Model: 2400 Series Corn Head
Part No: 87038168
