Case IH Tractor 4 JMA,4 CMA Magnetos Models Service Manual

DESCRIPTION:

• A magneto, when properly designed and built, will produce a hotter, longer lasting spark than any other form of ignition. These factors have been incorporated in Case Magnetos. which are built in a modernly equipped factory where quality materials and the finest precision machines are used. and highest grade workmen are employed.
• This service manual has been prepared to give Case Mag- neto Service Stations the knowledge and information to com- pletely familiarize mechanics with all of the service details connected with servicing Case Magnetos.
• This manual is set up in three sections, as follows:
• Section One – Case Model 4-JMA Magneto
• Section Two  – Case Model 4-CMA Magneto
• Section Three – Case Model 4-CAMA Aircraft Magneto
• It also contains a list of the equipment and proper tools to be used in servicing Case Magnetos. The information con- tained in this manual will be of no benefit unless thoroughly ‘ studied, and the knowledge thereby gained intelligently ap- plied. Therefore. we urge you to preserve this manual so that it will be available for ready reference.

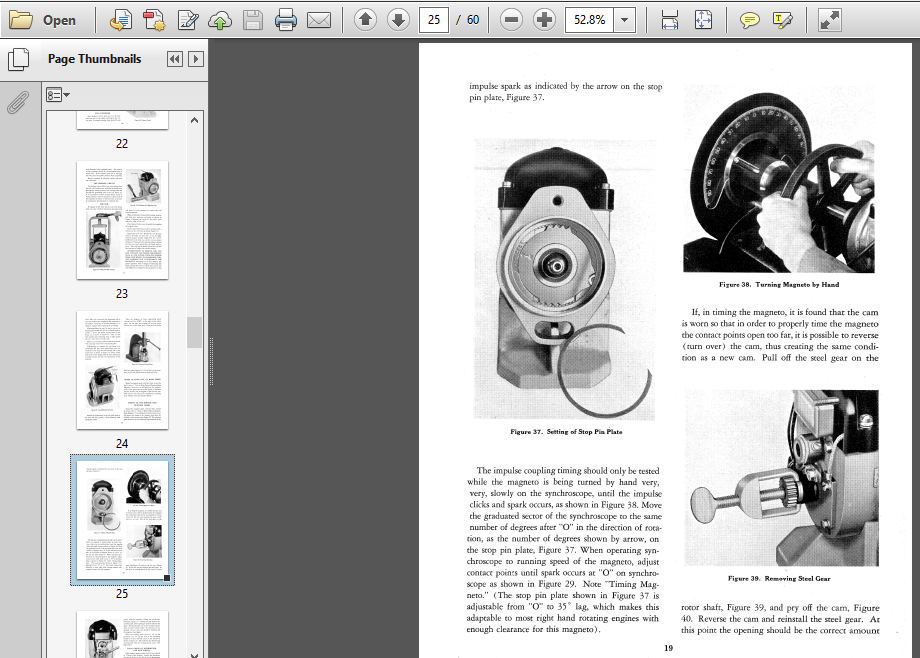

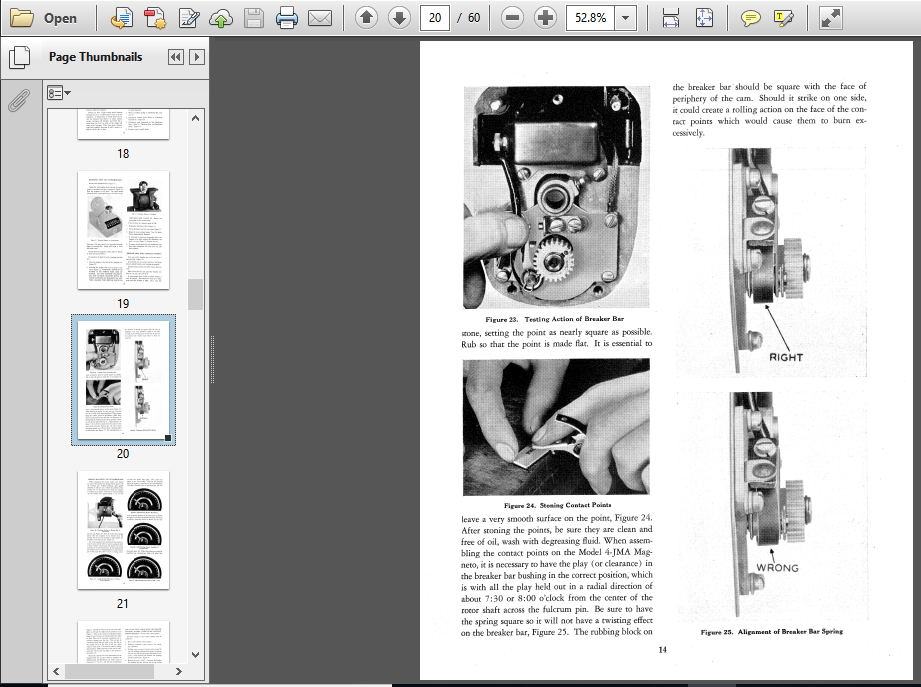

SCREENSHOT OF THE MANUAL:

TABLE OF CONTENTS:

• Case IH Tractor 4 JMA,4 CMA Magnetos Models Service Manual

Bearings
Breaker Arm and Contact Points
CheckingDriveGear
Cell
Condenser
CorrodedorRustyMagneto
DegreasingFluid
Descriptions
Dismantling l’Iodcl4-J’IVLK Magneto
DistributorDisc
Equipment Required for Servicing
Exploded View of Model 4-CMA Magneto
Exploded View of Model 4-JMA Magneto
FieldSen’icing
Final Check of Distributor Cap and Points
How to Dismantcl Model 4-CMA Magneto
ImpulseCoupling
Lubriwtion
Model 4-CAMA Aircraft Magneto, Section III
Model «l-CMA Magneto, Section II
Model 4-JMA Magneto, Section 1
Priman’Circuit
Reassembling Model 4-C‘IV1fA Magneto
Remaembling Model 4-JMA Magneto
RemovingDistributorCap
Running’l‘est on Synchroscope
SAESpecifications
Sectional View of Model 4-CMA Magneto
Sectional View ofModel4-J’1VIA Magneto
Spark Cutting Out at HighSpecd
Special’l‘ools
StatementtoDealers
TestiFr‘iglglodel 4-CMA Magneto Returned from
Test to Make Before Disassembling Magneto
Timing of Impulse and Running Spark
Timing Magneto on Synchroscope
