Case IH Tractor 40XT Skid Steer COMPLETE Service Manual 6-45070R0 – PDF Download

Case IH Tractor 40XT Skid Steer COMPLETE Service Manual

SAMPLE PAGE FROM THE MANUAL:

1. Place the hand throttle lever in the rearrnost position against the rear of the slot in the controls cover.
2. Verify the throttle lever on the injection pump is in the low idle position. This is when the throttle lever is rotated clockwise until it rests on the low idle stop.
3. Adjust the ball joints at each end of the throttle rod such that the lever is held firmly against the low idle stop. It is acceptable to have the rod force the injection pump lever into a slight over-stroke condition.
4. Pull the hand throttle lever forward to the front end of the slot and observe the motion at the injection pump throttle lever. The lever should rotate counterclockwise until it contacts the high idle stop. The lever should continue to move into the over-stroke zone to insure high idle can be achieved and held.
5. Return the hand throttle lever to the low idie position to ensure the low idle adjustment is still correct.
6. Tighten the jam nuts on the ball joints to maintain the adjustment and verify correct contact with the high and low idle stops on the injection pump.

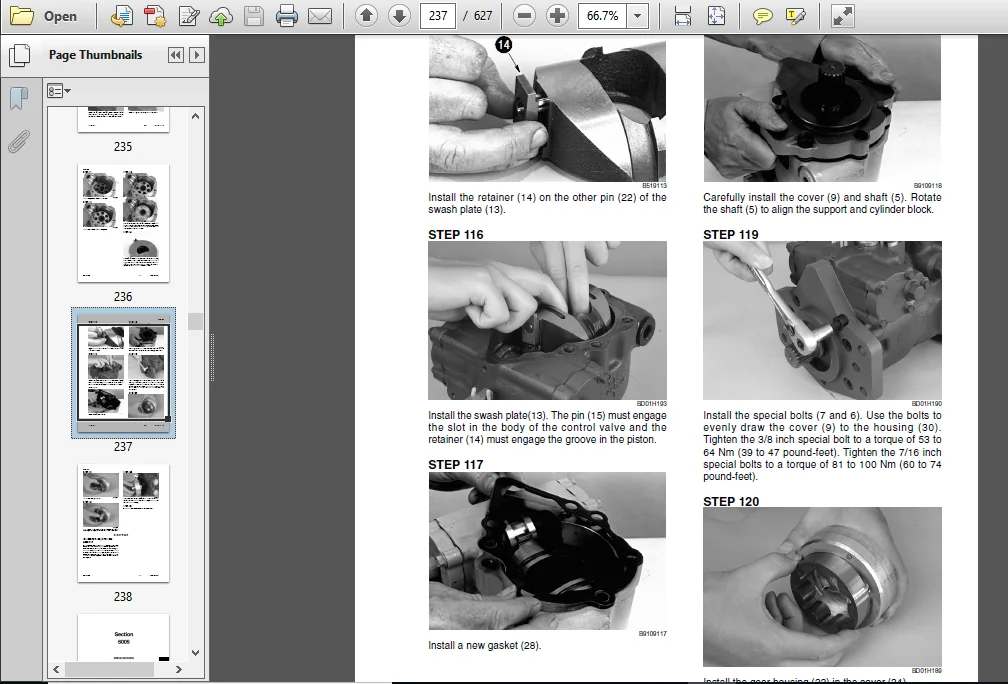

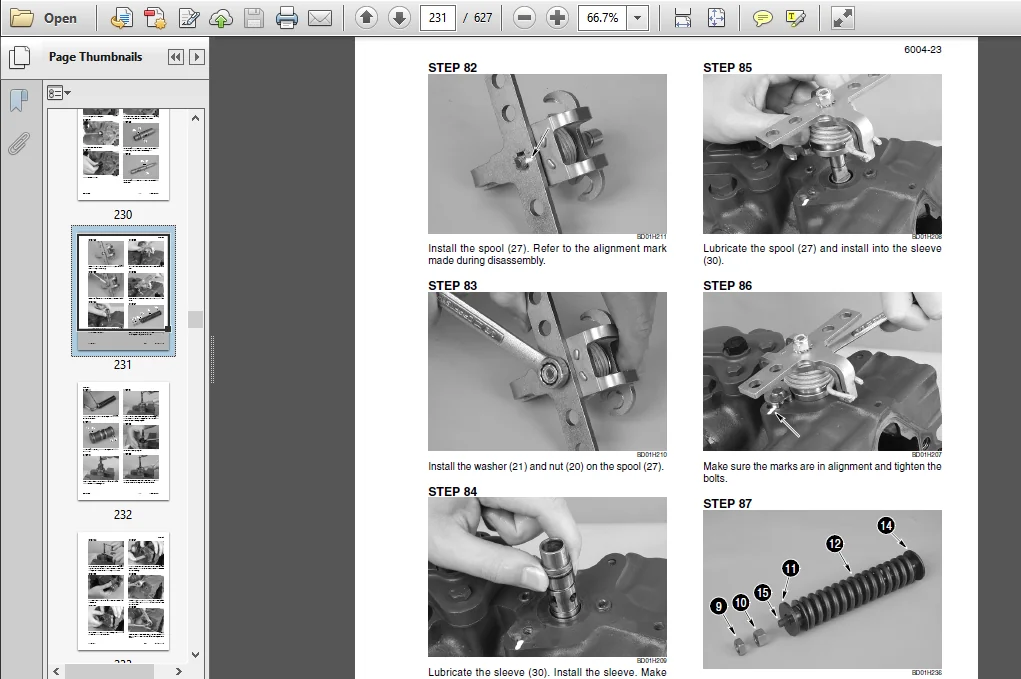

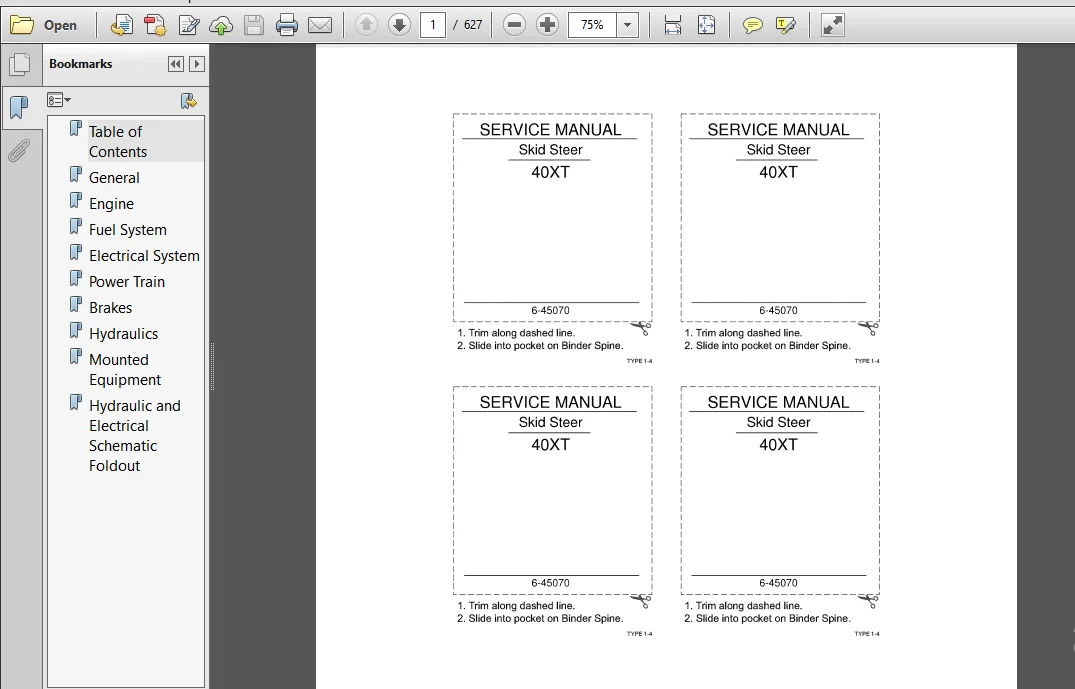

SCREENSHOT OF THE MANUAL:

TABLE OF CONTENTS:

General
Section index – General
Fluids and Lubricants
Standard Torque Specifications
Metric Conversion Chart
Loctite Product Chan
Engines
Section Index – Engines
Engine and Radiator Removal and installation
For Engine Repair ~ See Engine Service Manual
Fuel Systems
Section index ~ Fuel Systems
For Fuel System Repair ~ See the Engine Service Manual
Electrical
Section Index – Electrical
Electrical System – “How It Works“
Electrical Specifications and Troubleshooting
Battery
Starter and Starter Solenoid
Alternator
Power Tiain
Section index ~ Power Train
Hydrostatic System – “How It Works‘
Hydrostatic System Troubleshooting
Removal and Installation of Hydrostatic Components
Drive Coupling
Piston Pump
Drive Motors
Sprocket. Chains. and Axle Assemblies
Wheels and Tires
Brakes
Section Index – Brakes ‘
Brake System . “How It Works’
Brake System Troubleshooting
Removal and Installation of Park Brake Components
Brake Solenoid Valve
Brakes – Spring Applied – Hydraulic Release
(European and Optional North American Machines)
Brakes – Pin Lock . Cable Release
Brake Pump
Hydraulics
Section Index – Hydraulics
Hydraulic System
Hydraulic System Troubleshooting
Cleaning the Hydraulic System and Hydrostatic System
Removal and installation at Hydraulic Components
Gear (Equipment) Pump
Loader Control Valve
Cylinders
Fiat Faced Couplers
High Flow Valve
0-125 Backhoe Control Valve – NA Only
Accumulator for Ride Control
Mounted Equipment
Section Index – Mounted Equipment
Pedals and Lovers
Leader
Attachment Coupler
HOPS Canopy; Seat, Seat Belts. and Operators Compartment
Heater
Backhoe (0125 Backhoe)
Schemaflc Set
Hydraulic and Electrical Schemch Foldout

FILE DETAILS:

Case IH Tractor 40XT Skid Steer COMPLETE Service Manual_6-45070R0
Size : 138 MB
Format : PDF
Language : English
Number of Pages : 627 pages
Brand: Case IH
Type of machine: Tractor
Type of document: Service Manual
Model: 40XT Skid Steer COMPLETE
