Case IH Tractor 430,530, 541,470,570 COMPLETE Service Manual – PDF Download

Description

Case IH Tractor 430,530, 541,470,570 COMPLETE Service Manual

SAMPLE PAGE FROM THE MANUAL:

1. Clean the engine thoroughly. preferably by steam cleaning.
2. Before cranking the engine for compression checking, make sure all operating controls are in neutral, brakes are set and the wheels are securely blocked.
3.0nly the cranking method is advised to be used when checking compression pressure.
4.With the engine at operating temperature, shut the engine off. Close the fuel needle valve at the fuel tank. This will prevent excessive fuel from entering the cylinder and washing of the cylinder walls. Disconnect all high tension spark plug wires. Remove all spark plugs to provide minimum load on the starting motor and battery.
5.Check the compression pressure, using a reliable gauge and suitable adapter to fit in a 18 mm thread plug hole. Refer to chart on Page 5.
6.Two common types of compression gauge equipment used are the remote control and the ignition switch operation type.

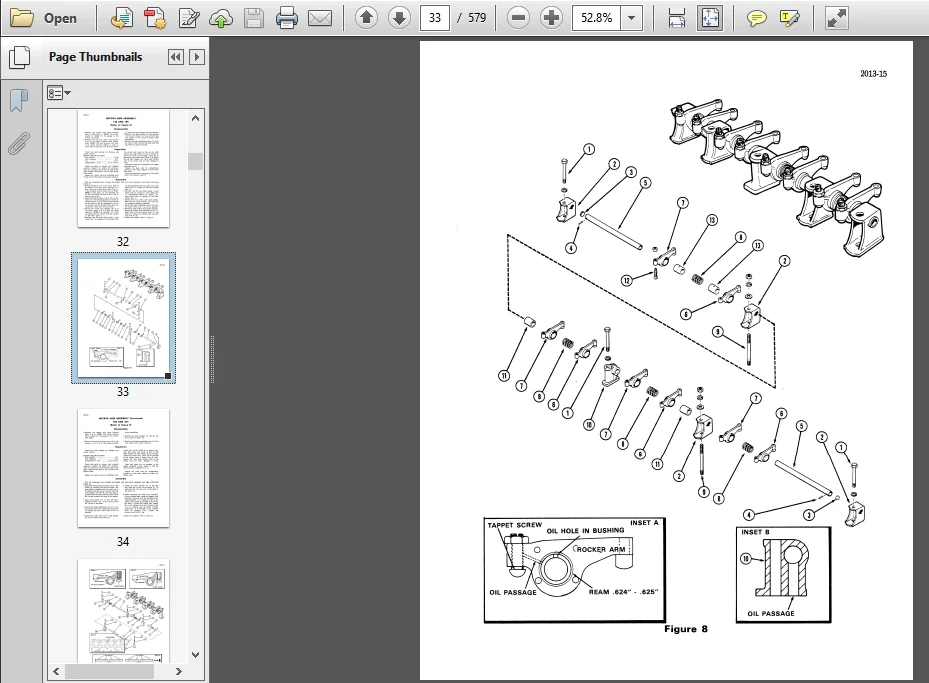

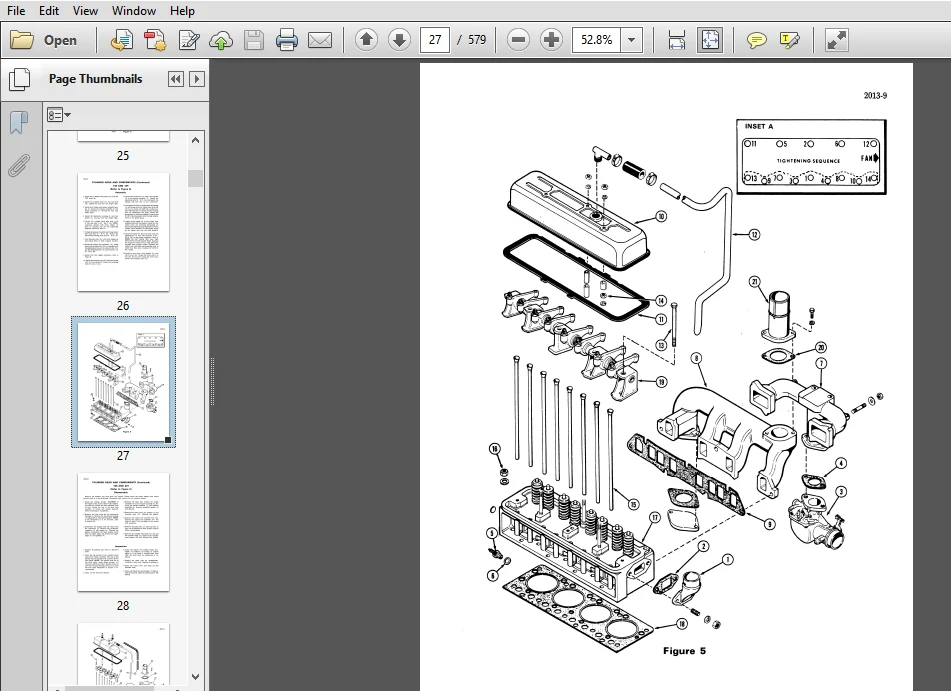

SCREENSHOT OF THE MANUAL:

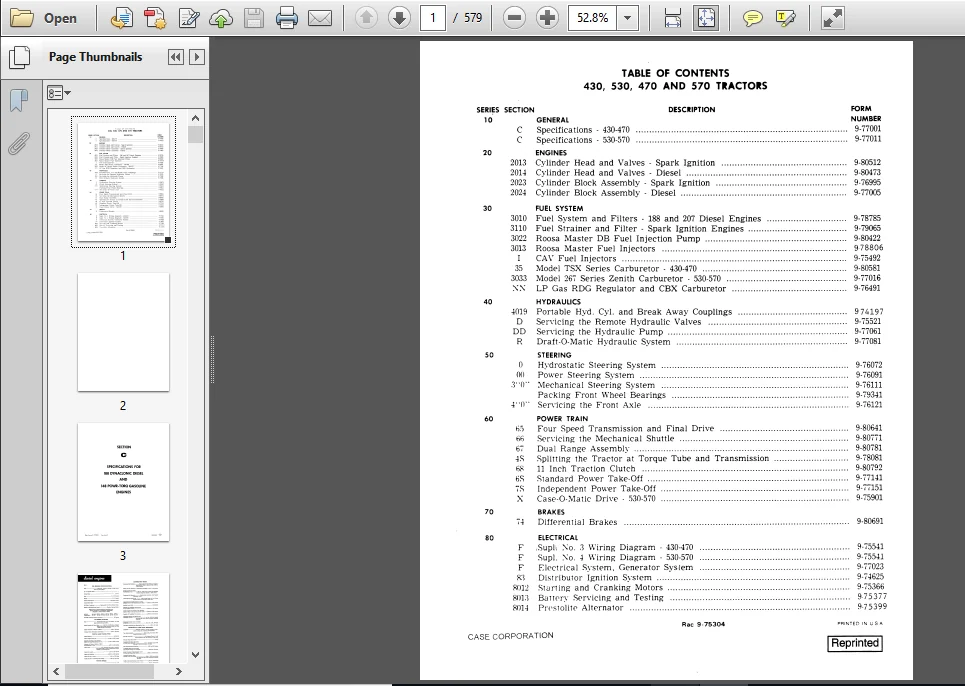

TABLE OF CONTENTS:

• Case IH Tractor 430,530, 541,470,570 COMPLETE Service Manual

GENERAL
Specifications – 430-470
Specifications ~ 530-570
ENGINES
Cylinder Head and Valves – Spark Ignition
Cylinder Head and Valves – Diesel
Cylinder Block Assembly – Spark Ignition
Cylinder Block Assembly – Diesel
FUEL SYSTEM
Fuel System and Filters – 188 and 207 Diesel Engines
Fuel Strainer and Filter – Spark Ignition Engines
Roosa Master DB Fuel Injection Pump
Roosa Master Fuel Injectors
CAL” Fuel Injectors
Model TSX Series Carburetor – 430—470
Model 267 Series Zenith Carburetor – 530-570
LP Gas RDG Regulator and CBX Carburetor
HYDRAULICS
Portable Hyd. Cyl. and Break Away Couplings
Servicing the Remote Hydraulic Valves
Servicing the Hydraulic Pump
Draft-O-Matic Hydraulic System
STEERING
Hydrostatic Steering System
Power Steering System
Mechanical Steering System
Packing Front Wheel Bearings
Servicing the Front Axle
POWER TRAIN
Four Speed Transmission and Final Drive
Sen-icing the Mechanical Shuttle
Dual Range Assembly
Splitting the Tractor at Torque Tube and Transmission
11 inch Traction Clutch
Standard Power Take-Off
independent Power Take-0ft
Case-O-Matic Drive – 530-570
BRAKES
Differential Brakes
ELECTRICAL
3 Wiring Diagram – 430-470
4 Wiring Diagram – 530-570
Electrical System. Generator System
Distributor Ignition System
Starting and Cranking Motors
Battery Servicing and Testing
Preslollte Alternator

CASE IH TRACTOR 430,530, 541,470,570 COMPLETE SERVICE MANUAL – PDF DOWNLOAD:

FILE DETAILS:

Case IH Tractor 430,530, 541,470,570 COMPLETE Service Manual_9-75302R0
Size : 130 MB
Format : PDF
Language : English
Number of Pages : 579 pages
Brand: Case IH
Type of machine: Tractor
Type of document: Service Manual
Model: 430,530, 541,470,570
Part No: 9-75302R0
