Case IH Tractor 850, 880, 950, 990 David Brown Implematic Service Manual

DESCRIPTION:

The engine fitted to 990 Agricultural Tractors is designated A04/47 and is a fourcylinder unit of 31 in. bore and 41 in. stroke, fitted with wet cylinder sleeves. As the engine must have a flywheel suitable for the clutch (Livedrive or Non-Livedrive) the suffix A or B is included in the designation to indicate the type of flywheel fitted and therefore the tractor model on which the engine is used. The engine fitted to 990 Industrial Tractors is designated 104/47 and is basically identical to the A04/47 engine, the only difference being that the 104/47 engine is fitted with a flywheel suitable for the twin-plate clutch and has a splined coupling flange attached to the longer flywheel bolts.

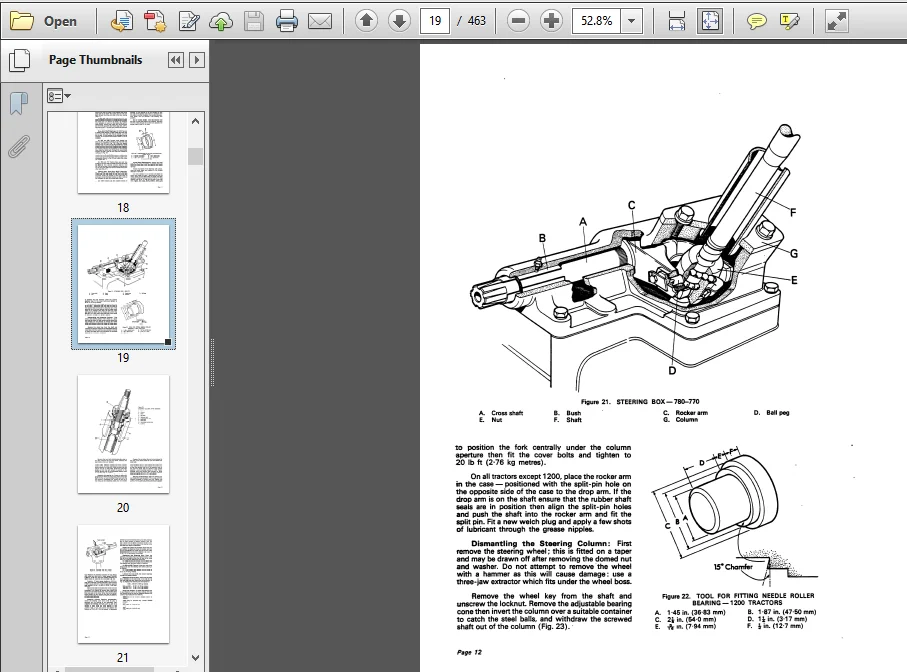

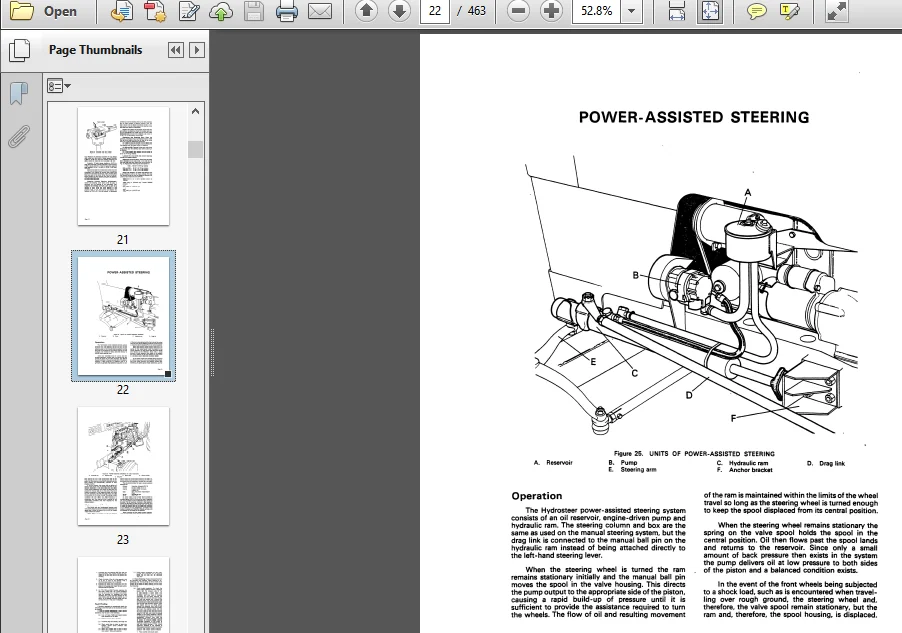

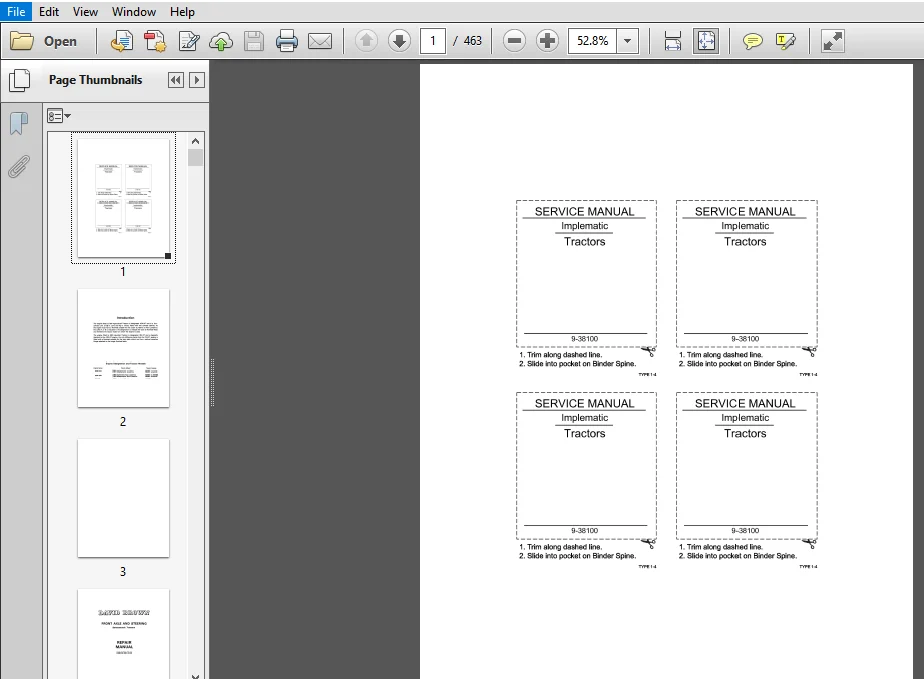

SCREENSHOT OF THE MANUAL:

TABLE OF CONTENTS:

• Case IH Tractor 850, 880, 950, 990 David Brown Implematic Service Manual

SECTION
Front Axle and Steering
Front Wheel Alignment
Front Hubs
Stub Axles
Front Axle
Steering Box
Power-Assisted Steering
Operation
Maintenance and Service
Fault Finding
Repair Operations
Hydrostatic Power Steering
Operation
Operation of Servo Valve·
Maintenance and Service
Fault Finding
Repair Operations
Dimensional Data ..
Summary of Design Changes

CASE IH TRACTOR 850, 880, 950, 990 DAVID BROWN IMPLEMATIC SERVICE MANUAL – PDF DOWNLOAD:

FILE DETAILS:

Case Tractor Implematic 990 Service Manual_9-38100
Size : 726 MB
Format : PDF
Language : English
Brand: Case
Number of page: 463 page
Type of machine: Case Tractor
Type of document: Service Manual
Model: Case Tractor Implematic 990
Part No: 9-38100
