Case IH Tractor Farmall 90C 100C 110C 120C Efficient Power Tier 4B final Service Manual- PDF DOWNLOAD

Description

Case IH Tractor Farmall 90C 100C 110C 120C Efficient Power Tier 4B final Service Manual

CASE IH TRACTOR FARMALL 90C 100C 110C 120C EFFICIENT POWER TIER 4B FINAL SERVICE MANUAL- PDF DOWNLOAD:

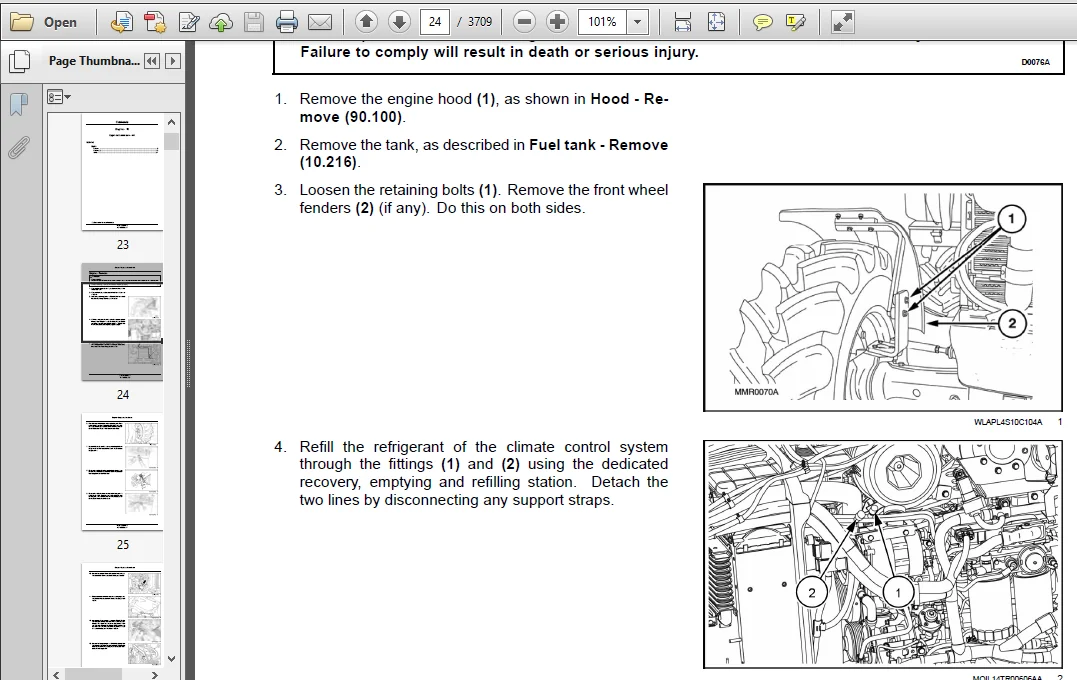

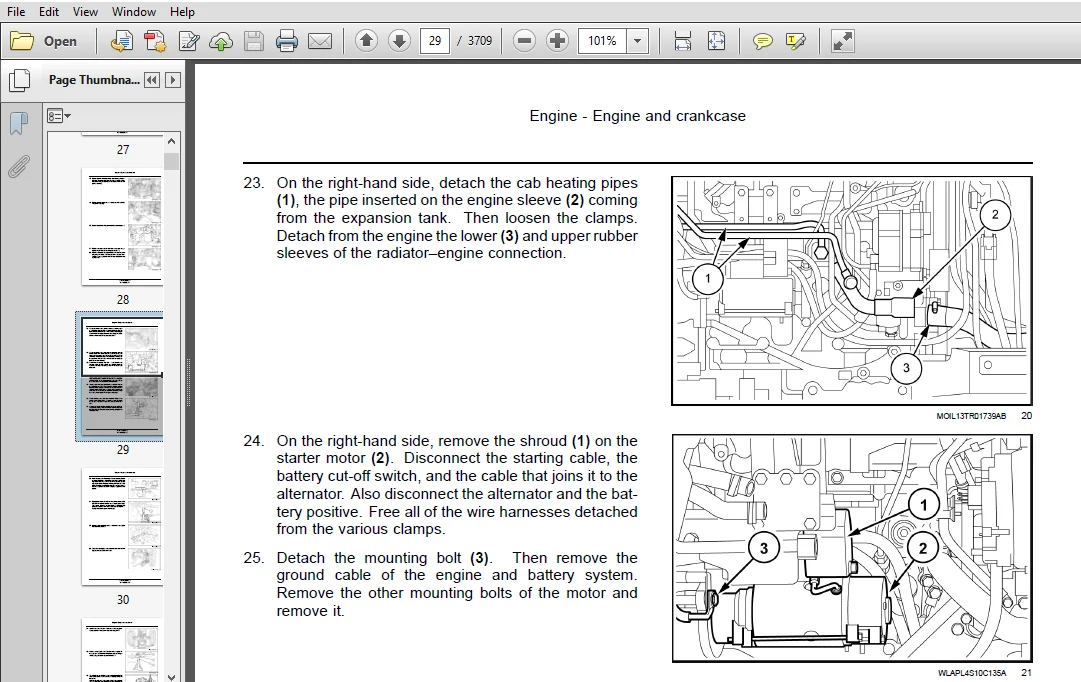

IMAGES PREVIEW OF THE MANUAL:

SAMPLE PAGES FROM THE MANUAL:

• Starting the system at low temperatures can damage the compressor. Only operate the air conditioner when the engine is hot and the temperature inside the cab is at least 20 °C (68.00°F).
• When disconnecting the hoses, close the ends with plastic caps to prevent foreign matter and humidity from getting inside the hoses.
• Handle the thermostatic sensor carefully to avoid damage that may prevent efficient system operation.
• Always use two spanners to unscrew the hose fittings to avoid twisting the fitting.
• Do not use any type of engine oil to lubricate the compressor and the system.
• Never leave the compressor oil container open, always make sure that it is tightly closed. If left exposed the oil will absorb humidity from the air and may, subsequently, damage the system.
• Do not transfer compressor oil from the original container to another container.
• Do not introduce any additives to the compressor oil. Any additional substances could contain elements which are incompatible with the chemical base of the refrigerant and thus alter its characteristics.
• Check that the thermostatic sensor is correctly inserted in the fins on the evaporator to ensure efficient system operation.

TABLE OF CONTENTS:

Case IH Tractor Farmall 90C 100C 110C 120C Efficient Power Tier 4B final Service Manual

INTRODUCTION
Engine 10
[10001] Engine and crankcase 101
[10216] Fuel tanks102
[10202] Air cleaners and lines103
[10254] Intake and exhaust manifolds and muffler104
[10500] Selective Catalytic Reduction (SCR) exhaust treatment 105
[10400] Engine cooling system 106
[10414] Fan and drive 107
[10310] Aftercooler 108
Clutch 18
[18100] Clutch mechanical release control 181
[18104] Clutch hydraulic release control 182
[18110] Clutch and components 183
Transmission 21
[21130] Mechanical transmission external controls 211
[21112] Power shuttle transmission212
[21110] Master clutch housing213
[21134] Power shuttle transmission external controls214
[21154] Power shuttle transmission internal components 215
[21160] Creeper 216
[21162] Reverser 217
[21168] Hi-Lo unit 218
[21109] Transmission cooler and lines219
[21118] Transmission/Rear drive 2110
[21148] Transmission/Rear drive internal components2111
[21AAA] Transmission generic sub-group 2112
47878246 08/06/2015
Four-Wheel Drive (4WD) system 23
[23101] Mechanical control231
[23202] Electro-hydraulic control232
[23314] Drive shaft 233
Front axle system 25
[25100] Powered front axle251
[25102] Front bevel gear set and differential252
[25108] Final drive hub, steering knuckles, and shafts 253
[25400] Non-powered front axle 254
Rear axle system 27
[27106] Rear bevel gear set and differential 271
[27120] Planetary and final drives 272
[27100] Powered rear axle273
Power Take-Off (PTO) 31
[31101] Rear mechanical control311
[31104] Rear electro-hydraulic control 312
[31110] One-speed rear Power Take-Off (PTO)313
[31114] Two-speed rear Power Take-Off (PTO)314
Brakes and controls 33
[33202] Hydraulic service brakes331
[33110] Parking brake or parking lock 332
[33220] Trailer brake hydraulic control333
Hydraulic systems 35
[35104] Fixed displacement pump 351
[35204] Remote control valves 352
[35114] Three-point hitch control valve353
[35116] Three-point hitch cylinder 354
47878246 08/06/2015
[35160] Front hitch controls and lines 355
[35701] Front loader arm hydraulic system 356
[35723] Front loader bucket hydraulic system 357
Hitches, drawbars, and implement couplings 37
[37100] Drawbars and towing hitches 371
[37110] Rear three-point hitch372
[37120] Rear three-point hitch linkage 373
[37162] Front hitch374
[37166] Front hitch linkage375
Steering 41
[41101] Steering control411
[41106] Tie rods 412
[41200] Hydraulic control components413
[41206] Pump 414
[41216] Cylinders 415
Wheels 44
[44511] Front wheels441
[44520] Rear wheels 442
Cab climate control 50
[50100] Heating501
[50104] Ventilation502
[50200] Air conditioning503
Electrical systems 55
[55100] Harnesses and connectors551
[55301] Alternator552
[55302] Battery553
[55014] Engine intake and exhaust system 554
[55988] Selective Catalytic Reduction (SCR) electrical system 555
47878246 08/06/2015
[55640] Electronic modules556
[55518] Wiper and washer system 557
[55404] External lighting558
[55408] Warning indicators, alarms, and instruments559
[55DTC] FAULT CODES5510
Front loader and bucket 82
[82100] Arm821
[82300] Bucket 822
[82AAA] Front loader and bucket generic sub-group 823
Platform, cab, bodywork, and decals 90
[90150] Cab901
[90151] Cab interior 902
[90160] Cab interior trim and panels 903
[90154] Cab doors and hatches 904
[90156] Cab glazing 905
[90110] Operator platform less cab 906
[90100] Engine hood and panels907
[90102] Engine shields, hood latches, and trims 908
[90116] Fenders and guards 909

FILE DETAILS:

LANGUAGE:ENGLISH
PAGES:3709
DOWNLOADABLE:YES
FILE TYPE:PDF

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
