Case IH Tractor Four Cylinder Disel Engine for 1200 and 990 Selectamatic Repair Manual – DOWNLOAD

Description

Case IH Tractor Four Cylinder Disel Engine for 1200 and 990 Selectamatic Repair Manual

CASE IH TRACTOR FOUR CYLINDER DISEL ENGINE FOR 1200 AND 990 SELECTAMATIC REPAIR MANUAL – DOWNLOAD:

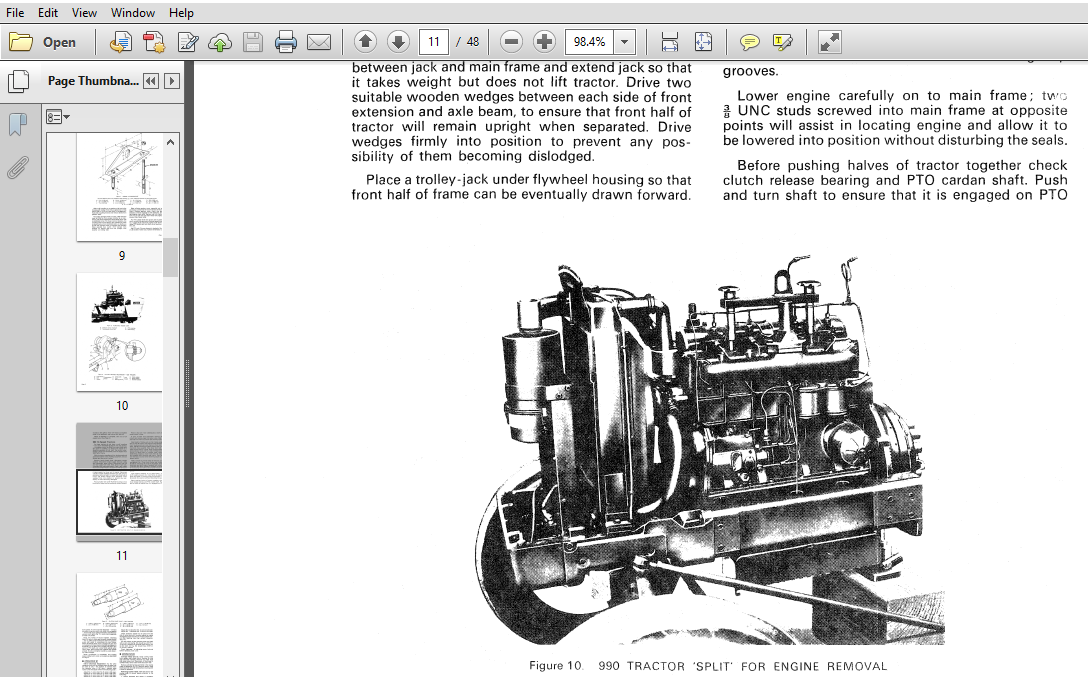

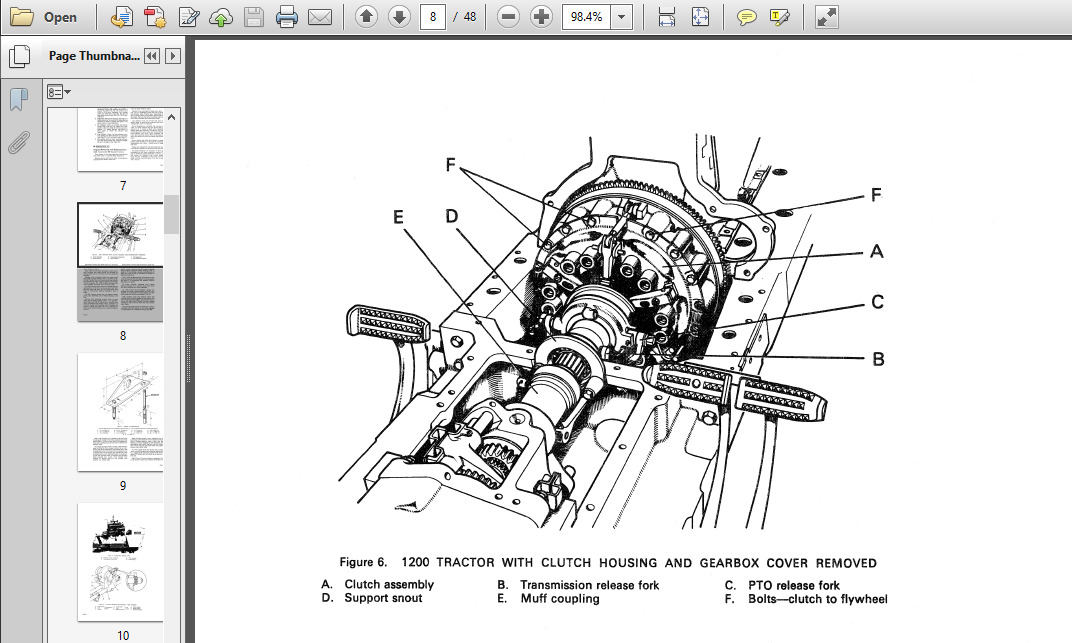

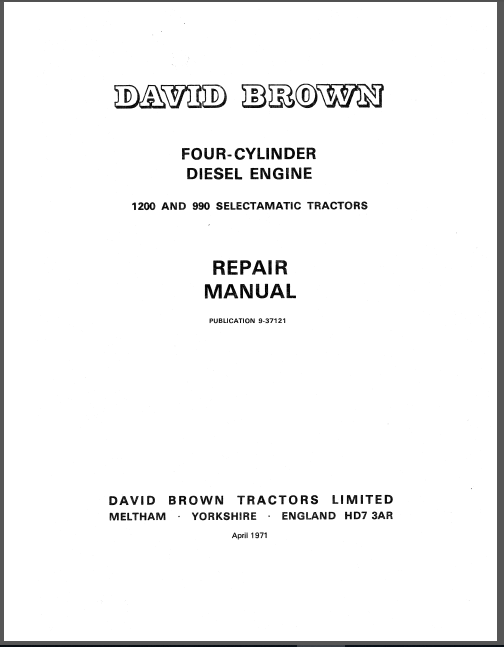

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

All engines are stamped on the right-hand side of the cylinder block with a type designation and serial number, e.g. 455001/4001 or 449002/1001, etc. The engine designation number is built up according to the following formula, commencing at the left:

• First digit — number of cylinders.
• Second and third digits—together these give the nominal capacity, in cubic inches, of one cylinder. (The approximate capacity, in cubic inches, of an engine can be obtained by multiplying the first digit by the second and third digits, e.g.: 4X55 = 220 cu. in. and 4X49 =196 cu.in.)
• Fourth digit —type of fuel: 0 for diesel (1 would be gasoline). Fifth digit—design series: 0 is the first series and 1 is the second, etc. This number is used to identify engines which are in different forms to suit different tractor frames.
• ‘ Sixth digit—type of clutch: 1 Livedrive, 2 single plate, 5 twin-plate.

TABLE OF CONTENTS:

Case IH Tractor Four Cylinder Disel Engine for 1200 and 990 Selectamatic Repair Manual_9-37121

Engine Tune
Engine Removal and Replacement
Adjusting Valve Clearance
Removing and Replacing Cylinder Head
Decarbonising Cylinder Head
Pistons and Connecting Rods
Camshaft
Injectors
Fuel Feed Pump
Fuel Filter
Venting Fuel System
Fuel Injection Pump
Fuel Tank
Lubricating Oil Filter
Lubricating Oil Pump
Air Cleaner
Timing Cover
Timing Gears
Water Pump
DIMENSIONAL DATA
SUMMARY OF DESIGN CHANGES

FILE DETAILS:

Case IH Tractor Four Cylinder Disel Engine for 1200 and 990 Selectamatic Repair Manual_9-37121
Size : 16.1 MB
Format : PDF
Language : English
Number of Pages : 48 pages
Brand: Case IH
Type of machine: Tractor
Type of document: Repair Manual
Model: Four Cylinder Disel Engine for 1200 and 990 Selectamatic
Part No: 9-37121
