Case IH Tractor JX1070U JX1080U JX1090U JX1100U Operator’s Manual

CASE IH TRACTOR JX1070U JX1080U JX1090U JX1100U OPERATOR’S MANUAL – PDF DOWNLOAD:

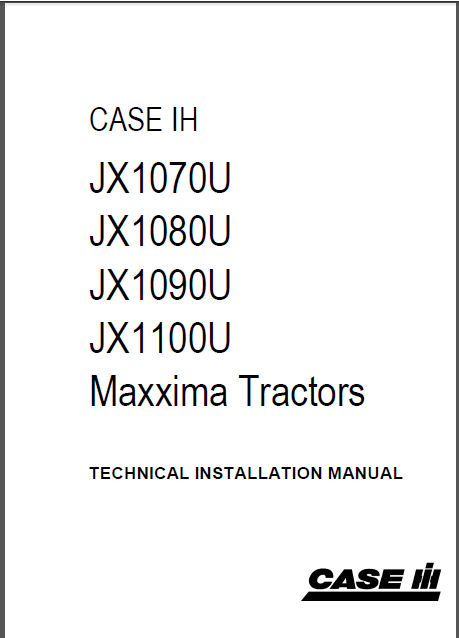

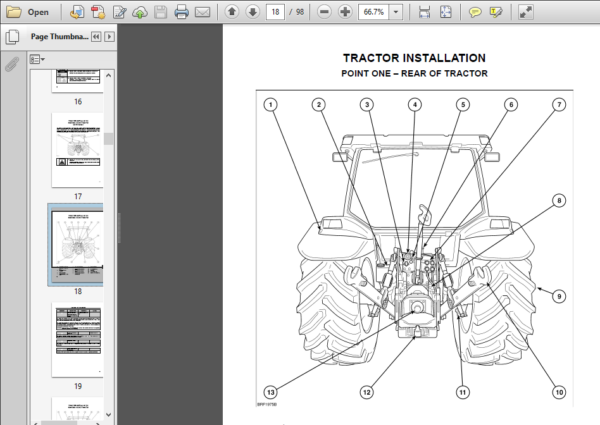

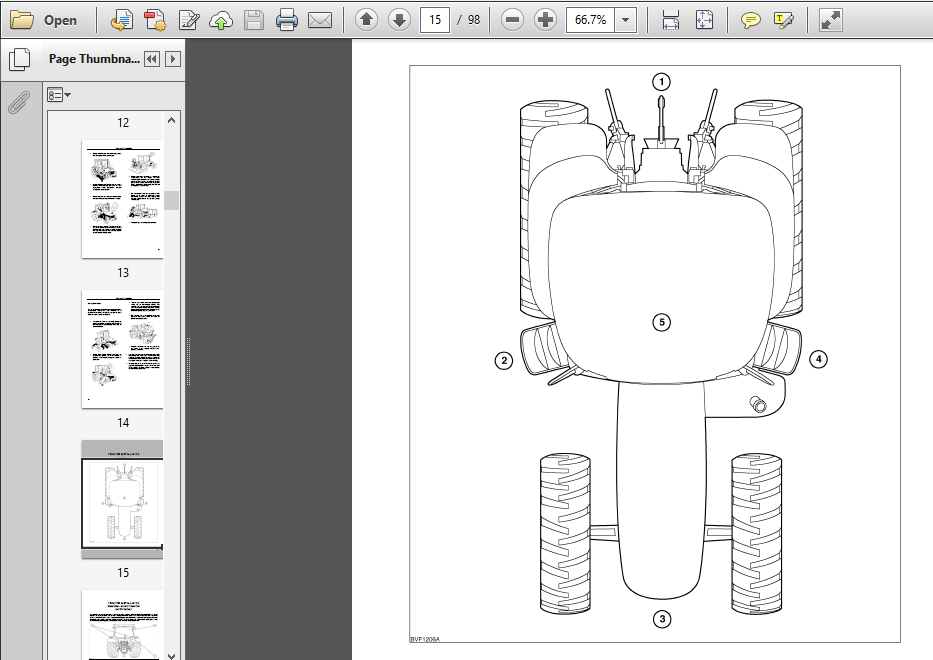

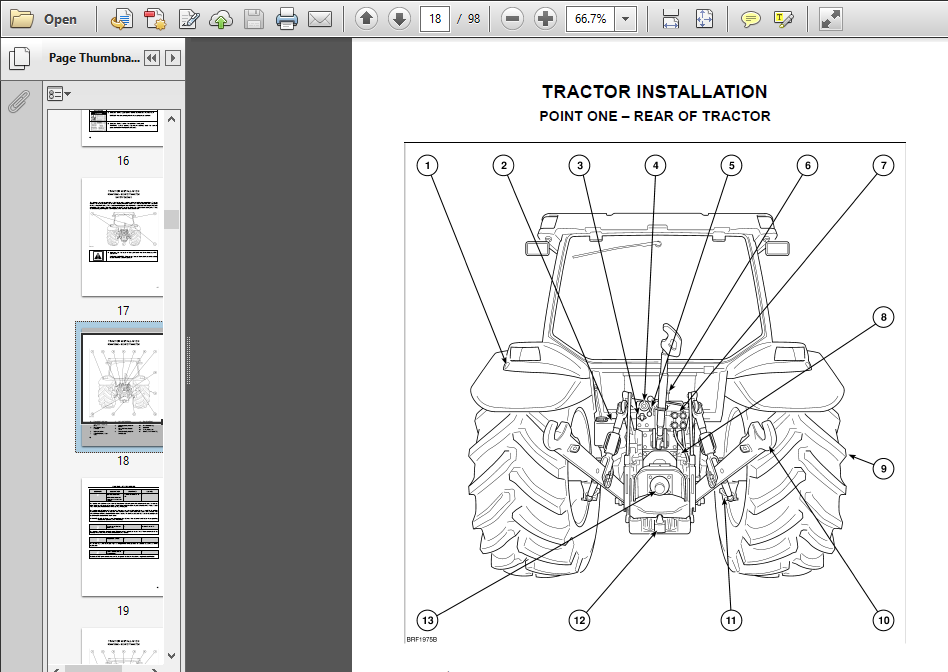

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Prior to delivering the new product to the customer, it is very important that the following is carried out. Completing the checklist will ensure the installer is fully prepared to deliver and install the unit in a professional manner, thereby enabling the customer to operate his recent purchase with optimum results. Installation Checklist Ensure that:
1. The Customer Profile has been reviewed, and discussed with the Salesman.
2. “Pre Delivery Inspection” has been reviewed, and corrective action has been taken on the faulty items
detected; the “Pre Delivery Inspection Certificate” section of the After Sales Logbook (If available) has been
completed and signed.
3. Technical Installation Manual and Operator’s Manual have been read and fully understood to be able to
provide a professional presentation.
4. The “Product” and “Your Case IH Dealer” sections of the After Sales Logbook (If available) are completed.
5. Unit is in excellent condition.
6. The Product is ready for transportation.
7. Appointment confirmed, and the location for delivery and installation agreed.
8. There is sufficient fuel for operating the unit during installation.
9. The Operator’s Manual and After Sales Logbook (If available) are within the unit.

TABLE OF CONTENTS:

Case IH Tractor JX1070U JX1080U JX1090U JX1100U Operator’s Manual_6-66410

INTRODUCTION 4
PRE INSTALLATION 5
SAFETY PRECAUTIONS 6
5 POINT PLAN 15
POINT ONE – REAR OF TRACTOR 16
POINT TWO – RIGHT SIDE OF TRACTOR 29
POINT THREE – FRONT OF TRACTOR 37
POINT FOUR – LEFT SIDE OF TRACTOR 49
POINT FIVE – CAB 55
– ILLUSTRATION 1 – CAB CONTROLS 56
– ILLUSTRATION 2 – FRONT CONSOLE CONTROLS 66
– ILLUSTRATION 3 – ANALOGUE/DIGITAL INSTRUMENTATION 74
– ILLUSTRATION 4 – ELECTRONIC LIFT CONTROLS 82
– ILLUSTRATION 5 – MECHANICAL LOWER LINK SENSING 88
– ILLUSTRATION 6 – RIGHT HAND ‘B’ PILLAR CONTROLS 90
– ILLUSTRATION 7 – ROOF MOUNTED CONTROLS 94

FILE DETAILS:

Case IH Tractor JX1070U JX1080U JX1090U JX1100U Operator’s Manual_6-66410
Size : 32.8 MB
Format : PDF
Language : English
Number of Pages : 98 pages
Brand: Case IH
Type of machine: Tractor
Type of document: Operator’s Manual
Model: JX1070U JX1080U JX1090U JX1100U
Part No: 6-66410
