Case Industrial 430 Wheel Forklift Operators Manual 9-1041 – PDF DOWNLOAD

Description

Case Industrial 430 Wheel Forklift Operators Manual 9-1041 – PDF DOWNLOAD

DESCRIPTION:

Case Industrial 430 Wheel Forklift Operators Manual 9-1041 – PDF DOWNLOAD

FORK LIFT INTRODUCTION :

The CASE Wheel Mounted Fork Lift is ruggedly built for continuous day-in and day-out work, with minimum maintenance.
Some of the most outstanding features of this Fork Lift are:
1. “POWER-TORO” ENGINE. A high-compression, heavy-duty
power plant with an extremely high torque. What’s more it
operates on regular grade gasoline.
2. DUAL-RANGE SHUTTLE. The Dual-Range, combined with
the Shuttle and 4-speed transmission, provides the operator
with 8 forward and 8 reverse speeds. It also provides
faster working cycles, since reverse speeds are 25% fast-·
er than forward, in any gear.
3, DIFFERENTIAL BRAKES. High capacity, 6 inch double disc,
velvet touch brakes. Simple to adjust, a breeze to service.
“Lock-A-Ma tic” parking latch releases automatically when
brakes are reapplied.
4. POWER STEERING. Hydraulic steering lets you maneuver
easily in tight places and on rough ground – even turn
wheels with one finger while tractor is standing still. Hydraulic
pressure applied directly to the steering arm absorbs
shock, yet retains steering “feel”.
5. INSTRUMENT PANEL. Automotive type gauges provide instant
engine operational data. The members of this “panel”
have all the answers.
6. SAFETY STARTING. Combination of ignition switch and transmission
safety switch.
7. PAY LOADS. Lifts big loads smoothly up to full height in
seconds, tilts mast, and lowers material for load stability
and extra operator safety.
8. ANTI-FRICTION BEARINGS. The lifting mechanism is equipped
with anti-friction bearings in rollers and sprockets.
9. RUGGED CONSTRUCTION. Rectangular welded subframe
with tubular cross-bracing protects the tractor from stress,
carries weight entirely over tractor axles.
10. SMOOTH RIDES. Big, low pressure 13. 00 – 24, 6 ply,
non-directional (directional – optional), all weather front
drive tires give more traction surface and less weight per
square inch. Rubber tires absorb shock of ruts and bumps,
keeps Fork Lift working in almost any footing.

TABLE OF CONTENTS:

Case Industrial 430 Wheel Forklift Operators Manual 9-1041 – PDF DOWNLOAD

SERIAL NUMBER WCATION
INTRODUCTION
GENERAL SPECIFICATIONS
Dimensions
Chain
Weights
Hydraulic System
LUBRICATION AND HYDRAULIC SYSTEM
Lubrication Points
Lubrication Specifications
Hydraulic System
Hydraulic Oil
Draining Reservoir
Checking Reservoir Oil Level
Cleaning Hydraulic Oil Filter
OPERATING INSTRUCTIONS
Rear Weight Box
Seat
Flow Control Valve
Control Levers
Brake Pedals
Dual-Range Shuttle Transmission
Fork Adjustments
Operating Fork Lift
Attachments
PREVENTIVE MAINTENANCE
Trouble Shooting Chart
INDEX

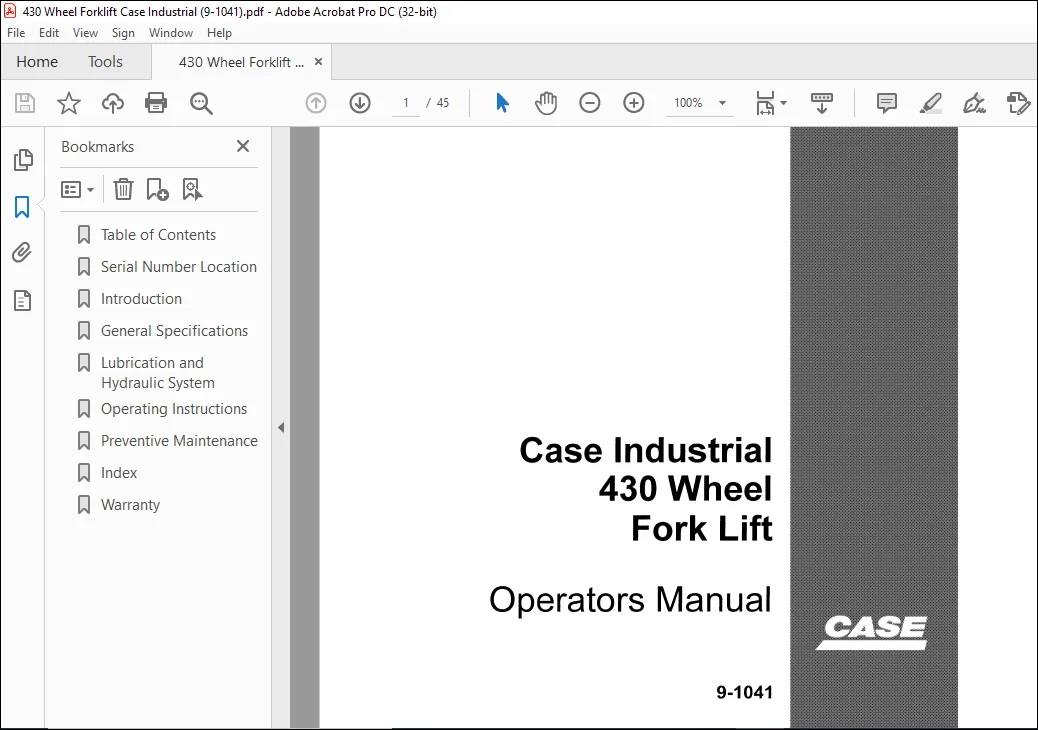

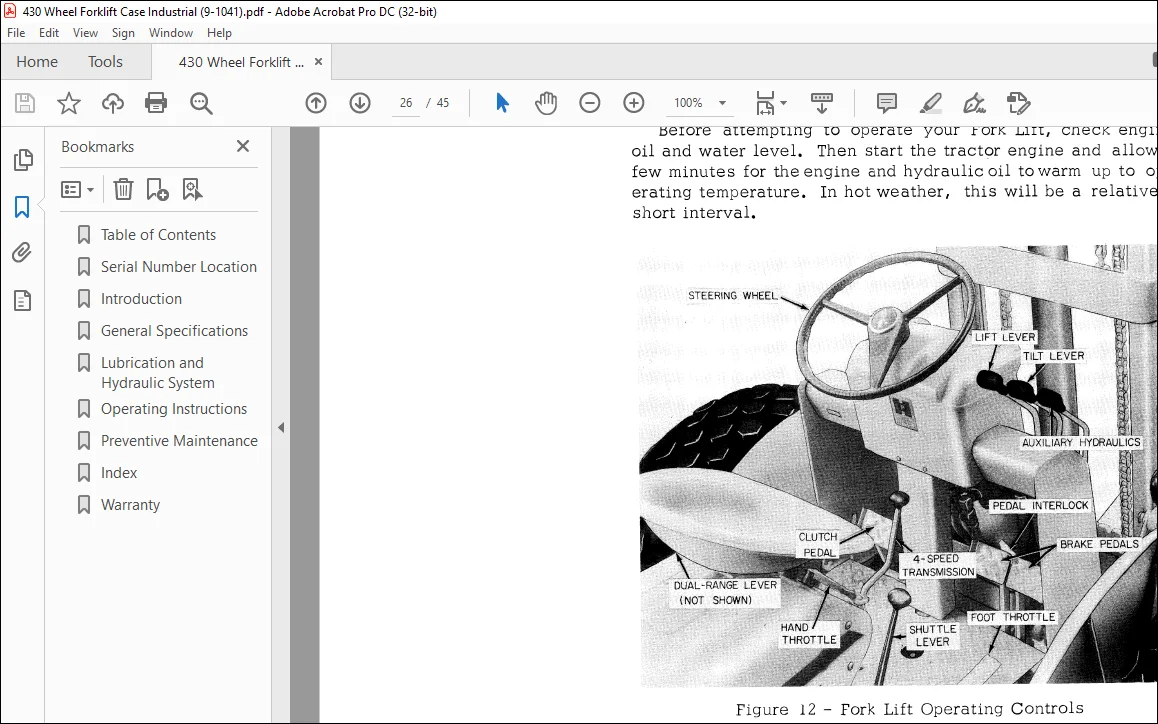

IMAGES PREVIEW OF THE MANUAL:
