Case ISM Tier 4 Engine Service Manual PDF (N844L/N4LDI Models)
Original price was: $120.00.$31.95Current price is: $31.95.
Official 2014 Case ISM Tier 4 diesel engine service manual PDF (567 pages, 2nd edition). Covers N844L, N844LT, N4LDI series models for complete overhaul, disassembly/assembly, torque specs, fuel/exhaust systems (SCR/EGR/DPF), cooling, lubrication, and electrical diagnostics. Essential for mechanics servicing Case construction equipment engines.
Description

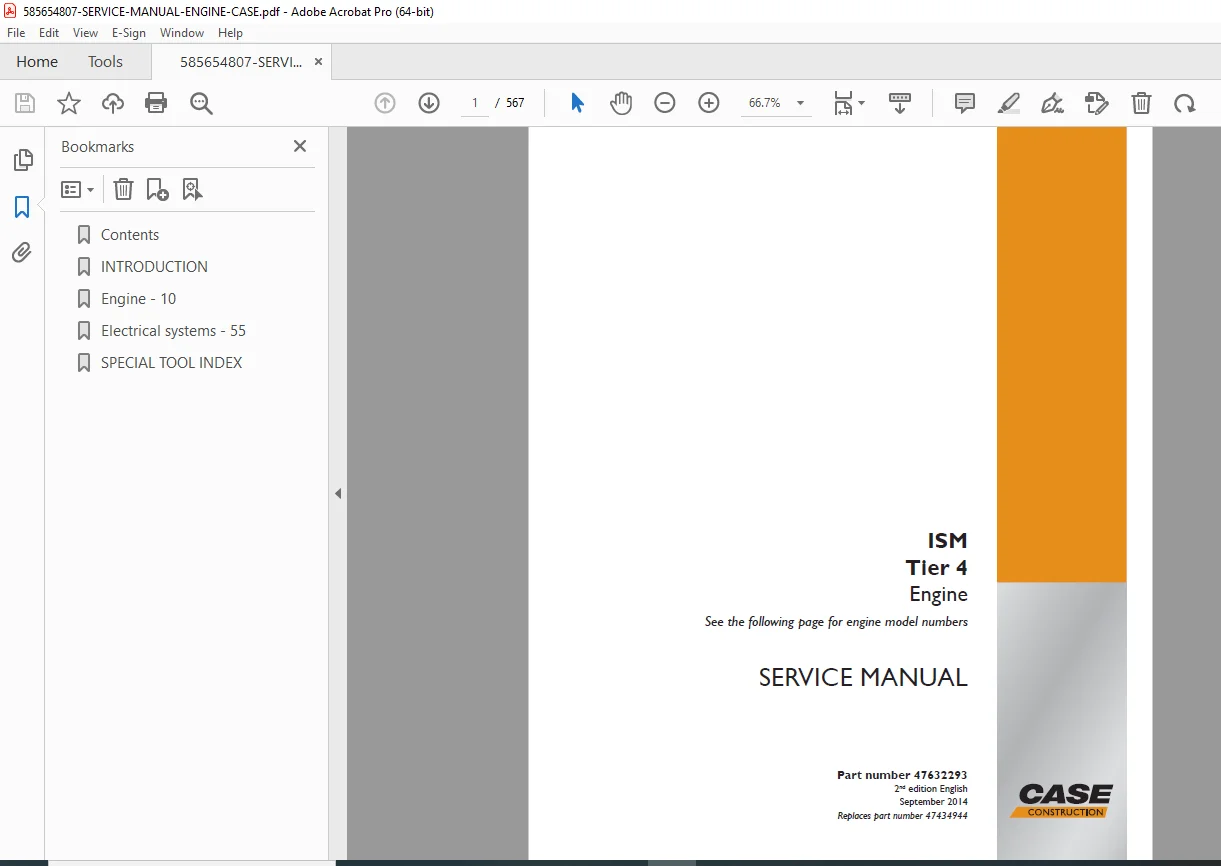

Case ISM Tier 4 Engine Service Manual (N844L/N4LDI Models) PDF DOWNLOAD
Description
This comprehensive Case ISM Tier 4 Engine Service Manual PDF (Part Number 47632293, 2nd Edition English, September 2014) is the factory-authorized guide from CNH Industrial America LLC for servicing ISM Tier 4 compliant diesel engines used in Case construction and agricultural equipment. These clean-burning, high-efficiency engines meet strict emissions standards with advanced exhaust aftertreatment.
Ideal for professional mechanics, service technicians, and equipment owners, this 567-page manual provides detailed procedures for engine removal/installation, complete disassembly and reassembly, inspections, adjustments, troubleshooting, torque specifications, and diagnostic testing—covering mechanical components, fuel injection, turbocharging, Selective Catalytic Reduction (SCR), Exhaust Gas Recirculation (EGR), Diesel Particulate Filter (DPF), cooling, lubrication, and engine-related electrical systems.
Key Sections:
Introduction
- Foreword (Ecology and the environment)
- Safety rules and personal safety
- Basic instructions (Servicing, shop practices, shimming)
- Protecting electrical/electronic systems
- Torque specifications (Minimum tightening torques for metric/inch hardware, with detailed tables for non-flanged and flanged bolts)
Engine – 10
- [10.001] Engine and crankcase (Technical data, removal/installation)
- Pan and covers
- Valve drive and gears (Rocker arms)
- Cylinder heads
- Connecting rods and pistons
- Crankshaft and flywheel
- Balancer and damper
- Fuel filters
- Throttle linkage and governor
- Fuel injection system

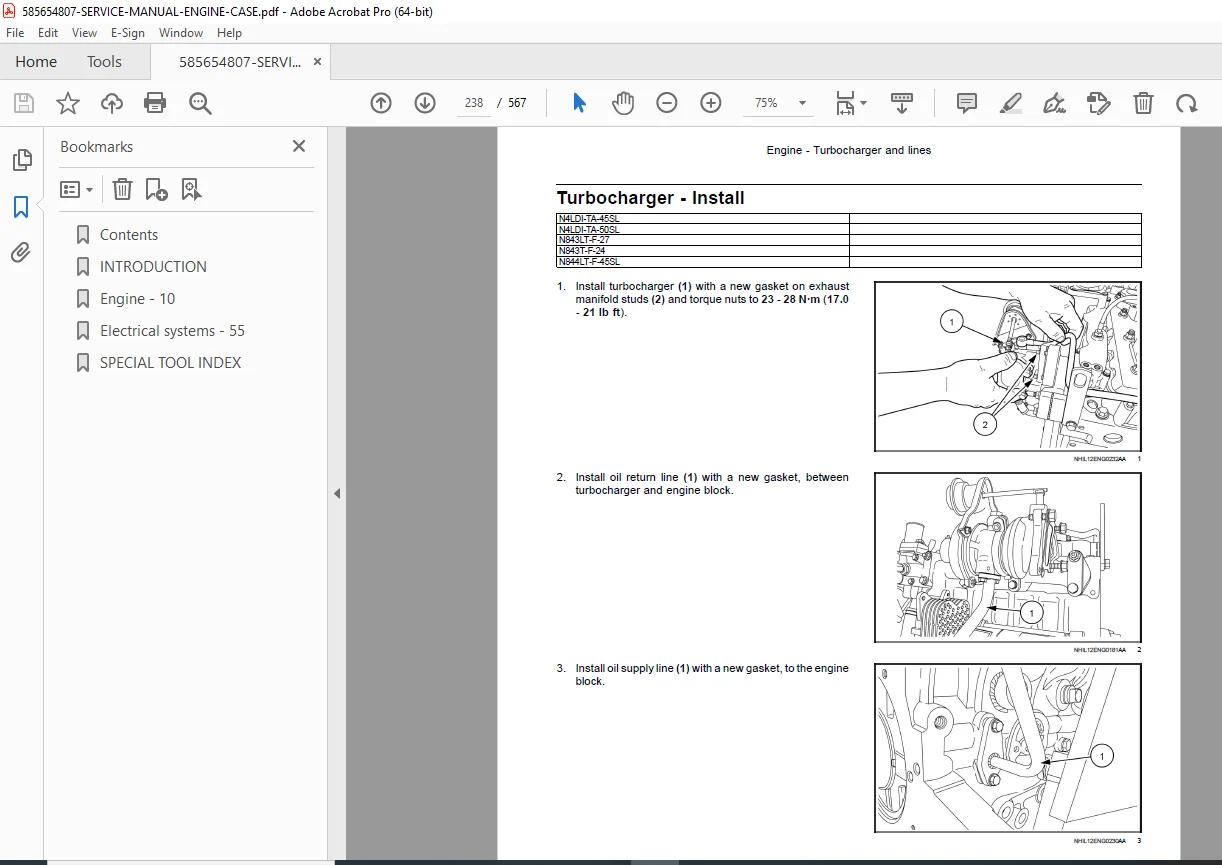

- Turbocharger and lines
- Intake/exhaust manifolds and muffler
- Selective Catalytic Reduction (SCR) exhaust treatment
- Exhaust Gas Recirculation (EGR) / Diesel Particulate Filter (DPF)
- Engine cooling system
- Engine lubrication system
- Oil cooler and lines
Electrical Systems – 55
- Engine control system
- Engine timing/speed sensors

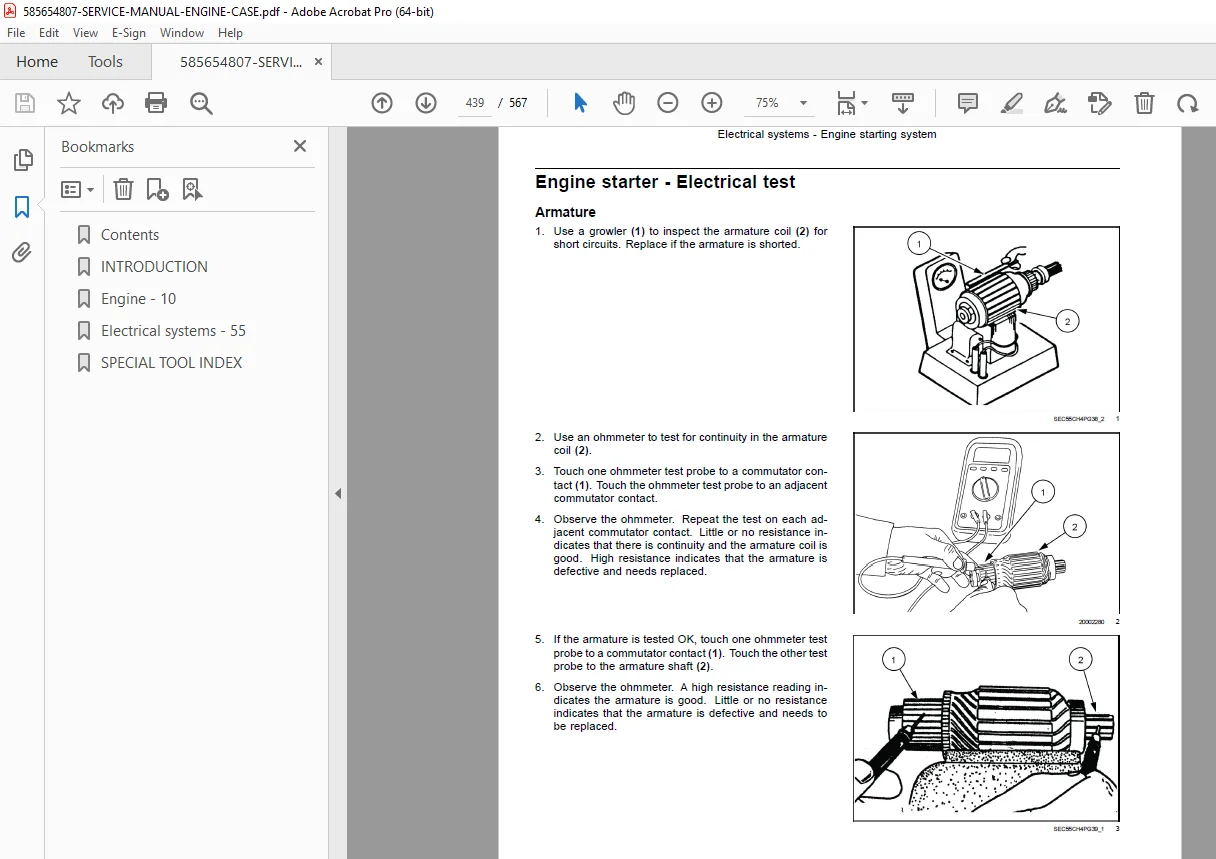

- Starting system
- Alternator
- Cold start aid
- Fuel injection electrical
- Intake/exhaust electrical (Throttle valve)
- EGR electrical
- Cooling system electrical (Coolant temperature)
- Oil system electrical (Pressure sensor)
- Electronic modules (ECU testing, parameter programming)
Includes exploded views, dimensional specifications, functional descriptions, dynamic overviews, removal/reassembly steps, and diagnostic tools support.
Torque Table Example (Metric Non-Flanged Hardware – Excerpt):
| Nominal Size | Class 8.8 (Nm) | Class 10.9 (Nm) | Class 12.9 (Nm) |
|---|---|---|---|
| M6 | 8-10 | 12-15 | 14-17 |
| M8 | 20-25 | 28-35 | 34-42 |
| M10 | 40-50 | 55-70 | 80-90 |
| M12 | 70-85 | 100-120 | 120-140 |
(Full tables include identification markings and inch equivalents.)
File Details:
- Manual Name: Service Manual ISM Tier 4 Engine
- Models Covered: N4LDI-TA-45SL, N4LDI-TA-50SL, N843LT-F-27, N843T-F-24, N844L-F-30, N844L-F-34, N844L-F-36SL, N844LT-F-45SL
- Year: 2014 (2nd Edition, September 2014)
- Manual PDF Quality: High-quality original with clear text, diagrams, exploded views, and tables
- Number of Pages: 567
Download this detailed Case ISM Tier 4 engine repair manual instantly—perform expert-level overhauls, emissions system maintenance, and diagnostics on your equipment engines today to minimize downtime and ensure compliance
