Case Mini Excavator CX45B CX50B Series 2 CX55B Service Manual 84602438A – PDF DOWNLOAD

Description

Case Mini Excavator CX45B CX50B Series 2 CX55B Service Manual

FILE DETAILS:

Case Mini Excavator CX45B CX50B Series 2 CX55B Service Manual

Size : 113 MB
Format : PDF
Language : English
Brand: Case
Type of machine: Mini Excavator
Type of document: Service Manual
Model: Case Mini Excavator CX45B CX50B Series 2 CX55B
Part No:84602438A

DESCRIPTION:

Case Mini Excavator CX45B CX50B Series 2 CX55B Service Manual

SAFETY RULES:

• The serviceman or mechanic may be unfamiliar with many of the systems on this machine. This makes a careful use of the systems very important when performing maintenance operations. Sound knowledge of the system and or components is important before the removal or disassembly of any component. Because of the size of some of the machine components, the serviceman or mechanic should check the weights noted in this manual. Use proper lifting procedures when removing any components. Weight of components table is shown in the section: TECHNICAL SPECIFICATIONS. The following is a list of basic precautions that must always be observed.
• Read and understand all Warning plates and decals on the machine before Operating, Maintaining or Repairing this machine.  Always wear protective glasses and protective shoes when working around machines. In particular, wear protective glasses when using hammers, punches or drifts on any part of the machine or attachments. Use welders gloves, hood/goggles, apron and the protective clothing appropriate to the welding job being performed. Do not wear loose fitting or torn clothing. Remove all rings from fingers, loose jewellery, confine long hair and loose clothing before working on this machinery.
• Disconnect the battery and hang a “Maintenance in Progress” tag in the operator’s seat. Remove starter key. If possible, make all repairs with the machine parked on a level and firm surface. Block the machine so it does not roll while working on or under the machine. Hang a “Maintenance in Progress” tag in the operator’s seat.Do not work on any machine that is supported only by lift, jacks or a hoist. Always use blocks or stops for the jack before carrying out any disassembly operation. WARNING Do not operate this machine unless you have read and understood all instructions contained in this manual. Improper machine operation is dangerous and could result in injury or death. Relieve all pressure in air, oil or water systems before any lines, fittings or related items are disconnected or removed. Always make sure all raised components are blocked correctly and be alert for possible pressure when disconnecting any device from a system under pressure.
• Lower the bucket, dozer or other attachments to the ground before performing any work on the machine. If this cannot be done, make sure the bucket, blade or other attachment is blocked correctly to prevent it from dropping unexpectedly. Use steps and grab handles when mounting or dismounting a machine. Remove any debris or mud from steps, walkways or work platforms before using them. Always face the machine when using steps, ladders and walkways. When it is not possible to use the designed access system, provide ladders, scaffolds, or work, platforms to perform safe repair operations.  To avoid back injury, use a hoist when lifting components which weigh 20 kg or more. Make sure all chains, hooks, slings, etc., are in good condition and are the correct capacity.
• Be sure hooks are positioned correctly. Lifting eyes are not to be side loaded during a lifting operation. (10) To avoid burns, be alert for hot parts and surfaces immediately after stopping the machine such as hot fluids in lines, tubes and compartment covers. (11) Be careful when removing cover plates. Gradually back off the last two capscrews or nuts located at opposite ends of the cover or device and carefully pry the cover loose to relieve any spring or other pressure, before removing the last two capscrews or nuts completely.

CASE MINI EXCAVATOR CX45B CX50B SERIES 2 CX55B SERVICE MANUAL 84602438A – PDF DOWNLOAD:

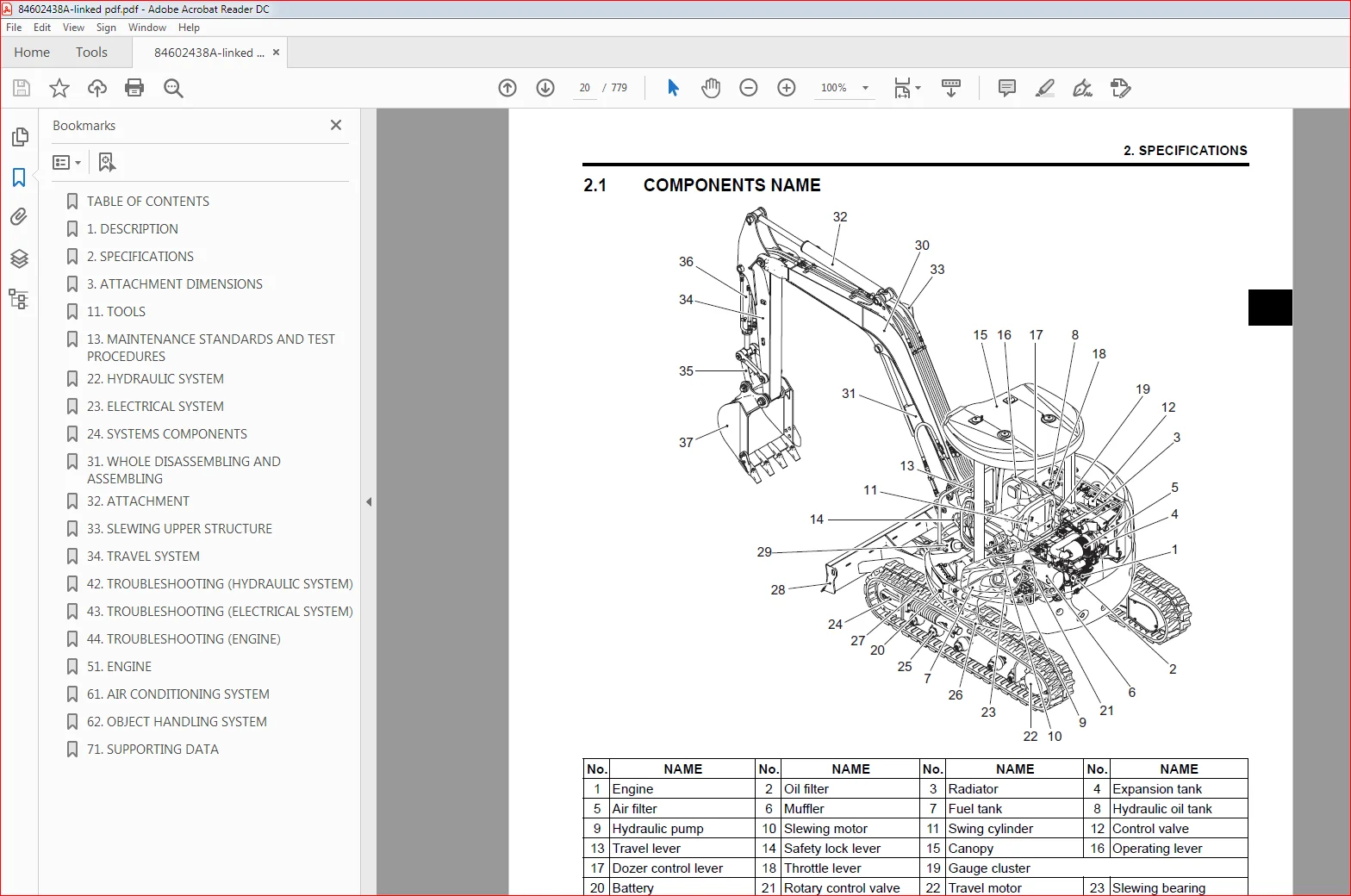

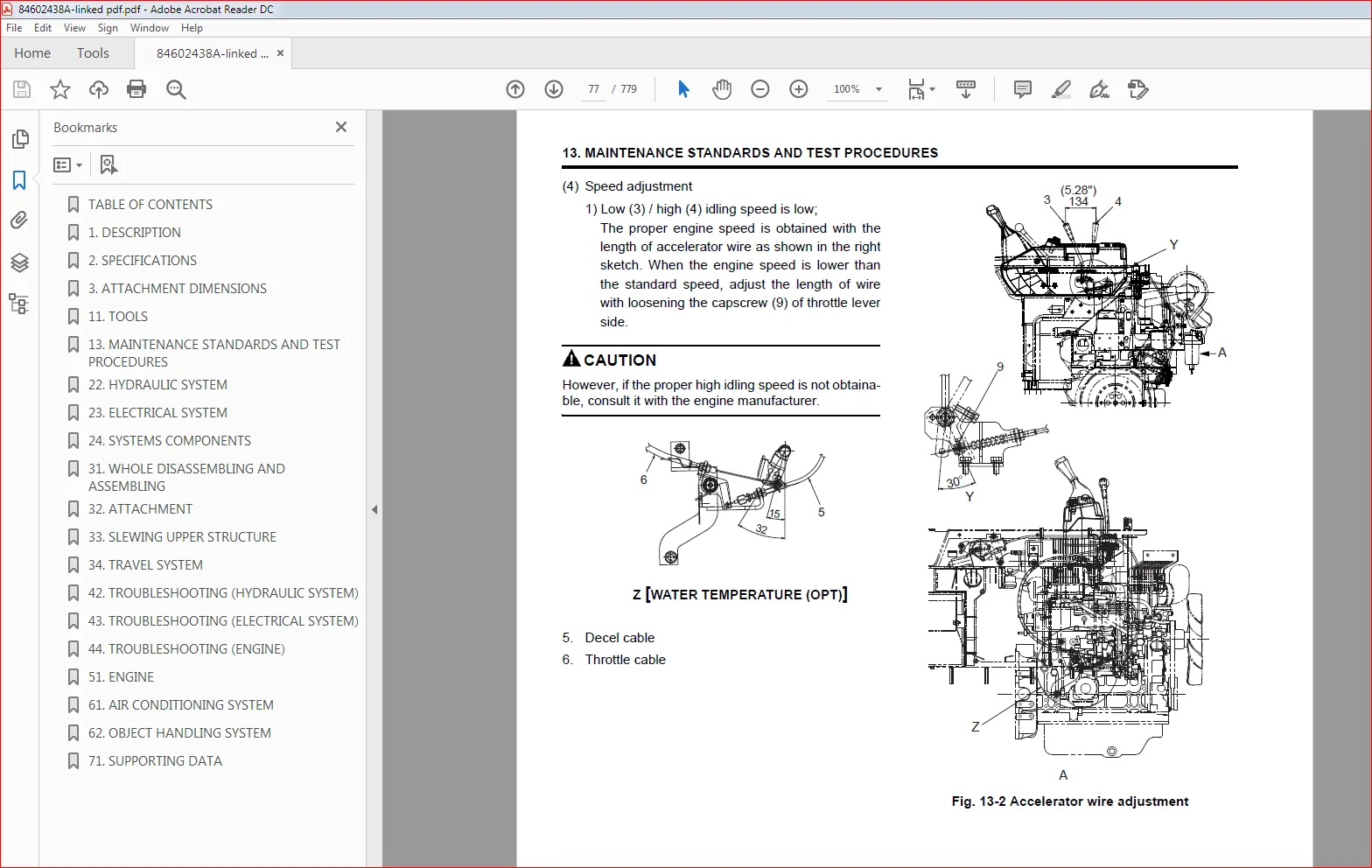

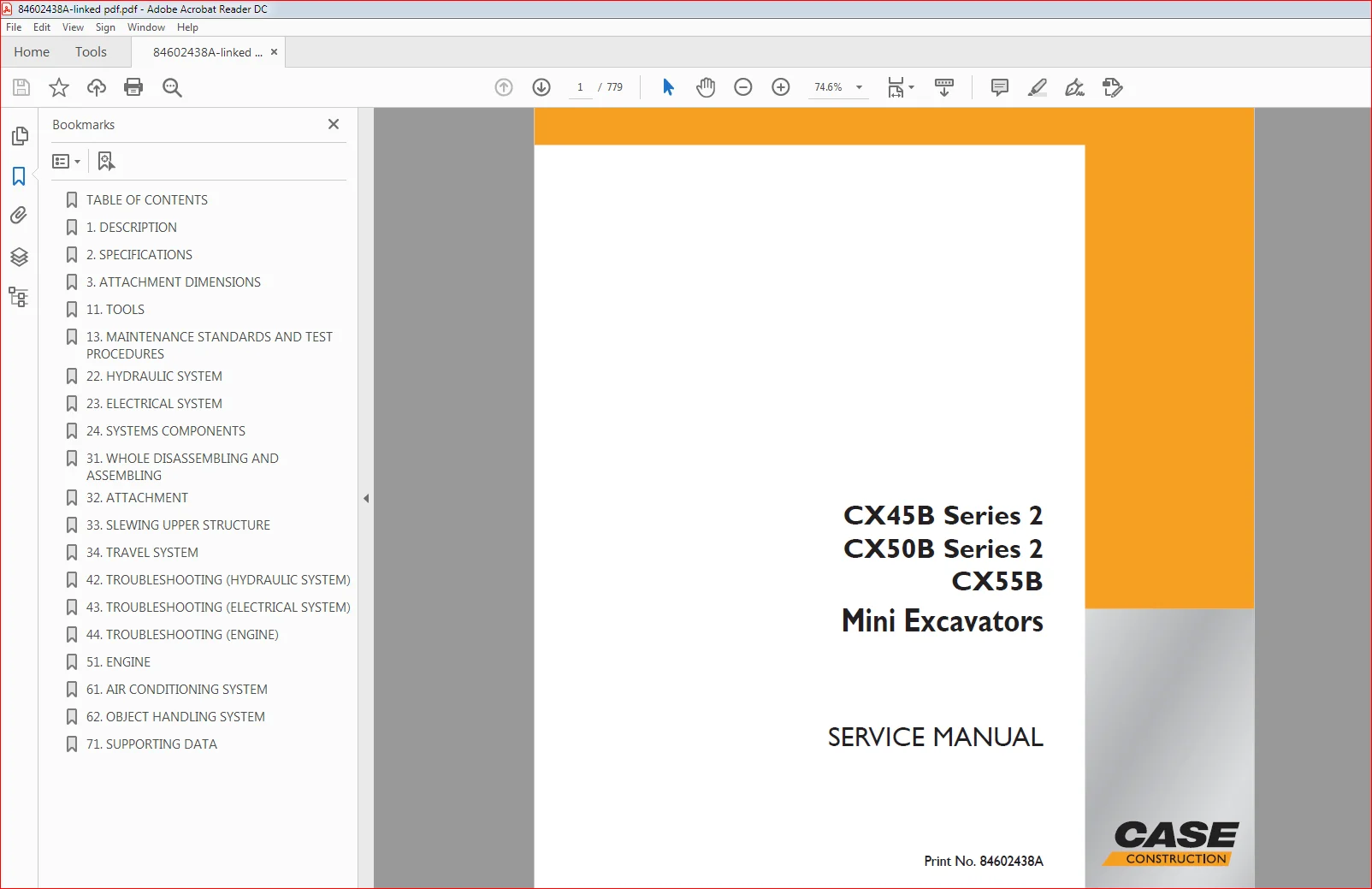

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Case Mini Excavator CX45B CX50B Series 2 CX55B Service Manual

1 1 GENERAL PRECAUTIONS FOR REPAIRS 1-1
1 1 1 PREPARATION BEFORE DISASSEMBLING 1-1
1 1 2 SAFETY IN DISASSEMBLING AND ASSEMBLING 1-1
1 1 3 DISASSEMBLING AND ASSEMBLING HYDRAULIC EQUIPMENT 1-1
1 1 4 ELECTRICAL EQUIPMENT 1-2
1 1 5 HYDRAULIC PARTS 1-3
1 1 6 WELDING REPAIR 1-3
1 1 7 ENVIRONMENTAL MEASURE 1-3
1 2 INTERNATIONAL UNIT CONVERSION SYSTEM

PLEASE NOTE:

⦁ This is the SAME exact manual used by your dealers to fix your vehicle.
⦁ The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
⦁ Any queries / doubts regarding your purchase, please feel free to contact [email protected]
