Case NEF Tier 3 Engine Service Manual (47597684) Case NEF Tier 3 – PDF Download

Description

Case NEF Tier 3 Engine Service Manual (47597684) Case NEF Tier 3

CASE NEF TIER 3 ENGINE SERVICE MANUAL (47597684) CASE NEF TIER 3 – PDF DOWNLOAD:

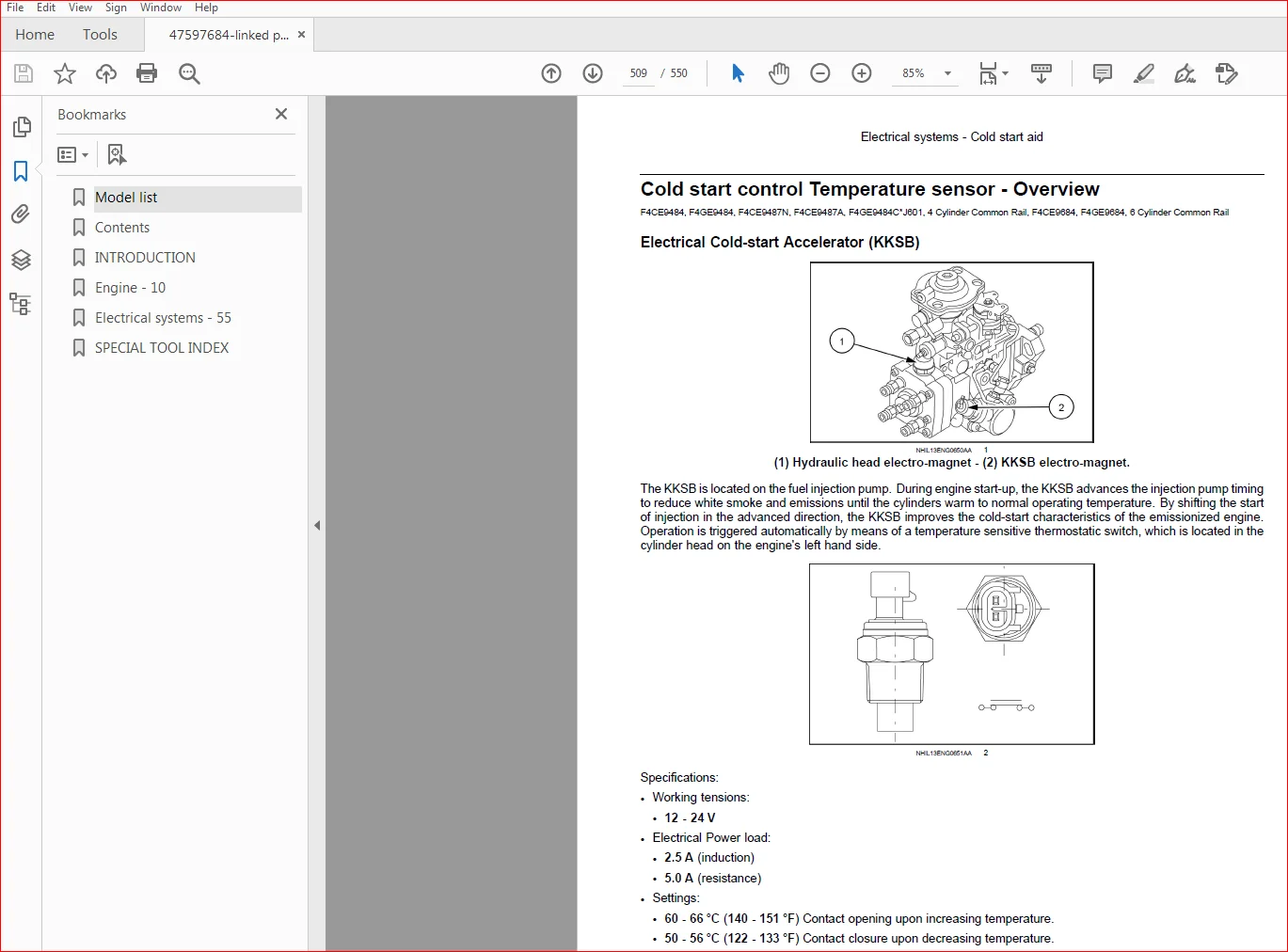

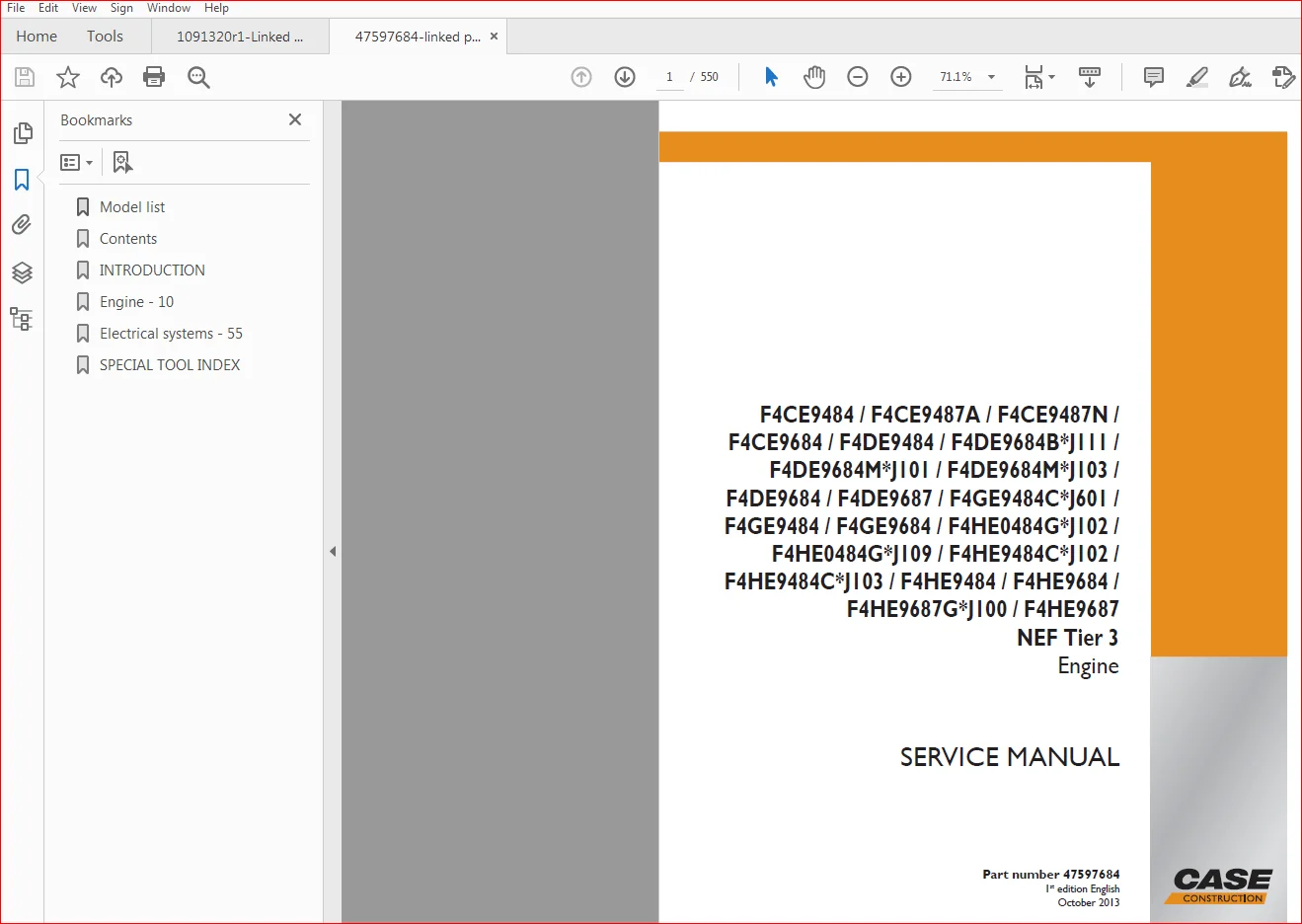

IMAGE PREVIEW:

DESCRIPTION:

Case NEF Tier 3 Engine Service Manual (47597684) Case NEF Tier 3

• Engine Overhaul
• Part of the operations illustrated within this manual can be partially executed while the engine is assembled on the vehicle, depending on the room available for access to the engine and on the equipment application as well.
• NOTE:
• With regard to the engine disassembly operations, please apply for information consulting the specific manual.
• The following information relates to the engine overhaul operations only for what concerns the different components customizing the engine, according to its specific duties. In section “General Overhaul”, all the operations of engine block overhaul have been contemplated.
• Therefore the above mentioned section is to be considered as following the part hereby described.
• Standard safety prescriptions Particular attention shall be drawn on some precautions that must be followed absolutely in a standard working area and whose non fulfillment will make any other measure useless or not sufficient to ensure safety to the personnel in charge of maintenance.
• Be informed and inform personnel as well of the laws in force regulating safety, providing information documentation available for consultation.

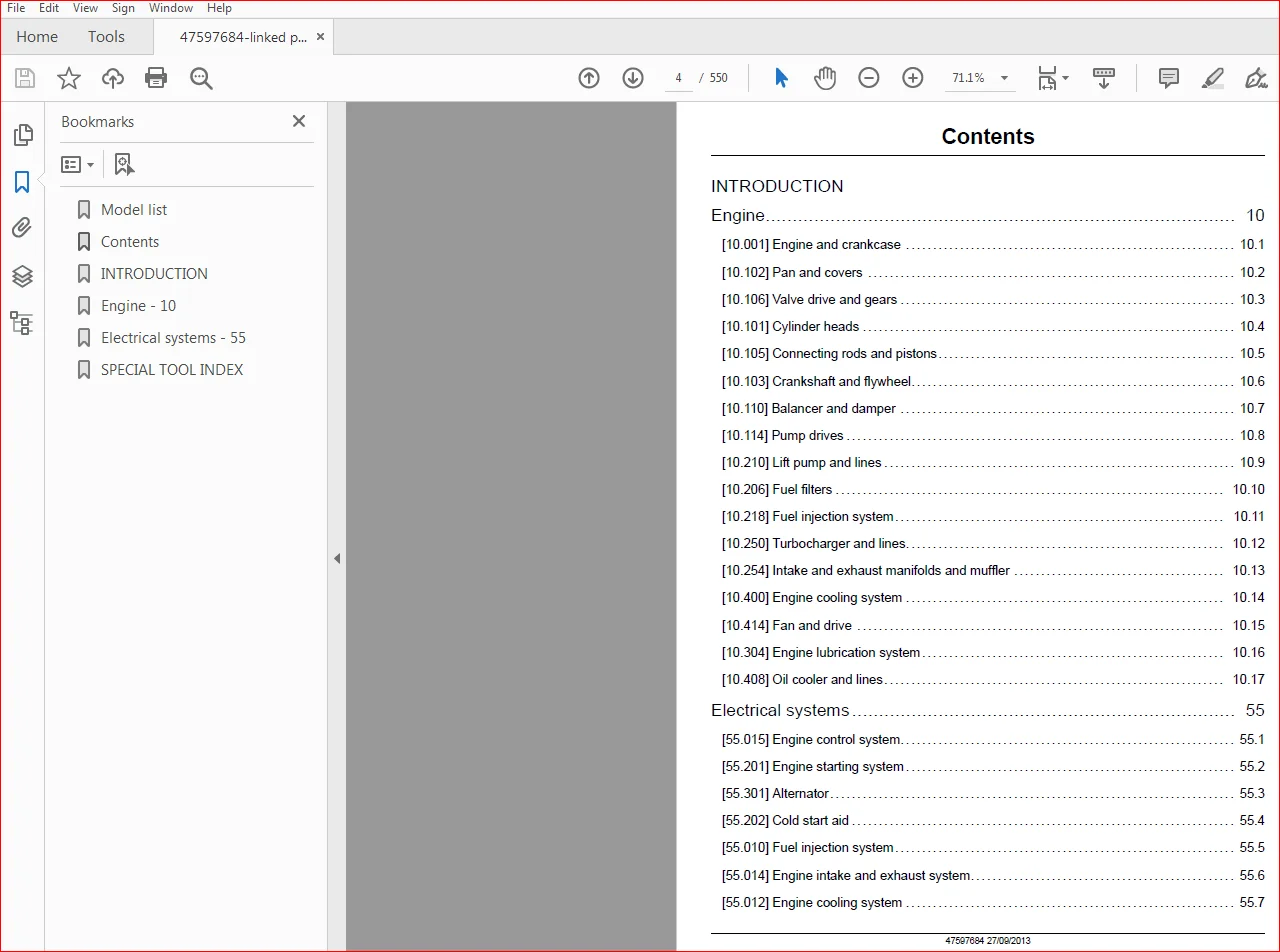

TABLE OF CONTENTS:

Case NEF Tier 3 Engine Service Manual (47597684) Case NEF Tier 3

Engine 10
[10 001] Engine and crankcase 10 1
[10 102] Pan and covers 10 2
[10 106] Valve drive and gears 10 3
[10 101] Cylinder heads 10 4
[10 105] Connecting rods and pistons 10 5
[10 103] Crankshaft and flywheel 10 6
[10 110] Balancer and damper 10 7
[10 114] Pump drives 10 8
[10 210] Lift pump and lines 10 9
[10 206] Fuel filters 10 10
[10 218] Fuel injection system 10 11
[10 250] Turbocharger and lines 10 12
[10 254] Intake and exhaust manifolds and muffler 10 13
[10 400] Engine cooling system 10 14
[10 414] Fan and drive 10 15
[10 304] Engine lubrication system 10 16
[10 408] Oil cooler and lines 10 17
Electrical systems 55
[55 015] Engine control system 55 1
[55 201] Engine starting system 55 2
[55 301] Alternator 55 3
[55 202] Cold start aid 55 4
[55 010] Fuel injection system 55 5
[55 014] Engine intake and exhaust system 55 6
[55 012] Engine cooling system 55 7
[55 013] Engine oil system 55 8
