Case New Holland MH3.6 Parts Catalog Manual – PDF DOWNLOAD

Description

Case New Holland MH3.6 Parts Catalog Manual – PDF DOWNLOAD

FILE DETAILS:

Case New Holland MH3.6 Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 680
Downloadable : Yes
File Type : PDF
Size: 11 MB

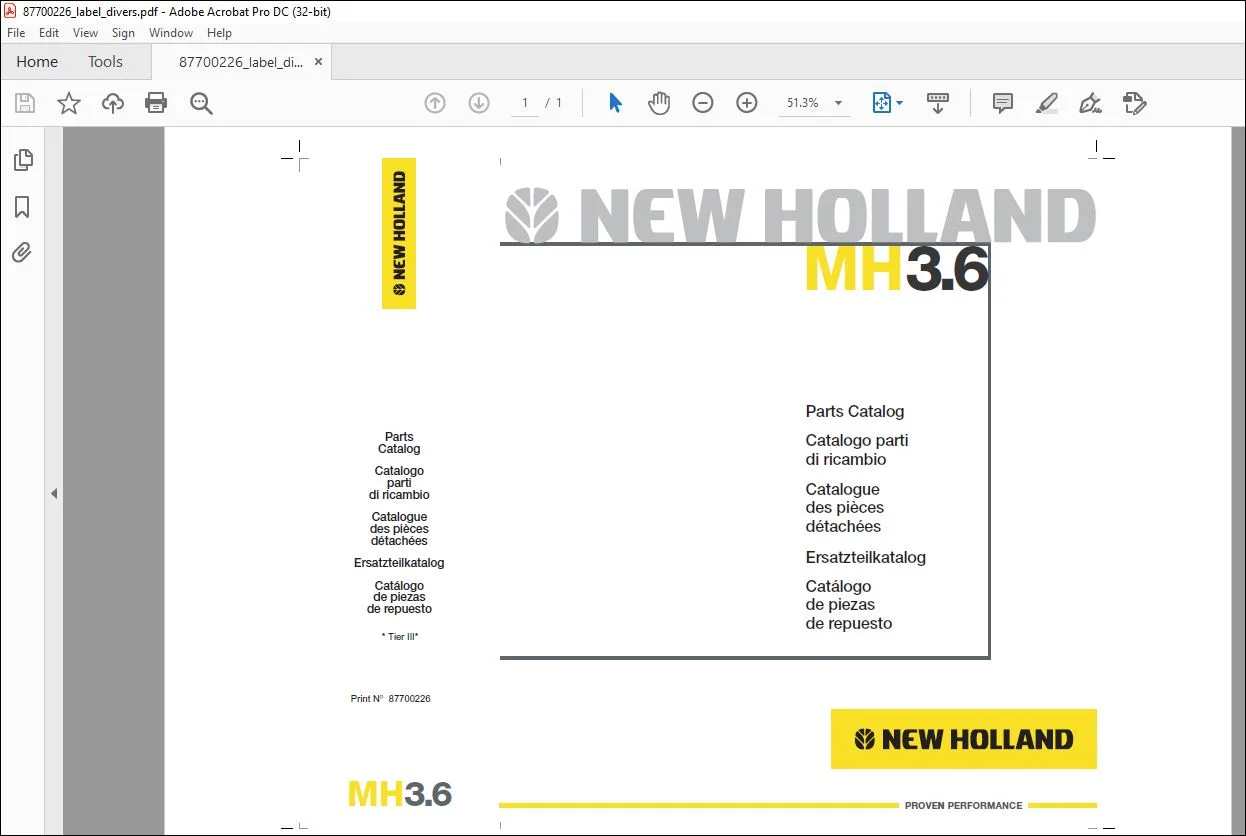

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Case New Holland MH3.6 Parts Catalog Manual – PDF DOWNLOAD

1.080 01 PILOT PIPING
1.080 02 PILOT PIPING
1.080 03 PILOT PIPING
1.080 04 SOLENOID VALVE FOR POWER CONTROLS
1.080 05 DRAINAGES BLOCK
1.080 06 PRESSURE GAUGES BLOCK
1.080 07 SLEWING SOLENOID
1.080 08 SLEWING VALVE
1.080 09 USERS SOLENOID
1.080 10 CLAMSHELL BUCKET VALVE
1.080 11 SOLENOID VALVE FOR POWER CONTROLS – COMPONENTS
1.080 12 SLEWING VALVE – COMPONENTS
1.080 13 USERS SOLENOID – COMPONENTS
1.087 01 PILOT PIPING (8)
1.088 01 PILOT PIPING (9)
1.100 01 STEERING DEVICE
1.100 02 STEERING DEVICE
1.100 03 STEERING DEVICE
1.100 04 STEERING DEVICE
1.101 01 GEAR PUMP
1.101 02 GEAR PUMP
1.110 01 STEERING PIPING
1.110 02 HYDROSTATIC STEERING – COMPONENTS
1.150 01 BRAKE LINES
1.150 02 BRAKE LINES
1.150 03 OIL FILTER
1.150 04 BRAKE PEDAL – COMPONENTS
1.200 01 DASHBOARD
1.200 02 DASHBOARD
1.200 03 DASHBOARD
1.200 04 DASHBOARD
1.200 05 DASHBOARD
1.220 01 ELECTRIC SYSTEM
1.220 02 ELECTRIC SYSTEM
1.220 03 ELECTRIC SYSTEM
1.220 04 ELECTRIC SYSTEM
1.220 05 ELECTRIC SYSTEM
1.220 06 ELECTRIC SYSTEM
1.220 07 ELECTRIC SYSTEM
1.220 08 ELECTRIC SYSTEM
1.220 09 ELECTRIC SYSTEM
1.220 10 ELECTRIC SYSTEM
1.250 01 CAB
1.250 02 CAB
1.250 03 CAB – COMPONENTS
1.250 04 CAB – COMPONENTS
1.250 05 CAB – COMPONENTS
1.250 06 CAB – COMPONENTS
1.250 07 CAB – COMPONENTS
1.250 08 CAB – COMPONENTS
1.250 09 CAB – COMPONENTS
1.250 10 CAB – COMPONENTS
1.250 11 CAB – COMPONENTS
1.250 12 CAB – COMPONENTS
1.250 13 CAB – COMPONENTS
TABLE OF CONTENTS
1.250 14 CAB
1.270 01 FLOOR-CAB
1.270 02 FLOOR-CAB
1.280 01 CAR RADIO ARRANGEMENT
1.290 01 HEATING, LINES
1.295 01 AIR CONDITIONING
1.295 02 AIR CONDITIONING – COMPONENTS
1.300 01 HOODS
1.300 02 HOODS
1.300 03 HOODS
1.300 04 HOODS
1.300 05 HOODS
1.300 06 HOODS
1.300 07 HOODS
1.300 08 HOODS
1.300 09 HOODS
1.300 10 HOODS
1.300 11 HOODS
2.002 01 POSITIONER ARM
2.005 01 ARM 1 AND 2
2.031 01 BOOM PIPING
2.031 02 BOOM PIPING
2.031 03 BOOM PIPING
2.031 04 LIFT CYLINDER
2.031 05 LIFT CYLINDER
2.031 06 POSITIONER CYLINDER
2.031 07 DIPPER STICK CYLINDER
2.031 08 BUCKET CYLINDER
2.031 09 LIFT CYLINDER
2.031 10 POSITIONER CYLINDER – COMPONENTS
2.031 11 DIPPER STICK CYLINDER – COMPONENTS
2.031 12 BUCKET CYLINDER – COMPONENTS
2.031 13 LIFTING ANTIDROP VALVE
2.031 14 DIGGING ANTIDROP VALVE
3.000 01 LOWER FRAME
3.000 02 LOWER FRAME
3.000 03 LOWER FRAME
3.000 04 LOWER FRAME
3.000 05 LOWER FRAME
3.000 06 LOWER FRAME
3.060 01 ROTARY DISTRIBUTOR
3.060 02 ROTARY DISTRIBUTOR
3.100 01 POWER TRAIN
3.110 01 FRONT AXLE – BOX AND COVERS
3.110 02 FRONT AXLE – DIFFERENTIAL
3.110 03 FRONT AXLE – PLANETARY REDUCTION UNITS
3.110 04 FRONT AXLE – DISC BRAKE
3.110 05 FRONT AXLE – BARS AND STEERING CYLINDER
3.110 06 FRONT AXLE – SWING SUPPORTS
3.140 01 TRAVEL MOTOR – COMPONENTS
3.140 02 TRAVEL MOTOR – COMPONENTS
3.140 03 TRAVEL MOTOR – COMPONENTS
3.140 04 TRAVEL MOTOR – COMPONENTS
3.140 05 TRAVEL MOTOR – COMPONENTS
3.300 01 BRAKE LINES
TABLE OF CONTENTS
3.400 01 PIPING, TRAVEL
3.400 02 PIPING, TRAVEL
3.400 03 UNDERCARRIAGE SOLENOID
3.404 01 AXLE LOCK PIPING
3.404 02 AXLE LOCK CYLINDER
3.404 03 AXLES LOCK VALVE
3.500 01 DOZER BLADE – STABILIZERS PIPING
3.500 02 CYLINDER, BLADE
3.500 03 CYLINDER, BLADE – COMPONENTS
4.200 01 TOOLS KIT
4.521 01 DECALS
4.521 02 DECALS
5.0006 01 COUPLES WHEELS 10.00-20 – OPTIONAL CODE 72116996
5.0006 02 COUPLES WHEELS – OPTIONAL CODE 72116996
5.0007 01 SINGLE WHEEL – OPTIONAL CODE 72116997
5.0013 01 DIPPER STICK (L=2000) – OPTIONAL CODE 72116959
5.0013 02 DIPPER STICK (L=2000) – OPTIONAL CODE 72116959
5.0020 01 HAMMER – CALIPER HYDRAULIC SYSTEM – OPTIONAL CODE 72112194
5.0020 02 HAMMER – CALIPER HYDRAULIC SYSTEM – OPTIONAL CODE 72112194
5.0020 03 HAMMER – CALIPER HYDRAULIC SYSTEM – OPTIONAL CODE 72112194
5.0025 01 COLD START – OPTIONAL CODE 72117768
5.0026 01 GERMANY HOMOLOGATION – OPTIONAL CODE 72117894
5.0028 01 WORKING LIGHTS – OPTIONAL CODE 72130342
5.0032 01 DECAL – BIODEGRADABLE OIL – OPTIONAL CODE 72117826
5.0054 01 REAR AND FRONT STABILIZERS – OPTIONAL CODE 72112323
5.0054 02 REAR AND FRONT STABILIZERS – OPTIONAL CODE 72112323
5.0054 03 REAR AND FRONT STABILIZERS – OPTIONAL CODE 72112323
5.0054 04 REAR AND FRONT STABILIZERS – OPTIONAL CODE 72112323
5.0056 01 REAR STABILIZER – OPTIONAL CODE 72111653
5.0058 01 BUCKET SUPPORT – OPTIONAL CODE 72117557
5.0090 01 TOOL BOX L.H. – OPTIONAL CODE 72118100
5.0090 02 TOOL BOX L.H. – OPTIONAL CODE 72118100
5.0100 01 BUCKET – (L=1000MM) – OPTIONAL CODE 72111604
5.0105 01 BUCKET – (L=500MM) – OPTIONAL CODE 72111589
5.0106 01 BUCKET – (L=800MM) – OPTIONAL CODE 72111598
5.0107 01 BUCKET (L=700 MM) – OPTIONAL CODE 72111595
5.0127 01 BUCKET – (L=900MM) – OPTIONAL CODE 72111601
5.0139 01 BUCKET – (L=600MM) – OPTIONAL CODE 72111592
5.0144 01 LINK ROD – OPTIONAL CODE 72112855
5.0151 01 SEAT AT MECHANICAL SUSPENSION – OPTIONAL CODE 72116761
5.0151 02 SEAT AT MECHANICAL SUSPENSION – OPTIONAL CODE 72116761
5.0160 01 FUEL TRANSFER PUMP – OPTIONAL CODE 72103957
5.0208 01 CAB GUARD – OPTIONAL CODE 72116794
5.0209 01 CAB GUARD – OPTIONAL CODE 72116795
5.0300 01 REAR BLADE – OPTIONAL CODE 72111689
5.0304 01 FRONT BLADE/ REAR STABILIZERS – OPTIONAL CODE 72112322
5.0304 02 FRONT BLADE/ REAR STABILIZERS – OPTIONAL CODE 72112322
5.0304 03 FRONT BLADE/ REAR STABILIZERS – OPTIONAL CODE 72112322
5.0304 04 FRONT BLADE/ REAR STABILIZERS – OPTIONAL CODE 72112322
5.0321 01 RADIO – OPTIONAL CODE 72117889
5.0530 01 DIPPER STICK (L=2350 MM) – OPTIONAL CODE 72116960
5.0530 02 DIPPER STICK (L=2350 MM)- OPTIONAL CODE 72116960
5.0604 01 AIR CONDITIONING – OPTIONAL CODE 72104283
5.0749 01 ROTARY LAMP – OPTIONAL CODE 72117482
5.0750 01 PLATE LIGHT – OPTIONAL CODE 72112095
TABLE OF CONTENTS
5.0751 01 ITALIAN ROAD TRAFFIC APPROVAL – OPTIONAL CODE 72117529
5.1007 01 2 STEERING WHEELS – OPTIONAL CODE 72117864
5.1007 02 2 STEERING WHEELS – OPTIONAL CODE 72117864
5.1007 03 2 STEERING WHEELS – OPTIONAL CODE 72117864
5.1008 01 4 STERRING WHEELS – OPTIONAL CODE 72117852
5.1008 02 4 STERRING WHEELS – OPTIONAL CODE 72117852
5.1008 03 4 STEERING WHEELS – OPTIONAL CODE 72117852
5.1008 04 4 STEERING WHEELS – OPTIONAL CODE 72117852
5.1008 05 REAR AXLE – BOX AND COVERS – OPTIONAL CODE 72117852
5.1008 06 REAR AXLE – DIFFERENTIAL – OPTIONAL CODE 72117852
5.1008 07 REAR AXLE – PLANETARY REDUCTION UNITS – OPTIONAL CODE 72117852
5.1008 08 REAR AXLE – DISC BRAKE – OPTIONAL CODE 72117852
5.1008 09 REAR AXLE – REDUCTION GEAR – OPTIONAL CODE 72117852
5.1008 10 REAR AXLE – GEARS – OPTIONAL CODE 72117852
5.1008 11 REAR AXLE – STEERING RODS AND CYLINDER – OPTIONAL CODE 72117852
