Case Poclain Diagnostic Troubleshooting Parts Catalog Manual S406310 – PDF DOWNLOAD

Description

Case Poclain Diagnostic Troubleshooting Parts Catalog Manual S406310 – PDF DOWNLOAD

DESCRIPTION:

Case Poclain Diagnostic Troubleshooting Parts Catalog Manual S406310 – PDF DOWNLOAD

DESCRIPTION :
This manual is divided into several chapters : hydraulic system, electric system, hydro-pneumatic system, etc .•.
Each chapter includes a series of pages on failures and a series of paragraphs on these failures (yellow pages).
USE:
1 – Make a test of the machine so as to find out exactly what is wro11g.
2 – In the corresponding chapter, find the page which includes the failure (see contents).
3 – Check parts concerned in the order given, by seeing the corresponding paragraphs.
EXAMPLE:
1 – Attachment receiver does not move in either direction.
2 – Failure in hydraulic system : chapter A
Contents page for failures shows page no. A 103.
3 – Check : 1 – The control of the corresponding control valve spool on the attachment valve bank. See
paragraph 081.
2 – The spool of the same control valve(* if hydraulic control) see paragraph 080.
3 – The cylinder rod and tube : paragraph 140.
4 – Pipes : paragraph 360.

TABLE OF CONTENTS:

Case Poclain Diagnostic Troubleshooting Parts Catalog Manual S406310 – PDF DOWNLOAD

NO MOVEMENT
– Of all receivers
– Of all attachment receivers
– Of an attachment receiver in both directions
– Of a cylinder in one direction
– Of swing motor in one direction
– Of swing motor in both directions
– Of a track drive motor in one direction
– Of a track drive motor in both directions
– Of both track drive motors in one or both directions
MOVEMENTS TOO SLOW
– Of all receivers with no load and with load
– Of all receivers with load
– Of all attachment receivers
– Of an attachment ·receiver in both directions
– Of a cylinder in one direction
– Of swing motor in one direction
– Of swing motor in both directions
– Of one track drive motor in both directions
– Of both track drive motors in one or both directions
– Of steering in both directions
– Of all receivers A 301
– Of all attachment receivers A 302
– Of a cylinder in one direction A 303
– Of a cylinder in both directions A 304
– Of swing motor in one direction A 305
– Of swing motor in both directions A 306
– Of one track drive motor in one direction A 307
– Of one track drive motor in both directions A 308
– Of both track drive motors A 309
9Paclain
hydraulic excavators
POOR LOCKING
– Of a cylinder in one direction
– Of a cylinder in both directions
– Of swing motor in one direction
– Of swing motor in both directions
– Of a track drive motor in one direction
– Of a track drive motor in both directions
VIBRATIONS
– Of power pump
– Of make-and-break assembly
– Of hydraulic motors
– Of high pressure pipes
– Of low pressure pipes
OVERHEATING OF HYDRAULIC FLUID
LACK Of PRECISION
– Of all receivers A 701
– Of a receiver in one or both directions A 702
VARIOUS TROUBLES
– A receiver remains power-supplied with control lever in neutral position
– Swing motor makes short sharp noise when idling
– Steering operates on its own
– Front equalizing bar remains locked
– Front equalizing bar does not lock
– Circuit remains in work position
– Circuit remains in heavy lift position
– Pressure not released in circuits
– Engine stalls

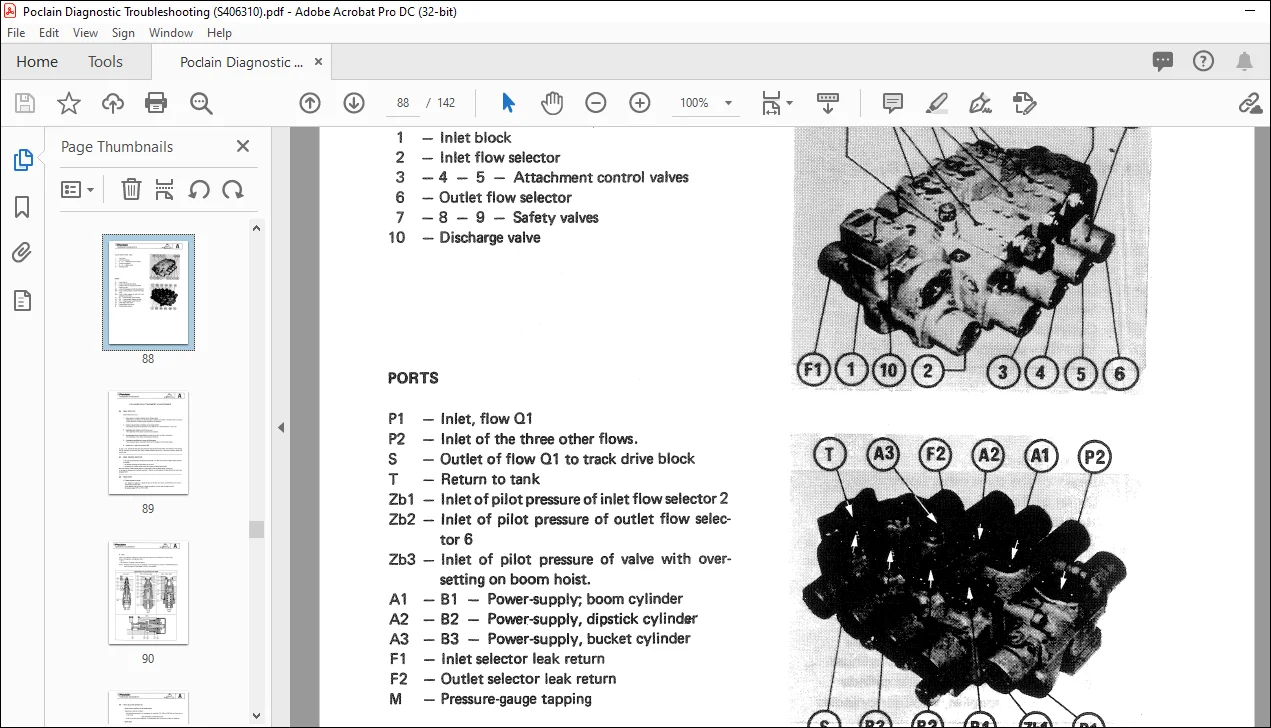

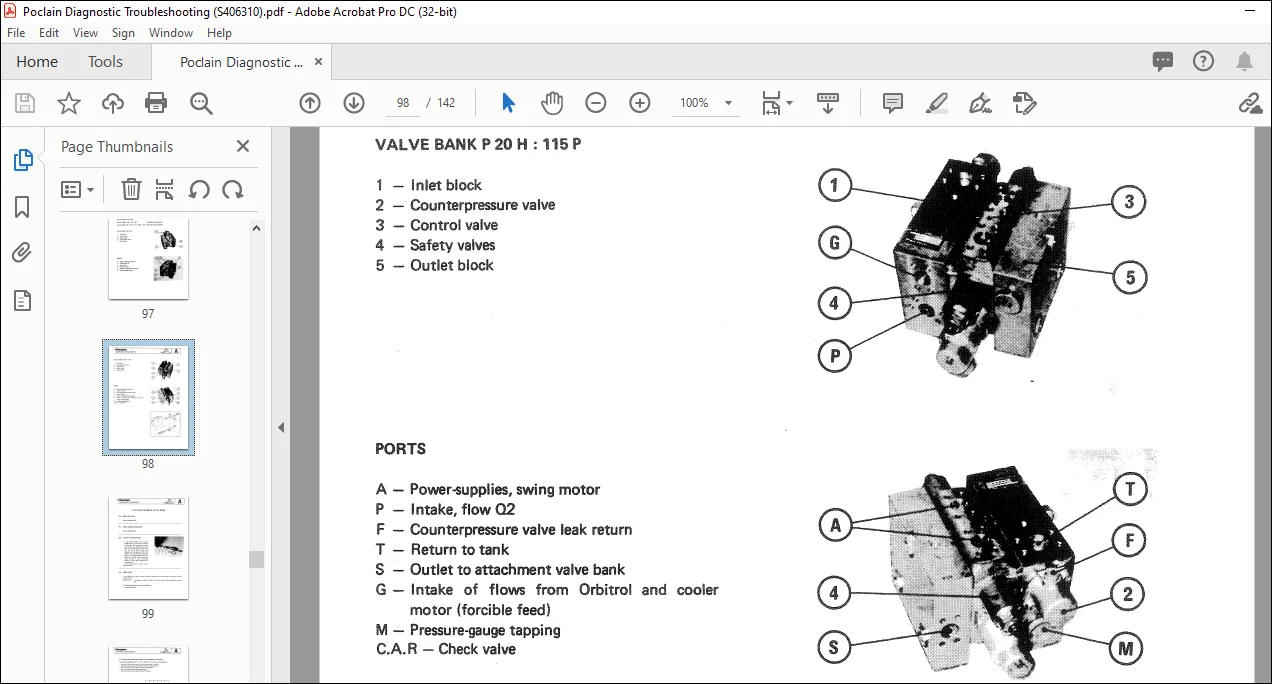

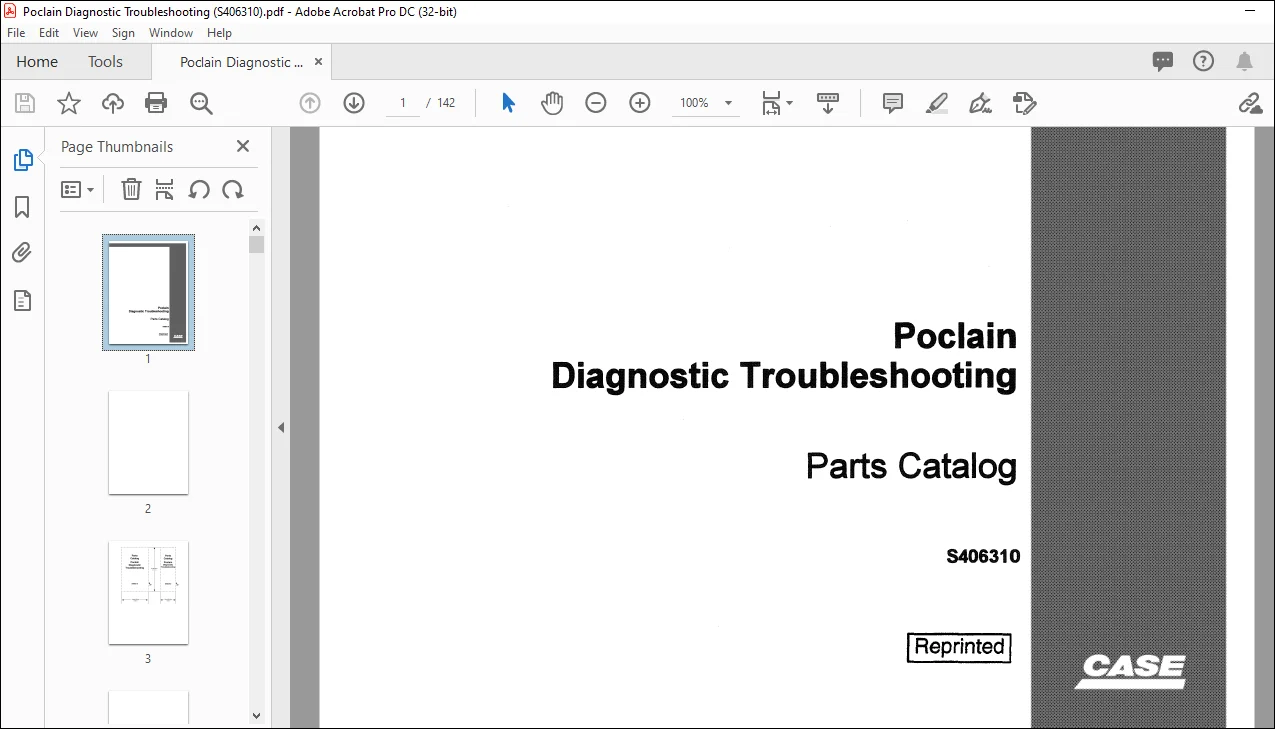

IMAGES PREVIEW OF THE MANUAL:

CASE POCLAIN DIAGNOSTIC TROUBLESHOOTING PARTS CATALOG MANUAL S406310 – PDF DOWNLOAD:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

S.V
