CASE SCHEMATIC SET CRAWLER EXCAVATOR Issued 06 2006 CX800 TIER 3 1 – PDF DOWNLOAD

Description

CASE SCHEMATIC SET CRAWLER EXCAVATOR Issued 06 2006 CX800 TIER 3 1

File Details:

CASE SCHEMATIC SET CRAWLER EXCAVATOR Issued 06 2006 CX800 TIER 3 1

Language : English
Pages : 307
Size : 22.2 MB
Downloadable : Yes
Format : PDF
Part No : 87539044NA

CASE SCHEMATIC SET CRAWLER EXCAVATOR ISSUED 06 2006 CX800 TIER 3 1 – PDF DOWNLOAD:

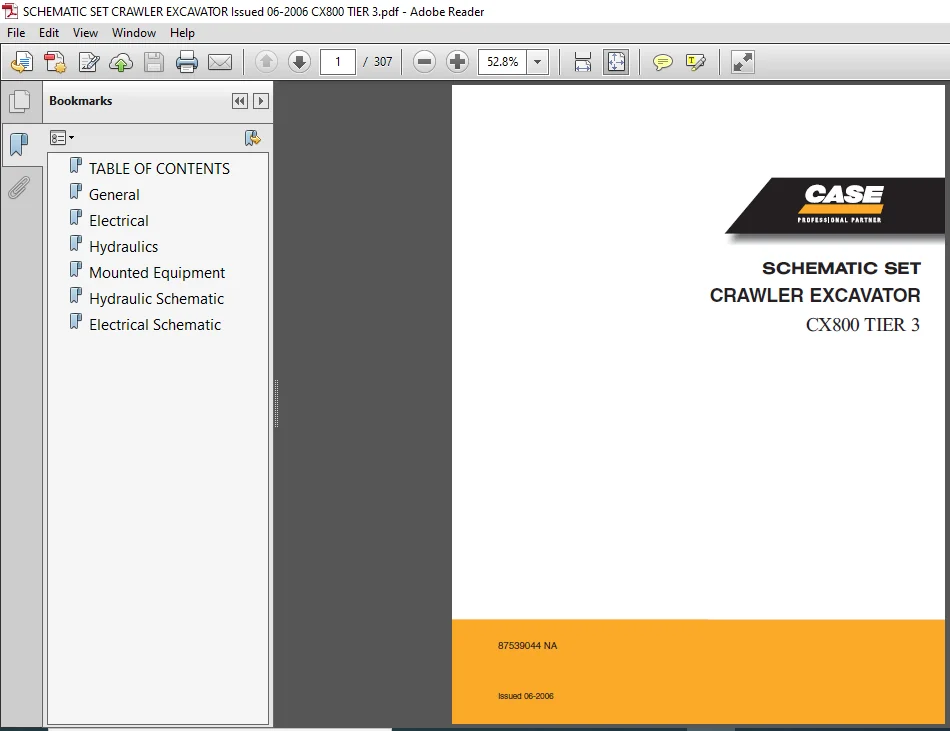

Image Preview:

Description:

CASE SCHEMATIC SET CRAWLER EXCAVATOR Issued 06 2006 CX800 TIER 3 1

• GENERAL INFORMATION Cleanning Clean all metal parts except bearings, in a suitable cleaning solvent or by steam cleaning. Do not use caustic soda for steam cleaning. After cleaning, dry and put oil on all parts. Clean oil passages with compressed air. Clean bearings in a suitable cleaning solvent, dry the bearings completely and put oil on the bearings.
• Inspection Check all parts when the parts are disassembled. Replace all parts that have wear or damage. Small scoring or grooves can be removed with a hone or crocus cloth. Complete a visual inspection for indications of wear, pitting and the replacement of parts necessary to prevent early failures. Bearings Check bearings for easy action. If bearings have a loose fit or rough action replace the bearing. Wash bearings with a suitable cleaning solvent and permit to air dry
• . DO NOT DRY BEARINGS WITH COMPRESSED AIR. Needle bearings Before you press needle bearings in a bore always remove any metal protrusions in the bore or edge of the bore. Before you press bearings into position put petroleum jelly on the inside and outside diameter of the bearings. Gears Check all gears for wear and damage. Replace gears that have wear or damage. Oil seals, O-rings and gaskets Always install new oil seals, O-rings and gaskets.
• Put petroleum jelly on seals and O-rings. Shafts Check all shafts that have wear or damage. Check the bearing and oil seal surfaces of the shafts for damage. Service parts Always install genuine Case service parts. When ordering refer to the Parts Catalog for the correct part number of the genuine Case replacement items. Failures due to the use of other than genuine Case replacement parts are not covered by warranty. Lubrication Only use the oils and lubricants specified in the Operator’s or Service Manuals. Failures due to the use of non-specified oils and lubricants are not covered by warranty.

Table of Contents:

CASE SCHEMATIC SET CRAWLER EXCAVATOR Issued 06 2006 CX800 TIER 3 1

SECTION SECTION No. REFERENCE No.
Safety, General Information and Standard Torque Data…………………………………………….1001 7-27691NA
General Specifications and Special Torque Settings…………………………………………………1002 9-94710NA
Numerical value conversion table…………………………………………………………………………..1003 9-35540
Elecrical System, Electrical and Electronic Troubleshooting ………………………………………4001 9-94700NA
Specifications, Troubleshooting, Checks and Hydraulic Pressure Settings…………………..8001 9-94740NA
Hydraulic Functions ……………………………………………………………………………………………..8020 9-94720NA
Hydraulic Component Functions ……………………………………………………………………………8030 9-94130NA
Removal and Installation ……………………………………………………………………………………..9010 9-94730NA
Large Size Hydraulic Schematics ……………………………………………………………………….. Pocket 87528728
Large Size Electrical Schematics ……………………………………………………………………….. Pocket 9-93951

Please Note:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
