Case Skid Steer 430 440 CT SERIES 3 Repair Manual 87634767NAR0 – PDF DOWNLOAD

Description

Case Skid Steer 430 440 CT SERIES 3 Repair Manual

FILE DETAILS:

Case Skid Steer 430 440 CT SERIES 3 Repair Manual

Size : 607 MB
Format : PDF
Language : English
Brand: Case
Number of page: 979 page
Type of machine: Case Skid Steer_Compact Track Loader
Type of document: Repair Manual
Model: Case Skid Steer 430 440 CT SERIES 3
Part No: 87634767NAR0

DESCRIPTION:

Case Skid Steer 430 440 CT SERIES 3 Repair Manual

SAMPLE PAGES OF THE MANUAL:

• Use No. 2 diesel fuel in the engine oi this machine. The use of other fuels can cause the loss of engine power and high fuel consumption. in very cold temperatures, a mixture of No. l and No. 2 diesel fuels is temporarily permitted. See the following: NOTE: See your fuel dealer for winter fuel requirements in your area.
• If the temperature of the fuel lowers below the cloud point (wax appearance point), wax crystals in the fuel will restrict the fuel filter and cause the engine to loose power or not start. The diesel fuel used in this machine must meet the specifications below. ‘
• Specilications lor Acceptable No. 2 Diesel Fuel’ or Specification 0975-81 of the American Society for Testing and Materials. it you keep fuel in storage for a period of time. you can get foreign material or water in the fuel storage tank. Many engine problems are caused by water in the fuel. Keep the fuel storage tank outside and keep the fuel as cool as possible. Remove water from the storage container at regular periods ol lime. Fill the fuel tank at the end of the daily operating period to prevent condensation in the fuel tank.

CASE SKID STEER 430 440 CT SERIES 3 REPAIR MANUAL 87634767NAR0 – PDF DOWNLOAD:

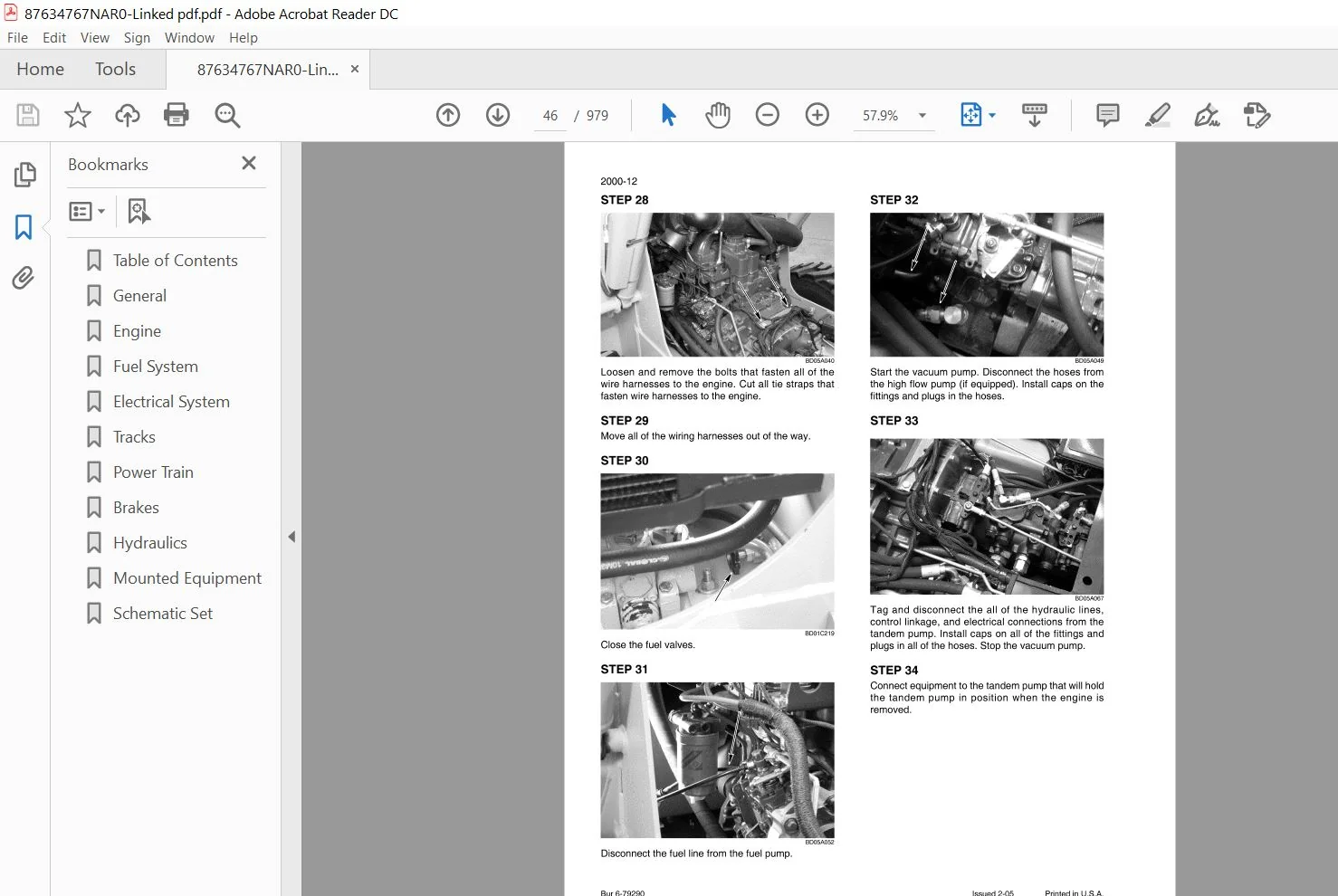

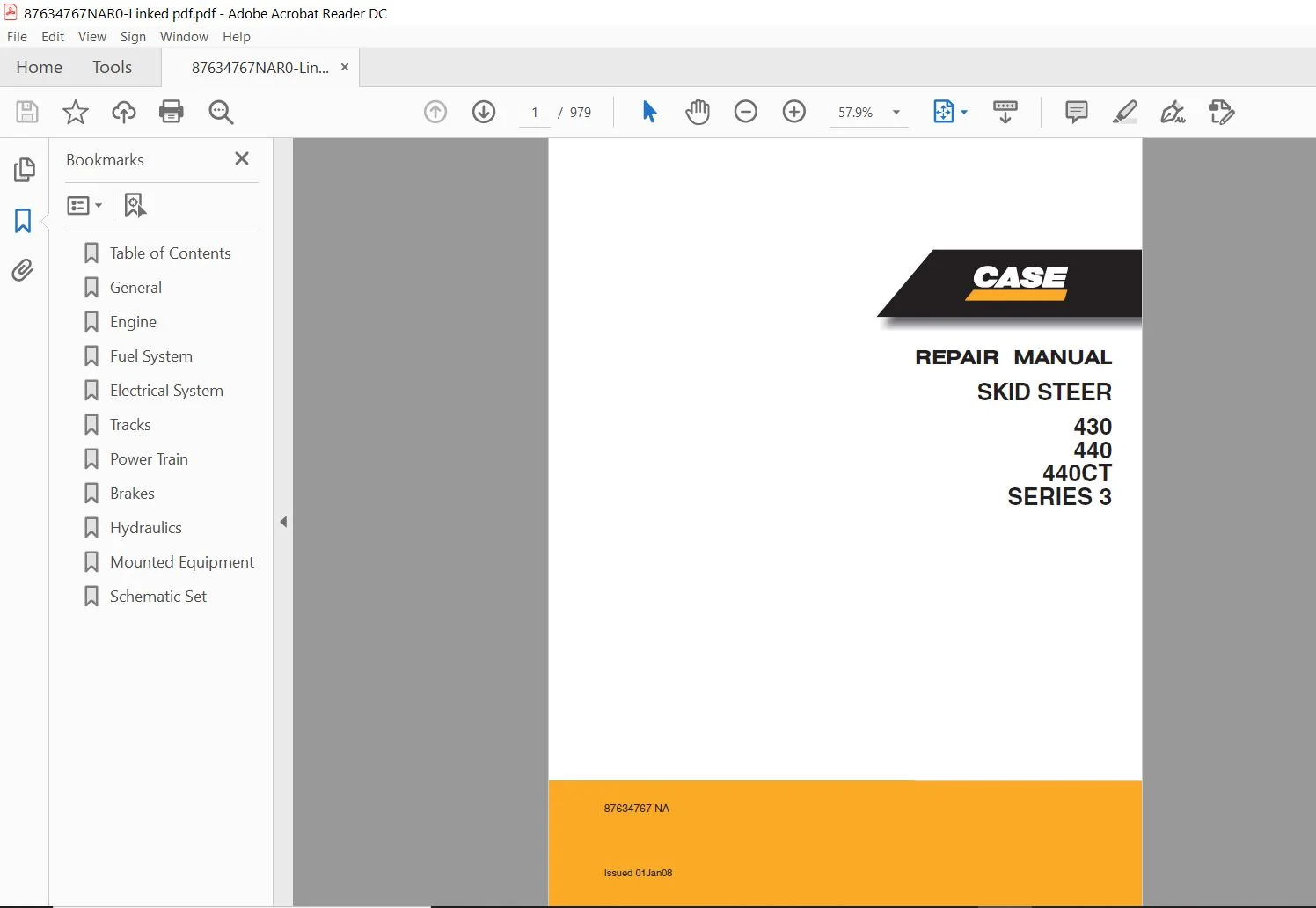

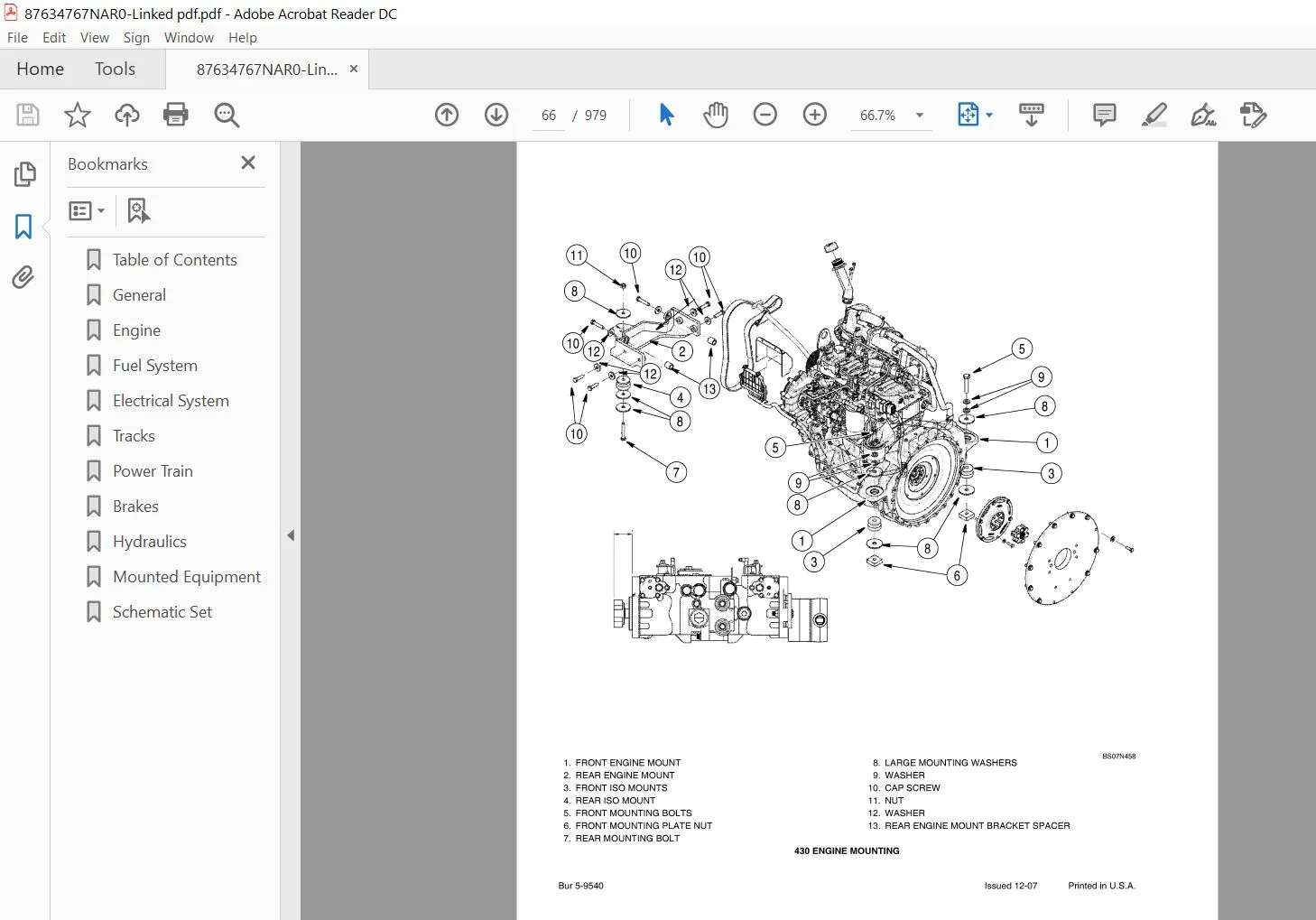

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Case Skid Steer 430 440 CT SERIES 3 Repair Manual

General Tab 1
Section index – General
Fluids and Lubricants 1001
Fluids and Lubricants Tier 3 Engines 1001
Standard Torque Specifications 1002
Metric Conversion Chart 1003

Engines Tab 2
Section index – Engines
Engine and Radiator Removal and installation 2000
Engine and Radiator Removal and installation (430 Tier 3 Engine) 2000
Engine and Radiator Removal and installation (440(4400T Tier 3 Engine) 2000
For Engine Repair – See Engine Service Manual
For 430 Tier 3 Engine Repair – See Tier 3 Engine Repair Manual
For 441074me Tier 3 Engine Repair – See Tier 3 Engine Repair Manual

Fuel Systems Tab 3
Section index – Fuel Systems
For Fuel System Repair – See the Engine Service Manual
For4130 Tier 3 Fuel System Repair – See Tier 3 Engine Repair Manual
For 440’44OCT Tier 3 Fuel System Repair – See For 3 Engine Repair Manual

Electrical Tab 4
Section index – Electrical
Electrical System Specifications. Troubleshooting. and Schematics [Mechanical
and Pilot Control Machines) 4001
Electrical System Specifications. Troubleshooting. and Schematics 400‘
(Tier 3 and Cab Up-Grade Machines)
Battery 4005
Starter and Starter Solenoid 4006

Tracks Tab 5
Section index – Tracks
Tracks 6001
Drive Sprocket. ldler Wheels. and Rollers 5002
Power Train Tab 6
Section Index – Power Train
Hydrostatic System “How it \‘Iorks’ . 6000
(ISO- Pattern and H-Pattern Pilot Control Machines)
Hydrostatic System Troubleshooting 6001
Hydrostatic System Troubleshooting (Machines Equipped with Pilot Controts) 6001
Removal-and installation of Hydrostatic Components 6002
(Mechanical and Pilot Control Machines)
Drive Coupling 6003
Drive Coupling Tier 3 Engines 6003
Piston Pump soc-4
Piston Pump (Machines Equipped vnlh Pilot Controls) 6004
Drive Motors Single Speed 6005
Drive Motors Two Speed 6005
Sprocket. Chains. and Axle Assemblies 6007
Wheels and Tires 6011
Brakes Tab 7
Section Index – Brakes
Removal and Installation oi Park Brake Components 7002
Hydraulics Tab 8
Section Index – Hydraulics
Hydraulic System Troubleshooting and Schematics 8001
(Mechanical and Pilot Control Machines)
Cleaning the Hydraulic System and Hydrostatic System 8002
Removal and installation of Hydraulic Components 8003
Gear Pump (Equipment and High Flow) 8004
Leader Control Valve 8005
Cylinders 8006
Flat Faced Couplers 8007
Accumulator tor Hide Control 8013

Mounted Equipment Tab 9
Section index – Mounted Equipment
Pedals and Lovers 9001
Pedals and Levers (Cab Up-Grade Machines) 9001
Leader 9002
Attachment Coupler 9003
ROPS Canopy, Seat. Seat Belts. and Operators Compartment 9004
ROPS Canopy. Seat. Seat Belts. and Operators Compartment 9004
(Cab Uri-Grade Machines)
Heater 9006
Air Conditioning Troubleshooting for Systems with FNMA Refrigerant 9011
Air Conditioning Troubleshooting tor Systems with Ft-tSsiA Retrigcrant 9011
(Cab Up-Grade Machines)
Air Conditioner System Gauges and Testing tor Systems with R.134A 9012
Reingcrant
Air Conditioner System Gauges and Testing for Systems with R-tSdA 9012
Reingerant (Cab Up-Grade Machines)
Air Conditioner System Service tor Systems with R-134A Retrigerant
Reingerant Recovery. Compressor Removal and 9m 3
System Evacuation and Recharging
Air Conditioner System Service tor Systems with FI-134A Reirigerant
Reirigerant Recovery. Compressor Removal and 9013
System Evacuation and Recharging (Cab Up-Grade Machines)
Air Conditioner Component Service ior Systems with R-ladA Fieirigorani 9014
Air Conditioner Component Service for Systems with R-tadA Refrigerant 9014
(Cab Up-Grade Machines)

Schematic Set
Hydraulic and Electrical Schematic Foldout In Rear Pocket
Hydraulic and Electrical Schematic Feidout
(Tier 3 Cab Up-Grade and Pilot Control Machines] in Rear PM

PLEASE NOTE:

⦁ This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
⦁ This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
⦁ Require some other service manual or have any queries: please WRITE to us at [email protected]
