Case SV208 SV210 SV212 & SV216 Vibratory Rollers Operator’s Manual – PDF DOWNLOAD

Description

Case SV208 SV210 SV212 & SV216 Vibratory Rollers Operator’s Manual – PDF DOWNLOAD

DESCRIPTION:

Case SV208 SV210 SV212 & SV216 Vibratory Rollers Operator’s Manual – PDF DOWNLOAD

This manual contains important information concerning safety in operation, adjustment and maintenance of your machine. Use the detailed alphabetical index at the end of the manual to find what you are looking for. Use this manual as a guide; your machine is a working tool and you will always be able to count on it, as long as it is correctly maintained.

• Do not use the machine and prevent anyone else from using or servicing the machine before (you yourself or other people) being fully aware of the instructions given in this manual concerning safety, operation and maintenance. Use only operators who have proved their ability to operate and maintain this machine in a correct, safe manner.
• This machine with its type approved attachments and accessories is intended to carry out compacting operations of a medium or large extent, such as the construction of highways, railways, airport areas, industrial areas, etc. Do not use this machine for applications other than those shown in this manual.
• Consult your Dealer for any information concerning changes, additions or modifications which have to be carried out on this machine to ensure that these are in compliance with the regulations and safety rules of various countries. Any unauthorized modification could cause serious or fatal injury.
• Any person carrying out such modifications is entirely responsible for the consequences. This operator’s manual must be kept in the “manual” compartment provided for that purpose on this machine.
• Make sure that the manual is in good condition. To obtain additional manuals or to obtain other information concerning this machine, consult your Dealer. Your Dealer can provide you with genuine parts and has specially trained technicians who know the best methods for repair and maintenance of your machine.

TABLE OF CONTENTS:

Case SV208 SV210 SV212 & SV216 Vibratory Rollers Operator’s Manual – PDF DOWNLOAD

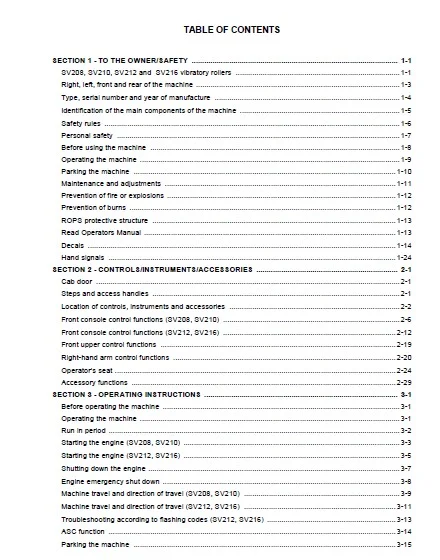

SECTION 1 – TO THE OWNER/SAFETY ……………………………………………………………………………………… 1-1
SV208, SV210, SV212 and SV216 vibratory rollers …………………………………………………………………….1-1
Right, left, front and rear of the machine …………………………………………………………………………………….. 1-3
Type, serial number and year of manufacture …………………………………………………………………………….. 1-4
Identification of the main components of the machine ………………………………………………………………….. 1-5
Safety rules ……………………………………………………………………………………………………………………………. 1-6
Personal safety ………………………………………………………………………………………………………………………. 1-7
Before using the machine ………………………………………………………………………………………………………… 1-8
Operating the machine …………………………………………………………………………………………………………….. 1-9
Parking the machine ………………………………………………………………………………………………………………1-10
Maintenance and adjustments …………………………………………………………………………………………………1-11
Prevention of fire or explosions ………………………………………………………………………………………………..1-12
Prevention of burns ……………………………………………………………………………………………………………….. 1-12
ROPS protective structure ………………………………………………………………………………………………………1-13
Read Operators Manual …………………………………………………………………………………………………………. 1-13

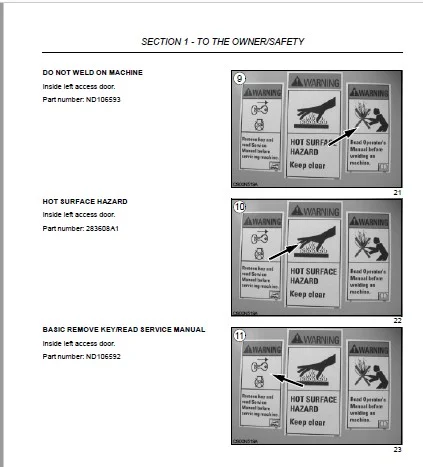

Decals ………………………………………………………………………………………………………………………………….1-14
Hand signals …………………………………………………………………………………………………………………………1-24
SECTION 2 – CONTROLS/INSTRUMENTS/ACCESSORIES ………………………………………………………….. 2-1
Cab door ……………………………………………………………………………………………………………………………….. 2-1
Steps and access handles ……………………………………………………………………………………………………….. 2-1
Location of controls, instruments and accessories ………………………………………………………………………. 2-2
Front console control functions (SV208, SV210) …………………………………………………………………………. 2-6
Front console control functions (SV212, SV216) ……………………………………………………………………….. 2-12
Front upper control functions …………………………………………………………………………………………………..2-19
Right-hand arm control functions ……………………………………………………………………………………………..2-20
Operator’s seat ………………………………………………………………………………………………………………………2-24
Accessory functions ……………………………………………………………………………………………………………….2-29
SECTION 3 – OPERATING INSTRUCTIONS ………………………………………………………………………………… 3-1
Before operating the machine …………………………………………………………………………………………………… 3-1
Operating the machine …………………………………………………………………………………………………………….. 3-1
Run in period ………………………………………………………………………………………………………………………….. 3-2
Starting the engine (SV208, SV210) ………………………………………………………………………………………….. 3-3
Starting the engine (SV212, SV216) ………………………………………………………………………………………….. 3-5
Shutting down the engine …………………………………………………………………………………………………………. 3-7
Engine emergency shut down …………………………………………………………………………………………………… 3-8
Machine travel and direction of travel (SV208, SV210) ………………………………………………………………… 3-9
Machine travel and direction of travel (SV212, SV216) ………………………………………………………………. 3-11
Troubleshooting according to flashing codes (SV212, SV216) ……………………………………………………..3-13
ASC function …………………………………………………………………………………………………………………………3-14
Parking the machine ………………………………………………………………………………………………………………3-15
TABLE OF CONTENTS
Operating instructions (continued)
Tilting the operator’s compartment and hood ……………………………………………………………………………..3-16
Tilting the operator’s compartment and hood using the electric hydraulic system ……………………………3-19
Driving the machine on rough ground ……………………………………………………………………………………….3-22
ROPS frame removal and installation ……………………………………………………………………………………….3-23
Cab removal and installation ……………………………………………………………………………………………………3-24
Adapting the smooth drum for tamping compaction …………………………………………………………………….3-25
Machine articulation locking …………………………………………………………………………………………………….3-29
Transporting the machine ………………………………………………………………………………………………………..3-31
Handling the machine ……………………………………………………………………………………………………………..3-33
Towing the machine ……………………………………………………………………………………………………………….3-34
Filling the tires with liquid ballast ………………………………………………………………………………………………3-38
Operating the machine in special conditions ………………………………………………………………………………3-41
Dozer blade …………………………………………………………………………………………………………………………..3-43
SECTION 4 – SERVICING INTERVALS/LUBRICATION/FLUIDS …………………………………………………….. 4-1
Servicing intructions …………………………………………………………………………………………………………………4-1
Hourmeter ……………………………………………………………………………………………………………………………….4-1
Servicing interval table ……………………………………………………………………………………………………………..4-2
Fluids and lubricants …………………………………………………………………………………………………………………4-4
Fluid and lubricant specifications ………………………………………………………………………………………………..4-6
Fluid and lubricant capacities …………………………………………………………………………………………………….4-6
Environment ……………………………………………………………………………………………………………………………4-6
Grease points ………………………………………………………………………………………………………………………….4-7
Levels …………………………………………………………………………………………………………………………………..4-11
Engine ………………………………………………………………………………………………………………………………….4-15
Cooling system ………………………………………………………………………………………………………………………4-17
Fuel system …………………………………………………………………………………………………………………………..4-20
Air filter …………………………………………………………………………………………………………………………………4-26
Hydraulic system ……………………………………………………………………………………………………………………4-32
Drum …………………………………………………………………………………………………………………………………….4-40
Transmission …………………………………………………………………………………………………………………………4-42
Planetary reduction gears ………………………………………………………………………………………………………..4-44
SECTION 5 – MAINTENANCE/ADJUSTMENTS ……………………………………………………………………………. 5-1
Warning and control devices ……………………………………………………………………………………………………..5-1
Engine fan ………………………………………………………………………………………………………………………………5-3
Crankcase breather tube (SV208, SV210) …………………………………………………………………………………..5-3
Engine alternator and fan belt ……………………………………………………………………………………………………5-4
Tires and wheels ……………………………………………………………………………………………………………………..5-6
Engine air intake system …………………………………………………………………………………………………………..5-8
TABLE OF CONTENTS
Maintenance/Adjustments (continued)
Radiator and oil cooler …………………………………………………………………………………………………………….. 5-8
Shock absorbers/Mounting blocks …………………………………………………………………………………………….. 5-9
Engine valve clearance (SV208, SV210) ………………………………………………………………………………….. 5-11
Engine valve clearance (SV212, SV216) ………………………………………………………………………………….. 5-14
Operator’s compartment and engine hood tilting system strainer ………………………………………………….5-17
Drum vibration frequency ………………………………………………………………………………………………………..5-18
Vibration shock absorber ………………………………………………………………………………………………………..5-19
Cleaning the machine …………………………………………………………………………………………………………….5-19
Operator’s compartment intake air dust filter …………………………………………………………………………….. 5-20
Air-conditioning ……………………………………………………………………………………………………………………..5-21
Scrapers ……………………………………………………………………………………………………………………………….5-23
Hardware torque specifications ………………………………………………………………………………………………..5-24
Engine troubleshooting …………………………………………………………………………………………………………..5-25
SECTION 6 – ELECTRICAL SYSTEM ………………………………………………………………………………………….. 6-1
Fuses ……………………………………………………………………………………………………………………………………. 6-1
Batteries ………………………………………………………………………………………………………………………………… 6-3
Booster batteries …………………………………………………………………………………………………………………….. 6-5
SECTION 7 – STORAGE …………………………………………………………………………………………………………….. 7-1
Storing the machine ………………………………………………………………………………………………………………… 7-1
SECTION 8 – SPECIFICATIONS …………………………………………………………………………………………………. 8-1
SV208 – SV210 specifications …………………………………………………………………………………………………… 8-1
SV212 – SV216 specifications …………………………………………………………………………………………………… 8-7
SECTION 9 – ALPHABETICAL INDEX ………………………………………………………………………………………… 9-1
